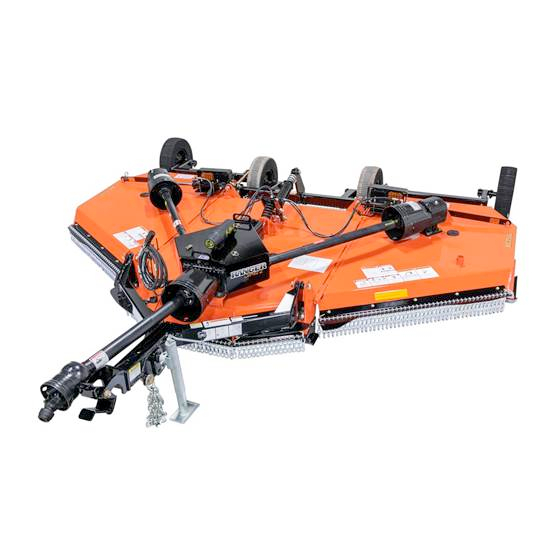

Rotary Cutters
RC2512 Series 2 S/N 945551+
37522
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
330-725M
Operator's Manual
Printed 10/7/21

Advertisement

Table of Contents
loading

Related Manuals for Land Pride RC2512 Series

Summary of Contents for Land Pride RC2512 Series

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 10/7/21...

  • Page 2: Machine Identification

    Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 App on your smart phone, open the App, Refer to Parts Manual QR point your phone on the QR code and Locator on this page for take a picture. detailed instructions. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 5: Safety At All Times

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a potential hazard assurance against an accident.
  • Page 6  Replace parts on this implement using the correct tools and follow all shutdown procedures equipment. with genuine Land Pride parts only. before leaving the operator’s seat to Do not alter this implement in a way  Always properly match the wheel perform maintenance.

  • Page 7: Avoid High Pressure Fluids

    Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  A Slow moving power machine  Never carry riders on the tractor or structures (ROPS) and seat belt can create a hazard when driven implement.
  • Page 8 Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Avoid crystalline Silica  Be aware of and follow OSHA  If possible, change into disposable (or other local, State, or Federal) or washable work clothes at the (quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 10/7/21...

  • Page 10: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.
  • Page 11 Danger: Rotating Blades Hazard 2 Places: At the back of the left and right wings 37524 70376 818-556C Danger: Thrown Object Hazard 2 Places: At the back of the left and right wings 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 12 Danger: Rotating Driveline Entanglement Hazard 2 Places: On the right and left wing gearbox shields 73643 39050 858-558C Caution: Driveline Safety - Damage May Occur 1 Place: On the left side of the hitch frame RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 13 Danger: Guard Missing - DO NOT Operate 4 Places: On all driveline inner profiles 39050 70382 818-130C Warning: Operate with 540 rpm Power Take-off Speed 1 Place: On the left side of the hitch frame 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 14 Warning: High Pressure Fluid Hazard 1 Place: On the left side of the hitch frame 70412 39050 838-588C Warning: 20 MPH Speed Limit 1 Place: On the left side of the hitch frame RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 15 1 Place: At front of the right wing 37524 838-614C Red Reflector: 2" x 9" 2 Places: On the right and left wing locking bars 2 Places: On the right and left wing axles 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 16 Table of Contents Important Safety Information This page left blank intentionally. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 17: Using This Manual

    Land Pride dealer. For location of your serial number plate, see Figure 1. Application The RC2512 Series 2 Rotary Cutter is designed and built by Land Pride to provide excellent cutting performance on gently sloping or slightly contoured pastures and set- aside acres.

  • Page 18: Section 1: Assembly & Set-Up

    C = 13" to 20" assembly task and make the job safer by having all (33 to 51 cm) needed parts and equipment readily at hand. Ground Level Power Take-Off to Drawbar Distance Figure 1-1 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 19: Torque Requirements

    Separate transport lock bars (#1 & #2) from each 13. Repeat steps 8 and 9 for the left-hand wing transport other by removing bolt (#3). lock bar (#2) shown in Figure 1-2. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 20: Hitch Assembly

    17. Lay hose (#10) and quick release coupler on the deck down to vertical position. for attaching to the tractor later. 9. Fully insert detent pin (#12) to secure park jack (#11). 37527 Hitch and Jack Assembly Figure 1-4 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 21: Driveline Assembly

    12. Collapse driveline (#5) by pushing tractor end of driveline toward the splitter gearbox. 13. Rest driveline (#5) on driveline support saddle (#6). 14. Rotate bell door (#2) on each side of bell housing up and snap into place. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 22 5. Carefully back tractor within close proximity of necessary to permit turning. Lock chain hook clevis (#9). securely to the safety chain. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 23 4. Driveline (#5) should be moved back and forth to ensure both ends are secured to tractor and gearbox shafts. Reattach any end that is loose. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 24: Hook-Up Led Lights

    5. Check routing of wire harness (#8) to make sure they will not be pinched as the wing deck is folded and unfolded and while raising and lowering the cutter height. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 25: Remove Shipping Lugs

    Cycle cylinders back and forth several times to purge air from them. For additional details, see “Purge Hydraulic System” on page 22. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 26: Purge Hydraulic System

    Refer to “Set Transport Locks” 4. Start tractor and lower center deck and both wings on page 30. until all decks are resting on their skid shoes. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 27: Park Jack Assembly

    3. If park jack is not vertical, adjust jack angle according secure with hairpin cotter (#2). to “Park Jack Angle Alignment” on page 24. 4. Adjust height of park jack (#3) until hitch is supported by the park jack. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 28: Section 2: Adjustments

    (2.5 cm) with the front closer to the ground than base. Make sure base of park jack is level with or the back. lower than the head, especially after the wings are folded up. See cover picture for correct positioning. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 29: Level Wing Decks

    If outer wing edge is too low, loosen nut (#1) and rotate turnbuckle (#2) clockwise to raise outer wing edge until wing is level. Tighten nut (#1) against turnbuckle (#2) when level. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 30: Adjust Cutter Height

    Shutdown Procedure” on page 14. 3. Remove all stroke control spacers (#2) from center hydraulic cylinder (#1) by spreading them apart at the break line. Store spacers in a location they can be retrieved. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 31: Start-Up Checklist

    • Always disconnect the driveline from the power take-off shaft before servicing underside of cutter. The tractor can be started with the power take-off engaged. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 32: Section 3: Operating Instructions

    • Do not use implement to tow other equipment unless it is designed with a tow hitch. Doing so can result in loss of control and damage the equipment. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 33: Tractor & Cutter Inspection

    9. Check blades for a locked-up situation. Unlock blades if locked-up. 10. Check for other probable causes such as broken or bent blades, loose blades, loose gearbox mounting bolts, and bent driveline. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 34 (#3) down to cylinder pin (#4). Secure with existing hairpin cotter (#1). 6. Repeat steps 4 & 5 for the other wing section. Transport Lock, Wings Folded Up For Transport Figure 3-3 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 35: Road Side Cutting

    Use LED flashing lights on the cutter to make yourself more visible. 5. Shift tractor to a lower gear when traveling over rough or hilly terrain. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 36: Engage Blades

    This will ensure that the wing gauge wheels are in continuous contact with the ground at all times. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 37 Blades can become locked by blockages, creating the potential for blades to swing freely in a harmful manner while removing the blockages, bringing about the potential for serious injury. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 38 With a little practice you will be repairs or adjustments before continuing. pleased with what you and your Land Pride 12 ft. Rotary Make sure the tractor’s park brake is engaged, tractor’s Cutter can do.

  • Page 39: Section 4: Options & Accessories

    Section 4: Options & Accessories Hitch Types 37540 The RC2512 Series 2 cutters have two hitch options including the Land Pride Performance hitch and swivel clevis hitch. See your nearest Land Pride dealer should you want to change your hitch set-up.

  • Page 40: Tire Options

    Table of Contents Section 4: Options & Accessories Tire Options Land Pride offers tire/wheel options to best suit your application: • Laminated tires are constructed of laminated layers of solid rubber that will never go flat. • Aircraft tires are built tough to withstand the rugged use a cutter receives and to provide a smoother ride when transporting from field to field.

  • Page 41: Section 5: Maintenance & Lubrication

    Replace damaged components as needed. Order only Check all bolts and pins after using the cutter for several genuine Land Pride parts from your local Land Pride hours and on a regular basis thereafter to ensure they are dealer.
  • Page 42 (#8) with both legs bent opposite directions around the nut. 9. Replace rubber plug (#5). Blade Rotation 10. Reconnect main driveline to tractor power take-off Figure 5-2 shaft. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 43: Drivelines With Slip Clutches

    4. Start tractor and engage power take-off drive for 2-3 35965 seconds to permit slippage of friction disks. Spring Length Figure 5-4 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 44: Clutch Inspection

    3. Replace wheel rims and tires as needed with 6. Pull/push on the slip clutch end of driveline to make genuine Land Pride parts. Do not loosen split rim sure it is secured to the output shaft. hardware (#1) until all air pressure in the tire has been removed.

  • Page 45: Wing Skid Shoe

    Two skid shoes are mounted on the center section and one skid shoe is mounted on each wing section. Check all skid shoes for wear and replace if necessary. Order only genuine Land Pride parts from your local Land Pride dealer. Center Deck Skid Shoes...

  • Page 46: Long Term Storage

    4. Repaint parts where paint is worn or scratched to prevent rust. Ask your Land Pride dealer for aerosol touch-up paint. They are also available in touch-up bottles with brush, quarts, and gallon sizes by adding TU, QT, or GL to the end of the aerosol part number.

  • Page 47: Lubrication Points

    1 - Zerk per wheel (zerk can be on either side as shown) Type of Lubrication: Multi-Purpose Grease Quantity = 2 pumps 26537 Hitch Pivot Points 2 - Zerks Type of Lubrication: Multi-Purpose Grease Quantity = As required 37536 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 48: Adjustable Turnbuckle

    4 - Zerks (2 - zerks per axle) Type of Lubrication: Multi-Purpose Grease Quantity = As required 37537 Adjustable Turnbuckle Oil threads Type of Lubrication: Multi-Purpose oil lube Quantity = As required 37537 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 49: Gearbox Lubrication

    Reinstall and tighten oil level plug and oil fill/vent plug. Type of Lubrication: 80-90W EP Quantity = Fill until oil begins to flow out oil level plug hole in gearbox. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 50: Intermediate Driveline Joints

    Zerk located through slot in plastic outer tubes Conventional Driveline Profile Tubes Type of Lubrication: Multi-purpose Grease Quantity = Coat Generously 37516 Conventional Driveline Joints Type of Lubrication: Multi-purpose Grease 30637 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 51 After lubrication, grease should be visible around the ball joints. • Grease fittings located on the u-joints should be lubricated every 8 hours of operation. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 52 3. Refer to Figure 5-14: Pull back on driveline shielding Steps 1 to 6 can be repeated to lubricate universal until CV joint is exposed. joint on opposite end of driveline. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 53: Section 6: Specifications & Capacities

    4 - Wheels: 2 on transport axle and one on each wing axle Transport axle Spring-cushioned lift cylinder Signal lights 7 Pin connector SAE J560 pin configuration Hubs Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" (4.4 cm) shafts. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...
  • Page 54 Center Deck Cutting Blade 1 1/2" (3.8 cm) Off The Ground 157" (3.99 m) 5 1/4" (13.3 cm) 153" (3.89 m) 37538 Dimensions Shown With Center Deck Cutting Blade 1 1/2" (3.8 cm) Off The Ground RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 55: Section 7: Features & Benefits

    Section 7: Features & Benefits RC2512 Series 2 Features Benefits Surpassed rugged industry All Land Pride Cutters have been designed and tested and meet rigorous voluntary standards testing procedures according to ISO 4254-13. Factory assembled Saves customer set-up time and money.

  • Page 56: Section 8: Troubleshooting

    Tighten shaft nut to specified torque. tight Loose blade carrier Running loose in the past Replace gearbox bearings and / or shaft. Blade carrier bent Hitting solid objects Avoid hitting solid objects. RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...
  • Page 57 Increase power take-off speed to 540. full speed Blades have unequal weight Replace each pair of blades on affected carrier. Wing cylinder movement too slow Orifice is plugged Remove elbow fitting and unplug orifice. 10/7/21 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M...

  • Page 58: Section 9: Torque Values & Tire Inflation

    85 ft-lbs (115 Nm) Blade Bolt Locknut 450 ft-lbs (610 Nm) Blade Carrier Hub Nut 450 ft-lbs (610 Nm) minimum Tire Inflation Chart Tire Size Inflation PSI 20.5" x 6.75” - 10 RC2512 Series 2 S/N 945551+ Rotary Cutters 330-725M 10/7/21...

  • Page 59: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 60 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
