Summary of Contents for Selkirk Chardonnay

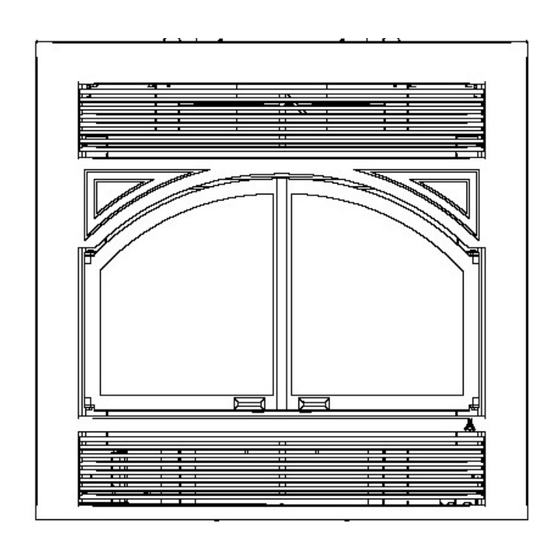

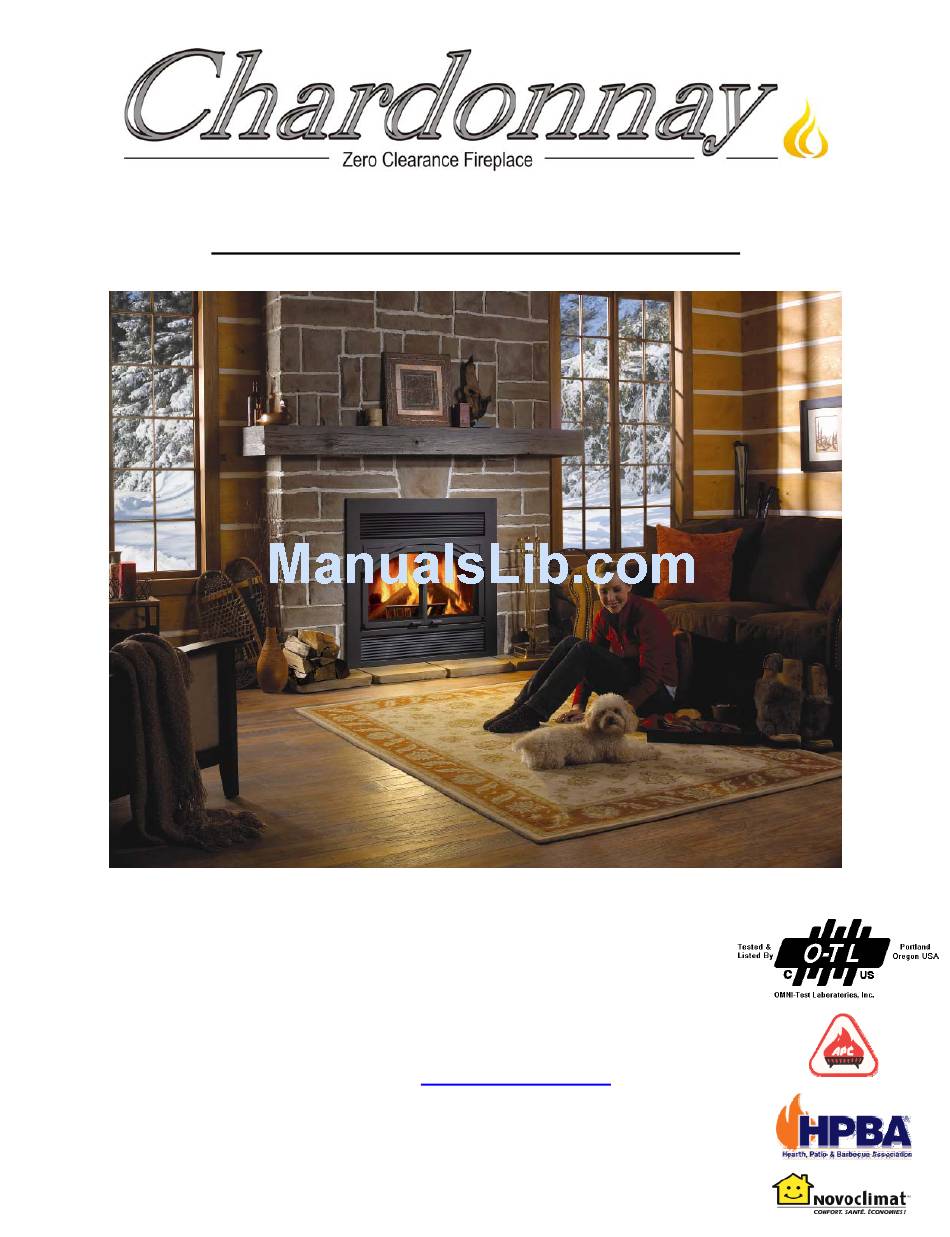

- Page 1 PREFABRICATED WOOD-BURNING FIREPLACE INSTALLATION AND OPERATION MANUAL Keep this manual for future reference Standards: ULC-S610 UL-127 E.P.A. Standards Exempt Revised: June 2009 Web Site: www.maxfireplaces.com...
-
Page 2: Table Of Contents
Creosote ........................... 19 Chimney Fire Safety Procedures ..................... 19 MAINTENANCE ......................... 19 Replacing Glass ........................20 Replacing Chardonnay Refractory Brick ................20 TROUBLESHOOTING ....................... 21 HEAT DISTRIBUTION SYSTEMS ................... 22 Gravity Air Distribution Kit ....................22 Forced Air Distribution Kit ..................... 23 WARRANTY .......................... -
Page 3: Introduction
INTRODUCTION This manual contains all the information required for safe, efficient installation and use of your Chardonnay fireplace. Read carefully all the instructions contained herein and keep this manual handy so you may refer to it whenever necessary. Before starting to install the fireplace, consult local authorities to obtain a construction permit and learn about all applicable regulatory requirements. -
Page 4: Installation
INSTALLATION The Chardonnay fireplace is designed and approved for installation with the following brands of chimneys measuring 7” (178 mm) in diameter as well as a minimum of 15’ (4.6 m) and maximum of 45’ (13.7 m) in height. CANADA Selkirk, Sentinel(CF);... - Page 5 Figure #2: Various Fireplace Locations Figure #3: Possible Chimney Configurations Figure #4: Fireplace Framing...
-
Page 6: Fireplace Installation
FIREPLACE INSTALLATION The table below shows the minimum chimney height requirements, fireplace included, according to the number of elbows: Chimney Number of Elbows Minimum Height Straight installation --------------- 15’ (4.6 m) 1 - 15° offset 2 - 15° elbows 15’ (4.6 m) 2 - 15°... -
Page 7: Electrical Installation Instructions For Optional Blower
Using an adjustable collar or aluminum duct tape, attach the flexible duct to the adaptor. 14. Chardonnay fireplaces may be equipped with an optional blower with an automatic or manual switch located behind the lower louver at your right. When switch is place on auto, the blower will activate when fireplace reaches minimum starting temperature 43°C (110°F). - Page 8 USING A DECORATIVE GAS APPLIANCE. THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED GAS LOG APPLIANCE. TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT INSTALL A GAS LOG APPLIANCE WITHOUT A VENT PIPE. Figure #6: Chardonnay Fireplace and Hearth Extension Positioning...
-
Page 9: Chimney Installation
5. The connector parts are not necessary if the connection between the insulated length and the stainless steel liner is done within the masonry chimney. CANADA Selkirk, Sentinel(CF); SuperPro 2100(ALT); Selkirk, Ultra-Temp(UT); Sure-Temp(ST); SuperVent 2100 (JM), SuperPro(SPR), Ultra- SuperPro(SPR), SuperVent(JSC); Hart&Cooley(TLC) - Page 10 Installation The chimney must be relined with a stainless steel liner (rigid or flexible) listed liner or flexible liner to ULC-S635, ULC-S640 or UL777 of the same diameter as the outlet of the fireplace. Follow these steps: 1. Position the fireplace in its location. Temporarily install the elbow on the top of the fireplace and, using a level, mark with an oval the location where the flue liner will enter the masonry chimney.
- Page 11 Figure #7: Minimum Chimney Height...
-
Page 12: Masonry Chimney Installation
Figure #8: Masonry Chimney Installation... - Page 13 Figure #10: Straight Chimney Installation Figure #11: Chimney Installation with Elbows Figure #12: Chimney Installation through an Exterior Wall Figure #13: Isolated Chase Chimney Installation...
-
Page 14: Fireplace Finish
FIREPLACE FINISH 1. Combustible materials can be used to finish the fireplace. The framing can be built directly on the sides of the appliance. (Figure #17) 2. Side walls can exceed the appliance’s face by a maximum of 6” (152 mm). (Figure #14) 3. - Page 15 Figure #15: Chimney Enclosure Chimney enclosure : USA and Canada Chimney enclosure : Canada only...
- Page 16 Figure #16a: Mantel Positioning...
- Page 17 Figure 16b : Combustible materials positioning A : 48 in. B : Radius of 84 in. C : 84 in. Min.
- Page 18 Figure #17: Installation of Fireplace Facing...
-
Page 19: Use And Safety
DO NOT OVERHEAT 8. Use the grate made by Selkirk. Burn only the quantity of combustible it can contain. Do not burn garbage, painted wood or wood that has been exposed to salt water. -
Page 20: Creosote
CREOSOTE When wood burns slowly, it produces tar and other organic vapors which combines with humidity to produce creosote. Creosote vapor condenses in the chimney left relatively cool by the slow fire and coats the inside of the flue with residue. When creosote ignites, it produces a red-hot, extremely dangerous fire. It is therefore recommended to make small, brightly burning fires rather than lazy, smoldering fires. -
Page 21: Replacing Glass
5. Handle the glass with care to avoid injury. 6. Allow to dry for 24 hours. NOTE: Never use substitute parts. Use only Selkirk brand parts. REPLACING FIREBRICK IN AN CHARDONNAY FIREPLACE Do not use the fireplace with a broken or missing firebrick. -
Page 22: Troubleshooting
A properly installed Chardonnay fireplace should never smoke. If it does, it will probably be for one of the following reasons: 1. -
Page 23: Heat Distribution Systems
HEAT DISTRIBUTION SYSTEMS Figure #19: Heat Distribution Options GRAVITY VENT KIT The Gravity Vent Kit (MAX-GVK) may be used to heat rooms located above, behind and either side of the room where the fireplace is located. Note that, if the hot air outlets are located at various levels, the heat will tend to seek the one at the highest level. -
Page 24: Forced Air Kit
FORCED AIR KIT The Forced Air Kit (MAX-FAK) can be used to heat adjacent rooms or lower floor located up to 50’ (15.2 m) from your Selkirk Fireplace. Only 6” (15cm) flexible isolated duct can be use for this installation. (Figure #20) If the fan is installed with a rheostat, the operation is manually control. - Page 25 ATTENTION: The connection to an existing duct must follow the direction of the furnace’s airflow and be equipped with a back draft damper. (Figure #21) Both alternatives require electrical power. Make sure all electrical connections are made in the correct order and comply with local regulations as well as the applicable National Building Code standards.
