Model ZCI-25/1300
GAS FIREPLACE INSERT
Homeowner and Installation Manual
This Manual contains important details concerning:
• Installation
• Replacement Parts
THIS APPLIANCE IS CERTIFIED TO ANSI Z21.50/CGA 2.22.1998
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THIS APPLIANCE
PLEASE ENSURE THAT THIS MANUAL REMAINS WITH THE APPLIANCE
f i r e - p a r t s . c o m
WARNING: If the information in these instructions are not followed exactly, a fire or ex-
plosion may result causing property damage, personal injury or loss of life
- Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Open windows/extinquish all flames.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
SELKIRK CANADIAN OPERATIONS
P.N. 1069800 Rev. 11/00
• Operation
VENTED GAS FIREPLACE HEATER
• Trouble Shooting
This product may be installed in factory built fireplaces which
meet the minimum opening size of 14" deep by 28" wide by
16
/
" high.
1
2
CAUTION - Do not make any modifications to factory built
fireplace or block cooling air circulation ducts: Fire, Injury or
Death could result.
• Maintenance
.
Advertisement
Table of Contents
Related Manuals for Selkirk ZCI-25/1300
Summary of Contents for Selkirk ZCI-25/1300

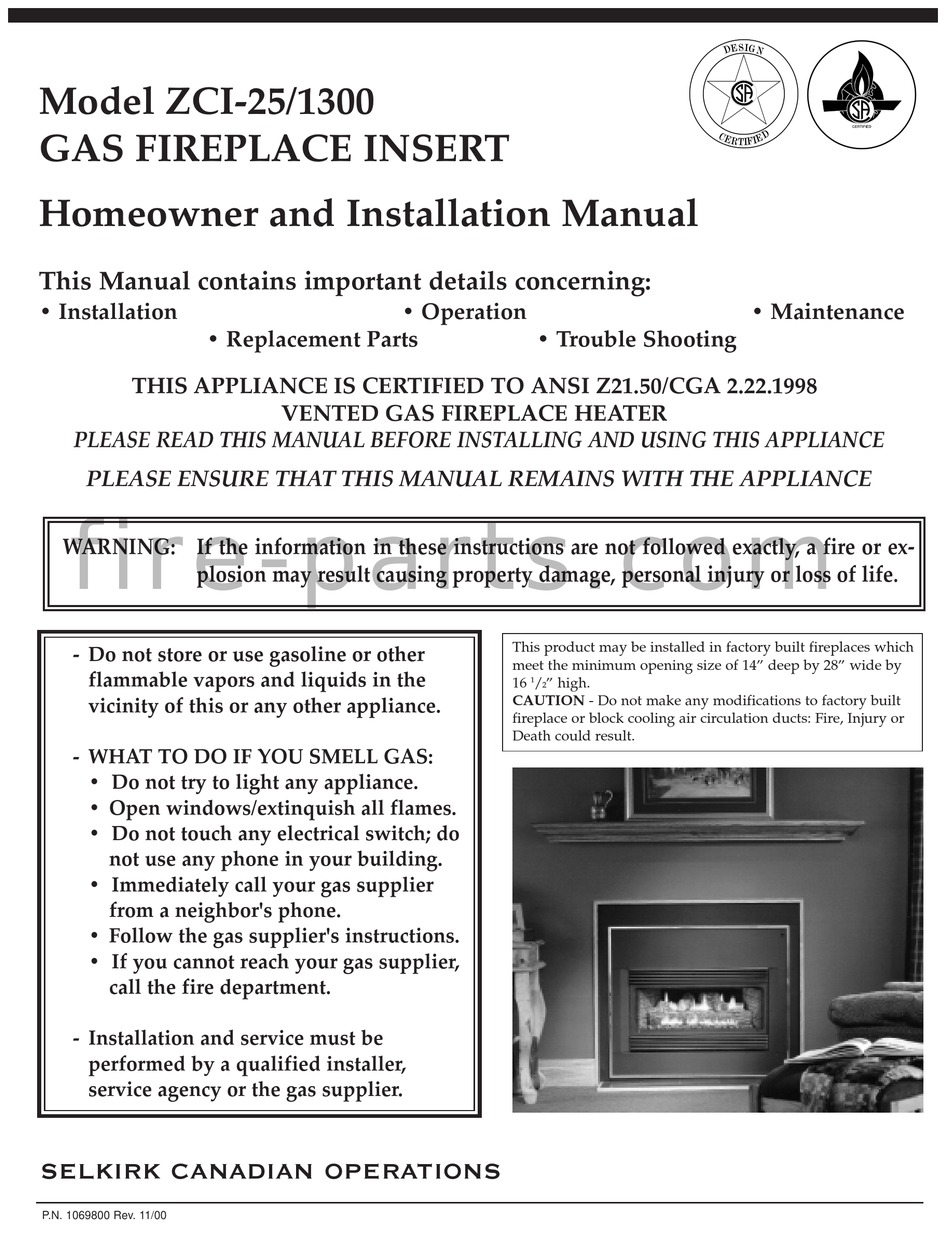

- Page 1 Model ZCI-25/1300 GAS FIREPLACE INSERT Homeowner and Installation Manual This Manual contains important details concerning: • Installation • Operation • Maintenance • Replacement Parts • Trouble Shooting THIS APPLIANCE IS CERTIFIED TO ANSI Z21.50/CGA 2.22.1998 VENTED GAS FIREPLACE HEATER PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THIS APPLIANCE PLEASE ENSURE THAT THIS MANUAL REMAINS WITH THE APPLIANCE f i r e - p a r t s .
-
Page 2: For Your Safety
(licensed gas fitter). The appliance should be inspected before use and at least annually Model ZCI-25/1300 Gas Insert comes assembled with glass by a qualified service person. More frequent cleaning front. Remove all packaging materials around glass before may be required due to excessive lint from carpeting, operation of appliance. -
Page 3: General Installation
GENERAL INSTALLATION This appliance is designed for installation in any approved solid fuel burning appliance. Two front finishing surrounds are available to accommodate a wide range of fireplace openings as listed below: Small Trim Kit A Large Trim Kit B Minimum Depth 14”... -
Page 4: Specifications
SPECIFICATIONS GAS LINE CONDUIT INSTALLATION Natural Gas FOR FACTORY BUILT FIREPLACES Input* - 25,000 BTU/HR Max (For units equipped with gas line knock-outs. These units - 17,000 BTU/HR Min have a circular knock-out in the side refractory brick). Gas Manifold Pressure - 3.5”... - Page 5 VENTING As with any natural drafted appliances, the vent cap must always extend a minimum of 2’ above any struc- THIS GAS APPLIANCE MUST HAVE ITS OWN VENT. DO ture within a 10’ horizontal plane. NOT INTERCONNECT IT WITH ANY OTHER APPLIANCE. •...
-
Page 6: Factory Built Fireplaces
Temporarily secure the flue collar to the top of the ly approved with this appliance may result in property Selkirk 3620, resting the far side of the flue collar on damage or personal injury. the rear refractory liner. - Page 7 CHECKING PROPER VENT ACTION g. Remove the screw from the flue collar, guiding the flue collar into the back slot. Periodically check for proper vent action and at least annually inspect venting system for any blockage. h. Resecure the flue collar with the mounting screw. 1.
- Page 8 SUB-FRAME ASSEMBLY FOR MASONRY INSTALLATIONS Unpackage all parts. Remove plastic protective covering from any brass parts. Lay parts to be assembled face down on a carpeted or blanketed floor. Take care not to scratch parts. NOTE: Side parts are interchangeable from left to right. Install nuts and bolts as shown in figure below.
-
Page 9: Trim Kit Installation
SUB-FRAME ASSEMBLY FOR FACTORY BUILT FIREPLACES (SELKIRK 3620) Unpackage all parts. Lay parts to be assembled face down on a carpeted or blanketed floor. Take care not to scratch parts. NOTE: Side parts are interchangeable from left to right. Install nuts and bolts as shown in figure below. -
Page 10: Glass Removal /Installation
Also, included is a package of material to provide the look of glowing coals or ashes. Do not use any materials not approved by Selkirk for flame enhancement. 1. Remove the two (2) screws in the glass frame. 2. Tilt the bottom edge of the glass outward and lift glass up Remove all packaging materials from logs and from and off firebox. -
Page 11: Optional Blower Operation
OPTIONAL BLOWER OPERATION BLOWER REMOVAL INSTRUCTIONS The optional blower installed on this unit is thermostati- 1. Turn off gas and electricity to fireplace. cally controlled to turn on and off automatically for opti- 2. Remove the glass front. mum performance. 3. -
Page 12: Lighting Instructions
FOR UNITS EQUIPPED WITH S.I.T. 820 VALVES FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. DUE TO HIGH SURFACE TEMPERATURES, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. -
Page 13: Primary Air Adjustment
ANY ITEMS WHICH MAY BE REQUIRED ARE 0.375" AVAILABLE THROUGH YOUR LOCAL SELKIRK DEALER. TO LOCATE YOUR DEALER, CALL ONE OF THE FOLLOWING TELEPHONE NUMBERS. SELKIRK CANADIAN OPERATIONS 1400 California Avenue P.O. Box 160 Brockville, Ontario K6V 5V3 (613) 342-6655 or (800) 267-8178 SELKIRK CANADIAN OPERATIONS P.O. -
Page 14: Max Length
BURNER ON/OFF SWITCH INSTALLA- INITIAL BURNING TION INSTRUCTIONS PLEASE NOTE RN & RP VALVE ONLY It is normal for your unit to give off some odor the first time it is burned. This is due to the cur- This unit comes pre-wired from the factory for ing of the paint and any undetected oil from the connection of the burner on/off switch. - Page 15 REPLACEMENT PARTS – MODEL ZCI-25/1300 GAS INSERT Part # Part # Part # 1. Ceramic Log Set 5. Pilot Assembly NG 4748711 10. Grille Bottom 4748903 Front Only Pilot Assembly LP 4748712 11. Grille Top Back Only 6a. Main Burner Orifice NG 12.
-
Page 16: Troubleshooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM PROBLEM TEST SOLUTION White / grey film forms. Sulphur from fuel is being deposited • Clean the glass with a recommended gas glass on glass, logs or combustion cham- cleaner or a non-abrasive ammonia or vinegar ber surfaces. - Page 17 TROUBLE SHOOTING GUIDE SYMPTOM PROBLEM TEST SOLUTION Pilot goes out when the System is not correctly purged. • Purge the gas line. gas knob is released. Out of propane gas. • Fill the tank. Pilot flame is not large enough. •...
- Page 18 Upon receipt of a written claim under this limited warranty and evidence of the date of purchase or installation, at our option and in our sole discretion, we will either repair or replace the product with a Selkirk product of the same or similar type and size;...
- Page 19 - p a r t s . c o m WARRANTY REGISTRATION Please register your Fireplace with the Manufacturer. Mail to: Selkirk Canadian Operations, Warranty Registration, P.O. Box 526, Depot 1, Hamilton, ON L8L 7X6 or Fax: (905) 662-5352...
- Page 20 NOTES: f i r e - p a r t s . c o m SELKIRK CANADIAN OPERATIONS...
