Z
C
W
B
ERO
LEARANCE
OOD
URNING

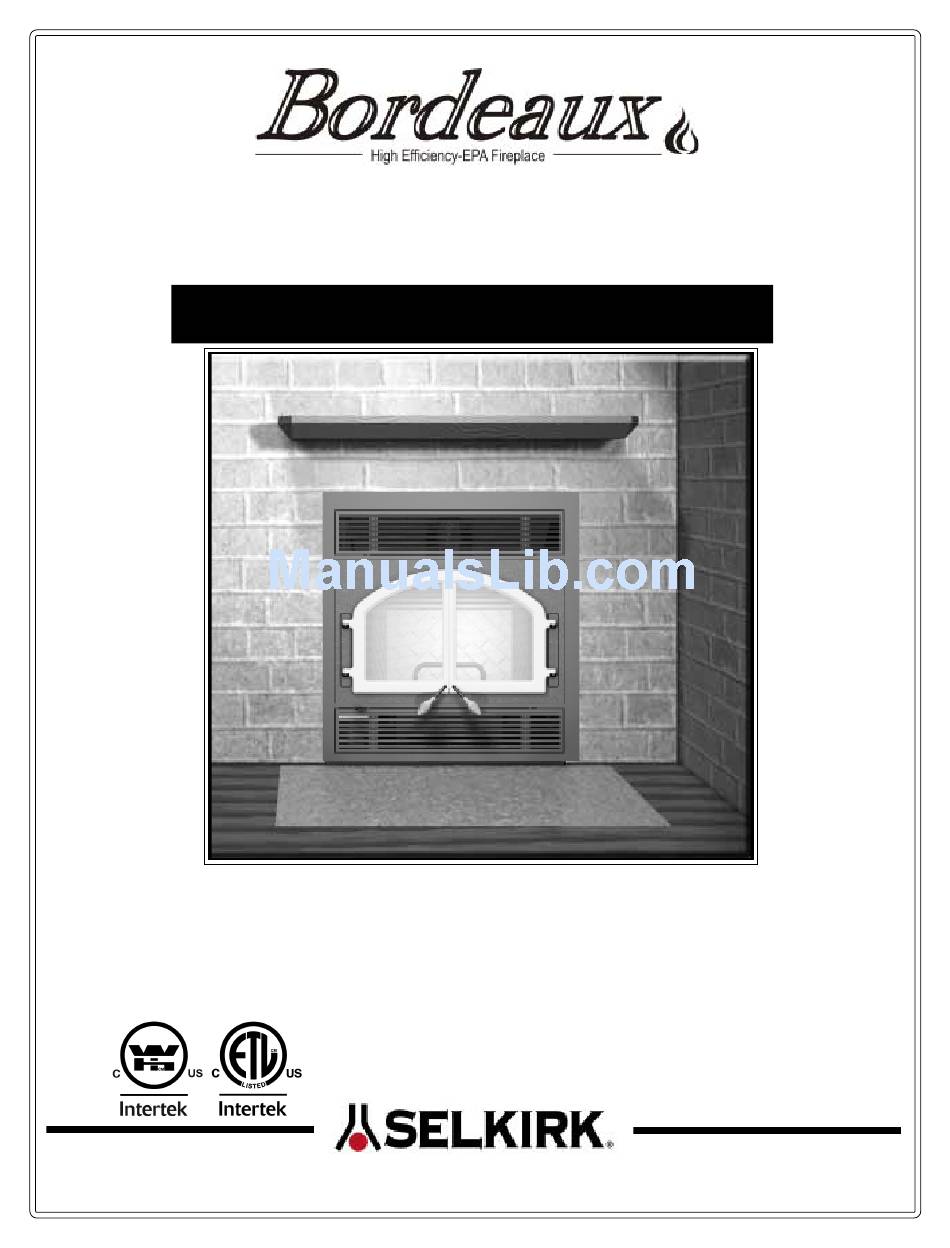

F I R E P L A C E
Installation Instructions
& User's Guide
LISTED TO ULC S610-M87 & UL127 (May 2001)
Selkirk Corporation
Selkirk Canada Corporation
5030 Corporate Exchange Blvd SE
P.O. Box 526, Depot 1
Grand Rapids, 49512
Hamilton, ON L8L 7X6
Toll Free: 1.800.992.VENT (8368)
Toll Free: 1.888.SELKIRK (735.5475)
REV 0612
P1300001
1
Advertisement
Table of Contents
Related Manuals for Selkirk Bordeaux
Summary of Contents for Selkirk Bordeaux
-
Page 1: Installation Instructions
LISTED TO ULC S610-M87 & UL127 (May 2001) Selkirk Corporation Selkirk Canada Corporation 5030 Corporate Exchange Blvd SE P.O. Box 526, Depot 1 Grand Rapids, 49512 Hamilton, ON L8L 7X6 Toll Free: 1.800.992.VENT (8368) Toll Free: 1.888.SELKIRK (735.5475) REV 0612 P1300001... -
Page 2: Table Of Contents
Exterior Chimney Installation..............................14 Roof Flashing Installation..............................15 FIREPLACE OPTIONS & FINISHES Door Options, Grilles & Installation............................16 OPERATING INSTRUCTION FOR THE BORDEAUX Fireplace Fuel................................16 First Fires and Building a Fire..............................17 Combustion Control..............................17 Accelerated Combustion, Medium Combustion, Slow Combustion................17-18 Refueling for Best Preformance.................... -
Page 3: Safety Tips -Instruction Guidelines -Precautions
14. SuperVent (Models FC, SC, SPR, JM, & ALT) and you. Selkirk (Models UT, CF & U1) Insulated chimneys in 6" or 7" diameters have been approved for use with the Bordeaux 5. Have help to install the fireplace and chimney. Avoid Fireplace, and must be installed in accordance with these back injuries, lift properly. -
Page 4: Fireplace Installation
CHARCOAL LIGHTER FLUID OR SIMILAR LIQUIDS TO START A FIRE IN THIS FIREPLACE. The BORDEAUX must be installed on a level surface capable of supporting the fireplace and the chimney. The weight of the fireplace is approximately 450 lbs. Usually, no CAUTION: YOUNG CHILDREN SHOULD BE additional flooring support is needed for the fireplace. -
Page 5: Fireplace And Hearth Installation
If a raised hearth FIREPLACE AND HEARTH INSTALLATION extension is desired, then the whole fireplace again must be Your Selkirk Fireplace has been designed to be placed directly raised accordingly. on a flat combustible floor (i.e.. Plywood). Special support... -
Page 6: Enclosing The Bordeaux
For the minimum framing dimension for a 45° corner installation see Figure 5. For general dimension of the Air Valve Stub BORDEAUX see Figure 6. Air Valve Stub V-Notch FIGURE 3a Fireplace V-Notch 578mm (22 3/4") 1411mm Air Valve Stub Air Valve Stub (55 1/2") -
Page 7: Chimney Installation Instructions
FIRESTOP JOIST SHIELD Figures 11- 14 shows the four basic types of installations most likely to be encountered when installing BORDEAUX All joist areas must be fully framed to accept a Firestop Joist fireplace system. Shield. The Ultra-Temp Firestop Joist Shield must be used at all joist levels except an open attic level. -
Page 8: Models Supervent / Superpro Chimneys
Models SuperVent / SuperPro V E N T I L A T E D R O O F F L A S H I N G STORM COLLAR R A F T E R R A D I A T I O N S H I E L D E N C L O S E D A T T I C... -
Page 9: Models Supervent 2100 / Superpro 2100 C
Models SuperVent 2100 / SuperPro 2100 Chimneys Model CF Chimney V E N T I L A T E D S T O R M S T O R M V E N T I L A T E D R O O F C O L L A R C O L L A R... -
Page 10: Model Ultra-Temp Chimney
Model Ultra-Temp Chimney S T O R M R O O F C O L L A R F L A S H I N G R A F T E R R A D I A T I O N S H I E L D E N C L O S E D A T T I C... -
Page 11: Attic Insulation Shield
FIGURE 16b upper portion. FIRESTOP JOIST SHIELD INSTALLATION (Selkirk Model Ultra-Temp) All joist areas must be fully framed to accept a Firestop Joist Shield. The Firestop Joist Shield must be used at all joist levels except an open attic level. Use 1-1/2" nails to attach it to the joists. -
Page 12: Chase Plug Installation
(SuperVent Models SC, & SPR) ELBOW INSTALLATION (SuperVent Models SC, SC-1, Ultra-Temp, SPR, ALT & CF) ATTIC INSULATION For offset installations of the 1 inch chimney (SC, SPR, C H I M N E Y S H I E L D Ultra-Temp) a maximum of 2-45°... -
Page 13: Cf Roof Support
FIRESTOP JOIST 2 NAILS SHIELD PER STRAP CHIMNEY ROOF PLATE BRACKET 303MM (12") MINIMUM CARRIAGE OFFSET BOLTS SUPPORT RADIATION DUST SHIELD FIGURE 22a FIGURE 21a OFFSET SUPPORTS (Model CF) The Offset Support is packaged with each Elbow Kits. The ROOF Offset Support can be put below a Joist Shield of the Attic BRACKET Insulation Shield. -
Page 14: Exterior Chimney Installation
I N T E R M E D I A T E FIGURE 24 WALL SUPPORT C H I M N E Y L E N G T H FIREPLACE ADAPTER FOR APPROVED SELKIRK CHIMNEY MODELS SIDE VIEW FRONT VIEW TESTED CHIMNEY FIREPLACE DIAMETER... -
Page 15: Roof Flashing Installation
See Chimney Installation Instructions on page 3. Install a raincap (Standard, or Deluxe Model for Supervent models) and lock it into place by turning it clockwise until tight or by tightening the nut and bolt of a Round Top Selkirk Model. -
Page 16: Fireplace Options & Finishes Door Options, Grilles & Installation
DOOR OPTION & INSTALLATION The BORDEAUX fireplace comes with a top and bottom The BORDEAUX offers two types of doors, a single door and black grille. To open simply pull the grille from the top down. double doors. The doors adjustment have been set at the To remove the grille(s) remove the screws and springs as per factory, additional adjustment will not be necessary. -
Page 17: First Fires And Building A Fire
The BORDEAUX fireplace has no damper. The combustion air control is used to control the burn rate of the fireplace. DON’T BURN WOOD IN FRONT OF THE GRATE This may take several minutes to influence the burn rate. -
Page 18: Refueling For Best Preformance
4.Wet Wood: Wet wood when burned, must release water stored within the wood therefore leading to more smoke and after operating the BORDEAUX with the combustion air control opened to produce a hot fire. The slow combustion creosote. Burn dry seasoned wood only. -
Page 19: Baffle Removal
BAFFLE REMOVAL Step 1. Release the Log Retainer (Figure 1) from its locked position by pushing down on the Log Retainer and sliding Front Refractory the Ash Drawer forward. Baffle Once unlocked, lift out the Log Retainer (see Figure 2). LHS Refractory Retainer Clip LHS Refractory... - Page 20 Step 5. Slide the Front Refractory Baffle towards the fire- IMPORTANT: place opening from its resting place. In a downward manner •Ensure that the Front Refractory Baffle overlaps the Back remove from the fireplace (see Figure 7). Refractory Baffle and both are snug as per Figure 11. •...
-
Page 21: Chimney Fires, What To Do In The Event Of One
Procedure of cleaning the ashes in the BORDEAUX: 1. Pull the ashpan foward until the point of resistance is DO NOT OPERATE THE FIREPLACE WITH reached. -
Page 22: Door Latch Adjustments And Glass Cleaning
To replace door gasket: PERIODICALLY ADJUST DOOR LATCH The glass door on the BORDEAUX should close securely to 1. Remove the existing gasket by grabbing an end and pulling firmly. prevent accidental opening and should close tigthly to prevent 2. Use a wire brush or the tip of a screwdriver to clean the air from leaking into the fire chamber. -
Page 23: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY: Selkirk Canada Corporation, ("we", "us", "our") warrants that each fireplace to be free from defects in material and workmanship under normal use and service for as long as the original consumer owns the system. For products installed after October 1st, 2002, for a period of Ten (10) years from original installation, we will provide replacement product with a similar or like quality of available product, free of charge excluding any installation costs. -
Page 24: Installation Information
INSTALLATION INFORMATION KEEP IN A SAFE PLACE FOR FUTURE REFERENCE MODEL OF CHIMNEY: _______________________________ MODEL OF FIREPLACE: _____________________________ SERIAL NUMBER OF FIREPLACE:____________________ INSTALLATION DATE: ______________________________ DESCRIPTION OF INSTALLATION (VENTING CONFIGURATION) _______________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ PURCHASED FROM: DEALER NAME: ________________________________ ADDRESS: ______________________________ CITY: ________________________________ PROVINCE/STATE:________________________ INSTALLED BY:...
