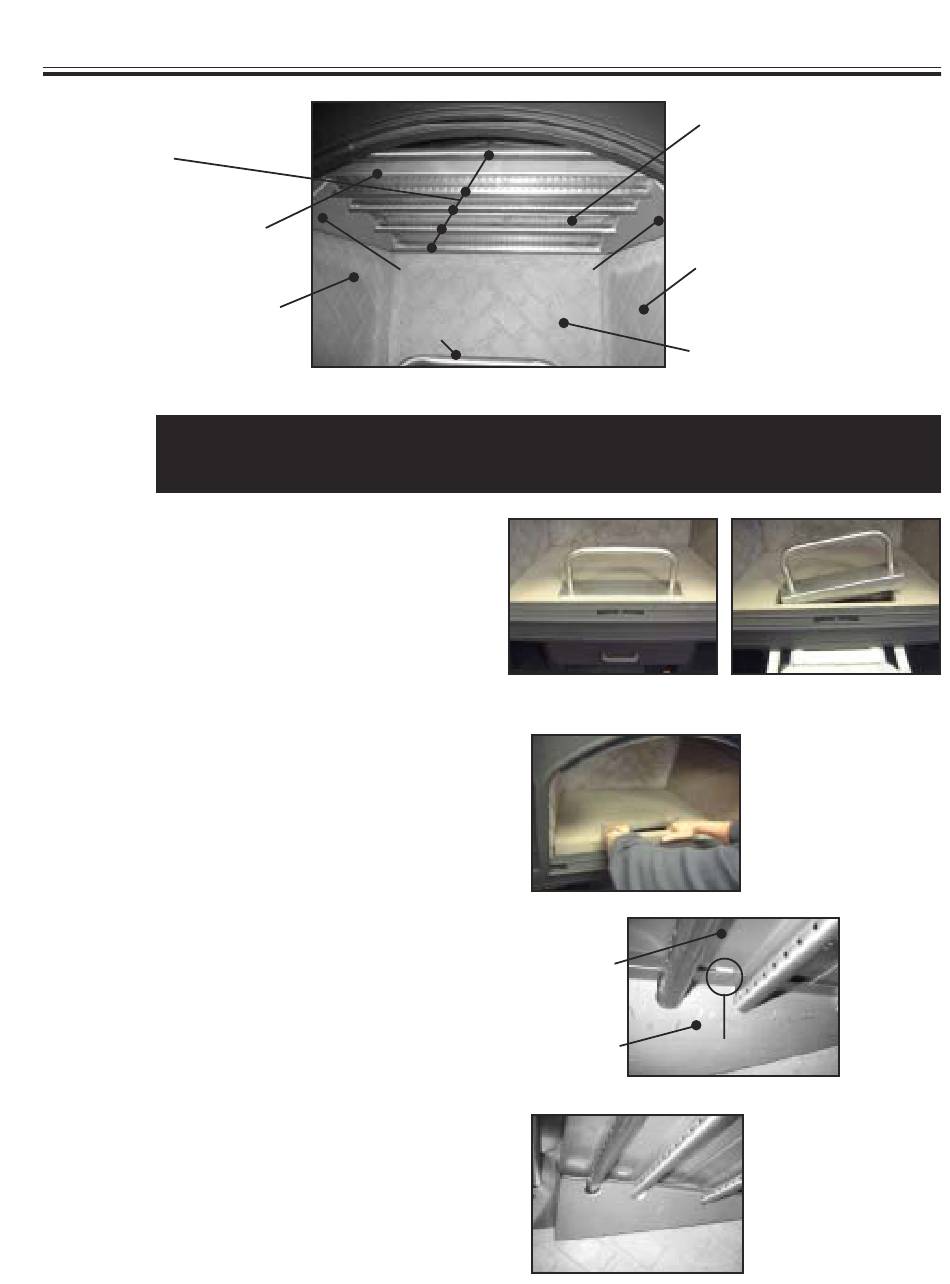

Selkirk HE40 Removal & Replacement

5 Stainless
Steel
Secondary
Air Tubes
Baffle Baffle
Left Hand
Fireplace
Refractory
ATTENTION! For a thorough cleaning or sweeping of the chimney system from
the inside of the fireplace (due to a steep roof pitch), follow Steps 1 through 9.
Step 1. Release the log retainer from its locked posi-
tion by sliding the ash drawer forward. Once unlocked,
lift out the log retainer (see Figure 2).
Step 2. Remove the bottom fireplace refractory brick (see
Figure 3).
Step 3. Remove the right and left support angles by push-
ing upward against the side at the top (with the head of a
screwdriver) until the flange clears the lanced tab (see Fig-
ure 4a). You can also push up on the front baffle to release
the tension on the support angle.
Figure 4b shows the unclipped left hand side support angle.
Once unclipped, remove both support angles from the air
tubes.
HE40 Secondary Burn System
REMOVAL & REPLACEMENT
Front Front
Left & Right Support Angles
Side
Log Retainer
FRONT VIEW OF THE INSIDE OF THE HE40 FIREPLACE
Rear
Baffle
Right
Hand Side
Fireplace
Refractory
Rear
Fireplace
Refractory
FIGURE 1
Log Retainer
Front
Baffle
LHS
Lance Tab
Support
Angle
FIGURE 2
Log Retainer and Ash Pan
FIGURE 3
Bottom Refractory
FIGURE 4a
Lance Tab
FIGURE 4b
Unclipped Tab
