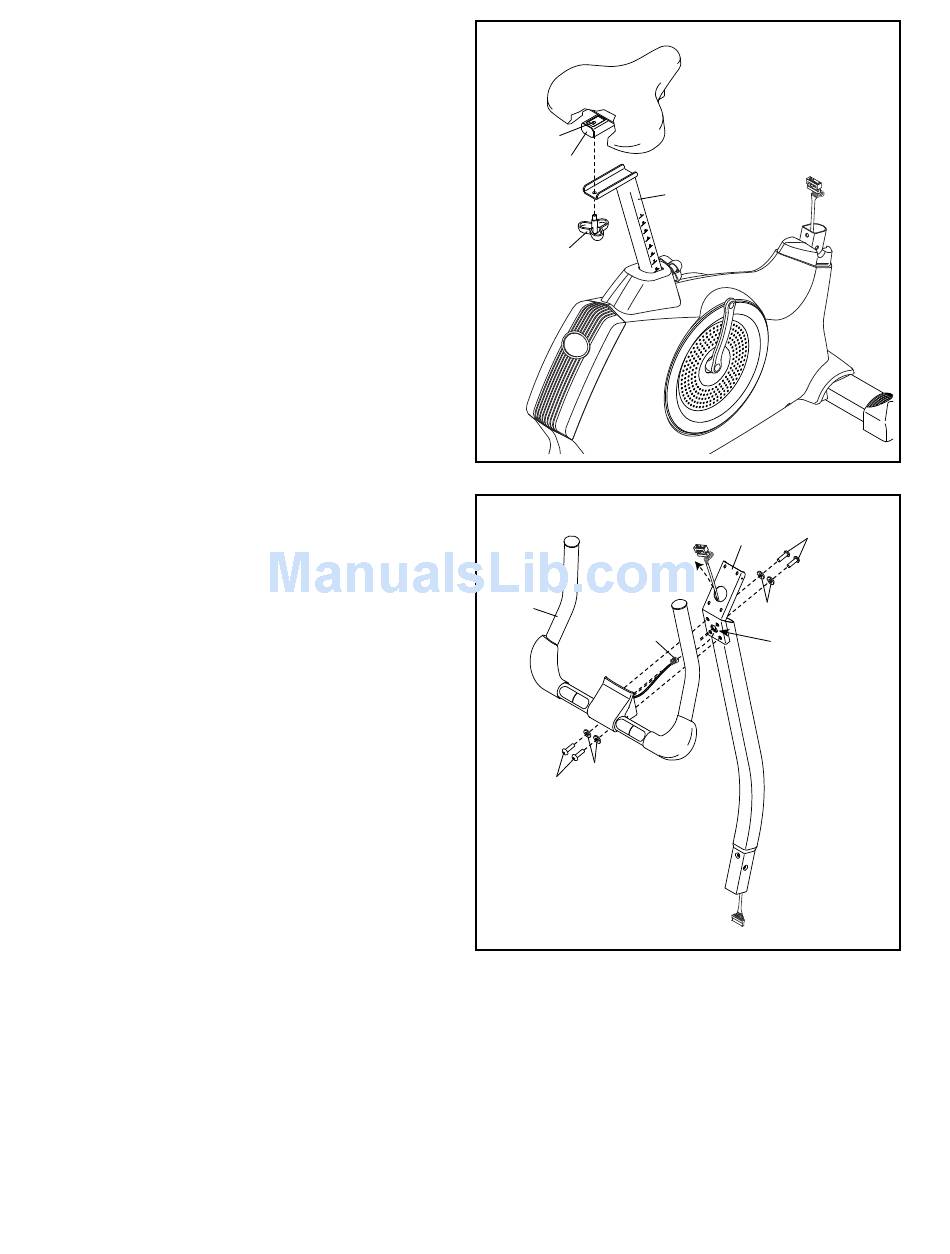

6. Remove the Seat Knob (26) from the Seat
Carriage (24). Hold the Seat Bracket (30) inside
the Seat Carriage to prevent it from moving.
Next, set the Seat Carriage (24) on the Seat
Post (6). Insert the Seat Knob (26) upward into
the Seat Post, and tighten the Seat Knob into the
Seat Bracket (30) inside the Seat Carriage.
7. While a second person holds the Handlebar (5)
near the Upright (4), insert the Pulse Wire (61)
into the hole in the Upright and pull it out of the
top of the Upright.
Tip: Avoid pinching the wires. Attach the
Handlebar (5) to the Upright (4) with four
M6 x 20mm Screws (18) and four M6 Split
Washers (74).
6
30
24
26
7
5
61
74
18
9
6
18
4
74
Hole
Avoid
pinching
the wires
