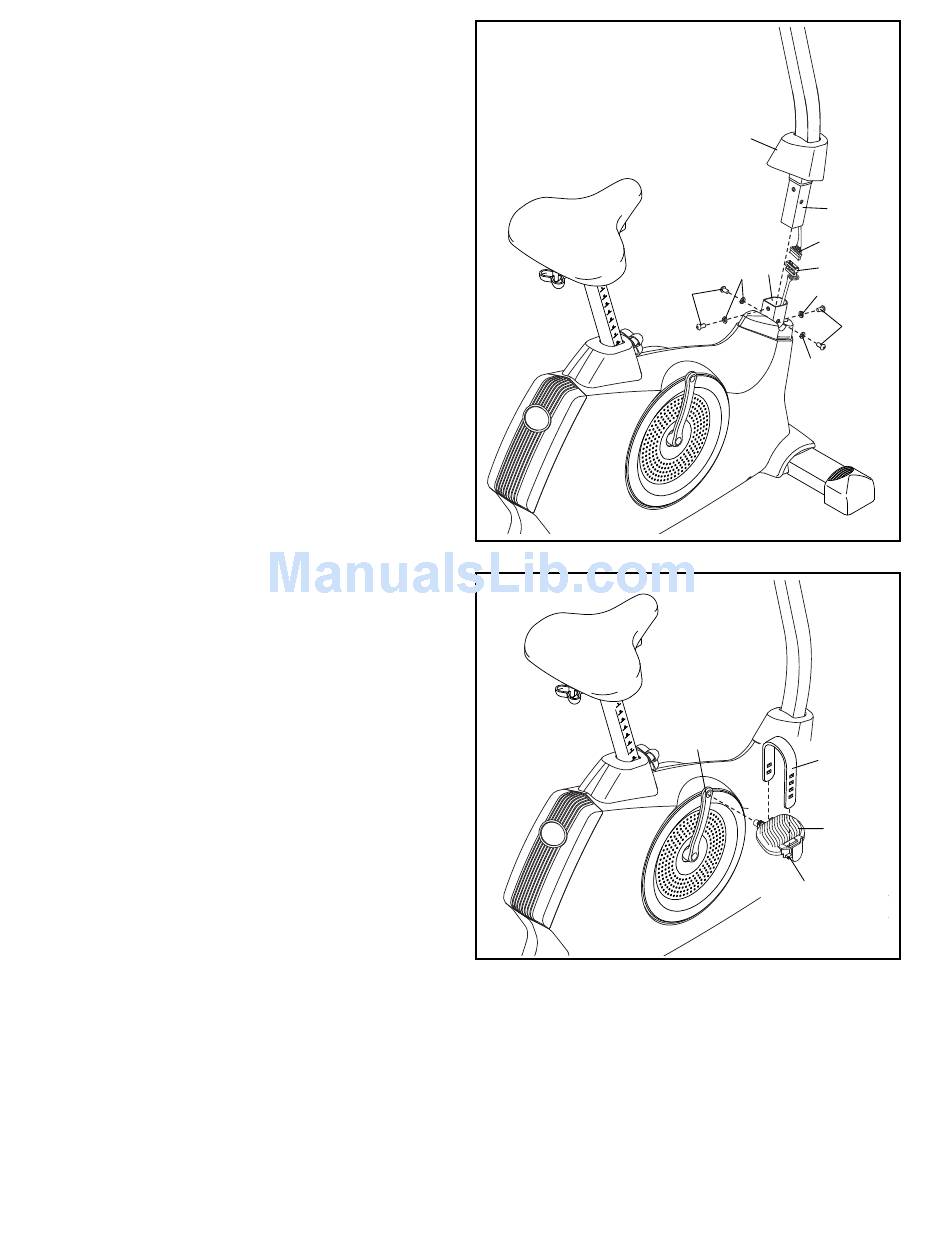

10. Slide the Front Shield Cover (7) upward onto the
Upright (4).
While a second person holds the Upright (4)
near the Frame (1), connect the Extension Wire
(59) to the Main Wire (58).
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 16mm Screws (65)
and four M8 Split Washers (64).
Slide the Front Shield Cover (7) downward to the
Frame (1) and press it into place.
11. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in the
same way.
10
Avoid pinching
the wires
11
11
7
4
59
1
58
64
64
65
65
64
19
Strap
21
Tab
