Alcatel Temporis mini User Manual

Telephone
User's Guide
INTRODUCTION
Your telephone is designed to give you flexibility of use, and high
quality performance. To get the most from your new telephone,
we suggest that you take a few minutes to read through this
instruction manual.
If you have any questions or problems, consult the Troubleshooting
Tips for the solution.
PARTS CHECKLIST
Your package should contain the following items:

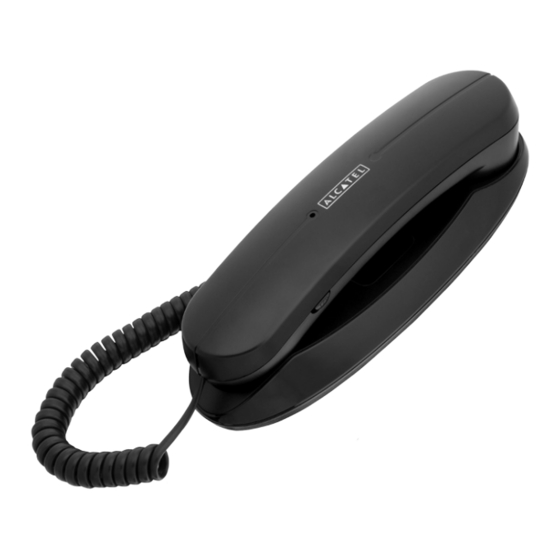

Base unit with handset
Thomson Telecom
46 quai Alphonse le Gallo
Model Temporis mini-EX
92100 Boulogne Billancourt
XXXXXXXX (Rev.0 E/S)
France
09-31
www.thomson-asia.com.hk
Printed in China

BEFORE YOU BEGIN

MODULAR JACK REQUIREMENTS
You need a RJ11C type modular jack, which is
the most common type of phone jack and might
look like the one pictured here. If you don't have
a modular jack, call your local phone company
to find out how to get one installed.

INSTALLING THE PHONE

Your telephone should be placed on a level surface such as a desk top,
or you can mount it on a wall , A desktop /wall mounting pedestal is built
into the base of the phone.
1. Connect the telephone line cord to a modular telephone jack.
2. Slide the RINGER switch (on the handset ) to ON.
3. Set PULSE/ TONE switch (on the handset ) to TONE for touch-tone
service, or set it to PULSE for rotary service. If you don't know which
type of service you have, check with the phone company.
WALL MOUNT INSTALLATION
Your telephone may also be mounted on a wall plate (not included).
1. Slip the mounting holes (on the bottom
of the base) over the wall plate posts and
firmly slide the unit down into place.
2. Plug the telephone line cord into a
modular wall phone jack.
USING THE TELEPHONE FEATURES
RECEIVING A PHONE CALL
1. Be sure the RINGER switch is set to the On (
2. When the phone rings. lift the handset and begin your conversation.
3. Slide the RINGER switch to the Off ( ) position when you do not want
to be interrupted by the phone ringing.
RINGER VOLUME
You may control the ringer volume level with the switch located on the
right side of the handset.
= ringer tone will be loud.
= telephone will not ring.
PLACING A PHONE CALL
1. Lift the handset and wait for a dial tone.
2. Dial the telephone number you wish to call.
REDIAL BUTTON
This unit redials up to 32 digits. To
Wall plate
automatically redial the last number You
called:
1. Pick up the handset to get a dial tone.
Telephone
2. Press redial.
line jack
TEMPORARY TONE FEATURE
If you have Pulse ( rotary ) service ,and
want to access customer calling services
that require touch –tone dialing ,such as
getting information from a local bank ,you
can use this feature.
1. Press the TONE button ( * ) after you
have connected to the service in order
to enable touch –tone dialing.
2. When you hang up, the phone
automatically returns to Pulse dialing
mode.

TROUBLESHOOTING TIPS

PROBLEM
No dial tone
Won't dial out
Phone doesn't ring
Feedback when
dialing in PULSE mode
Can't be heard by
other party

CARE AND MAINTENANCE

To keep your phone working and looking good ,follow these guidelines;
• Avoid putting near heating appliances and devices that generate
electrical noise (for example , motors and fluorescent lamps)
• DO NOT expose to direct sunlight or moisture.
• Avoid dropping and other rough treatment.
• Never use a strong cleaning agent or abrasive powder because this
will damage the finish.
• Retain the original package in case you need to ship it at a later date.
) position.
Used equipment must be disposed of in compliance with
current environmental protection regulations. You should
return it to your reseller or dispose of it in an approved
recycling centre.
Ringer
Tone/Pulse
on/off
Switch
Redial
TONE button
SOLUTION
• Check hook switch to make sure it pops up.
• Make sure TONE / PULSE is set to correct position.
• Make sure RINGER switch is set to On ( )
• You might have too many phones on one line.
• This is normal, power fluctuates with phone
outpulsing.
• Make sure phone cord is securely plugged in.
• Make sure other phones aren't off the hook
at the same time you're using the phone.
It is normal for the volume to drop when
additional phones are used at the same time.
