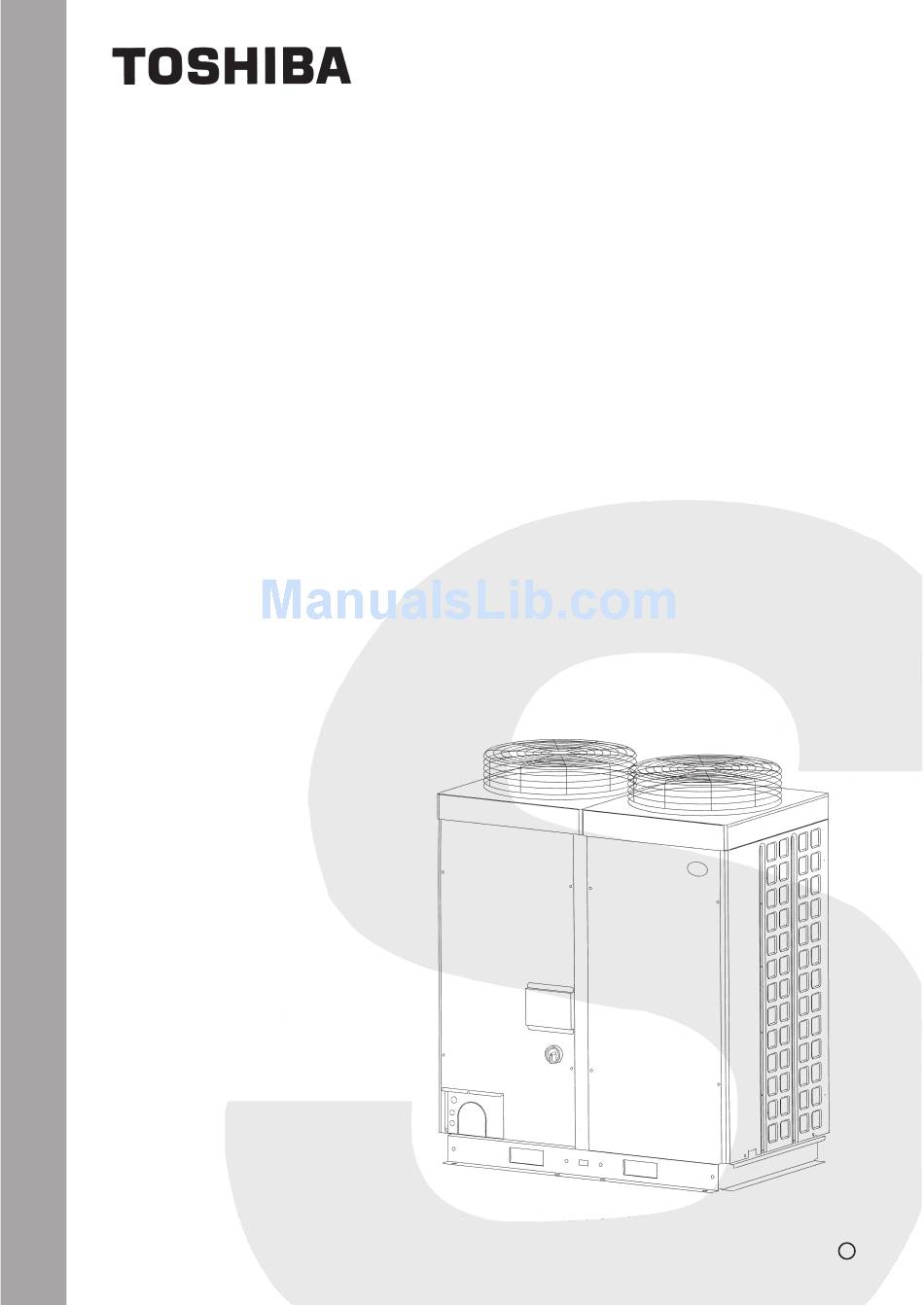

SERVICE MANUAL
AIR-CONDITIONER
Outdoor Unit
Multi Controller
Outdoor Unit
Multi Controller
2-PIPE SUPER MULTI, HEAT PUMP
MAR-M102HTM8-PE
RBM-Y1032-PE (3-way)
RBM-Y1042-PE (4-way)
3-PIPE SUPER MULTI, HEAT PUMP WITH
SIMULTANEOUS HEATING AND COOLING
MAR-F102HTM8-PE
RBM-Y1032F-PE (3-way)
RBM-Y1042F-PE (4-way)
FILE NO. A90-9819
Printed in UK March 1998 s
Advertisement
Related Manuals for Toshiba MAR-M102HTM8-PE
Summary of Contents for Toshiba MAR-M102HTM8-PE
-
Page 1: Service Manual
FILE NO. A90-9819 SERVICE MANUAL AIR-CONDITIONER 2-PIPE SUPER MULTI, HEAT PUMP Outdoor Unit MAR-M102HTM8-PE Multi Controller RBM-Y1032-PE (3-way) RBM-Y1042-PE (4-way) 3-PIPE SUPER MULTI, HEAT PUMP WITH SIMULTANEOUS HEATING AND COOLING Outdoor Unit MAR-F102HTM8-PE Multi Controller RBM-Y1032F-PE (3-way) RBM-Y1042F-PE (4-way) Printed in UK March 1998 s... - Page 2 13. EXPLODED VIEWS AND SERVICE PARTS LIST 13.1 Outdoor Units (MAR-M102HTM8-PE, MAR-F102HTM8-PE)
- Page 3 13.2 2-Pipe refrigeration assembly parts (MAR-M102HTM8-PE) 13.3 3-Pipe refrigeration assembly parts (MAR-F102HTM8-PE)
- Page 4 Location Location Part Part Description Description 43147529 Strainer 43A46001 Solenoid coil, 4-way valve 43147537 Strainer 43A46002 Solenoid coil assembly (3 coils: 4-way, SV5, SV13) 43195185 Cushion, under, compressor 43195186 Cushion, upper, compressor 43A46003 Solenoid coil assembly 43195198 Spacer (3 coils: SV14, SV15, SV16) 43107200 Spring, base 43A46005 Solenoid coil assembly 43146367 Switch, high pressure (20PS-B)
- Page 5 13.4 Outdoor unit electrical parts assembly (MAR-M102HTM8-PE, MAR-F102HTM8-PE)
- Page 6 Location Location Part Part Description Description 43131031 G-Transistor, MG50Q6ES11 43060859 Fuse Block 4316V028 Diode, SR130G-160 43169618 Noise Filter 43150214 TRS-Thermostat, TRC 43169620 Ferrite Core TR-100B10SPT3A 43169616 Noise Filter, AC 43169617 Noise Filter, DC 43154148 Return Lock STR-4AB 43150274 Sensor - ThD1 43169619 Diode Clipper Assembly 43150275 Sensor - ThD2 43160438 Terminal...
- Page 7 13.5 2-Pipe Multi controller (RBM-Y1032-PE, RBM-Y1042-PE) Location Part Description 43019604 Holder, Sensor 43A47019 Strainer 43046269 Pulse modulating valve 43A47018 Capillary tube 0.8 diameter 43146283 Check valve 43146540 Expansion valve 43151231 Float switch 43157253 Panel heater (RBM-Y1032-PE) 43157252 Panel heater (RBM-Y1042-PE)
- Page 8 13.6 3-Pipe Multi controller (RBM-Y1032F-PE, RBM-Y1042F-PE) Location Location Part Part Description Description 43157253 Panel heater 43019604 Holder, Sensor 43146443 Solenoid coil (RBM-Y1032F-PE) 43046151 2 way valve 43189026 Insulator, liquid A 43046156 Check valve 43189027 Insulator, liquid B 43046269 Pulse modulating valve 43189028 Insulator, header A (RBM-Y1042F-PE) 43046270 2 way valve...
- Page 9 13.7 2-Pipe Multi controller electrical parts assembly (RBM-Y1032-PE, RBM-Y1042-PE) FT69 Note: Terminal D is present on RBM-Y1042-PE unit only. Location Location Part Part Description Description 43158139 Transformer (FT69) 43150166 Sensor (ThX) 4316V026 PC board assembly (MCC-1210) 43151242 Micro-switch 43150162 Sensor (ThA) 43A60001 Terminal block 4P 43A60008 Fuse T1A 43150163 Sensor (ThB)
- Page 10 13.8 3-Pipe Multi controller electrical parts assembly (RBM-Y1032F-PE, RBM-Y1042F-PE) FT69 Note: Terminal D is present on RBM-Y1042F-PE unit only. Location Part Location Part Description Description 43158139 Transformer (FT69) 43150166 Sensor (ThX) 43169627 PC board assembly (MCC-1222) 43151242 Micro-switch 43A60001 Terminal block 4P 43150162 Sensor (ThA) 43150163 Sensor (ThB) 43060776 Terminal block 2P...
- Page 11 TOSHIBA (U.K.) LTD. AIR CONDITIONER DIVISION PORSHAM CLOSE, BELLIVER INDUSTRIAL ESTATE, PLYMOUTH, PL6 7DB, U.K.
