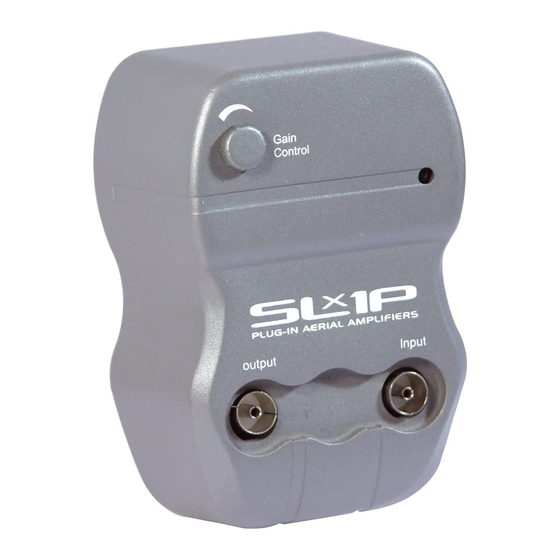

SLx1P and SLx2P Aerial Amplifier
USER GUIDE
27840
27841
27840R
27841R
Philex Customer Careline 08457 573479
27840SP
27841SP
27840HS
27841HS
Setting up 1
METHOD 1:
Standard Installation For Weak Signal Areas
1. Connect your UHF aerial downlead to the input
2. Connect the outputs to all TV sets.
socket of the amplifier.
TV DISTRIBUTION
1
TV 1
TV 2
(SLx2P only)
UHF (TV) Aerial
Aerial
flylead
Aerial flylead
