27824BMG
Introduction
Special features include:
•
4G Ready - built-in filter removes interference and channel loss caused by 4G
mobile phone signals
•
Dedicated inputs for UHF and FM/DAB
•
Side mounted terminals provide easy cable management
•
Infra-red by-pass for digilinks
The SLxB series amplifiers are designed to improve the
picture and sound quality of TV and FM radio signals
and distribute these signals around your home.
All SLxB amplifiers have an integrated by-pass
designed to allow the user to control digital satellite
receivers from a second TV without additional
equipment apart fron a Link device and a digital
satellite or compatible universal remote control.
Please Note: To view output from the satellite RF2
output you will need a TV with an analogue tuner.
Careline: 08457 573 479 - (Local Rate UK only)

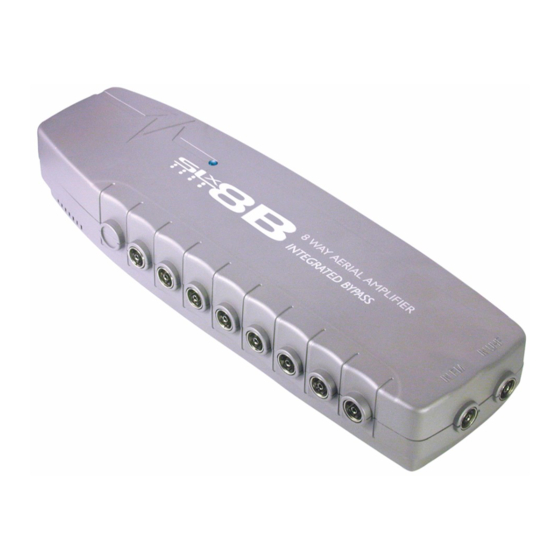

8 Way Aerial Amplifier
with digital bypass
USER GUIDE
For added safety the SLxB series has built in short
circuit protection on each individual output. Should
a short circuit be detected the SLxB amplifier will only
shut down the output with the short circuit; the other
outputs will continue to function as normal.
The amplifiers are easy to install and fully automatic in
operation, meaning that no user adjustment is required.
The low running cost permits continuous operation.
Support: www.philex.com/support
Ready
Advertisement
Related Manuals for Philex 27824BMG
Summary of Contents for Philex 27824BMG
-
Page 1: User Guide
8 Way Aerial Amplifier Ready with digital bypass 27824BMG USER GUIDE Introduction Special features include: • 4G Ready - built-in filter removes interference and channel loss caused by 4G mobile phone signals • Dedicated inputs for UHF and FM/DAB •... - Page 2 Installing your amplifier Aerial signal distribution 1. Connect your UHF aerial downlead to the IN SLxB TV sockets in any combination. UHF socket and connect your FM/DAB aerial If your TV does not have a built-in Freeview™ downlead (if applicable) to the IN FM socket on receiver you will need to connect your TV to the the amplifier.
- Page 3 Signal distribution from a Satelllite Receiver Please Note: To view output from the satellite RF2 output you will need a TV with an analogue tuner. 1. Connect your UHF aerial downlead to the aerial Note. Only one satellite channel can be viewed at input on your Satellite Receiver and connect your any one time without the use of additional satellite FM aerial downlead (if applicable) to the IN FM...
- Page 4 Ensure that your Technical Support If you experience problems setting up your amplifier, please call the Philex Customer Care Line: Waste electrical and electronic products should not be disposed of 08457 573 479 - (Local Rate UK only).
