28103FG
Introduction
Special features include:
•
Unlike standard amplifiers SLx Gold's flat gain response across
full frequency spectrum ensures optimum digital reception
•
4G Ready - built-in filter removes interference and channel loss caused by 4G
mobile phone signals
•
Dedicated inputs for UHF and FM/DAB
•
Side mounted terminals provide easy cable management
•
Infra-red by-pass for digilinks
•
Surge protection
•
F Sockets for tighter more reliable connections
The SLx Gold range of aerial amplifiers
from Philex is designed to improve
picture and sound quality by amplifying
weak UHF, VHF, DAB and FM radio signals
and distributing the signal to multiple
locations around the home. The SLxG
range can also be used to distribute
Digital Television and Sky™/ Sky+™
Sky+HD™ signals around the home
without loss of signal strength.
All SLxG amplifiers have an integrated
by-pass designed to allow the user to
control digital satellite receivers from a
remote TV without additional equipment
apart from a Link device and a digital
Careline: 08457 573 479 - (Local Rate UK only)

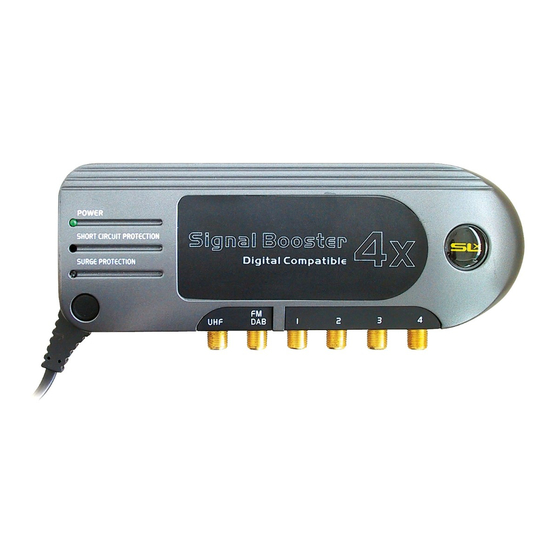

4 Way Aerial Amplifier
USER GUIDE
satellite or compatible universal remote
control.
Designed with style, sophistication and
quality in mind, the SLx Gold range
is the preferred choice for both the
professional aerial installer and the
home user wanting to get the very best
performance from their AV equipment.
We have integrated the very latest
in digital-ready signal amplification
technology, the very best in UK-designed
product styling and the highest levels
of safety to produce a class-leading
product.
Support: www.philex.com/support
Ready
Advertisement
Table of Contents
Related Manuals for Philex 28103FG
Summary of Contents for Philex 28103FG
-
Page 1: User Guide
F Sockets for tighter more reliable connections The SLx Gold range of aerial amplifiers satellite or compatible universal remote from Philex is designed to improve control. picture and sound quality by amplifying weak UHF, VHF, DAB and FM radio signals... - Page 2 Installing your amplifier Aerial signal distribution 1. Connect your UHF aerial downlead to the IN SLxG TV sockets in any combination. UHF socket and connect your FM/DAB aerial If your TV does not have a built-in Freeview™ downlead (if applicable) to the IN FM socket on receiver you will need to connect your TV to the the amplifier.
- Page 3 Signal distribution from a Satelllite Receiver Please Note: To receive output from the satellite RF2 output you will need a TV with an analogue tuner. 1. Connect your UHF aerial downlead to the aerial Note. Only one satellite channel can be viewed at input on your Satellite Receiver and connect your any one time without the use of additional satellite FM aerial downlead (if applicable) to the IN FM...
- Page 4 Ensure that your Technical Support If you experience problems setting up your amplifier, please call the Philex Customer Care Line: Waste electrical and electronic products should not be disposed of 08457 573 479 - (Local Rate UK only).
