Introduction
The SLx range of aerial
amplifiers from Philex is
designed to improve picture
and sound quality by amplifying
weak UHF, VHF and FM radio
(selected models only) signals
and distributing the signal
to multiple locations around
the home. The SLx8 can also
http://technical.philex.com

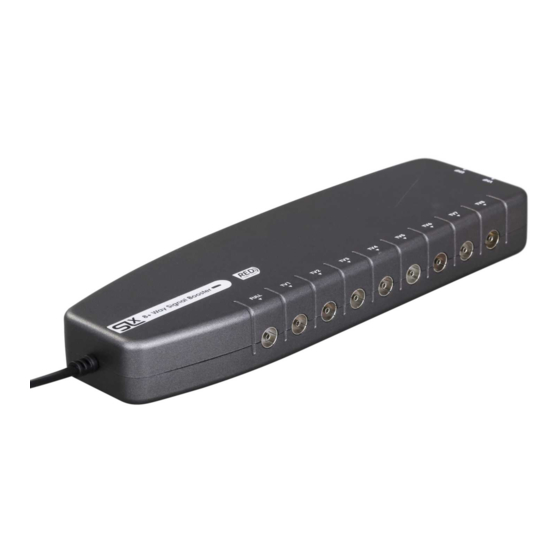

SLx8 AERIAL AMPLIFIERS
USER GUIDE
Philex Customer Careline 0901 293 0038
be used to distribute a VCR,
Digital Television and Sky™/
Sky+™ signal around the
home.
Designed with style,
sophistication and value in
mind, the SLx range is the
preferred choice for both the
professional aerial installer
and the home user wanting to
get the very best performance
from their AV equipment.
We have integrated the very
latest in digital-ready signal
amplification technology,
the very best in UK-designed
product styling and highest
levels of safety to produce a
class-leading product.
With full instructions and wall
mounting template, installing
the SLx8 aerial amplifier is both
quick and easy.
Advertisement
Table of Contents
Related Manuals for Philex SLx8
Summary of Contents for Philex SLx8
- Page 1 SLx8 AERIAL AMPLIFIERS USER GUIDE 27824R Philex Customer Careline 0901 293 0038 Introduction be used to distribute a VCR, get the very best performance The SLx range of aerial Digital Television and Sky™/ from their AV equipment. amplifiers from Philex is Sky+™ signal around the designed to improve picture home. We have integrated the very and sound quality by amplifying latest in digital-ready signal weak UHF, VHF and FM radio Designed with style, amplification technology, (selected models only) signals sophistication and value in the very best in UK-designed and distributing the signal mind, the SLx range is the product styling and highest to multiple locations around preferred choice for both the levels of safety to produce a the home. The SLx8 can also professional aerial installer class-leading product.
- Page 2 FM aerial downlead (if applicable) to the receivers. IN FM socket on the SLx8. If you are receiving poor DTT reception 2. C onnect an aerial fly-lead from the aerial then connect the SLx8 before your DTT output on the VCR to the aerial input on the receiver to help boost the signal strength. satellite receiver. In most cases, poor DTT reception can only 3. C onnect an aerial fly-lead from the RF2...
- Page 3 METHOD UHF (TV) TV SIGNAL DISTRIBUTION Aerial Flylead FM (Radio) Additional and/or TV sets/Hi-Fi’s VHF TV on EIR modems Main TV Aerial Flylead Aerial Downlead METHOD UHF (TV) TV/ VCR DISTRIBUTION Aerial Flylead Video Recorder Aerial FM (Radio) Additional Flylead and/or TV sets/Hi-Fi’s VHF TV on...
- Page 4 METHOD UHF (TV) TV/ VCR / SATELLITE DISTRIBUTION Satellite Video Aerial Recorder Downlead Main TV SCART SCART Connection Connection Aerial Flylead (optional) (optional) Satellite Output Lead Satellite Receiver From RF1 Out From RF2 Out FM (Radio) Additional and/or TV sets/Hi-Fi’s Aerial VHF TV on Flylead...
-
Page 5: Additional Features
Additional Features 12V Line Powering Full output socket Short circuit protection The SLx8 has built-in full The SLx8 is equipped with a For added safety the SLx8 line powering which can be FULL output socket, which has built-in short circuit protection. Should a short used to provide power to carries a signal of the same masthead amplifiers. When strength as your aerial circuit be detected, the connected to a masthead downlead. If you wish to amplifier will only shut amplifier, the SLx8 will send connect further televisions down the amplifier in order the required power out of in your home you can to prevent any possible the IN UHF socket up to the connect another aerial damage. Should this occur, masthead amplifier. Please... -
Page 6: Troubleshooting
For further information or any queries please contact Waste electrical products should not be Customer Careline: 0901 293 0038 disposed if with household waste. Please Calls are charged at £1 per minute from a BT landline. recycle where facilities exist. Check with Call charges from other networks may vary your Local Authority for recycling advice. Technical Support: http://technical.philex.com © Philex Electronic Ltd. 2010 v1.5 pay...
