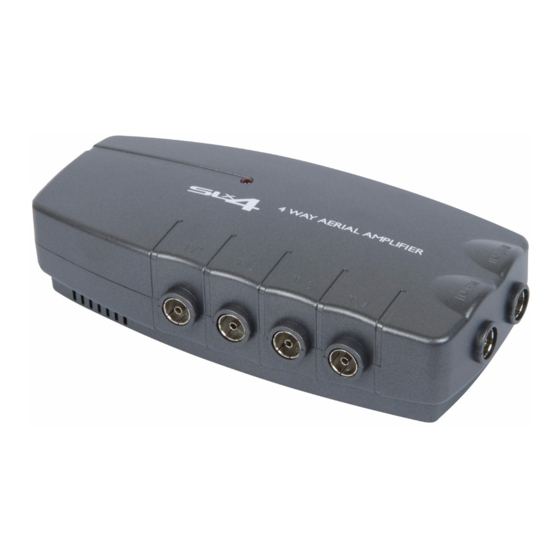

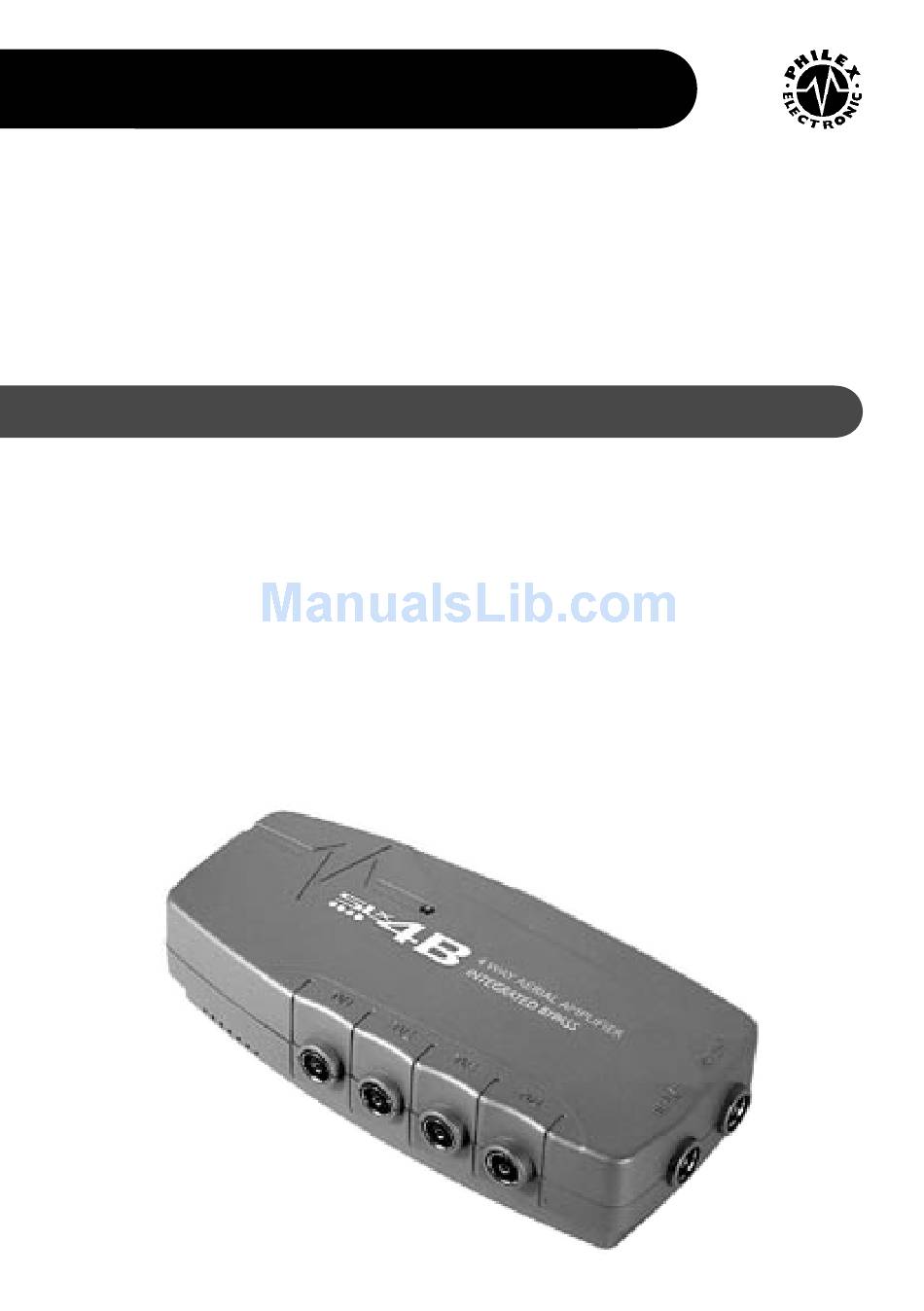

SLxB AERIAL AMPLIFIERS
USER GUIDE
27820
27822
27820BM
27822BM
Philex Customer Careline 08457 573479
27820BMSP
27822BMSP
Introduction
The SLxB series
amplifiers are
designed to improve
the picture and
sound quality of TV
and FM radio signals
and distribute these
signals around your
home.
All SLxB amplifiers
have an integrated
by-pass designed
to allow the user to
control digital satellite
receivers from a
second TV without
additional equipment
apart fron a Link
device and a digital
satellite or compatible
universal remote
control.
For added safety
the SLxB series has
built in short circuit
protection on each
individual output.
Should a short circuit
be detected the SLxB
amplifier will only
shut down the output
with the short circuit;
the other outputs will
continue to function
as normal.
The amplifiers are
easy to install and
fully automatic in
operation, meaning
that no user
adjustment is required.
The low running cost
permits continuous
operation.
Advertisement
Table of Contents
Related Manuals for Philex SLxB
Summary of Contents for Philex SLxB
-
Page 1: User Guide
SLxB AERIAL AMPLIFIERS USER GUIDE 27820 27822 27820BM 27822BM Philex Customer Careline 08457 573479 27820BMSP 27822BMSP Introduction The SLxB series All SLxB amplifiers amplifiers are have an integrated by-pass designed designed to improve the picture and to allow the user to... -
Page 2: Tv And Fm Radio Distribution
Setting up the SLxB Aerial Amplifier Note: SLx2B operation is similar to SLx4B but with TV1 and TV2 outputs only. SET UP 1: SET UP 1 TV and FM Radio TV AND FM RADIO Distribution DISTRIBUTION 1. Connect your UHF... - Page 3 SET UP 3 TV/ VCR/SAT/FM DISTRIBUTION Main Scart connection RF1 out Additional TV sets / Hi-Fi SET UP 3: Satellite Receiver Signal Distribution 1. Connect your UHF aerial downlead into the VCR’s UHF aerial input. If you do not have a VCR, plug the UHF aerial downlead into the satellite receiver’s UHF aerial input and ignore all further references to VCRs.
-
Page 4: Troubleshooting
Troubleshooting If you are still experiencing reception problems after the installation of your SLxB Aerial Amplifier, please refer below. Analogue Terrestrial TV Snowy Picture A faint, grainy or snowy picture is generally caused by a weak signal. Normally the TV transmitter will be a long way away.
