Philex 27824RG Installation Manual

Philex 27824RG Installation Manual

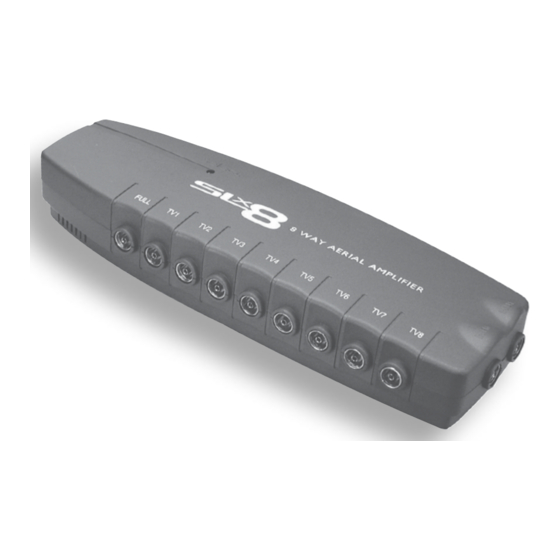

8 way aerial amplifier

Advertisement

Quick Links

27824RG
Introduction
Special features include:
4G Ready - built-in filter removes interference and
channel loss caused by 4G mobile phone signals
Dedicated inputs for UHF and FM/DAB
Side mounted terminals provide easy cable management
Full output socket and line powering
The SLx range of aerial amplifiers from Philex is
designed to improve picture and sound quality by
amplifying weak UHF, VHF and FM/DAB radio signals
and distributing the signal to multiple locations
around the home. The SLx8 can also be used to
distribute Digital Television and Sky™/ Sky+™
signals around the home.
Please Note: To view output from the satellite RF2
output you will need a TV with an analogue tuner.
The SLx8 is not equipped with a digital bypass
and is not compatible with infra red extenders/
links which control Sky™ boxes from other rooms.
(Bypass kits are available - sold separately)
Careline: 08457 573 479 - (Local Rate UK only)
8 Way Aerial Amplifier

USER GUIDE

The SLx8 also features a full output socket
carries a signal of the same strength as your aerial
downlead. This allows the FULL output of the SLx8
to the input of another amplifier.
Designed with style, sophistication and value in
mind, the SLx range is the preferred choice for both
the professional aerial installer and the home user
wanting to get the very best performance from their
AV equipment.
With full instructions and wall mounting template,
installing the SLx8 aerial amplifier is both quick and
easy.
Support: www.philex.com/support
Ready
which

Advertisement

loading
Need help?

Need help?

Do you have a question about the 27824RG and is the answer not in the manual?

Questions and answers

Summary of Contents for Philex 27824RG

  • Page 1: User Guide

    Side mounted terminals provide easy cable management • Full output socket and line powering The SLx range of aerial amplifiers from Philex is The SLx8 also features a full output socket which designed to improve picture and sound quality by...
  • Page 2 Installing your amplifier Aerial signal distribution 1. Connect your UHF aerial downlead to the IN 2. Connect your TVs and FM tuners to any of the UHF socket and connect your FM/DAB aerial SLx8 TV sockets in any combination. downlead (if applicable) to the IN FM socket on If your TV does not have a built-in Freeview™...
  • Page 3: Short Circuit Protection

    Installing your amplifier Line Powering Short circuit protection The SLx8 has built-in full line powering which can For added safety the SLx8 has built-in short circuit protection. Should a short circuit be detected, the be used to provide power to masthead amplifiers. When connected to a masthead amplifier, the SLx8 amplifier will only shut down the amplifier in order will send the required power out of the IN UHF...
  • Page 4 Technical Support If you experience problems setting up your Waste electrical and electronic amplifier, please call the Philex Customer Care Line: products should not be disposed of 08457 573 479 - (Local Rate UK only). with household waste. Please recycle where facilities exist.
