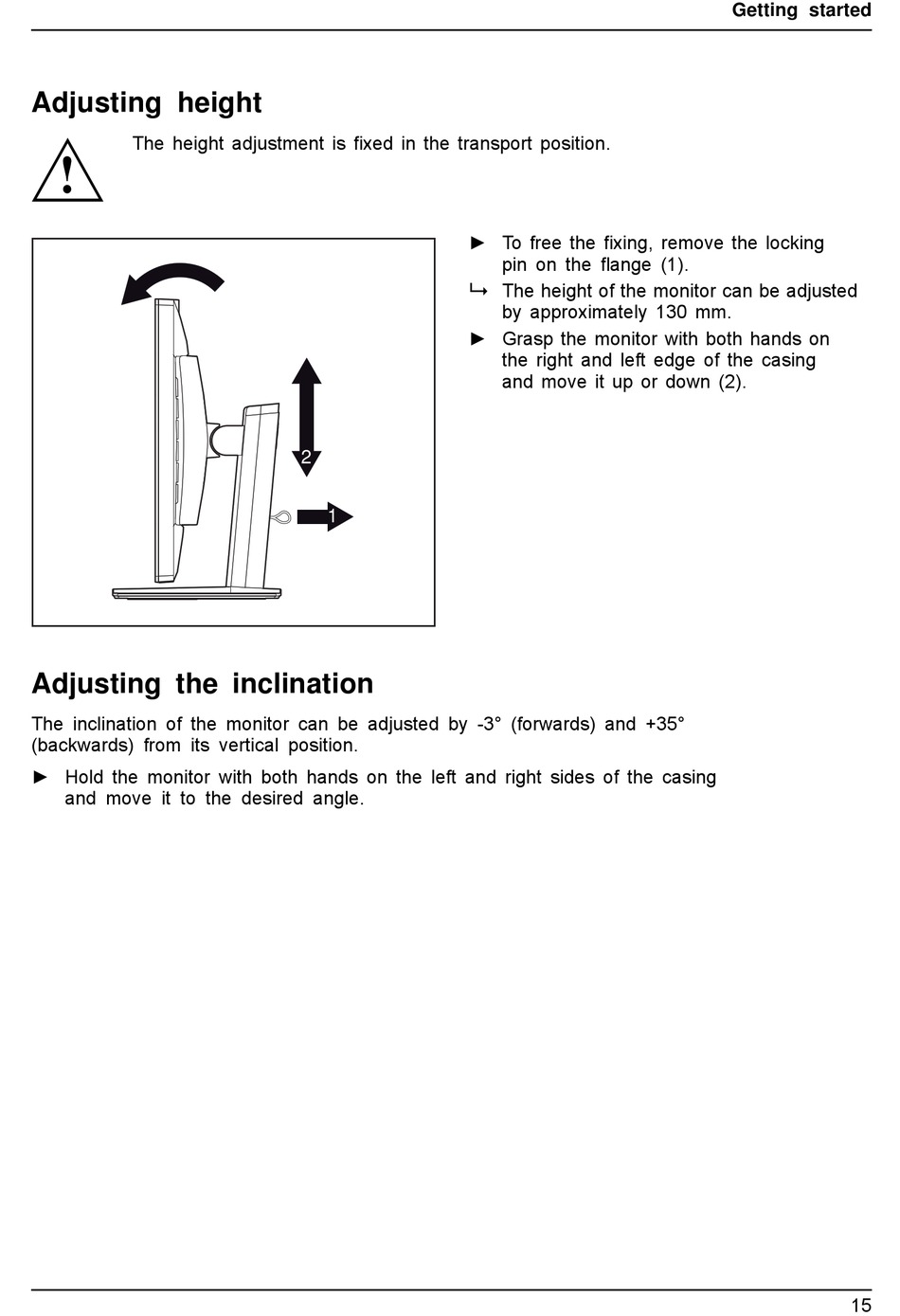

Adjusting height

The height adjustment is fixed in the transport position.

Adjusting the inclination

The inclination of the monitor can be adjusted by -3° (forwards) and +35°
(backwards) from its vertical position.
► Hold the monitor with both hands on the left and right sides of the casing
and move it to the desired angle.
► To free the fixing, remove the locking
► Grasp the monitor with both hands on
2
1
pin on the flange (1).
The height of the monitor can be adjusted
by approximately 130 mm.
the right and left edge of the casing
and move it up or down (2).
Getting started
15
