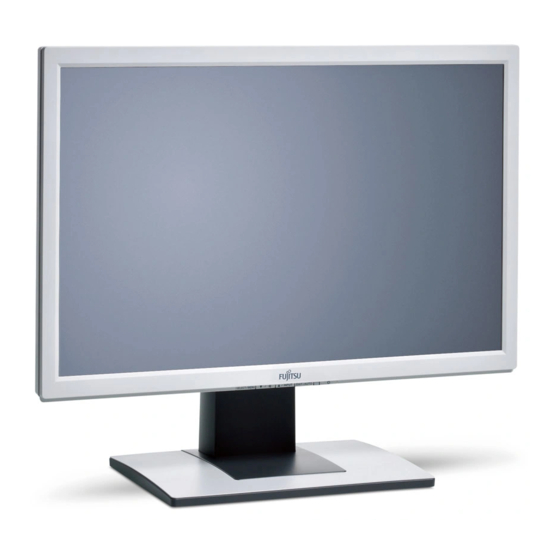

Fujitsu B24W-5 ECO Operating Manual

Hide thumbs

Advertisement

Display
B24W-5 ECO
Operating Manual
English

Advertisement

loading

  Summary of Contents for Fujitsu B24W-5 ECO

  • Page 1 Display B24W-5 ECO Operating Manual English...
  • Page 2 ... any technical questions or problems? Please contact: • our Hotline/Help Desk (please refer to the enclosed Help Desk list or look up the contact details on our website at: "http://ts.fujitsu.com/support/" • your sales partner • your sales office The latest information about our products, useful tips, updates etc. is available on our website: "http://ts.fujitsu.com/support/"...
  • Page 4 Copyright © Fujitsu Technology Solutions 2009 2009/08 Published by Fujitsu Technology Solutions GmbH Mies-van-der-Rohe-Straße 8 80807 München, Germany Contact http://ts.fujitsu.com/support All rights reserved, including intellectual property rights. Technical data subject to modifi cations and delivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded.
  • Page 5: Table Of Contents

    FUJITSU B24W-5 ECO Operating Manual Your LCD screen... Important notes Getting started Operation Notes on ergonomic colour adjustment Troubleshooting Explanatory information about standard ISO 9241-3 Technical data...
  • Page 6 VESA, DDC and DPMS are registered trademarks of the Video Electronics Standards Association. Copyright © Fujitsu Technology Solutions GmbH 2009 All rights reserved, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole. Offenders will be liable for damages.
  • Page 7 Contents Contents Your LCD screen............... . Target group .
  • Page 8 Contents A26361-K1334-Z220-1-7619, edition 1...
  • Page 9: Your Lcd Screen

    Your LCD screen... Your LCD screen... has a whole range of useful features and functions, e.g.: • TFT display (Thin Film Transistor; active matrix) minimal space requirements thanks to slim casing • • optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour purity right into the corners) •...
  • Page 10: Further Information

    "Safety information" • cross-references to an external source, e.g. a web address: For more information, go to "http://ts.fujitsu.com" • Names of CDs, DVDs and titles or designations of other materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety" Manual indicates a key on the keyboard, e.g:...
  • Page 11: Important Notes

    Important notes Important notes Importantnotes Notes In this chapter you will find information regarding safety which it is essential to take note of when working with your device. Safety instructions This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment.
  • Page 12: Power Cable

    Important notes • The device may only be operated in the wide format (0° landscape mode). The buttons of the control panel are located at the bottom in the middle of the monitor. • Store this manual close to the device. If you pass the device on to third parties, you should pass this manual on with it.
  • Page 13: Ce Marking

    These savings could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - equivalent to the discharge from 5 million cars. As an Energy Star Partner, Fujitsu Technology Solutions GmbH has determined that this product meets the Energy Star guidelines for energy efficiency.
  • Page 14: Disposal And Recycling

    Fujitsu America Inc. Protection Administration 1250E. Arques Avenue Executive, Yuan, R.O.C. Sunnyvale, CA 94085, U.S.A. "http://recycle.epa.gov.tw" Contact: Bernd Henning Phone No.: (408) 329-6737 Fax No.: (408) 746-8299 Information on this subject is also available on the Internet at "http://ts.fujitsu.com/recycling". A26361-K1334-Z220-1-7619, edition 1...
  • Page 15: Getting Started

    Getting started Getting started Unpacking and checking the delivery The display surface of the device is sensitive to pressure and scratches. Always hold the device by the casing! The complete device package includes: • one monitor • one data cable (D-SUB) •...
  • Page 16: Setting Up An Ergonomic Video Workstation

    Getting started Setting up an ergonomic video workstation ► Do not position the video workstation opposite a window (1). ► Position the monitor outside the reach of a light source (1). ► Position the keyboard where it is easiest to reach (1). A26361-K1334-Z220-1-7619, edition 1...
  • Page 17: Adjusting The Height

    Getting started ► Position the monitor so that the eye distance to the screen (1) is around 50 cm. 50 cm ► Position the monitor for optimum viewing (1). The monitor should under no circumstances fall outside the permissible viewing space (2). Depending on the situation, it may be advisable to use a swivel arm or wall bracket (VESA FPMPMI), which are available from specialist dealers.
  • Page 18: Removing Monitor Base

    Getting started Removing monitor base Before you can use a swivel arm or a wall bracket, you must remove the monitor base. The display surface is susceptible to scratching! ► Switch off the monitor and pull the power plug out of the power socket. ►...
  • Page 19: Connecting The Device

    Getting started Connecting the device Please observe the safety information in "Important notes", Page CE conformance and optimum picture quality are guaranteed only if you use the data cables supplied. ► Switch off the monitor and the computer. ► Disconnect the power plug from the computer. Connecting cables to the monitor The data cables supplied have two 15-pin D-SUB connectors or two 24-pin DVI connectors for connection to the monitor and to the computer.
  • Page 20: Connecting Cables To The Computer

    Getting started ► Connect one of the connectors of the data cable to the D-SUB socket or DVI-D socket of the monitor and secure the plug-in connection by tightening the safety screws. The monitor automatically detects the input when only one signal source is connected. ►...
  • Page 21: Operation

    Operation Operation Switching the device on and off 1 = Buttons for the OSD menu (On-Screen 3 = ON/OFF switch Display) 2 = Power supply indicator Press the buttons upwards from below. The colour of the LED indicator changes as follows: LED indicator Status blue...
  • Page 22: Notes On Power Management

    Operation Front Rear 1 = power supply indicator 2 = ON/OFF switch ► Switch the device on using the ON/OFF switch. Only switch on the computer after you have switched on the monitor. Notes on power management If your computer is equipped with power management (power-saving mode), the monitor can fully support this function.
  • Page 23: Changing The Monitor Settings

    Operation Changing the monitor settings When putting the monitor into operation for the first time, the screen display should be optimally adapted to the display adapter used. Changing the monitor settings with the buttons of the control panel The buttons of the control panel have two functions. With the OSD menu not activated, you can make the following settings directly: EXIT / AUTO SELECT/ MENU...
  • Page 24: Changing The Monitor Settings Using The Osd Menu

    Operation Activate/deactivate ECO operating mode The power consumption of the device can be decreased by reducing the brightness of the picture. ► Press the Forwards / ECO button to switch the ECO operating mode on or off. The message Action was executed appears. If the ECO operating mode is activated, the following OSD settings are changed: Colour 6500K...
  • Page 25 Operation The OSD menu is available in various languages. The English menu names are used in the following description (default setting). You can select another language using the OSD Language function in the OSD Setup menu. ► Press the button to SELECT/MENU activate the OSD menu.
  • Page 26: Osd Menu Functions

    Operation If you wish to change other settings, select the corresponding function from the OSD main menu. All possible adjustments of the main menu are described below. OSD menu functions The OSD menu for analogue monitor operation is described below. During digital operation some functions are not available, they are not needed because of the digital transmission technology being used.
  • Page 27: Adjusting The Screen Size And Position

    Operation Adjusting the screen size and position Calling the Image adjust setting window H-position * Adjustment of the picture horizontal position With this function you can move the picture to the left or to the right. V-position * Adjusting the picture vertical position With this function you can move the picture up or down.
  • Page 28: Displaying Information

    Operation Adjusting the display of the OSD menu Calling the OSD Setup adjustment window Language Selecting the language for the OSD menu With this function you choose between English (default setting), French, German, Italian and Spanish as the language for the OSD menu. OSDH position Setting the horizontal position of the OSD menu With this function you can move the OSD menu to the left or to the right.
  • Page 29: Notes On Ergonomic Colour Adjustment

    Notes on ergonomic colour adjustment Notes on ergonomic colour adjustment If you select colours for the monitor in your application programmes, take note of the information below. The primary colours blue and red on a dark background do not produce the minimum required contrast of 3:1 and are therefore not suitable for continuous text and data entry.
  • Page 30: Troubleshooting

    Troubleshooting Troubleshooting Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer. If you are unable to solve the problem, please inform our help desk. Having this problem? Check the following points: No screen display...
  • Page 31 Troubleshooting Having this problem? Check the following points: Picture disturbances (vertical lines) ► Press the EXIT / AUTO button to perform auto-adjustment of the screen. Picture disturbances (horizontal lines, picture ► Press the button to perform EXIT / AUTO noise) auto-adjustment of the screen.
  • Page 32: Explanatory Information About Standard Iso 9241-3

    Explanatory information about standard ISO 9241-3 Explanatory information about standard ISO 9241-3 Lit or unlit pixels Today’s production techniques cannot guarantee an absolutely fault-free screen display. A few isolated pixels may be constantly lit or unlit. The maximum permitted number of faulty pixels is stipulated in the international standard ISO 9241-3 (Class I).
  • Page 33: Technical Data

    Technical data Technical data Condensation is not permitted, neither in the rated range of operation nor in the limit range of operation. B24W-5 ECO Dimensions and weight Visible diagonals 61 cm Dot pitch 0.27 mm Image size Width 518.4 mm Height 320.4 mm...
  • Page 34: Vesa-Ddc-Compatible Vga Interface

    Technical data Ambient conditions Environment class 3K2, DIN IEC 721 15 ℃ ..35 ℃ Rated range of operation Humidity 20 % ..85 % Limit range of operation 5 °C ..35 °C Humidity 20 % ..85 % VESA-DDC-compatible VGA interface Your monitor is equipped with a VESA-DDC-compatible VGA interface.
  • Page 35: D-Sub Port

    Technical data D-SUB port Meaning Video input red Video input green Video input blue Ground Ground Video ground red Video ground green Video ground blue +5 V (DDC) Sync. ground Ground DDC Data H. sync V. sync DDC Clock A26361-K1334-Z220-1-7619, edition 1...
  • Page 36: Dvi-D Port

    Technical data DVI-D port Meaning TMDS Data2– TMDS Data2+ TMDS Data 2/4 Shield not connected not connected DDC Clock DDC Data Analog Vertical Sync TMDS Data1– TMDS Data1+ TMDS Data 1/3 Shield not connected not connected +5V Power Earth Hot Plug Detect TMDS Data0–...
