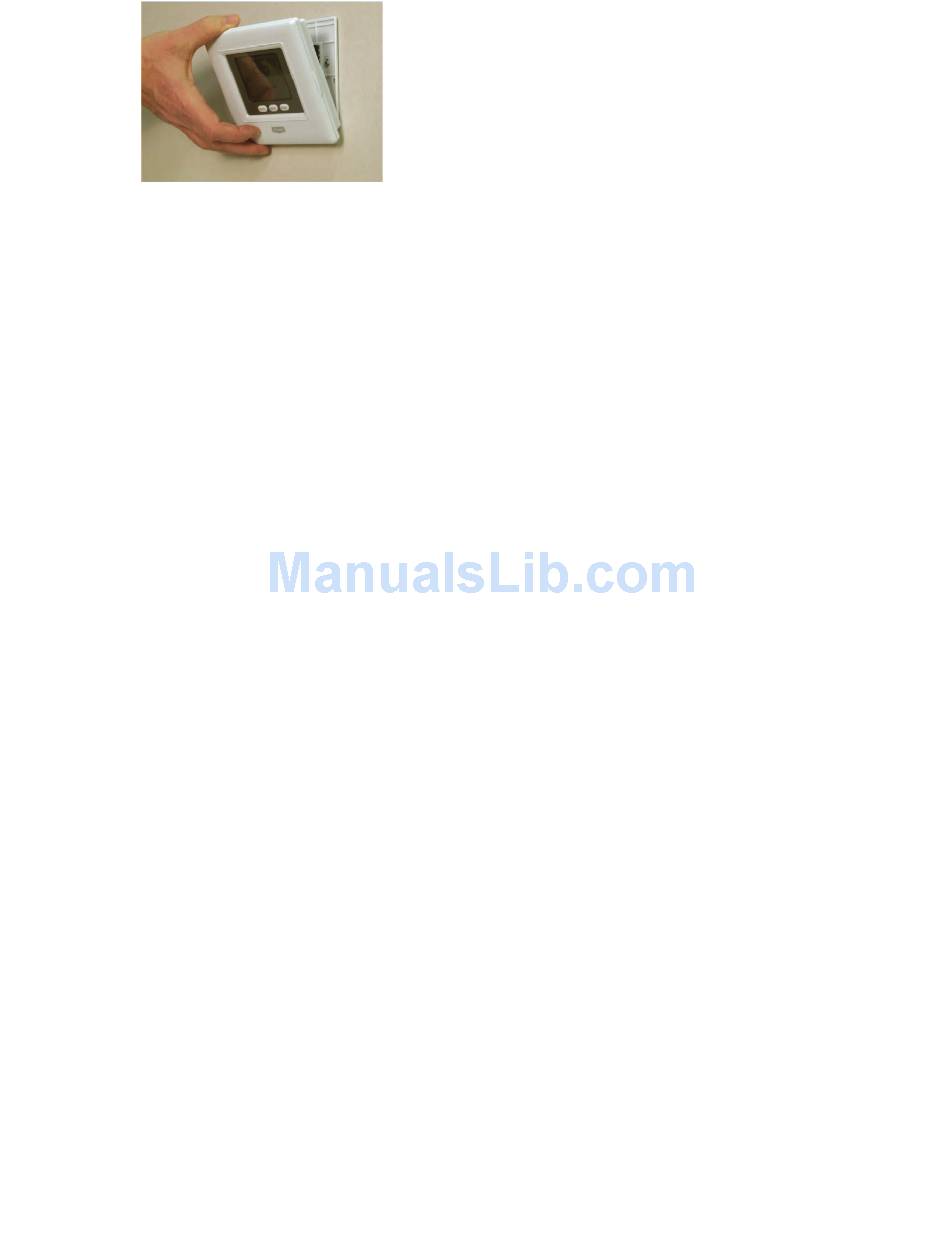

Fig. 4 - - Attach Thermostat to Backplate
11. Close thermostat assembly making sure pins on back of circuit board
align with sockets in connector.
12. Turn ON power to unit.
When power is applied, all display icons are lit for 2 seconds to test the display.
Following this, the equipment type for which the thermostat is configured is
displayed for an additional 2 seconds. It will be one of HP, AC, H, PH, PC or C (see
explanation under Step 3, Option 01 below). A HP thermostat configured to operate
an AC (see Option 1 below) will display AC. An AC thermostat cannot display HP.
NOTE: If a common wire has not been connected, two AA batteries must be
used to power the thermostat.
Step 3 — Set Thermostat Configuration
Configuration options enable the installer to configure the thermostat for a particular
installation. Most are not presented to the homeowner and therefore must be properly
10
A07158
