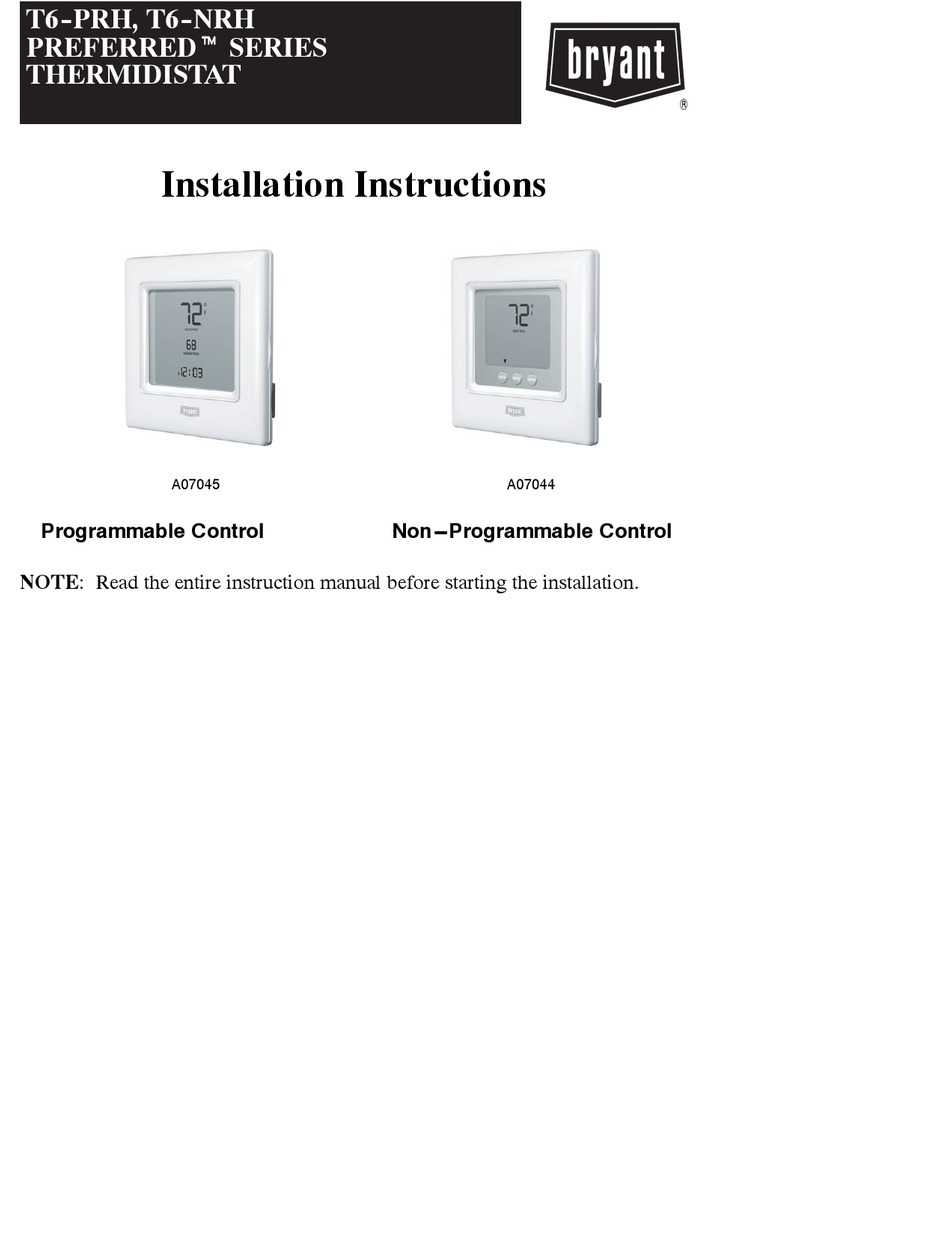

T6- - PRH, T6- -NRH
PREFERREDt SERIES
THERMIDISTAT

Installation Instructions

A07045
A07044
Programmable Control
Non ---Programmable Control
NOTE: Read the entire instruction manual before starting the installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREFERREDT A07044 and is the answer not in the manual?

Questions and answers

Related Manuals for Bryant PREFERREDT A07044

Summary of Contents for Bryant PREFERREDT A07044

  • Page 1: Installation Instructions

    T6- - PRH, T6- -NRH PREFERREDt SERIES THERMIDISTAT Installation Instructions A07045 A07044 Programmable Control Non ---Programmable Control NOTE: Read the entire instruction manual before starting the installation.

  • Page 2: Table Of Contents

    SAFETY CONSIDERATIONS ........INTRODUCTION ..........INSTALLATION CONSIDERATIONS .

  • Page 3: Introduction

    -configured settings in memory. During power loss its internal memory saves settings for unlimited time, and the clock continues to run for at least 24 hours. An extension of Bryant’s proven line of thermostats; it provides separate setpoints for heating and cooling in addition to humidification and dehumidification.

  • Page 4: Installation Considerations

    INSTALLATION CONSIDERATIONS Power This control is powered by 24VAC only. It requires 24VAC (Rh and/or Rc and C terminals) of the low- -voltage transformer to be connected to it for proper operation. It will not operate without these 2 connections. Rh and Rc are connected via PCB breakout jumper.
  • Page 5 There are programmable and non- -programmable models for all applications. They can be configured for AC or HP, 1- -or 2- -speed compressor, and for Hybrid Heatt installations, allowing it to be used in place of all Bryant thermostats. Programmable Thermidistat Controls may be configured as non- -programmable if user desires.
  • Page 6 WARNING ELECTRICAL OPERATION HAZARD Failure to follow this warning could result in personal injury or death. DO NOT connect furnace HUM terminal directly to Thermidistat Control HUM terminal. This will bypass furnace safety controls. See Low Voltage Wiring Diagrams and notes for proper connection. Dehumidify Equipment and Connections The dry contact output connects to the dehumidify input on variable- -speed furnaces and fan coils.

  • Page 7: Remote Indoor Temperature Sensor

    Remote Indoor Temperature Sensor A remote temperature sensor may be used with the programmable model, where it is desirable to install the Thermidistat Control in a limited access location while measuring the temperature in the living space. The remote room sensor may be used as a stand alone or average with local sensor.

  • Page 8: Installation

    Carton contains the following components. See Fig. 2 for T6- -PRH or Fig. 3 for T6- -NRH. Fig. 2 - - T6- -PRH Carton Contents 1. Display Module 2. Stand- -off for Equipment Control Module 3. Outside Air Temperature Sensor, screws and pigtail. 4.

  • Page 9: Thermidistat Control Location

    Fig. 3 - - T6- -NRH Carton Contents 1. Display Module 2. Stand- -off for Equipment Control Module 3. Outside Air Temperature Sensor, screws and pigtail. 4. Equipment Control Module Thermidistat Control Location Thermidistat Control should be mounted: Approximately 5 ft (1.5m) from floor. Close to or in a frequently used room, preferably on an inside parti- tioning wall.

  • Page 10: Install Thermidistat Control

    temperature- -radiating objects which could cause a false reading. Close to or in direct airflow from supply registers and return- -air regis- ters. In areas with poor air circulation, such as behind a door or in an al- cove. Installer should determine whether control will be installed as single- -piece or two- -piece.
  • Page 11 CAUTION UNIT DAMAGE HAZARD Failure to follow this caution may result in equipment damage or improper operation. Improper wiring or installation may damage Thermidistat Control. Check to make sure wiring is correct before proceeding with installation or turning on power. 1.
  • Page 12 CAUTION ENVIRONMENTAL HAZARD Failure to follow this caution may result in environmental damage. Mercury is a hazardous waste. Federal regulations require that Mercury be disposed of properly. Two- - Piece Installation The following steps should be followed for the installation of the two- -piece configuration.
  • Page 13 A07225 Fig. 4 - - Press Tabs to Remove Backplate A07226 Fig. 5 - - Take Apart...
  • Page 14 against wall (for aesthetic value only—Display Module need not be lev- eled for proper operation) and mark wall through 2 mounting holes. See Fig. 6. Fig. 6 - - Backplate Mounting 3. Drill two 3/16- -in. mounting holes in wall where marked. Thermidistat may be mounted to a standard junction box, if desired.
  • Page 15 block, being careful not to over tighten the screws. Correct polarity must be observed when connecting the two wires from the Equipment Control Module to the Thermidistat Control mounting base. If wires are con- nected incorrectly, the Display Module will not operate. See Fig. 7, 8 and Control Module Wiring Guide Control Module Wiring Guide OAT /...
  • Page 16 A07166 Fig. 8 - - Secure Wires to Terminal Strip A07167 Fig. 9 - - Connect Pigtail Wires to Display Module...
  • Page 17 Interface. Do not hang the User Interface from the Equipment Control Module screw terminals. S Red of the pigtail is V+ S Black of the pigtail is Vg 7. Push any excess wire into wall and against mounting base. Seal hole in wall to prevent air leaks.
  • Page 18 either near or on equipment. See Fig. 11. IMPORTANT NOTE: Equipment Control Module should not be mounted to duct work or below any other controls or equipment (i.e. humidistat, humidifier, etc.). Fig. 11 - - Equipment Control Module on Equipment 11.
  • Page 19 Fig. 12 - - Standoff 12. Match and connect equipment wires to proper terminals of each connector block being careful not to over tighten the screws. Correct polarity must be observed when connecting the two wires from the Equipment Control Module to the Thermidistat Control mounting base.
  • Page 20 5 sec. For the next 5 sec a 2- -digit code appears on large display which identifies Thermidistat Control configuration. Refer to Option 33. a. AC — 1- -stage air conditioner b. HP — 1- -stage heat pump c.
  • Page 21 The following steps should be followed for the installation of the single- -piece configuration. 1. Remove cover from Equipment Control Module by pressing the two tabs on the bottom edge and pulling away. Route wires through large hole in Equipment Control Module. Level Equipment Control Module against wall (for aesthetic value only - - Equipment Control Module need not be leveled for proper operation) and mark wall through 2 mounting holes.
  • Page 22 Fig. 14 - - Equipment Control Module 5. Match and connect equipment wires to proper terminals of each connector block. 6. Push any excess wire into wall and against Equipment Control Module. Seal hole in wall to prevent air leaks. Leaks can affect operation and cause incorrect temperature and/or humidity measurement.
  • Page 23 5 sec. For the next 5 sec a 2- -digit code appears on large display which identifies Thermidistat Control configuration. Refer to Option 33. a. AC — 1- -stage air conditioner b. HP — 1- -stage heat pump c.

  • Page 24: Set Thermidistat Control Configuration

    Configuration options enable the installer to configure the Thermidistat Control for a particular installation. Most are not presented to the homeowner and therefore must be properly set by the installer. (Only those marked with an asterisk * below are available to the homeowner.) The homeowner configurations are described in the owner’s manual.
  • Page 25 heat only and cool only systems) Option 12 — Smart Recovery (programmable models only) Option 13 — Room Temperature Offset Adjustment Option 14 — Humidity Offset Adjustment Option 15 — Enable Auto Mode Option 16 — Cycles Per Hour Option 17 — Time Between Stages Option 18* —...
  • Page 26 Option 31* — Daylight Savings Time Configuration (programmable models only) Option 32 — Furnace Heat Staging Option 33 — Single or Two- -Piece Installation Option 99 — Reset to Factory Defaults TO ENTER CONFIGURATION MODE Press and hold FAN button for approximately 10 sec. The Display Module is now in configuration mode.
  • Page 27 HP — operates a single- -speed heat pump with a fan coil A2 — operates a two- -speed AC AC — operates a single- -speed AC hh — operates a single- -speed heat pump with a furnace h2 — operates a two- -speed heat pump with a furnace —...
  • Page 28 their own blowers and do not require separate G signal. For these applications, select OFF. Some auxiliary heaters require separate G signal to turn on blower. In this case, select On. Default is OF (off). Option 05 — Room Air Temperature Sensing (programmable models only) This selection determines which sensor the control will use for measuring room air temperature.
  • Page 29 OF (off) - - function is disabled. Auxiliary heat is allowed to operate whenever sufficient demand for heat is available. 5- -55_F - - Outdoor temperature above which the auxiliary heat is not allowed to operate (unless MODE is set to Emergency Heat). Default is OF (off).
  • Page 30 Option 11 — Deadband Setting Between Heat & Cool This option is not available on Heat Only and Cool Only systems. The selection allows the installer to choose how much differential exists between the heating and cooling setpoints. Allowable selections are 1- -6. Default is 2.
  • Page 31 Control to automatically change between heating mode and cooling mode when sufficient demand for heating or cooling exists. On — Auto mode is available. OF — Auto mode is not available. Default is On. Option 16 — Maximum Cycles Per Hour This selection limits the number of cycles per hour that the Thermidistat Control allows the system to operate.
  • Page 32 Option 18 — Backlight Configuration When OF (off), the backlight will be lit for 10 seconds after a button is pressed. After 10 seconds of no button presses, the backlight turns off. When On, the backlight will normally be on and dim in appearance. The backlight brightness becomes brighter when a button is pressed.
  • Page 33 terminal on the cooling equipment when the dry contact is closed. See Wiring Diagrams for more information. Default is OF (off). Option 19 — Dry Contact Configuration (non- -programmable models only) OF — The dry contact is always de- -energized. ON —...
  • Page 34 3 — The entire keypad is locked. When a button is pressed, the backlight will turn on but none of the operating parameters will be changed. When the keypad lock selection is turned on, the padlock icon will be displayed. To unlock the keypad, press and hold the UP/DOWN buttons simultaneously for five seconds.
  • Page 35 Option 22 — High Cool Latch Temperature An outdoor sensor is required for high cool latch feature. This selection is only available when Option 1 is set to H2, A2, or h2 and when Option 7 (zoning) is set to OF (off). Configuration settings are OF (off), 80, 85, 90, 95, 100, 105, 110, On.
  • Page 36 On — The Y1 and Y/Y2 outputs are simultaneously energized to satisfy all heating demands. Default is OF (off). Option 24 — Programmable/Non- -Programmable (programmable models only) This selection allows the installer to configure the Thermidistat Control as either programmable or non- -programmable. Selections are P, nP. Default is P.
  • Page 37 Option 27 — Maximum Heating Setpoint This selection allows the installer to configure the maximum heating setpoint. The range is based on the adjustable deadband value Option 11, such that the minimum of the range is 50_F and the maximum is 90_F minus the deadband. Default is 88_F (based on the adjustable deadband default = 2).
  • Page 38 Option 30 — Programmable Fan (programmable models only) This selection allows the homeowner to program the fan selection to “Auto” or “On” fan operation for each of the program schedule periods. This selection is only available on programmable Thermidistat Controls. OF (off) —...
  • Page 39 choose the end date for daylight savings time (Fall). To activate the function, the installer changes the “2” by pressing the up button and “On” is displayed. The setting shall be left “On” to enable the Daylight Savings Time function. Default is On (on).

  • Page 40: System Start- -Up And Checkout

    to move the box from the 99 to the 10 (programmable model) or to flash the 10 (non- -programmable model). Then press and hold the DOWN key. The 10 will start counting down toward zero. If the DOWN key is kept pressed until the count reaches zero, the reset will be performed.

  • Page 41: Final Settings

    installation, only 1 stage of auxiliary heat is available. Any staging of auxiliary heat must be managed by the furnace or fan coil. While the heating test is active, the humidify output can be toggled. On the programmable models, pressing the button below the humidify icon shall toggle the state of the humidify output.
  • Page 42 conform to the Energy Starr requirements of the U.S. Department of Energy for both heating and cooling. These provide energy saving temperature settings. Refer to Table 1. Table 1 – Energy Star Default Schedule SCHEDULE HEAT Wake 6:00 AM 68_F Day 8:00 AM 60_F Evening 5:00 PM...

  • Page 43: Humidity Control Features

    the set button will cycle through the calendar, daily schedule, and vacation settings. Calendar may be changed by using the soft keys to select the Month, Day, or Year. The UP/DOWN buttons are used to change the Month, Day, or Year setting when the box surrounds it.
  • Page 44 SELECTION FAN DISPLAY Normal Humidify Blank Auto Humidify AUTO Humidify Off Blank 1. Humidify In normal humidify, humidifier will be on if there is humidity demand and any heating equipment is on. This will include furnace, heat pump, or auxiliary heat. 2.
  • Page 45 To Select Humidification (non- -programmable) Press the features button twice. The first press displays the outdoor air temperature and the second press displays the humidity value and humidify target. Pressing the mode button shall cycle through the available humidification selections (Off, Humidify and Auto Humidify). Additional Humidify Comments The humidifier is actually turned on when humidity is 1% below setpoint and turned off when it reaches 1% above setpoint.
  • Page 46 1. Normal Dehumidify Operation When normal dehumidify is selected, the compressor will not turn on without a cooling demand. If dehumidify demand exists while cooling, dry contact will also be active (24VAC removed). This output commands variable- -speed blowers to reduce their airflow, which improves water re- moval from the cooled air.
  • Page 47 Fig. 16 - - Auto Humidity 3. Dehumidify Off Dehumidification can be turned off completely. This can be done without changing existing setpoints. To Select Dehumidification (programmable - - between NORMAL, COOL TO, and OFF) Press the soft key below the dehumidify icon button to bring up dehumidify selections.
  • Page 48 system is in AUTO mode, dehumidify options are available if the last system operation was a call for cooling. To Select Dehumidification (non- -programmable - - between NORMAL, COOL TO, and OFF) Press the features button three times. The first press displays the outdoor air temperature, the second press displays the humidify options and the third press will display the current dehumidify selections.
  • Page 49 Bryant FK and FV series variable- -speed fan coils, all variable- -speed furnaces, and select single and multi- -stage furnaces with the dehumidify connection have dehumidify inputs which connect directly to Thermidistat Control dry contact. Refer to the furnace literature for dehumidification options.
  • Page 50 A special set of temperature and humidity setpoints exist which are active in vacation mode. They are adjustable by the homeowner, are exclusively for vacation mode, and are remembered from one vacation selection to the next. See Table 3 for default values. Table 3 –...

  • Page 51: Operational Information

    OPERATIONAL INFORMATION Timers Five- -Minute Compressor Timeguard This timer prevents compressor from starting unless it has been off for at least 5 minutes. It can be overridden for 1 cycle by simultaneously pressing FAN and UP buttons. Cycle Timer Based on the selection of 2, 4, or 6 cycles per hour, this timer is set to 30, 15, or 10 minutes.

  • Page 52: Equipment On Indicators

    defrost signal has been active for less than 15 consecutive minutes. Any defrost signal present for longer than 15 minutes shall be considered invalid. Heat pump/fan coil and hybrid heat systems shall use this input to: Detect that defrost is in progress and energize the auxiliary heat to provide homeowner comfort during the defrost cycle Allow a defrost cycle to run to completion regardless of the system demand...

  • Page 53: Auto Changeover

    Humidify and Dehumidify Indicators When the Display Module door is closed, the humidify icon will be displayed when humidification is active and the dehumidify icon will be displayed when dehumidification is active. Auto Changeover When auto changeover mode is selected, a change from heat to cool (or vice versa) will not occur until an opposite mode demand has existed for 20 minutes.

  • Page 54: Error Codes

    power to energize the dehumidify terminal on the cooling equipment when the dry contact is closed. If it is desired to operate a ventilator or other device, the D1 and D2 terminals can be connected directly to the equipment. This will provide a closed contact for the specified number of minutes per hour.
  • Page 55 seconds. The control will operate from the temperature sensed by the working sensor. E1 - - If the Display Module and the Equipment Control Module cannot communicate via two- -wire connection, an E1 will be displayed. E2 - - There is no E2 error message. E3 - - If Thermidistat Control cannot properly read outdoor temperature, and it is needed for proper operation, display will indicate “- -- -”...
  • Page 56 EQUIPMENT COOL COOL HARDWARE CONFIGURATION STAGE STAGE CONFIGURATION OPTION #1 Single- - stage AC Y/Y2 Single- - stage AC Y/Y2 Single- - stage HP Y/Y2 RVS = C O/W2/B Single- - stage HP Y/Y2 RVS = H Single- - stage HP Y/Y2 RVS = C O/W2/B...
  • Page 57 EQUIPMENT COOL COOL HARDWARE CONFIGURATION STAGE STAGE CONFIGURATION OPTION #1 Two- - stage Hybrid Heat Y/Y2 O/W2/B RVS = C O/W2/B Two- - stage Hybrid Heat Y/Y2 RVS = H Heat Only Unit Cool Only Unit Y/Y2 Cool Only Unit Y/Y2 HEAT HEAT...

  • Page 58: Wiring Diagrams

    Display module Display module wall mount Equipment Control Module RVS/Heat Stage 2 Heat Stage 1 Compressor Not Used 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Outdoor Air Temp Remote Room Sensor OAT/RRS Com Fig.
  • Page 59 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Fig.
  • Page 60 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Fig.
  • Page 61 Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Remote Room Fig. 20 - - Fan Coil Shown w/Aux. Connection #1 (Heat Pump/Air Conditioner removed for clarity.) * Indicates connection may not be required/available. Aux. Connection Valve * Sensor * A06575...
  • Page 62 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 21 - - FV/FK Fan Coil w/2- -Stage Air Conditioner * Indicates connection may not be required/available. Fan Coil Air Conditioner Y/Y2 Y/Y2 DEHUM...
  • Page 63 Humidify Humidifier Solenoid Outdoor Air Temp Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Fig. 22 - - Typical Fan Coil w/Air Conditioner * Indicates connection may not be required/available. Typical Single-Stage Fan Coil Air Conditioner Valve * Remote Room...
  • Page 64 Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Remote Room Fig. 23 - - Fan Coil Shown w/Aux. Connection #2 (Heat Pump/Air Conditioner removed for clarity.) * Indicates connection may not be required/available. Fan Coil Aux. Connection Valve * Sensor *...
  • Page 65 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 24 - - FV/FK Fan Coil w/1- -Stage Heat Pump * Indicates connection may not be required/available.
  • Page 66 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 25 - - Typical Fan Coil Heating Only * Indicates connection may not be required/available.
  • Page 67 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 26 - - Thermidistat Control w/Dry Contact Control for Fan Run Time * Indicates connection may not be required/available.
  • Page 68 Humidifier Solenoid Outdoor Air Temp Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Fig. 27 - - FV/FK Fan Coil w/1- -Stage Air Conditioner * Indicates connection may not be required/available. Fan Coil Air Conditioner Y/Y2 DEHUM Valve *...
  • Page 69 Outdoor Air Temp Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Fig. 28 - - Typical Fan Coil Cooling Only * Indicates connection may not be required/available. Typical Single-Stage Fan Coil Air Conditioner Valve * Remote Room Sensor * A06583...
  • Page 70 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig.
  • Page 71 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig.
  • Page 72 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 31 - - Variable Speed/Multi- -Stage Furnace w/2- -Stage Air Conditioner * Indicates connection may not be required/available. Furnace Air Conditioner Y/Y2 Y/Y2 DEHUM...
  • Page 73 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 32 - - Single- -Stage Furnace w/Air Conditioner * Indicates connection may not be required/available. Single-Stage Single-Stage Furnace Air Conditioner DEHUM Valve *...
  • Page 74 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 33 - - Variable Speed/Multi- -Stage Furnace w/Single- -Stage Heat Pump * Indicates connection may not be required/available.
  • Page 75 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS Fig. 34 - - Single- -Stage Furnace Heating Only * Indicates connection may not be required/available.

  • Page 76: Air Conditioner

    Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS Remote Room Sensor * Fig. 35 - - Variable Speed/Multi- -Stage Furnace w/Single- -Stage Air Conditioner Air Conditioner A06590...
  • Page 77 Outdoor Sensor * OAT/RRS Com OAT/RRS Remote Room Fig. 36 - - Single- -stage Furnace with Air Conditioner and Split Power * Indicates connection may not be required/available. NOTE: Rc/Rh jumper is cut on the Equipment Control Module. Single-Stage Furnace...

  • Page 78: Thermidistat Configuration Record

    Installer Model Number _________________________ ______________________________ A. Hardware Configuration __________ Seal Hole In Wall B. Mode Settings __________ Mode (Off, Heat, Cool, Auto, Em Heat) __________ Heating Setpoint Value __________ Cooling Setpoint Value __________ Fan (Auto or On) C. Home, Away, Sleep Settings Heat Cool Home...
  • Page 79 E. Configuration Options Option 01 Equipment Type _____ Option 02 Clean Filter Timer Adjustment _____ Option 03* Fahrenheit/Centigrade Selection _____ Option 04 Fan (G) on with W/W1 Selection _____ Option 05 Room Air Temperature Sensing (programmable models only) _____ Option 06 Cooling Lockout Below 55_F Selection (only available if outdoor air sensor is present) _____ Option 07...
  • Page 80 Single or Two- - Piece Installation _____ Options with an asterisk can also be set/changed by the homeowner. E2007 Bryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/07 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
