OPERATING INSTRUCTIONS AND PARTS LIST
INSTRUCCIONES DE OPERACIÓN Y LISTA DE PIEZAS
MODELS: MC1809R (9 HP ROBIN)
MC1809H (9 HP HONDA)
MC1813R (13.5 HP ROBIN)
MC1813H (13 HP HONDA)
MC1805G (5 HP GAST)
MC1805B (5 HP BALDOR)
Model:
Serial Number:
Engine Serial No.:
Purchase Date:
0A7859
Copyright © July 11, 2002 DBInc.
Printed in U.S.A.
MC18
Concrete Saw
17400 West 119th Street
Olathe, Kansas 66061
Customer Service ..... 800-288-5040
Corp. Office ............... 913-928-1000
Cust. Service FAX .... 800-825-0028
Corp. Office FAX ....... 913-438-7951
Int'l. FAX .................... 913-438-7938
Internet
www.targetblue.com
1
Advertisement
Table of Contents
Related Manuals for Target MC18
Summary of Contents for Target MC18
-

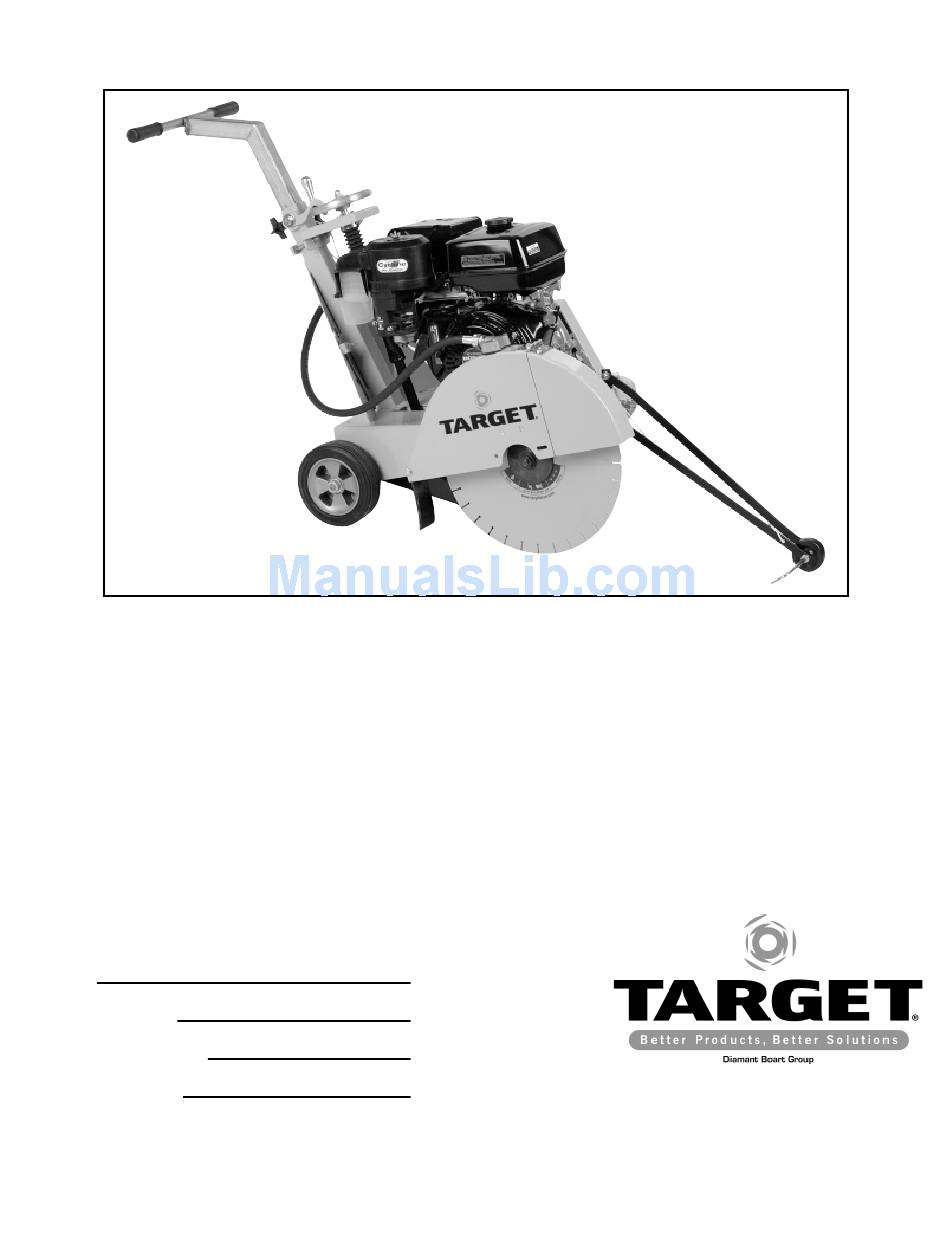

Page 1: Concrete Saw
Serial Number: Engine Serial No.: Purchase Date: 0A7859 Copyright © July 11, 2002 DBInc. Printed in U.S.A. MC18 Concrete Saw 17400 West 119th Street Olathe, Kansas 66061 Customer Service ... 800-288-5040 Corp. Office ... 913-928-1000 Cust. Service FAX ... 800-825-0028 Corp. -
Page 2: Table Of Contents
CONTENTS Symbol Definitions ...4 - 6 Decal Descriptions and Locations ...7 Saw Configurations and Models / Power Source / Dimensions ...9 Safety Warnings - DO's & DO NOT's ...10 - 11 Reference Figures ...12 Pre-Operation Checklist / Maintenance Schedule ... 13 Instructions: Features ...14... - Page 3 NOTE: NOTA:...
-
Page 4: Symbol Definitions
Symbol Definitions Definición De Simbolos • Please Read The Instructions For Use Prior To Operating The Machine For The First Time. • Antes De La Puesta En Marcha, Lea Detenidamente Las Instrucciones Y Familiaricese Con La Máquina. • Mandatory • Obligatorio •... - Page 5 • Do Not Use In Flammable Areas • No Usar In Áreas Inflamables • Machinery Hazard, Keep Hands And Feet Clear • Máquina Peligrosa - Mantenga Manos Y Pies Alejados De La Máquina • Danger, Poison Exhaust Gas • Peligro, Gas De Escape Venenoso •...
- Page 6 • Repairs Are To Be Done By An Authorized Dealer Only • Las Reparaciones Deben Ser Efectuadas Únicamente Por Un Distribuidor Autorizado • Diamond Blade • Sierra Diamantada • Blade Diameter • Diámetro De La Hoja • Pulley Diameter • Diámetro De La Correa •...
-
Page 7: Decal Descriptions And Locations
DECAL DESCRIPTIONS AND LOCATIONS DECRIPCIÓN DE CALCAMONIAS Y UBICACIONES P/N 189732 Location: Front of Frame (All Models) Quantity: 1 P/N 174993 Location: Belt Guard (All Models) Quantity: 1 P/N 174998 Location: Top of Screw Feed Bracket (Screw Feed Model Only) Quantity: 1 P/N 139633 Location: Front of Handle Support (E-Z Tilt Model Only) - Page 8 NOTE: NOTA:...
-
Page 9: Saw Configurations And Models / Power Source / Dimensions
Spring assisted raise/lower system with single lock down knob or spring assisted screw feed Blade Coolant Removable dual water spray tubes; water supply connector located on left side of saw; control Axle Front 3/4" (19 mm) diameter; raises and lowers cutting head Wheels Front 5"... -
Page 10: Safety Warnings - Do's & Do Not's
Wrench tighten the arbor nut. make sure the blade and flanges are clean and free of dirt and debris before mounting the blade on the saw. use the correct blade for the type of work being done. Check with blade manufacturer if you do not know if blade is correct. - Page 11 This saw was designed for certain applications only. DO NOT modify this saw or use for any application other than for which it was designed. If you have any questions relative to its application, DO NOT use the saw until you have written Diamant Boart, Inc.
-
Page 12: Reference Figures
FIGURE 1 WATER VALVE: Use to control the water supply to the diamond blade. WATER INLET: Connect water hose at this garden hose connection. HANDLE ADJUSTMENT KNOBS: Use to adjust handle height. ENGINE STOP SWITCH: Stop Switch: Push down to stop engine. DEPTH CONTROL LOCK: Use to lock the position of the Depth Control Hand Wheel. -
Page 13: Pre-Operation Checklist / Maintenance Schedule
Before leaving our factory, every machine is thoroughly tested. Follow our instructions strictly and your machine will give you long service in normal operating conditions. Before starting up the machine, make sure you read this entire operations manual and are familiar with the operation of the machine. -
Page 14: Instructions
(50 mm) for best results. clothing • Saw in a straight line. Mark the cutting line clearly so the saw operator can follow the line without difficulty. The saw should NOT be twisted from side to side try- ing to force the blade back on the line. -
Page 15: Check Before Starting
[Wait for all engine movement to stop.] On Air Models: 1. Connect the saw to an adequate air supply of 175 CFM @ 100 PSI (120 CFM @ 90 PSI per minute). 2. Check the lubricator (located in the air manifold unit) for the proper oil level. -
Page 16: Maneuver The Saw
The blade on this saw may be lowered into the concrete by loosening the lock handle and pushing forward on the handle bar. The weight of the saw will assist when lowering the blade. The blade is held at the desired depth by tightening the lock handle on the lock bar. -
Page 17: Maintenance Instructions
The kit consists of two (2) tie down loops that are installed at the front of the frame. They are to be used only to SECURE the saw to a truck or trailer during transport. WARNING: DO NOT use the tie down... -
Page 18: Governor Speed
It is NOT normally necessary to change this setting. It should be periodically verified after the saw is placed into service. To change the Governor setting, refer to the engine manual. - Page 19 NOTE: NOTA:...
-
Page 20: Diagram 1 - Frame & Axle
Diagram 1 – Frame & Axle... -
Page 21: Diagram 1 - Frame & Axle
Diagram 1 – Frame & Axle BILL OF MATERIAL INDEX DESCRIPTION 174939 Frame Weldment, MC18 174942 Axle, Front 174975 Axle, Pivot 020768 Washer, Flat .75 SAE 040091 Wheel Assy, 5 Inch Dia 041160 Lock Collar, .750 ID (w/ss) 020551 Screw, Set Soc Cup Pt .312-18UNC x .25 020767 Washer, Flat .625 SAE... -
Page 22: Diagram 2 - Depth Control (Screw Feed)
Diagram 2 – Depth Control (Screw Feed) - Page 23 Diagram 2 – Depth Control (Screw Feed) BILL OF MATERIAL INDEX DESCRIPTION 174997 Adj Nut Wldmnt w/ Grease Fit 049924 Fitting, Grease 1/8 NPT x 90° 177915 Screw, Adj., .625-8 ACME 040141 Bearing, Flange, .50 Inch ID 174944 Bracket, Screw Feed 020764 Washer, Flat .375 SAE 020786...
-
Page 24: Diagram 3 - Depth Control (Lock Bar)
Diagram 3 – Depth Control (Lock Bar) -
Page 25: Diagram 3 - Depth Control (Lock Bar)
Diagram 3 – Depth Control (Lock Bar) BILL OF MATERIAL INDEX DESCRIPTION 139560 Bar, Lock 049513 Washer, Friction .531 ID 139562 Washer 139556 Stud, Depth Control 174679 Lever, Adjustment 160164 Pin, Clevis .50 Dia x 1.13 Lg 020540 Screw, Set Soc Cup Pt .250-20UNC x .25 177239 Pin, Rue Ring - .50 DIA 139626... -
Page 26: Diagram 4 - Pointer & Belt Guard
Diagram 4 – Pointer & Belt Guard... - Page 27 Diagram 4 – Pointer & Belt Guard BILL OF MATERIAL INDEX DESCRIPTION 174328 Guard, Shaft - Weldment 020785 Lockwasher, Split .313 020399 Capscrew, Hex Hd .312-18UNC x 3.25 174977 Bracket, Pointer Mount 167908 Bar, Pointer - Offset 167906 Bar, Pointer - Straight 041231 Rod, Pointer 041220...
-
Page 28: Diagram 5 - Guards & Water Distribution
Diagram 5 – Guards & Water Distribution... -
Page 29: Diagram 5 - Guards & Water Distribution
Elbow, 1/2NPT Male x 90° Brass 040270 Hose Adapter 045640 Filter Washer 040254 Washer, Hose 139616 Hose Assy, Water - MC18 020782 Lockwasher, Split #10 196039 Screw, Rd Hd Mach 10-24 x .500 Cross Z/P 196042 Assy, Blade Guard - 18in Tgt Blue 020743 Washer, Flat .375 Dia... - Page 30 Diagram 6 – Blade Guard...
-
Page 31: Diagram 6 - Blade Guard
Diagram 6 – Blade Guard BILL OF MATERIAL INDEX DESCRIPTION ------ Rear Guard Weldment - 18 Inch 139075 Hinge (Note A) 195127 Hinge (Note A) 139596 Front Guard Weldment, 18 Inch (Note A) 195120 Front Guard Weldment, 18 Inch (Note A) 020762 Washer, Flat .250 SAE (Note A) 173059... -
Page 32: Diagram 7 - Engine & Bladeshaft
Diagram 7 – Engine & Bladeshaft... -
Page 33: Diagram 7 - Engine & Bladeshaft
Diagram 7 – Engine & Bladeshaft BILL OF MATERIAL INDEX DESCRIPTION 174973 Group, Bladeshaft R&L 4.5 (9H,13H,13R) 196003 Group, Bladeshaft R&L 4.5 (9R Only) 177569 Bladeshaft Assy, Complete (9H,13H,13R) 196004 Bladeshaft Assy, Complete (9R Only) 167185 Collar, Inner 4.50 OD 167962 Collar, Outer 4.50 OD Assy 167964... -
Page 34: Diagram 8 - Electric Motor
Diagram 8 – Electric Motor... -
Page 35: Diagram 8 - Electric Motor
Diagram 8 – Electric Motor BILL OF MATERIAL INDEX DESCRIPTION 060143 Pulley, 2G3V 2.65 x .875 Bore 020550 Screw, Set Soc Cup Pt .312-18UNC x .375 139612 V-Belt, 3VX280 (Set of 2) 058020 V-Belt, 3VX280 139306 Motor, 5HP 230/60 Alt Wiring 000923 Motor, 5HP 3450 208-230/460/60 139540... -
Page 36: Diagram 9 - Air Motor
Diagram 9 – Air Motor... -
Page 37: Diagram 9 - Air Motor
Diagram 9 – Air Motor BILL OF MATERIAL INDEX DESCRIPTION 139644 Air Motor Mount 139624 Air Motor 020785 Lockwasher, Split .313 020313 Capscrew, Hex Hd .312-18UNC x .75 020293 Nipple, Close 1/2 NPT 020730 Tee, Female, 1/2 NPT, Galvanized 020810 Elbow, Street, 90°... -
Page 38: Diagram 10 - Kit, Water Tank (174957)
Diagram 10 – Kit, Water Tank (174957) BILL OF MATERIAL INDEX DESCRIPTION 196035 Bracket, Water Tank 174648 Water Tank (w/cap), 7 Gallon 020764 Washer, Flat .375 SAE 020509 Capscrew, Hex Hd .375-16UNC x 2.00 020199 Locknut, Fiber .375-16UNC 020322 Capscrew, Hex Hd .375-16UNC x .75 139722 Hose, 3/8 ID x 4.4 020049... - Page 39 NOTE: NOTA:...
- Page 40 Target Corporate Office Customer Service...…………………... 800-288-5040 Corp. Office...………………………... 913-928-1000 Cust. Service FAX …………………… 800-825-0028 Corp. Office FAX ..…………………... 913-438-7951 Cust. Service, Int’l. …………………… 913-928-1300 Int’l. E-mail ...…………….…. rcoats@db-inc.com Target Latin America, Mexico, Caribbean, Central and South America 17400 West 119th Street Olathe, Kansas 66061 Phone ……………………………….….
