Summary of Contents for Napoleon Casaloma EF31H

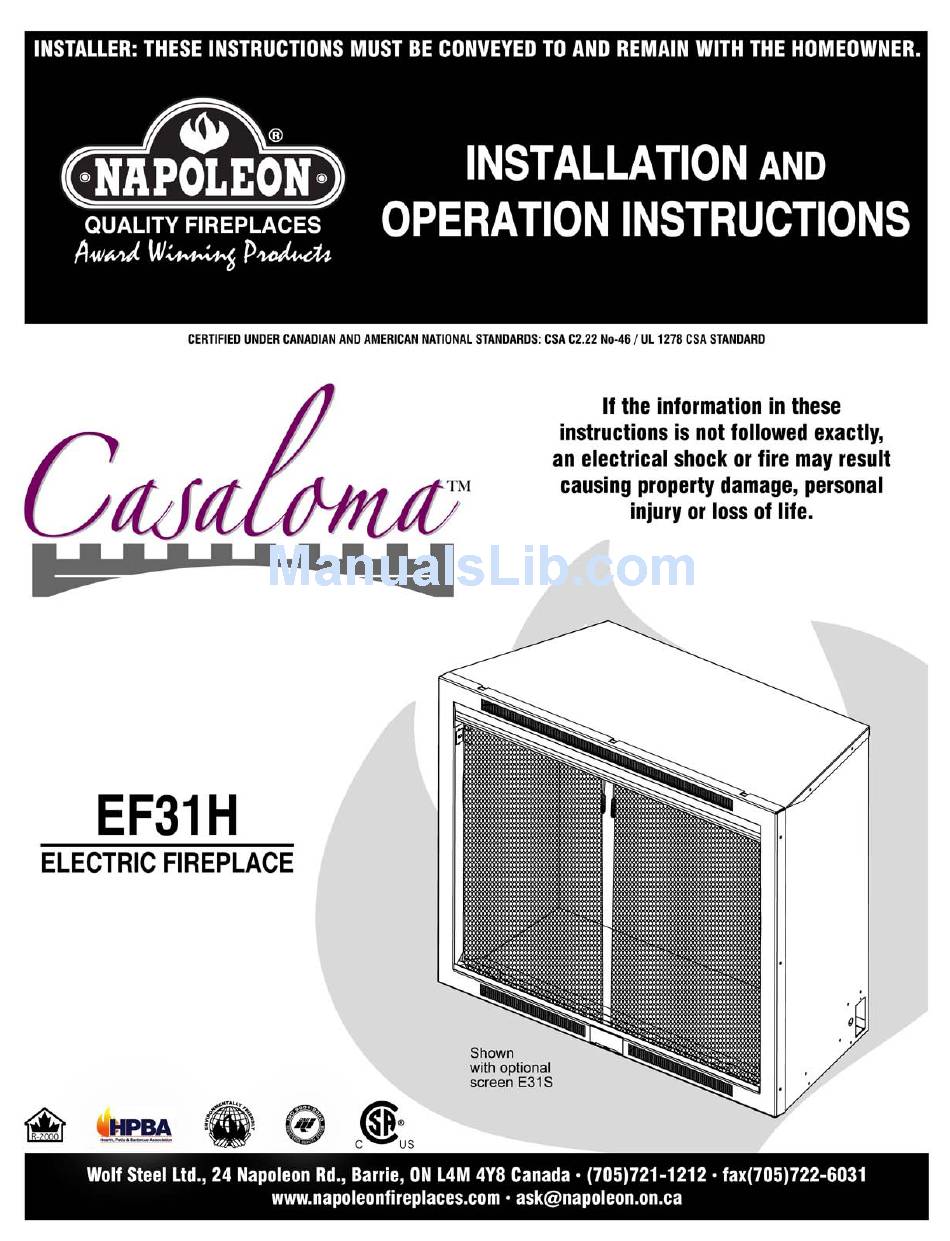

- Page 1 W415-0469 / C / 11.16.05 W415-0469 / C / 11.16.05...
-
Page 2: Table Of Contents
TABLE of CONTENTS ELECTRICAL CONNECTION PG 2-4 INTRODUCTION Hard Wiring Connections Warranty Electric Diagram Important Instructions Hard Wiring the EF31 Locating Your Fireplace Connecting a Wall Thermostat Dimensions Wall Switch Main Power Wiring OPERATION LIGHT REPLACEMENT Flame Effect Maintenance REPLACEMENTS FINISHING Ordering Replacement Parts Mantel Installation... -
Page 3: Warranty
NAPOLEON electric fireplaces are manufactured under the strict Standard of the world recognized ISO 9001:2000 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. Once assembled the complete fireplace is thoroughly inspected by a qualified technician before packaging to ensure that you, the customer, receive the quality product that you expect from NAPOLEON. -
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS LOCATING YOUR ELECTRIC FIREPLACE 1. READ ALL INSTRUCTIONS BEFORE USING THIS APPLI- Your new fireplace may be installed into an existing ma- ANCE. THIS APPLIANCE IS HOT WHEN USED. sonry or zero clearance fireplace. It may also be installed using a prefabricated cabinet available from your dealer or 2. -
Page 5: Operation
OPERATION 1. Heater There are two operation controls for the EF31. 1 - Controls the heater. 2 - Controls the flame effect. To set the heater at the maximum setting - roll the switch up to the uppermost setting. To access the controls, To turn the heater off - roll the switch down to the lower Control Door slide the control door to... -
Page 6: Hearth
HEARTH EF31 A hearth is NOT necessary but is recommended for aes- Corner Installation thetic purposes. COLD CLIMATE INSTALLATION WARNING: It is MANDATORY to have an insulated wall be- hind the fireplace, when the fireplace is being installed on an outside wall or chase. GLASS REMOVAL Top View Remove the two screws holding the glass retainer and... -
Page 7: Optional Screen Installation
OPTIONAL SCREEN INSTALLATION 1. Bunch the curtain mesh in the middle of the rod. 2. Insert one end of the rod through the hole indicated in the side of the firebox frame. 3. The rod will need to be bowed in the middle in order to insert the other end of the rod into the opposite hole. -
Page 8: Hard Wiring The Ef31
HARD WIRING THE EF31 CONNECTING A WALL THERMOSTAT 1. Remove the securing screw from the electrical cover plate, located on the right hand side of the fireplace. Thermostat must be rated for 120 vac 2. Feed the supply wires through the 7/8" knock out and minimum 15 amps. -
Page 9: Wall Switch Main Power Wiring
WALL SWITCH MAIN POWER WIRING Use a single pole on/off switch rated for maximum 15 amps. 1. Remove the electrical box cover plate. 2. Feed the supply wires through the 7/8" knock out and WALL attach the ground wire to the ground screw on the SWITCH coverplate. -
Page 10: Light Replacement
LIGHT REPLACEMENT / RATING PLATE LOCATION There are two methods to replace the light: In either method, the electrical circuit breaker must be shut off until the replacement procedure has been completed at which time it can be turned back on. To access the Rating Plate these proceedure must be followed. -
Page 11: Replacements
REPLACEMENTS Contact your dealer for questions concerning prices and 1. M & S ODEL ERIAL UMBER OF FIREPLACE availability of replacement parts. Normally all parts can be 2. I NSTALLATION DATE OF FIREPLACE ordered through your Napoleon dealer or distributor. 3. -
Page 12: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM PROBLEM TEST SOLUTION No Flame Light but - Light bulbs have burned out. - Remove access panel and change everything else is light bulbs. working properly. Flame light, but no - Flame generator motor has burned out. - Consult your local dealer. - Page 13 W415-0469 / C / 11.16.05...
- Page 14 W415-0469 / C / 11.16.05...
