INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No.12, CSA 22.2 No.250 / UL 153 and UL 1598

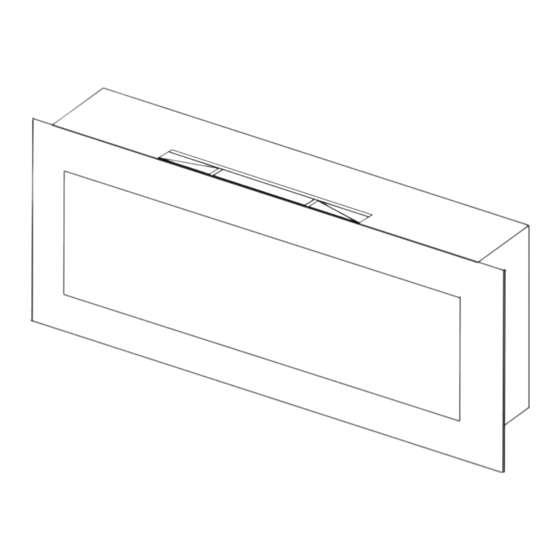

EFL100
ELECTRIC FIREPLACE
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
WARNING
!
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
1.16C
W415-1140 /
1
11.07.12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Napoleon EFL100
Summary of Contents for Napoleon EFL100
- Page 1 NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE. INSTALLATION AND OPERATING INSTRUCTIONS CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No.12, CSA 22.2 No.250 / UL 153 and UL 1598 EFL100 ELECTRIC FIREPLACE WARNING HOT GLASS WILL CAUSE BURNS.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION DIMENSIONS LISTING APPROVALS GENERAL INSTRUCTIONS LOCATING APPLIANCE UNPACKING AND TESTING APPLIANCE GROUNDING APPLIANCE INSTALLATION MINIMUM CLEARANCE TO COMBUSTIBLES AND MANTEL INSTALLING THE APPLIANCE ON A WALL RECESSING INSTALLATION 3.3.1 MINIMUM CLEARANCE TO COMBUSTIBLES 3.3.2 FRAMING 3.3.3 MOUNTING BRACKET INSTALLATION FINISHING GLASS EMBER INSTALLATION... -
Page 3: Introduction
1.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •... -
Page 4: Dimensions
NOTE: This appliance must be electrically wired and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/ NFPA 70 National Electrical Code in the United States. Model Number EFL100 Description Wall Mount or Recessed Voltage... -
Page 5: General Instructions
GENERAL INSTRUCTIONS WARNING READ THESE INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTALLATION. FAILURE TO FOLLOW THEM COULD CAUSE AN APPLIANCE MALFUNCTION RESULTING IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. ALL ELECTRIC APPLIANCES HAVE HOT AND ARCING OR SPARKING PARTS INSIDE. DO NOT USE IT IN AREAS WHERE GASOLINE, PAINT OR FLAMMABLE LIQUIDS ARE PRESENT. -
Page 6: Locating Appliance
2.0 LOCATING APPLIANCE WARNING DUE TO HIGH TEMPERATURES, THIS ELECTRIC APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC. KEEP COMBUSTIBLE MATERIALS SUCH AS FURNITURE, PILLOWS, BEDDING, PAPERS, CLOTHES AND CURTAINS AT LEAST 36" FROM THE FRONT OF THE APPLIANCE. NEVER LOCATE THIS ELECTRIC APPLIANCE WHERE IT MAY FALL INTO A BATHTUB OR OTHER WATER CONTAINER. -
Page 7: Installation
3.0 INSTALLATION WARNING RISK OF FIRE! THE POWER CORD MUST NOT BE PINCHED AGAINST A SHARP EDGE. SECURE CORD TO AVOID TRIPPING OR SNAGGING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY. DO NOT RUN CORD UNDER CARPETING. DO NOT COVER CORD WITH THROW RUGS, RUNNERS OR THE LIKE. -
Page 8: Installing The Appliance On A Wall
INSTALLING THE APPLIANCE ON A WALL Side View Due to the many different fi nish materials used on walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. 3 5/8” Select a location that is not prone to moisture and is located at least 36" away from combustible materials such as curtain drapes, furniture, bedding, paper, etc. -
Page 9: Recessing Installation
RECESSING INSTALLATION Due to the many different fi nish materials used on walls, it is highly recommended that you consult your local builder before you install this appliance in the wall. Select a location that is not prone to moisture and is located at least 36" away from combustible materials such as curtain drapes, furniture, bedding, paper etc. -
Page 10: Mounting Bracket Installation
3.3.3 MOUNTING BRACKET INSTALLATION Remove the glass front, refer to "GLASS FRONT INSTALLATION" section for removal instructions. Prior to installing the mounting brackets determine if you will be fully or partially recessing the appliance. Secure two mounting brackets to each side of the appliance use the appropriate holes, as illustrated below. -
Page 11: Finishing
4.0 FINISHING WARNING POWER SUPPLY SERVICE MUST BE COMPLETED PRIOR TO FINISHING TO AVOID RECONSTRUCTION. HEAT VENTS AND AIR OPENINGS CANNOT BE COVERED IN ANY CIRCUMSTANCES. GLASS EMBER INSTALLATION NOTE: Glass front must be removed and the appliance must be mounted in its fi nal location before the glass embers are installed. -
Page 12: Operating Instructions
5.0 OPERATING INSTRUCTIONS Once the appliance has been plugged in to a grounded electrical outlet, it is ready to operate. NOTE: Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, the fl ame will turn on indicating that the power has been restored. OPERATING BY REMOTE CONTROL NOTE: Make certain the batteries are installed correctly, for installation instructions review "REMOTE BATTERY INSTALLATION"... -
Page 13: Hard Wire Installation
HARD WIRE INSTALLATION WARNING ENSURE ALL POWER IS TURNED OFF BEFORE HARD WIRING THIS APPLIANCE. If it is necessary to hard wire the appliance, a qualifi ed electrician may remove the cord connection, and wire the appliance directly to the household wiring. This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. -
Page 14: Wiring Diagram
7.0 WIRING DIAGRAM WARNING ENSURE ALL POWER IS TURNED OFF BEFORE HARD WIRING THIS APPLIANCE. 11.07.12 W415-1140 /... -
Page 15: Replacement Parts
W387-0020 LED BULB W050-0006 FLAME BELT W435-0056 MOTOR 120V/60HZ/4W W190-0060 EFL100 CONTROL CIRCUIT BOARD, MAIN W190-0059 CIRCUIT BOARD, LED POWER W660-0132 REMOTE RECEIVER W660-0140 REMOTE CONTROL NOTE: Care must be taken when removing and disposing of any broken glass or damaged components. -
Page 16: Trouble Shooting
9.0 TROUBLE SHOOTING WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. SYMPTOM PROBLEM TEST SOLUTION Dim or no fl ame LED’s are burnt out Inspect the LED’s beneath the fl ame generation belt and re- place them if necessary Appliance turns off Appliance has overheated... -
Page 17: Warranty
10.0 WARRANTY NAPOLEON® electric appliances are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certifi cate. NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. Once assembled the complete appliance is thoroughly inspected by a qualifi ed technician before packing to ensure that you , the customer, receive the quality product that you expect from NAPOLEON®. -
Page 18: Service History
11.0 SERVICE HISTORY 43.1 11.07.12 W415-1140 /... -
Page 19: Notes
12.0 NOTES 44.1 11.07.12 W415-1140 /... - Page 20 11.07.12 W415-1140 /...
