Napoleon EFL48 Installation And Operating Instructions Manual

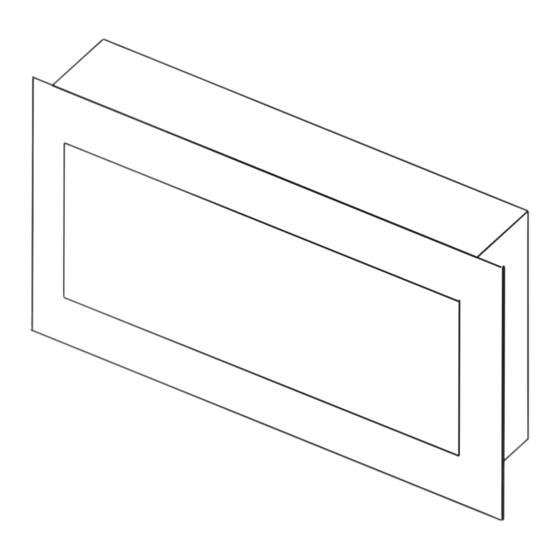

Napoleon EFL48 Installation And Operating Instructions Manual

Electric fireplace

Advertisement

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No.46 / UL 1278
EFL48
ELECTRIC FIREPLACE
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
Phone (705)721-1212 • Fax (705)722-6031 • www.napoleonfi replaces.com • ask@napoleonproducts.com
$10.00
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
1.16A
W415-0931 / A / 11.04.10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFL48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Napoleon EFL48

  • Page 1 INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. INSTALLATION AND OPERATING INSTRUCTIONS CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No.46 / UL 1278 EFL48 ELECTRIC FIREPLACE CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS. SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fi...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION DIMENSIONS LISTING APPROVALS GENERAL INSTRUCTIONS LOCATING APPLIANCE UNPACKING AND TESTING APPLIANCE GROUNDING APPLIANCE INSTALLATION MINIMUM CLEARANCE TO COMBUSTIBLES MINIMUM MANTEL CLEARANCES INSTALLING THE APPLIANCE FINISHING MEDIA INSTALLATION GLASS FRONT INSTALLATION OPERATING INSTRUCTIONS MAIN POWER SWITCH OPERATING BY CONTROL PANEL OPERATING BY REMOTE CONTROL MAINTENANCE REPLACING THE LAMP...
  • Page 3: Introduction

    1.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •...
  • Page 4: Dimensions

    This appliance has been tested in accordance with the CSA and UL Standards for fi xed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact your local dealer. Model Number EFL48 NOTE: This appliance must be electrically wired and Description Wall-Mount Appliance grounded in accordance with local codes.
  • Page 5: General Instructions

    GENERAL INSTRUCTIONS WARNING READ THESE INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTALLATION. FAILURE TO FOLLOW THEM COULD CAUSE AN APPLIANCE MALFUNCTION RESULTING IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. ALL ELECTRIC APPLIANCES HAVE HOT AND ARCING OR SPARKING PARTS INSIDE. DO NOT USE IT IN AREAS WHERE GASOLINE, PAINT OR FLAMMABLE LIQUIDS ARE PRESENT.
  • Page 6: Locating Appliance

    2.0 LOCATING APPLIANCE WARNING DUE TO HIGH TEMPERATURES, THIS ELECTRIC APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC. KEEP COMBUSTIBLE MATERIALS SUCH AS FURNITURE, PILLOWS, BEDDING, PAPERS, CLOTHES AND CURTAINS AT LEAST 36" FROM THE FRONT OF THE APPLIANCE. NEVER LOCATE THIS ELECTRIC APPLIANCE WHERE IT MAY FALL INTO A BATHTUB OR OTHER WATER CONTAINER.
  • Page 7: Installation

    3.0 INSTALLATION WARNING RISK OF FIRE! THE POWER CORD MUST NOT BE PINCHED AGAINST A SHARP EDGE. SECURE CORD TO AVOID TRIPPING OR SNAGGING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY. DO NOT RUN CORD UNDER CARPETING. DO NOT COVER CORD WITH THROW RUGS, RUNNERS OR THE LIKE.
  • Page 8: Installing The Appliance

    INSTALLING THE APPLIANCE Due to the many different fi nish materials used on walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. Select a location that is not prone to moisture and is located at least 36" away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 9: Finishing

    4.0 FINISHING WARNING POWER SUPPLY SERVICE MUST BE COMPLETED PRIOR TO FINISHING TO AVOID RECONSTRUCTION. HEAT VENTS AND AIR OPENINGS CANNOT BE COVERED IN ANY CIRCUMSTANCES. MEDIA INSTALLATION CLEANING THE MEDIA: The media may have a fi ne white dust that needs to be cleaned prior to installation.
  • Page 10: Operating Instructions

    5.0 OPERATING INSTRUCTIONS Once the appliance has been plugged in to a grounded electrical outlet, it is ready to operate. NOTE: Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, both the fl ame and function will remain turned off when the power is restored. MAIN POWER SWITCH The main power switch is located on the top right hand side of the appliance.
  • Page 11: Operating By Remote Control

    OPERATING BY REMOTE CONTROL NOTE: Make certain the batteries are installed correctly and are new. Make certain the appliance’s main power switch is at the ON position. The remote control will NOT work if the Main Power Switch is at the OFF position.
  • Page 12: Maintenance

    6.0 MAINTENANCE WARNING PREPARATION FOR MAINTENANCE ALWAYS DISCONNECT THE POWER AND ALLOW THE ELECTRIC APPLIANCE TO COOL BEFORE PERFORMING ANY CLEANING, MAINTENANCE OR RELOCATION OF THIS ELECTRIC APPLIANCE. TURN CONTROLS TO OFF AND REMOVE PLUG FROM OUTLET OR TURN OFF THE HOUSE CIRCUIT BREAKER TO ELECTRIC APPLIANCE RECEPTACLE.
  • Page 13: Replacement Parts

    7.0 REPLACEMENT PARTS Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts can be ordered through your Authorized dealer / distributor. FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM.
  • Page 14: Trouble Shooting

    8.0 TROUBLE SHOOTING WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. SYMPTOM PROBLEM TEST SOLUTION Dim or no fl ame Bulb(s) are burnt out Inspect the bulbs inside the fl ame generation cylinder drum and replace them if necessary Ember bed is not Bulb(s) are burnt out...
  • Page 15: Warranty

    9.0 WARRANTY NAPOLEON® electric appliances are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certifi cate. NAPOLEON® products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. Once assembled the complete appliance is thoroughly inspected by a qualifi ed technician before packing to ensure that you , the customer, receive the quality product that you expect from NAPOLEON®.
  • Page 16: Service History

    10.0 SERVICE HISTORY 43.1 W415-0931 / A / 11.04.10...

This manual is also suitable for:

Efc32
