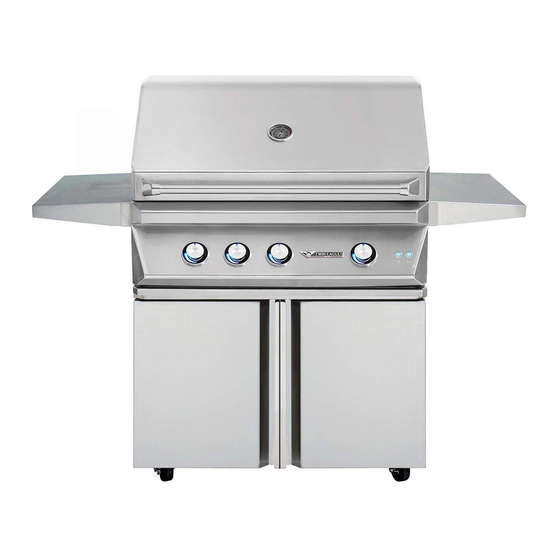

- Page 1 AGLES RILL INSTALLATION, USE & CARE MANUAL Models: TEBQ30G-B TEBQ30R-B TEBQ36G-B TEBQ42R with optional TEGB42SD-B Grill Base shown. TEBQ36R-B TEBQ42G-B TEBQ42R-B P/N: 18522G (05/09)
- Page 2 Congratulations on your purchase of addition to its Unique Style, Superb Performance and High Quality, this grill is built with pride in the U.S.A. Twin Eagles is committed to making outdoor cooking products you’ll be proud to own for years.
-
Page 3: Important Safety Information
– T IMPORTANT SAFETY INFORMATION AGLES RILL WARNING! Read this manual carefully and completely before using your grill to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. F O R Y O U R S A F E T Y A V E R T I S S E M E N T If you smell gas: S’il y a une odeur de gaz:... - Page 4 Without the drip pan, hot grease and debris could leak downward and produce a fire hazard. 13. The pressure regulator and hose assembly supplied with the Twin Eagles Gas Grill must be used. Replacement pressure regulators and hose assemblies must be those specified by Twin Eagles.
-
Page 5: Table Of Contents
– T TABLE OF CONTENTS AGLES RILL GETTING STARTED………………………………………………………………………………………..2 GAS REQUIREMENTS o GAS SAFETY REQUIREMENT………………………………………………..…………...4 o LP GAS HOOKUP………….………………………………………………………..……... 5 o PORTABLE LP CONNECTION………….………………………………………..………. 6 o NATURAL GAS INSTALLATION…………………………………………………..……. 7 o LEAK TEST………………………………………………………………………………….8 ELECTRICAL REQUIREMENTS AND ELECTRICAL DIAGRAM…………………………..………9 WIRING CONNECTION DRAWING DIAGRAM………………………………..………………………10 LOCATING THE GRILL o CLEARANCE TO COMBUSTIBLE CONSTRUCTION…………………….………..……11 o CLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION…………….…………...…..11... -
Page 6: Getting Started
– T GETTING STARTED AGLES RILL 1. Remove all packaging materials, labels and protective plastic film. DO NOT LEAVE UNIT UNDER THE SUN WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS IT WILL BE DIFFICULT TO REMOVE THE FILM. 2. - Page 7 5. Get familiar with the knobs and burners identification below. TEBQ30 TEBQ36 Grill Burner Rotisserie Grill Grill Burner Rotisserie Grill Grill Sear Zone (Opt) (Optional) Burner Sear Zone (Opt) (Optional) Burner Burner TEBQ42 Grill Burner Rotisserie Grill Grill Sear Zone (Opt) (Optional) Burner Burner...
-
Page 8: Gas Requirements
– T GAS SAFETY REQUIREMENTS AGLES RILL Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either natural gas or LP gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the grill. -
Page 9: Lp Gas Hookup
– T LP GAS HOOK-UP AGLES RILL Install the factory-supplied hose and regulator assembly as shown. Connect the ” flare end of the hose to the grill coupling using a ¾” open wrench. Do not apply pipe sealant to the ”... -
Page 10: Portable Lp Connection
– T PORTABLE LP CONNECTION AGLES RILL One of the many features of the AGLES grill base is the pullout slide pan for easy access to the LP gas tank. NOTE: Use only a 20-lbs. (5 gallon capacity) gas cylinder. -
Page 11: Natural Gas Installation
Do not use any replacement regulator other than that specified by Twin Eagles. Use only pipe sealants that are approved for use with natural and LP gases. An installer-supplied gas shutoff valve must be installed in an accessible location. -
Page 12: Leak Test
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by Twin Eagles. LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water. -
Page 13: Electrical Requirements And Electrical Diagram
– T ELECTRICAL REQUIREMENTS AGLES RILL TO INSTALL AND SECURE POWER TRANSFORMER Grill models with interior lights have a power transformer which is concealed in a stainless steel box with an attached power supply cord. This transformer must be secured in a dry location and away from the grill firebox and excessive heat area. -
Page 15: Locating The Grill
– T LOCATING THE GRILL AGLES RILL This gas appliance is design and certified for outdoor use only. Do not locate this grill under overhead combustible surfaces. Do not operate the grill inside a building, garage, recreation vehicle or any enclosed area. When choosing an area, consider exposure to wind, proximity to traffic paths and length of gas supply line. -
Page 16: Insulation Jacket
Do not build the grill under overhead unprotected combustible construction. If the grill is to be placed into combustible enclosure, an approved insulating jacket is necessary to prevent fire, property damage and bodily injury. Use only Twin Eagles insulating jacket. Refer to next page for cut-out dimensions. IMPORTANT: Do not install the transformer box inside the insulating jacket (TEIJ). -
Page 17: Grill
– T GRILL CUT-OUT DIMENSIONS AGLES RILL DETAIL SEE DETAIL (TYPICAL TO ALL TOP UNITS) -
Page 18: Assembly Instructions
– T ASSEMBLY INSTRUCTIONS AGLES RILL AGLES Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the briquette trays and rotisserie components are wrapped inside the grill and require minor assembly. Check to ensure that all packaging material have been removed prior to grill operation. -
Page 19: Rotisserie
ROTISSERIE ASSEMBLY For Larger Loads 1. Install the rotisserie motor horizontally as shown. The motor socket hole will line up with the lower notch of the spit saddles. 2. Insert the rotisserie-rod into the motor socket hole and place the rod on the lower notch of each spit saddle. -
Page 20: Operating Instructions
– T OPERATING INSTRUCTIONS AGLES RILL BEFORE LIGHTING THE GRILL DO NOT ATTEMPT TO LIGHT THE GRILL IF YOU SMELL GAS. WARNING! IT IS CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED WITH THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed, gas may leak outside of the burner that could lead to fire, potential damage to your grill and bodily injury. -
Page 21: Match Lighting Instructions
Match/BBQ Lighter Lighting Instructions: If there is no electrical power supply available or if hot surface igniter will not light the burners, the burners can be lit manually using a lighted long match, taper or BBQ lighter. 1. Push and turn the knob counter-clock-wise to the biggest flame marking on the bezel. -
Page 22: Using The Rotisserie Burner
SMOKER BOX The Twin Eagles sealed smoker box can hold dry wood chips or liquids for hickory, mesquite or your favorite wood chips to give meat a smoky flavor. 1) Remove a grate. -
Page 23: Cleaning And Maintenance
– T CLEANING & MAINTENANCE AGLES RILL STAINLESS STEEL AGLES grill is made of all welded stainless steel. It is non-rusting and non-magnetic. Never clean the stainless steel when it is hot. After the initial grilling use, certain areas of the grill may discolor. -
Page 24: U-Burner & Sear Zone Burner
BURNERS Burners are made of heavy gauge stainless steel and can be soaked in water and cleaned with wire brush. Check every port hole for clogs. Use a wire pin to clean out clogged ports. Make sure the burner is dry before installing it back to the grill. INFRARED SEAR ZONE BURNER INFRARED SEAR ZONE BURNER The infrared burner has stainless housing and protective... -
Page 25: Correct Burner Installation
Correct Burner Installation... -
Page 26: Exploded View
– T EXPLODED VIEW AGLES RILL 25, 26 2, 3, 4 22, 23, 24 5, 6 7, 8 19, 20, 21 10, 11 28, 29, 30 39, 40 49, 50, 51, 52 46, 47, 48 TEBQ42R with optional TEGB42SD-B Grill Base shown. -
Page 27: Replacement Parts List
S 15302 Regulator, LP (LP grill ONLY) S16240 Halogen light complete S16191 Bulb, halogen light (12V/ 10W) S 13147 Twin Eagles Logo S 21623Y Smoker Box Assy. S 15340A Thermometer S 16196 Switch, front panel and interior lights S 16194... -
Page 28: Trouble Shooting Guide
RILL BEFORE CALLING FOR SERVICE: If your Twin Eagles grill does not function properly, use the following troubleshooting guide before contacting your dealer for service. The troubleshooting guide may save the cost of a service call and the inconvenience of being with out your grill. -
Page 29: Limited Product Warranty
800-789-2206. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the grill, date of purchase and the accurate description of the problem. Twin Eagles will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the grill accessible for service. -
Page 30: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789- 2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13231 East 166 Street Cerritos, CA 90703 Visit us at www.twineaglesbbq.com... - Page 31 Here Place Postage Here Customer Service ATTN: Warranty Department 13231 East 166 Street Cerritos, CA 90703 Fax no. (562) 802-3391...
