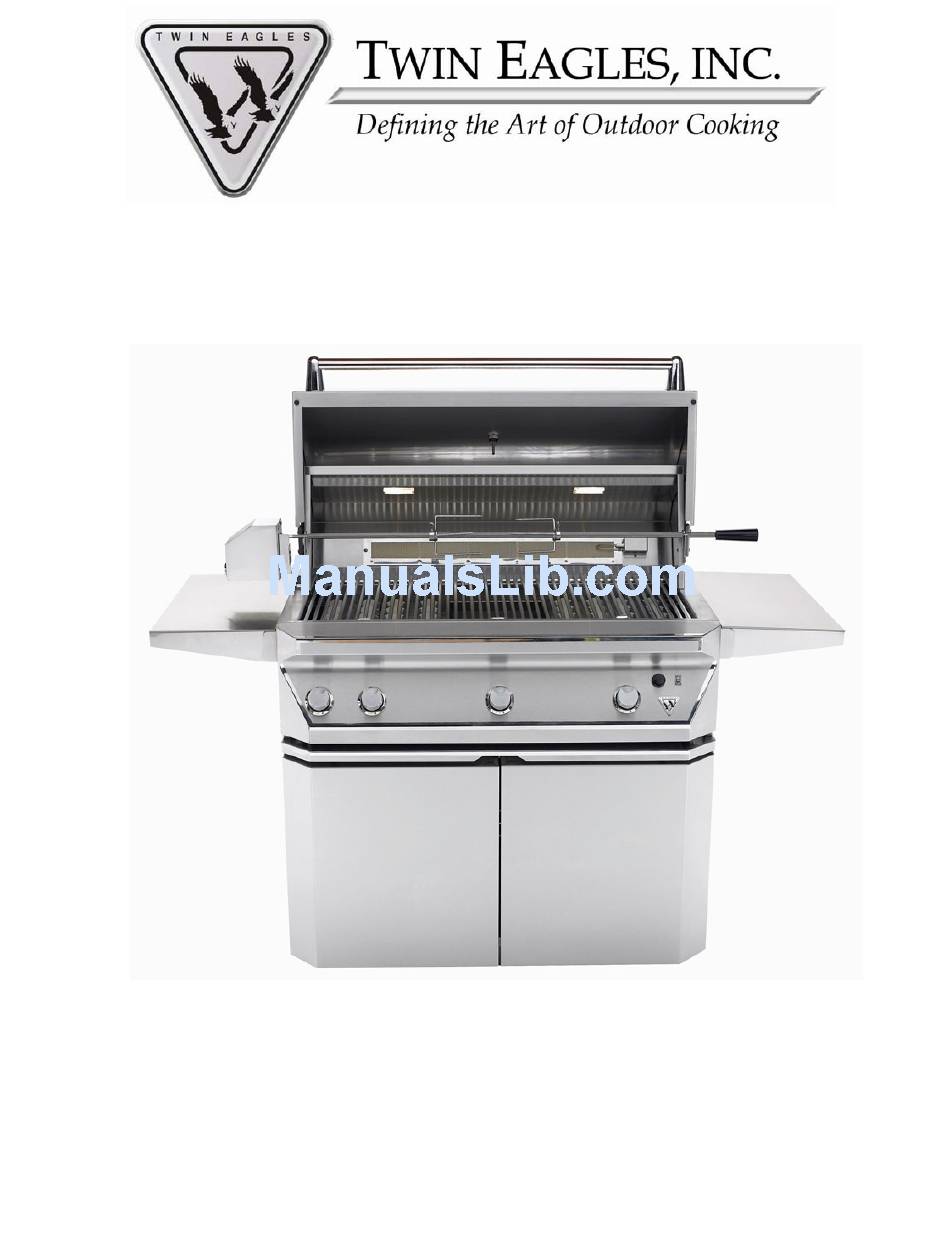

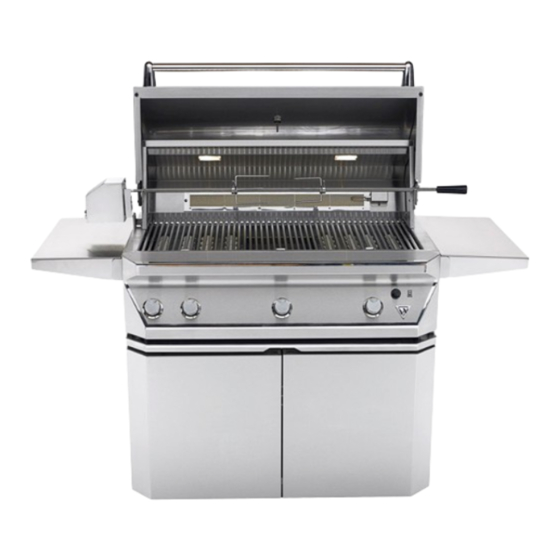

- Page 1 INNACLE RILL INSTALLATION, USE & CARE MANUAL Models: TPBQ-30G TPBQ-30R TPBQ-42G TPBQ-42R P/N: 18522C (3/07)
-
Page 2: For Your Records/ For Your Safety
FOR YOUR RECORDS Please record the following information and refer to them when contacting the company or an authorized service agent. This information is found on the data plate, located on the panel behind the control panel of the grill. Remove the drip tray to visually access the nameplate label from the front of the grill. -
Page 3: Table Of Contents
– P TABLE OF CONTENTS INNACLE RILL FOR YOUR RECORDS/ FOR YOUR SAFETY…………………………………………………………..1 TABLE OF CONTENTS…………………………………………………………………………….………2 IMPORTANT SAFETY INFORMATION……………………………………………….………………..3 GAS REQUIREMENTS o LP GAS SAFETY REQUIREMENT………………………………………………..……..4 o LP GAS HOOKUP………….………………………………………………………..……...5 o PORTABLE LP CONNECTION………….………………………………………..……….6 o PLUMB-IN LP INSTALLATION …...……………………………….……...7 (LP SYSTEM) o NATURAL GAS INSTALLATION…………………………………………………..…….8 LOCATING THE GRILL o CLEARANCE TO COMBUSTIBLE CONSTRUCTION…………………….………..…..9... -
Page 4: Important Safety Information
13. The pressure regulator and hose assembly supplied with the Pinnacle Gas Grill must be used. Replacement pressure regulators and hose assemblies must be those specified by Twin Eagles, Inc. CALIFORNIA PROPOSITION 65-WARNING:... -
Page 5: Gas Requirements
L.P. gas only. The factory-supplied regulator and hose must be used with a 20 lb. L.P. cylinder. For plumb-in installation (system L.P. installation), the regulator must be changed and a main gas shutoff valve must be installed. Contact your Twin Eagles, Inc. dealer for a system L.P. regulator. L.P. Gas Safety Requirement The LP-gas supply cylinder must be constructed and marked in accordance with the Specifications for LP-gas Cylinders of the U.S. -
Page 6: Lp Gas Hookup
– P LP GAS HOOK-UP INNACLE RILL Install the factory-supplied hose and regulator assembly as shown. Connect the 3/8-flare end of the hose to the grill coupling using a 3/4 open wrench. Do not apply pipe sealant to the 3/8-flare connection. Connect the regulator to the LP cylinder. -
Page 7: Portable Lp Connection
– P PORTABLE LP CONNECTION INNACLE RILL One of the many special features of the Pinnacle grill base is the pullout slide tray for easy access to the LP gas supply cylinder. Use only a 20-lb gas cylinder (5 gallon capacity). -
Page 8: Plumb-In Lp Installation (Lp System)
– P PLUMB-IN LP GAS INSTALLATION (LP SYSTEM) INNACLE RILL 4" MINIMUM CLEARANCE TO ALLOW LID TO FULLY OPEN The installation must conform with local codes or, in the absence of local codes, with either the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. -
Page 9: Natural Gas Installation
Do not use any replacement regulator other than that specified by Twin Eagles, Inc. Use only pipe sealants that are approved for use with natural and LP gases. An installer-supplied gas shutoff valve must be installed in an accessible location. -
Page 10: Locating The Grill
– P LOCATING THE GRILL INNACLE RILL This gas appliance is design and certified for outdoor use only. Do not operate the grill inside a building, garage, recreation vehicle or any enclosed area. When choosing an area, consider exposure to wind, proximity to traffic paths and length of gas supply line. -
Page 11: Assembly Instructions
– P ASSEMBLY INSTRUCTIONS INNACLE RILL The Pinnacle Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the briquette trays and rotisserie components are wrapped inside the grill and require minor assembly. -
Page 12: Rotisserie Assembly & Operation Instructions
ROTISSERIE ASSEMBLY For Larger Loads (Horizontal) 1. Install the rotisserie motor horizontally as shown. The motor socket hole will line up with the lower notch of the spit saddles. 2. Insert the rotisserie-rod into the motor socket hole and place the rod on the lower notch of each spit saddle. -
Page 13: Operating Instructions
– P OPERATING INSTRUCTIONS INNACLE RILL Lighting Instructions Your Pinnacle is equipped with an electronic spark ignition system. The ignition module uses one AAA battery. The spark ignition button is located at the control panel. The same spark igniter button ignites the grill burners and the rotisserie burner. To light the grill burners 1. -
Page 14: Replacing Battery
CONTINUATION FROM PREVIOUS PAGE INTERIOR LIGHT OPERATION The Pinnacle grill is equipped with two interior halogen lights for late night grilling. 1. Push the switch located at the front to the ON or OFF position as light is needed. 2. Do not touch the light because it may be hot and can cause serious burns. -
Page 15: Cleaning And Maintenance
– P CLEANING & MAINTENANCE INNACLE RILL STAINLESS STEEL The PINNACLE GRILL is made of all welded #304 stainless steel. It is non-rusting and non- magnetic. Never clean the stainless steel when it is hot. After the initial grilling use, certain areas of the grill may discolor. -
Page 16: Infrared Sear Zone Burner
CONTINUATION FROM PREVIOUS PAGE INFRARED SEAR ZONE BURNER INFRARED SEAR ZONE BURNER The infrared burner has stainless housing and protective The infrared burner has stainless housing and protective screen. The protective screen helps reflect heat up to the cooking screen. The protective screen helps reflect heat up to the surface and also catches any food particles from landing on the cooking surface and also catches any food particles from ceramic burner. -
Page 17: Troubleshooting Guide
– P TROUBLESHOOTING GUIDE INNACLE RILL PROBLEM WHAT TO DO 1. Push in the igniter button and check for sparks. If no sparks or sparks are weak, replace battery. 2. If there is a spark, check if a gas is supplied to the burner. a. -
Page 18: Exploded View
– P EXPLODED VIEW INNACLE RILL 2, 3 36, 37 34, 35 6, 7 10, 11 13, 14 18, 19 28, 29 20, 21 Model Shown: Grill Head: TPBQ-42R Cabinet Base: TPGB-42P... -
Page 19: Replacement Parts List
– P REPLACEMENT PARTS LIST INNACLE RILL Item TE Part TPBQ- TPBQ- TPBQ- TPBQ- Description Number 14421 Basting Pan, Porcelain 13801 13” Stainless Steel Hex Grate 13802 12” Stainless Steel Hex Grate 21620Y 12” Briquette Tray Assy. 21614Y 6” Briquette Tray Assy. 20243 Hood, Igniter 16101... -
Page 20: Limited Product Warranty
Discoloration, surface scratches, weather and atmospheric related If Twin Eagles determines that repair of a covered item is not staining, and minor surface oxidation is normal and to be expected with... - Page 21 Here Warranty Registration Customer Name Model # Address Serial # City Date Purchased Dealer’s Name Phone # Dealer’s Address e-mail: This Warranty Registration card must be returned within thirty days of purchased to properly activate your warranty. This information is for our internal use only.
- Page 22 Place Postage Here Here Customer Service ATTN: Warranty Department 13231 East 166 Street Cerritos, CA 90703 Fax no. (562) 802-3391...
