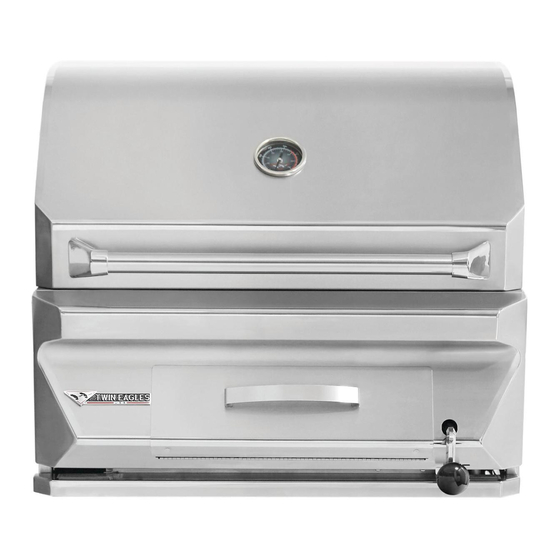

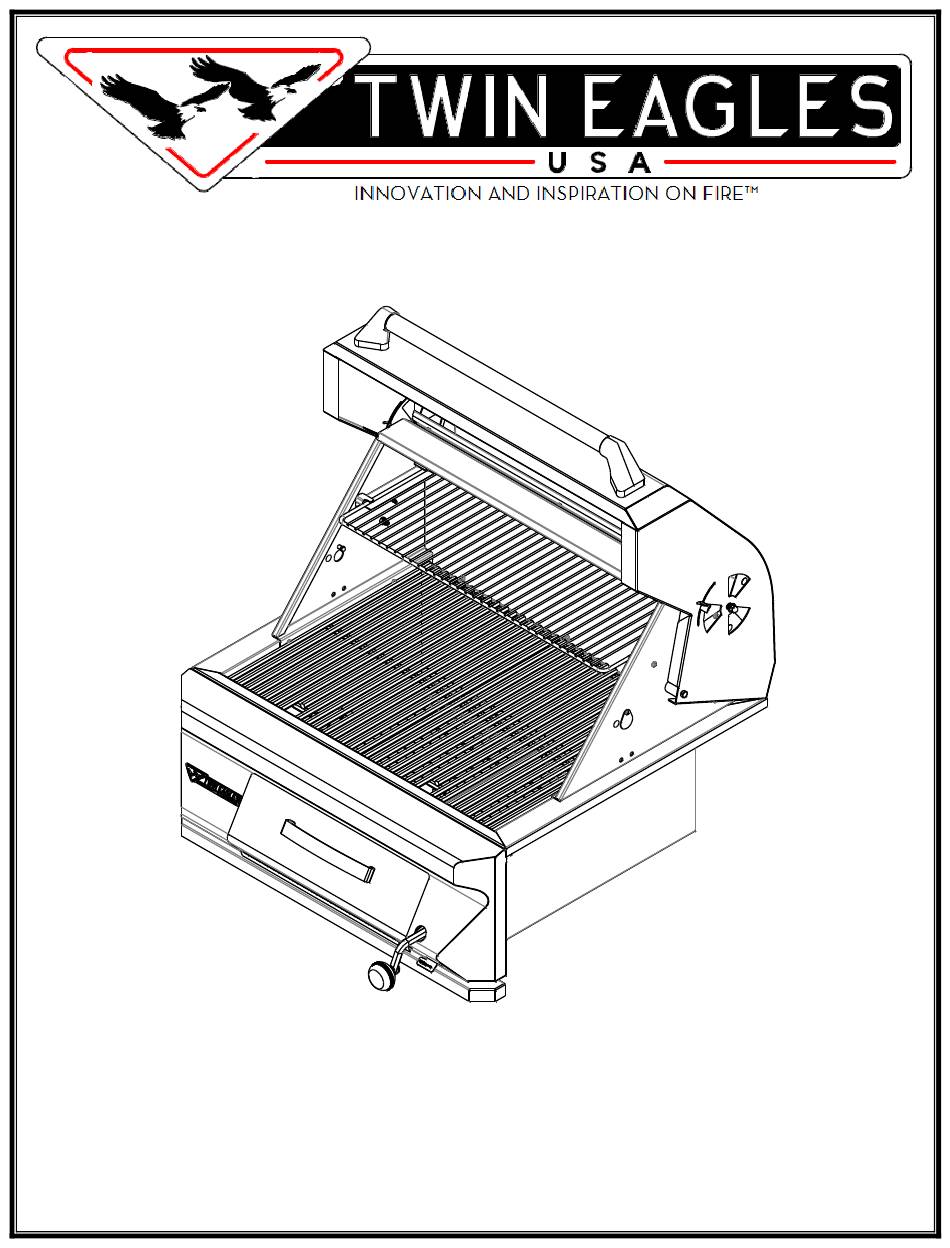

- Page 1 TWIN EAGLES CHARCOAL GRILL INSTALLATION, USE AND CARE MANUAL MODEL: TECG30-C P/N: 19269D (01/19)
- Page 2 A special message to our customers… Congratulations on the purchase of your TWIN EAGLES grill! Our products are engineered for precision and designed for style. Each TWIN EAGLES grill is manufactured in the USA at our own state of the art facility in California.
- Page 3 IMORTANT SAFETY INSTRUCTIONS WARNING! Read this manual carefully and completely before using your grill to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. F O R Y O U R S A F E T Y A V E R T I S S E M E N T 1.
-
Page 4: Table Of Contents
TABLE OF CONTENTS GETTING STARTED…………………………………………………………………………………………… LOCATING THE GRILL……………………………………………………………………………………….. ASSEMBLY INSTRUCTIONS…………………………………………………………………………………. o HAND CRANK…………………………………………………………………………………… o WARMING RACK………………………………………………………………………………... o ROTISSERIE………………………………………………………………………………………. OPERATING INSTRUCTIONS………………………………………………………………………………… o USING THE CHARCOAL GRILL……………………………………………………………….. o USING THE ROTISSERIE KIT………………………………………………………………….. CLEANING AND MAINTENANCE…………………………………………………………………………… o STAINLESS STEEL………………………………………………………………………………. o HEX GRATES……………………………………………………………………………………... o ASH PAN………………………………………………………………………………………….. o CHARCOAL BASKETS………………………………………………………………………….. -
Page 5: Locating The Grill
LOCATING THE GRILL • This charcoal grill is designed for outdoor use only. • The charcoal grill must be installed in your choice of masonry or other non-combustible material. Do not use any combustible materials for this construction. • Provide 18” minimum side and back clearance from unprotected combustible surface. •... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS The T Charcoal Grill is produced fully assembled and tested in the factory and requires no major AGLES assembly in the field. For the purpose of safe shipping and transit, some parts are wrapped inside the grill and require minor assembly. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS USING THE CHARCOAL GRILL 1. Check to be certain that the ash pan is in place and pushed all the way into the grill. 2. Remove the hex grates and pile the charcoal on the charcoal basket evenly. Note: Do not pile more than 4 pounds of charcoal per charcoal basket. -
Page 8: Cleaning And Maintenance
However, the conditions outlined above, along with neglect, can lead to surface corrosion or rust. It is recommended that your TWIN EAGLES products be kept dry and covered when not in use. This is even more important when long-term storage is intended. -
Page 9: Hex Grates
HEX GRATES • The easiest way to clean the hex grates is to scrub them with a barbeque brush immediately after cooking is completed. • Wear a barbeque mitt to protect your hands from the heat and steam. Dip a brass bristle barbeque brush in tap water and scrub the hot grill. -
Page 10: Exploded View
EXPLODED VIEW... -
Page 11: Replacement Parts List
CARRIAGE, CHARCOAL, 30 S26128WY TRAY, PERFORATED, 30 S26115-30WY ASH PAN WELD ASSEMBLY S26110 AIR SHUTTER BRACKET S26137-30Y FRONT PANEL ASSEMBLY S13203 EMBLEM, TWIN EAGLES S26122 PANEL, ACCESS S26134 HANDLE S13901 ROD, CRANK S26181Y HARDWARE KIT, CRANK HANDLE S13192 KNOB, CRANK... -
Page 12: Limited Product Warranty
2206. Be prepared to furnish the following information: Purchaser’s name, model and serial number of the grill, date of purchase and the accurate description of the problem. Twin Eagles will not pay for service calls for correcting an installation problem. Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request and making the grill accessible for service. - Page 13 HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789-2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13259 East 166 Street Cerritos, CA 90703 Visit us at www.twineaglesgrills.com...
- Page 14 Here Place Postage Here Customer Service ATTN: Warranty Department 13259 East 166 Street Cerritos, CA 90703 Fax no. (562) 802-3391...
