TRACTOR - - MODEL NO. YTH22V42 (96043012400), PRODUCT NO. 960 43 01-24

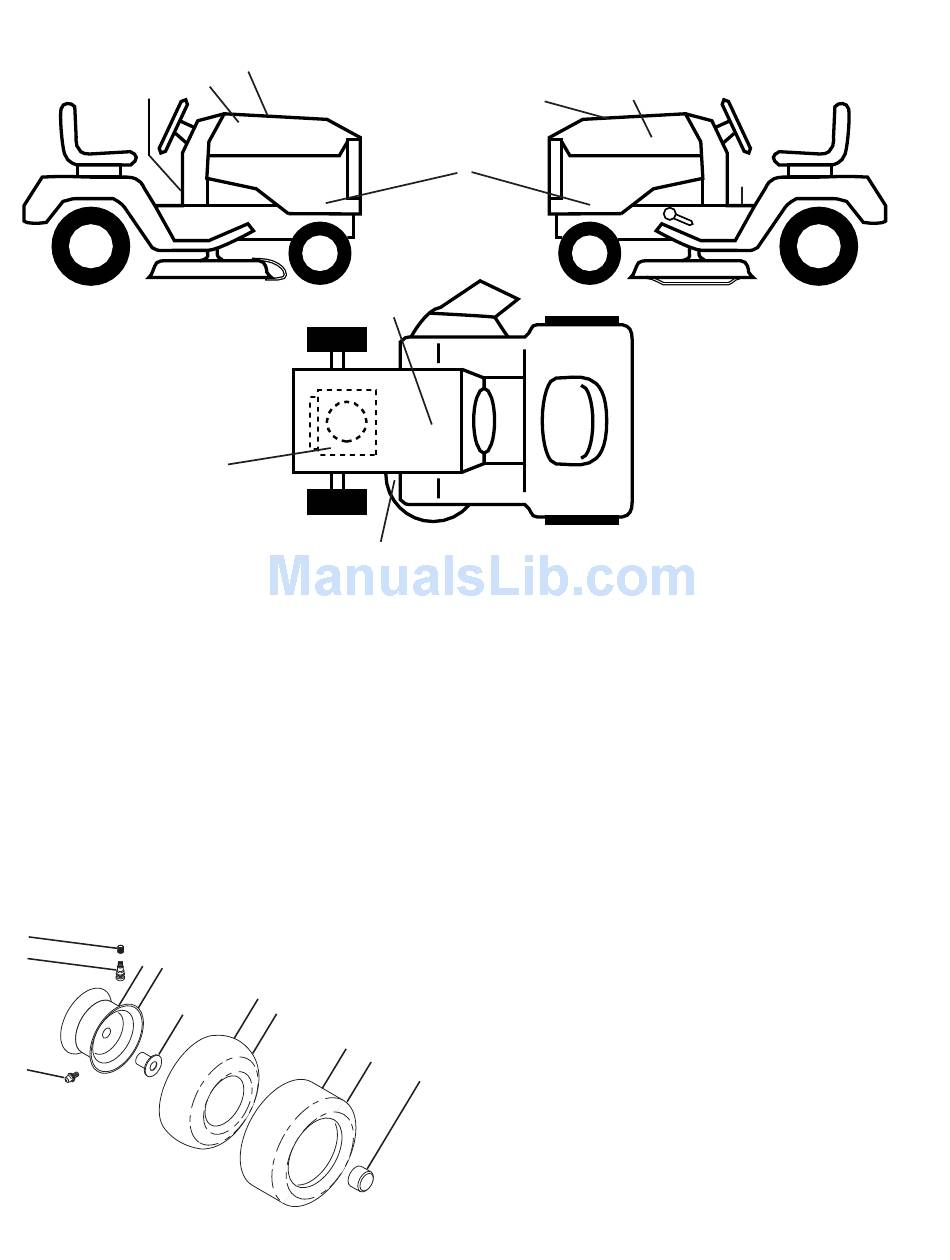

DECALS
5
KEY PART
NO. NO. DESCRIPTION
1 532 41 16-57 Decal, Warning
2 532 42 91-96 Emblem
3 532 42 95-56 Decal, Engine
4 532 43 95-79 Decal, Hood Panel
5 532 42 41-02 Decal, Warning
6 532 43 84-77 Decal, Replacement
8 532 42 38-29 Decal, Cust. Resp.

WHEELS AND TIRES

1
11
2
3
7
6
6
2
3
12
4
10
5
9
wheel_art_1-tex
8
4
9
KEY PART
NO. NO.
9 532 14 50-05 Decal, Battery Dan./Poi.
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 532 16 69-60 Decal, Bypass
- - 532 43 87-15 Manual Owner's English
- - 532 43 87-16 Manual Owner's Spanish
KEY PART
NO. NO.
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm. 6" Front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T 15 x 6 0 - 6 Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk. 1 50 x 1 00
9 532 13 84-68 Tire R T 20 x 8-8 Service
8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm. 8" Rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
