YTH22V46
Owner's Manual
532 43 33-16 Rev. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OWNER'S YTH22V46 and is the answer not in the manual?

Questions and answers

Glenn
April 28, 2025

My zero turn keeps cutting off. New air filter new fuel filter.it will run fine for a few minutes and then starts to die. Checked the fuel cap

2 comments:
Mr. Anderson
May 15, 2025

A Husqvarna YTH22V46 cutting off after a few minutes of running, despite having a new air filter and fuel filter, could be caused by the Reverse Operation System (ROS) not being turned on. If the tractor is shifted into reverse while an attachment like the mower is engaged and ROS is off, the engine may shut down. To prevent this, turn the ignition key to the ROS "ON" position.

This answer is automatically generated

Peggy
June 3, 2025

@Mr. Anderson Mine was also cutting out. When I went to change the fuel filter, I also drained the carburetor. I found debris in the fuel from the carburetor; this was when I first got it.

Doug Palzinski
June 1, 2025

How do I adjust the mower so it cuts evenly on both side

1 comments:
Mr. Anderson
June 1, 2025

To adjust the Husqvarna YTH22V46 mower for even cutting on both sides:

1. Inflate all tires to the correct pressure.
2. Raise the mower to its highest position.
3. Wear gloves or wrap the blade with a cloth to protect your hands.
4. Visually check which side cuts lower.
5. Use a 3/4" or adjustable wrench to turn the lift link adjustment nut:
- Turn left to lower the left-hand side.
- Turn right to raise the left-hand side.
6. Measure from the bottom edge of the blade to the ground on both sides.
7. Adjust until both sides are equal. Each full turn changes height by about 1/8" (3.1 mm).
8. Hold the adjustment nut in place and tighten the jam nut securely.
9. Recheck measurements and readjust if necessary.

This answer is automatically generated

Joe Dion
May 16, 2025

Tire pressure

1 comments:
Mr. Anderson
May 22, 2025

The recommended tire pressure for the Husqvarna YTH22V46 is not provided in the given context.

This answer is automatically generated

Jack rooze
May 3, 2025

We’re is the motion control lever

1 comments:
Mr. Anderson
May 17, 2025

The Husqvarna YTH22V46 does not have a single "motion control lever." Instead, it uses foot pedals for motion control:

- (K) FORWARD DRIVE PEDAL – Used for forward movement.
- (L) REVERSE DRIVE PEDAL – Used for reverse movement.
- (J) CRUISE CONTROL LEVER – Used to maintain forward speed without holding the forward drive pedal.

This answer is automatically generated

BILL CUZINSKI
April 12, 2025

What type of fuel filter doe a Husvarna TYH22V46 require

1 comments:
Mr. Anderson
April 12, 2025

The Husqvarna YTH22V46 requires an in-line fuel filter.

This answer is automatically generated

Jane Plumley
March 17, 2025

What kind or number of battery does my mower use model YTH22V46

1 comments:
Mr. Anderson
May 14, 2025

The Husqvarna YTH22V46 mower uses a 28 Amp-Hour battery with a minimum Cold Cranking Amps (CCA) of 230 and a case size of U1R.

This answer is automatically generated

Donald Nelson
August 11, 2025

HOW CAN I OPEN A HUSQVARAN TRANSMISSION CASE #YTH22V46 ?

Jim Christian
July 3, 2025

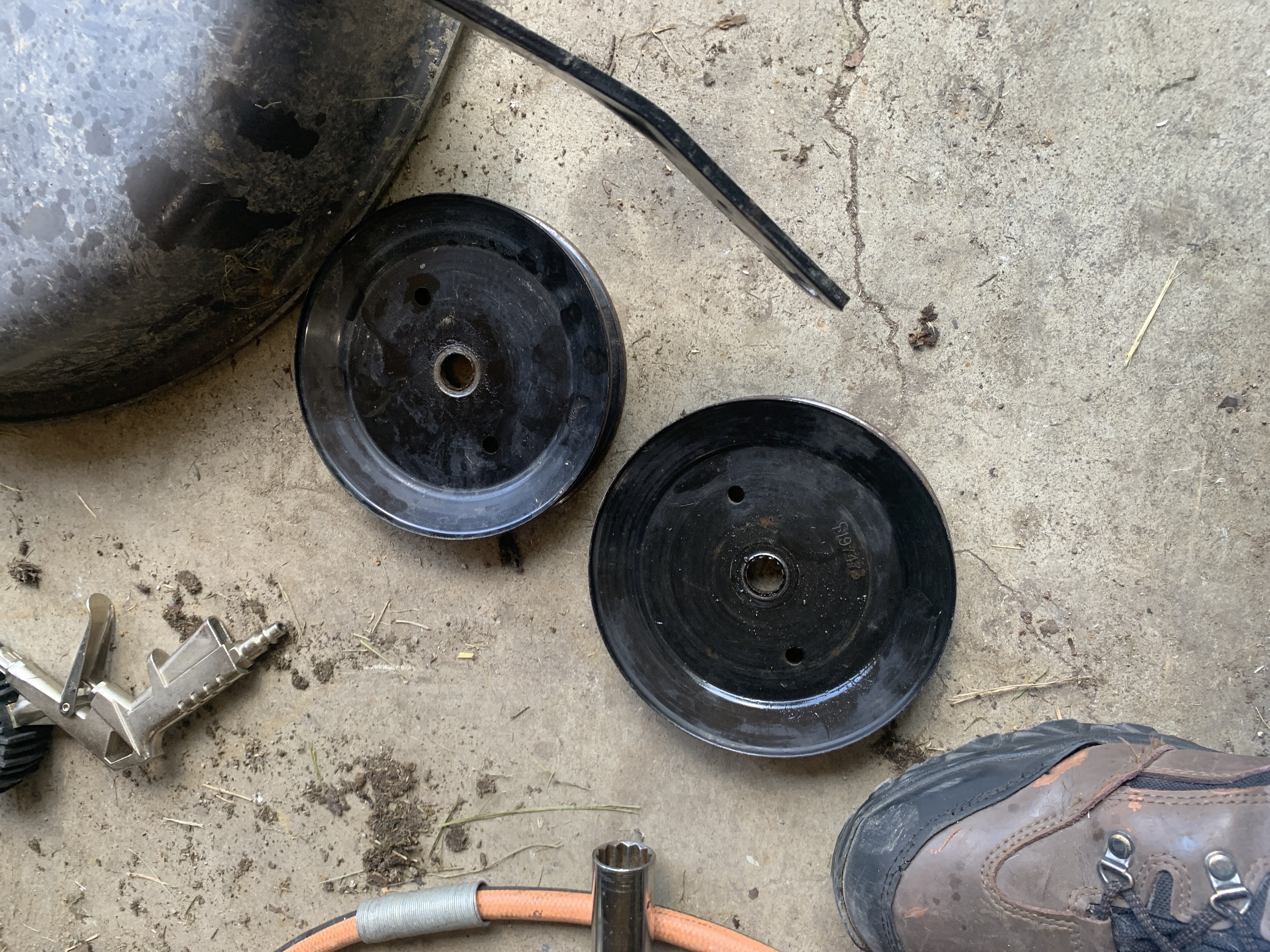

Replacement pulleys for deck.

User image 68670266102c1
Richard Nern
June 19, 2025

Belt size for my deck.

alan
April 16, 2025

what kind of transmission fluid goes in model yth22v46

Summary of Contents for Husqvarna OWNER'S YTH22V46

  • Page 1 YTH22V46 Owner's Manual 532 43 33-16 Rev. 2...
  • Page 2: Safety Rules

    Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac ci den tal starting when setting up, trans port ing, ad just ing or making repairs, al ways dis con nect spark plug wire and place...
  • Page 3: General Service

    Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
  • Page 4: Table Of Contents

    Gasoline Capacity 2.50 Gallons and type: Unleaded Regular Oil Type (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) Oil Capacity: w/Filter: w/o Filter: Spark Plug: Champion QC12YC (Gap: .030") Ground Speed (MPH): Forward: Reverse: Charging System: 3 AMPS BATTERY 5 AMPS HEADLIGHTS Battery: AMP/HR:...
  • Page 5: Unassembled Parts

    UNASSEMBLED PARTS (2) Keys Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier. Stan dard wrench sizes are listed. (1) 1/2"...
  • Page 6: Assembly

    NOTE: You may now roll your tractor off the skid. Follow the instructions below to remove the tractor from the skid. WARNING: Before start ing, read, un der stand and fol low all in struc tions in the Op er a tion section of this man u al. Be sure tractor is in a well-ventilated area.
  • Page 7: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL REVERSE ENGINE OFF OPERATION SYSTEM (ROS) LIGHTS ON BATTERY FUEL ATTACHMENT ATTACHMENT CLUTCH DISENGAGED CLUTCH ENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or death.
  • Page 8: Know Your Tractor

    KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Our tractors conform to the applicable safety standards of the American National Standards Institute. (A) ATTACHMENT LIFT LEVER - Used to raise and lower the mower or other attachments mounted to your trac tor.
  • Page 9: To Move Forward And Backward

    The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
  • Page 10 TO USE CRUISE CONTROL (J) (See Fig. 7) The cruise control feature can be used for forward travel only. Fig. 7 SYSTEM CHARACTERISTICS The cruise control should only be used while mowing or transporting on relatively smooth, straight surfaces. Other con di tions such as trimming at slow speeds may cause the cruise control to dis en gage.
  • Page 11: To Operate On Hills

    REVERSE OPERATION SYSTEM (ROS) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON" position.
  • Page 12: Before Starting The Engine

    BEFORE STARTING THE ENGINE CHECK ENGINE OIL LEVEL The engine in your tractor has been shipped, from the factory, already filled with sum mer weight oil. • Check engine oil with tractor on level ground. • Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw cap tight, wait for a few seconds, remove and read oil level.
  • Page 13: Purge Transmission

    PURGE TRANSMISSION CAUTION: Never engage or disengage freewheel lever while the engine is run ning. To ensure proper operation and performance, it is rec om- mend ed that the transmission be purged before operating tractor for the first time. This procedure will remove any trapped air inside the transmission which may have de vel- oped during shipping of your tractor.
  • Page 14: Maintenance Schedule

    MAINTENANCE SCHEDULE Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris Off Steering Plate ck Transaxle Cooling Check Mower Levelness ck V-Belts Check Engine Oil Level Change Engine Oil (with oil filter)
  • Page 15: Brake Operation

    TRACTOR Always observe safety rules when per form ing any main te nance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. (See “TO CHECK BRAKE”...
  • Page 16: Transaxle Cooling/Pump Fluid

    V-BELTS Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not ad just able. Re place belts if they begin to slip from wear. TRANSAXLE COOLING The transmission fan and cooling fins should be kept clean to assure proper cooling.
  • Page 17 MUFFLER Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage. IN-LINE FUEL FILTER (See Fig. 17) The fuel filter should be replaced once each season. If fuel filter becomes clogged, ob struct ing fuel flow to car bu re tor, re place ment is re quired.
  • Page 18: To Remove/Install Mower

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP” and remove key. •...
  • Page 19 SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO CHASSIS - Position hole in arm over pin (B) on outside of tractor chassis and secure with retainer spring. • Repeat on opposite side of tractor. Fig. 21 • ATTACH REAR LIFT LINKS (C) - Lift rear corner of mower and position slot in link assembly over pin (D) on rear mower bracket and secure with washer and...
  • Page 20 SERVICE AND ADJUSTMENTS TO LEVEL MOWER Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly.
  • Page 21: To Replace Motion Drive Belt

    SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 30) The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake. BELT REMOVAL - • Remove mower from tractor (See “TO REMOVE MOW ER”...
  • Page 22 SERVICE AND ADJUSTMENTS TO REMOVE WHEEL (See Fig. 32) • Block up axle securely. • Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose). • Repair tire and reassemble. •...
  • Page 23: To Remove Hood And Grill Assembly

    SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT BULB • Raise hood. • Pull bulb holder out of the hole in the backside of the grill. • Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. •...
  • Page 24: Fuel System

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open flame or spark.
  • Page 25: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE 1. Out of fuel. Will not start 2. Engine not “CHOKED” properly. 3. Engine flooded. 4. Bad spark plug. 5. Dirty air filter. 6. Dirty fuel filter. 7. Water in fuel. 8. Loose or damaged wiring. 9. Carburetor out of adjustment. 10.
  • Page 26: Trou Ble Shoot Ing

    TROUBLESHOOTING PROBLEM CAUSE Engine continues 1. Faulty operator-safety presence control system. to run when oper- ator leaves seat with attachment clutch engaged 1. Worn, bent or loose blade. Poor cut - uneven 2. Mower deck not level. 3. Buildup of grass, leaves, trash under mower. 4.
  • Page 28 04.06.10 JA Printed in the U.S.A.
