- Page 1 USB2HDMI Instruction Manual USB to HDMI Video Adapter USB 2.0 to HDMI External Multi Monitor Video Adapter with Audio Manual Revision:11/08/2010 For the most up-to-date information, please visit www.startech.com...
-
Page 2: Fcc Compliance Statement
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech. -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents....................1 System Requirements ....................1 Top View ........................2 Rear View ......................... 2 Installation ....................3 Windows 2000/XP/Vista/7 ..................3 Mac OS X (10.4.11/10.5.6) ..................4 Configuration ................... 5 Windows 2000/XP/Vista/7 ..................5 Mac OS X (10.4.11/10.5.6) .................. -
Page 4: Introduction

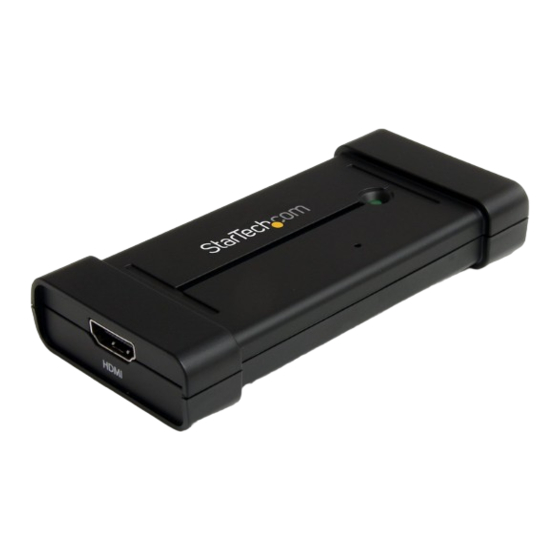

Introduction The USB2HDMI USB HDMI External Dual or Multi Monitor Video Adapter (with Audio) turns an available USB 2.0 port into an HDMI output with high resolution video support (up to 1920x1080) and audio. The USB HDMI video adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. -
Page 5: Top View
Top View Rear View... -
Page 6: Installation
Installation Please note: The following installation steps must be completed prior to connecting USB video adapter to the host computer, to ensure proper functionality. Windows 2000/XP/Vista/7 1. Insert the Driver CD (included) into the CD/DVD-ROM drive. 2. AutoPlay should launch a Window, giving the option to install the drivers. If AutoPlay is not enabled, browse through the Driver CD and locate the “Setup.exe”... -
Page 7: Mac Os X (10.4.11/10.5.6)
7. In the left pane of the Computer Management window, click on Device Manager. 8. In the right pane of the Computer Management window, click on Universal Serial Bus Controllers, and ensure that the USB display adapter device is listed underneath. 9. -
Page 8: Configuration
Configuration Windows 2000/XP/Vista/7 To configure the image being displayed by the monitor that is connected to the USB video adapter, right-click on a blank section of the desktop, select Properties, then click on the Settings tab to display the following screen: For Vista, right-click on a blank section of the desktop and select Personalize, then select Screen Resolution on the next screen. - Page 9 Using the Second Display in Extended Mode In Extended Mode, the monitor that is connected to the USB video adapter creates an extension of the Windows Desktop displayed on the primary monitor. To set the display to function in this mode (once selected from the dropdown menu), check the box marked Extend my windows desktop onto this monitor, then arrange its position (virtually) with respect to the primary monitor by dragging the monitor icons (shown above as Primary/ Secondary orientation) to reflect the physical orientation of the displays.
- Page 10 Similarly, the screen resolution, color quality, position of the screen and rotation of the screen can be adjusted from this menu. To disable the secondary display, select Off. Screen Rotation Will rotate the entire video output in 90 degree increments. Media Playback Please note that while operating in Extended Mode, the USB video adapter can display media files and DVDs using a broad variety of media players, however in Clone Mode,...
- Page 11 Fit to TV When using Extended Mode, if the Windows Desktop screen is not completely visible on the TV/Monitor, this option can be used to adjust the size of the Windows Desktop. NOTE: This mode will only work while using Extended mode. If using Mirror mode, this will automatically change the adapter to Extended mode.
-
Page 12: Mac Os X (10.4.11/10.5.6)
Mac OS X (10.4.11/10.5.6) To configure the display settings and monitor positions, bring up the Displays Preferences from the System Preferences menu: The Display settings for each display will appear on the individual monitors themselves. To configure them all from a single location, press the “Gather Windows” button and each screen’s Displays Preferences windows will appear on that display. - Page 13 To use both extended and mirrored displays simultaneously, turn off mirroring then in the “Arrangement” page press and hold the ‘cmd’ and ‘alt’ keys and drag and drop the display you wish to mirror over the primary display (shown with the white bar). Repeat this with each display you wish to mirror, all others will act as an extended display.
-
Page 14: Specifications
Specifications Bus Interface USB 2.0 Video Signal HDMI 1.2 (digital) Chipset ID DisplayLink DL-165 1 x HDMI female Connectors 1 x USB mini-B female LEDs 1 x Power Maximum Video Resolution 1920x1080 Audio Support Yes (stereo) HDCP Compliant 6 (Windows) Supported Number of Adapters (per system) 4 (Mac OS) -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of...
