- Page 1 USB2VGADVI Instruction Manual USB Video Adapter USB to VGA and DVI Dual Port External Video Adapter...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Front View ..................2 Rear View ..................2 Installation ............... 3 Driver Installation .................3 Multiple USB Video Adapter Installation ........4 Verifying Installation ..............5 Configuring the USB Video Adapter ......6 Display ID ..................6 Display Resolution ...............6 Display Rotation ................7 Display Modes ................7... -
Page 4: Introduction
The DVI port is a DVI-I port which is capable of outputting digital (DVI) or analog (VGA) signals. Packaging Contents • 1 x USB2VGADVI video adapter • 1 x USB cable • 1 x Power Adapter •... -

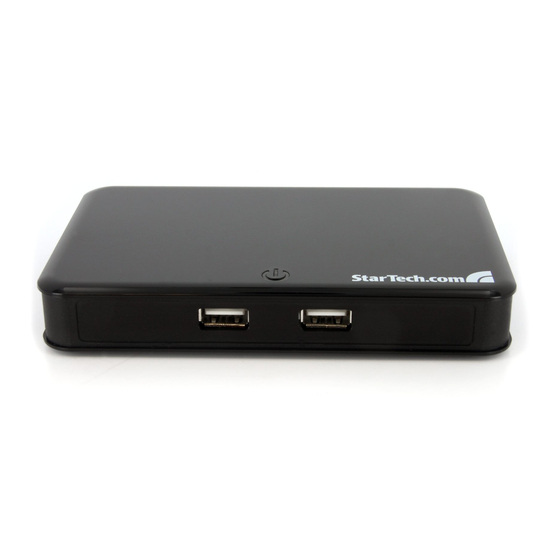

Page 5: Front View
Front View Power LED USB Hub ports Rear View Power connector connector connector connector (Host) -
Page 6: Installation
Installation Please ensure that the driver installation is complete prior to the physical installation of the USB 2.0 Video Adapter Driver Installation Insert the Driver CD into your CD/DVD-ROM drive. If the installation program does not begin automatically, locate the Setup.exe application. -
Page 7: Multiple Usb Video Adapter Installation
Click “Finish” to complete the Hardware Wizard. Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). Complete the installation steps, up to when you plug in the first USB Video Adapter. -
Page 8: Verifying Installation
Connect the USB type A connector on the second USB Video Adapter to an available USB 2.0 port on the host computer. The driver installation will begin automatically. Repeat these steps for each additional USB Video Adapter you wish to install. -
Page 9: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Look for the USB Video Adapter icon ( ) on your Windows Start bar. Right-click this icon to access the variety of functions associated to the adapter. NOTE: The Aero desktop theme is not supported by this adapter, so should be disabled prior to use of the USB Video Adapter. -
Page 10: Display Rotation
Display Rotation 4 options available: “0°, 90°, 180°, 270° when used with the Extended or Primary display modes. It is a useful function for some rotatable display devices. Display Modes “EXTENDED” DISPLAY MODE (DEFAULT) A default display mode; this feature allows the attached USB Video Adapter enabled display to work as an “Extended”... -
Page 11: Identify Monitors
“PRIMARY” DISPLAY MODE A unique feature to allow the USB Video Adapter to act as the main working display. The USB Video Adapter will work as the main graphics adapter on the system. The on-board display will work as the extended display. -
Page 12: Multi-Display Control Panel
Multi-Display Control Panel A unique feature to allow quicker and simpler management of a multi-display environment. A series of hotkeys to quickly move the active window or mouse cursor to the desired display (either on-board or each USB Video Adapter). The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display Control Panel”. -
Page 13: Supported Video Resolutions
Supported Video Resolutions Resolution Color Depth Refresh Rate 1024x768 16/32-bit 60/75Hz 1152x864 16/32-bit 60Hz 1280x720 16/32-bit 60Hz 1280x768 16/32-bit 60Hz 1280x800 16/32-bit 60Hz 1280x960 16/32-bit 60Hz 1280x1024 16/32-bit 60Hz 1400x1050 16/32-bit 60Hz 1440x900 16/32-bit 60Hz 1680x1050 16/32-bit 60Hz... -
Page 14: Specifications
Specifications Bus Interface USB 2.0 1 x DVI-I female 1 x DE-15 VGA female Connectors 2 x USB type A 1 x USB mini-B 1 x DC power connector VGA: 16MB Onboard Memory DVI: 16MB Maximum Video Resolution 1680x1050 LEDs Power Total Number of Adapters Supported per System... -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 16 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
