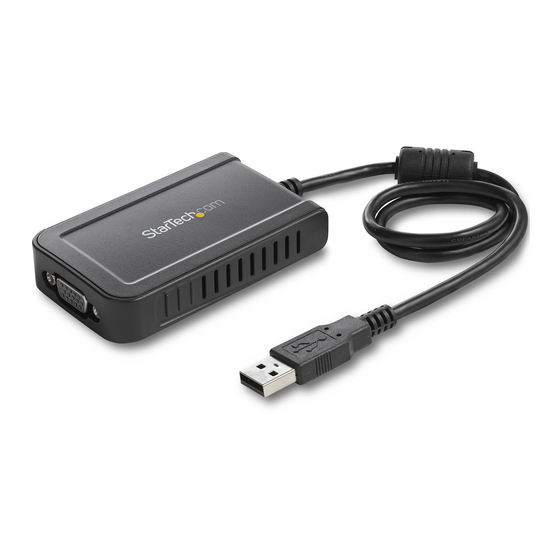

USB to DVI External Dual Monitor Video Adapter
USB to VGA External Dual Monitor Video Adapter
USB2DVIE3
USB2VGAE3
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/19/2011

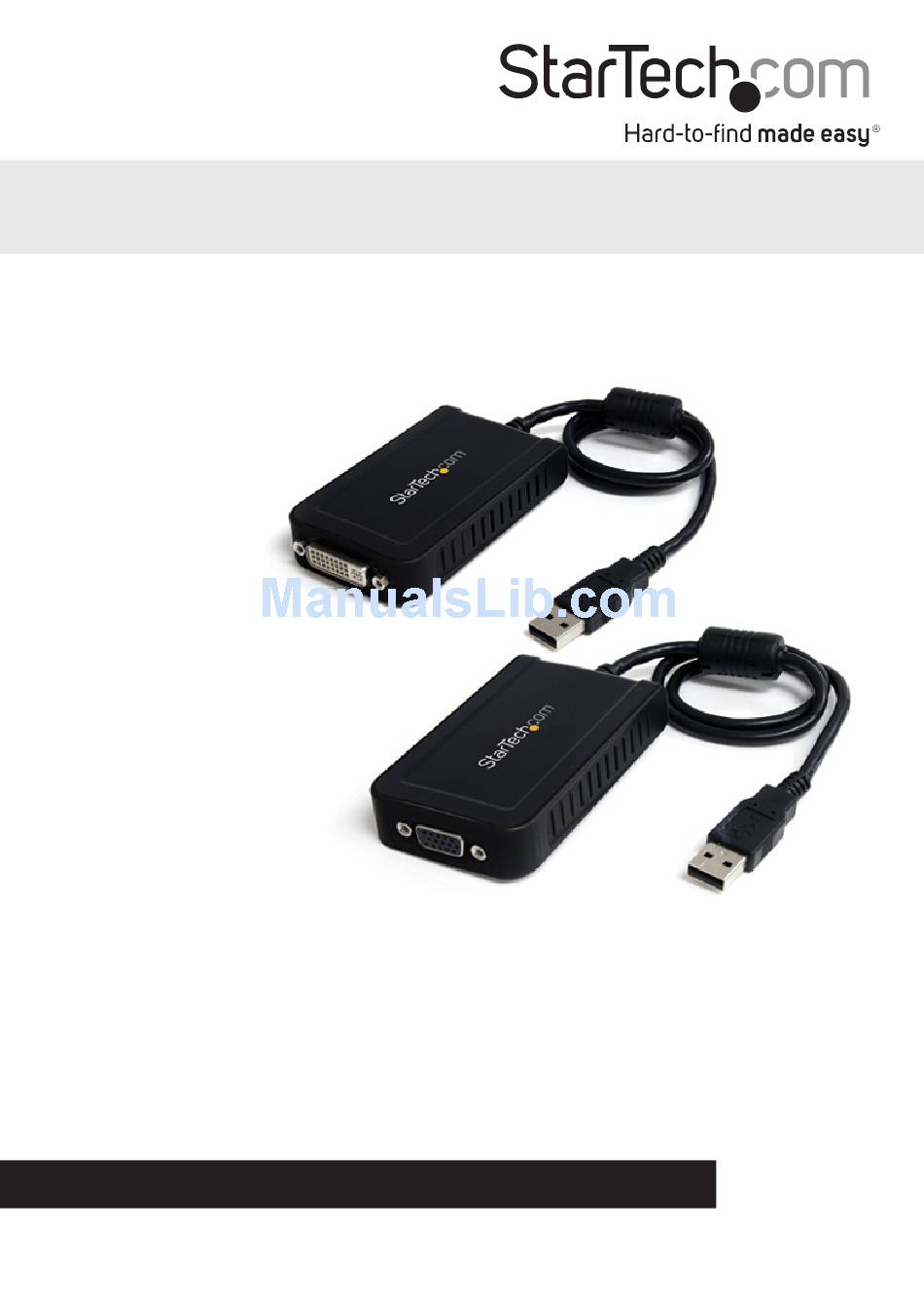

*actual product may vary from photo
Advertisement
Table of Contents
Related Manuals for StarTech.com USB2DVIE3
Summary of Contents for StarTech.com USB2DVIE3
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/19/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Driver Installation (Windows) ....................... 2 Multiple USB Video Adapter Installation ..................3 Verifying Installation ..........................3 Configuring the USB Video Adapter ............4 Windows XP/Vista ............................. 4 Display ID ...................................4 Display Resolution ................................4 Display Rotation ................................4... -
Page 4: Introduction
Introduction The USB Multi Monitor External Video Adapter lets you add a high-resolution 1920x1200 external DVI (USB2DVIE3) or VGA (USB2VGAE3) output to your desktop or laptop computer system, using an available USB 2.0 port. A cost-effective solution for systems that lack the outputs required for a multi-monitor... -
Page 5: Installation
Installation Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 2.0 Video Adapter Driver Installation (Windows) 1. Insert the Driver CD into your CD/DVD-ROM drive. 2. If the installation program does not begin automatically, locate the Setup.exe application. -
Page 6: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps, up to when you plug in the first USB Video Adapter. -
Page 7: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Look for the USB Video Adapter icon ( ) on your Windows System Tray (next to clock). Right-click this icon to access the variety of functions associated to the adapter. Windows XP/Vista Display ID The USB Video Adapter supports the VESA defined DDC/EDID standard. -
Page 8: Display Modes
Display Modes “EXTENDED” Display Mode (Default) A default display mode; this feature allows the attached USB Video Adapter enabled display to work as an “Extended” display to the on- board display. The extended working space improves work efficiency. You may change the relative position of this extended display through the Display Settings. -
Page 9: Off" Display Mode
“OFF” Display Mode This option disables the video output from the USB Video Adapter. Identify Monitors Easy display identification via an overlay will be shown in the upper right corner of all attached display devices. Multi-Display Control Panel A unique feature to allow quicker and simpler management of a multi-display environment. -
Page 10: Display Settings
Display Settings Quick access to the Windows “Display Settings” window. Windows 7 The USB Video Adapter drivers allow for all adjustments through the built-in Display Settings window. These settings can be accessed by right-clicking on the Windows Desktop and selecting “Screen Resolution” or by right-clicking on the USB Video Adapter icon in the system tray and selecting “Display Settings”. -
Page 11: Supported Resolutions
Supported Resolutions Screen Resolution Screen Resolution (Widescreen) (Standard) 1920 x 1200 1600 x 1200 1920 x 1080 1400 x 1050 1680 x 1050 1280 x 1024 1600 x 900 1280 x 960 1440 x 900 1152 x 864 1360 x 768 1024 x 768 1280 x 800 800 x 600... -
Page 12: Specifications
Specifications USB2DVIE3 USB2VGAE3 Video Signal DVI (digital) VGA (RGBHV) Host Interface USB 2.0 Chipset ID MCT T2-285B MCT T2-285A 1 x USB type A male 1 x USB type A male Connectors 1 x DVI-I 29-pin female 1 x DE-15 VGA female... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
