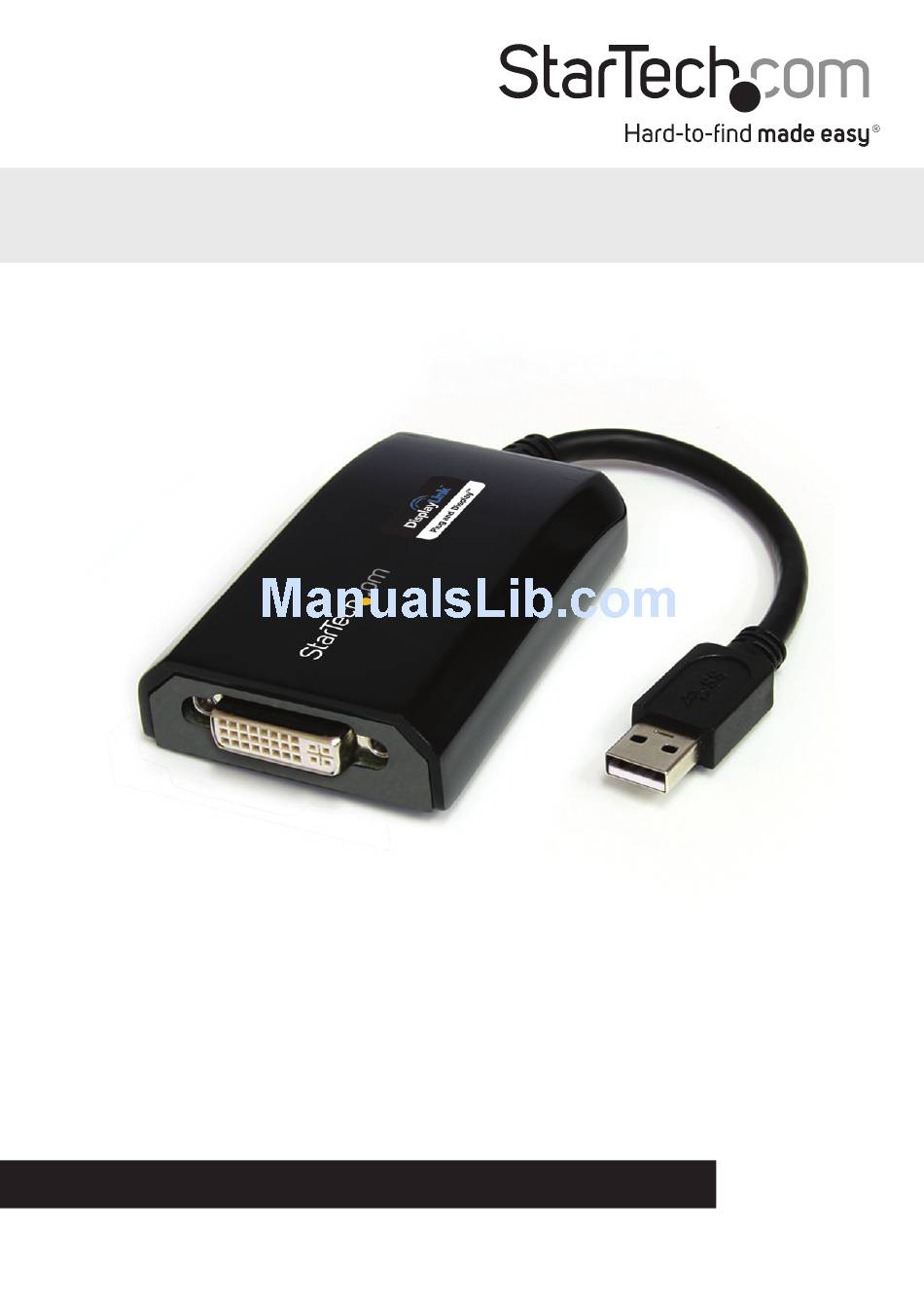

USB to DVI External Video Card
Adapter for PC and MAC - 1920x1200
USB2DVIPRO2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/06/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USB2DVIPRO2
Summary of Contents for StarTech.com USB2DVIPRO2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/06/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Windows® ..............................2 Apple® Mac OS X® ............................. 4 Multiple USB Video Adapter Installation ..................5 Configuring the USB Video Adapter ............5 Windows® ..............................5 Apple®... -
Page 4: Introduction
Introduction The USB2DVIPRO2 USB to DVI External Video Card Adapter for PC and MAC - 1920x1200 is the perfect solution for turning your workstation into a dual or multi- monitor environment using your USB ports - providing high quality, dual display or multi-monitor capability for a variety of laptop or desktop applications. -
Page 5: Installation
Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB Video Adapter 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. - Page 6 Configuration screen may flash or go black during the installation). *Some machines may require a system reboot for the USB Display Adapter to initialize. 6. Connect your DVI monitor to the available DVI port on the USB2DVIPRO2 device. 7. The USB Video Adapter is now ready for use.
-
Page 7: Apple® Mac Os X
4. Once the software installation is completed click the “restart” button. 5. Connect your USB2DVIPRO2 device to your Mac via an available USB port. 6. Connect your DVI monitor to the available DVI port on the USB2DVIPRO2 device. 7. The USB Video Adapter is now ready for use. -
Page 8: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps, up to when you plug in the first USB Video Adapter. - Page 9 UHD-100 DP PC/NB Mirror The monitor attached to the USB2DVIPRO2 USB Graphics device displays a duplication of the primary display. The resolution, color depth and refresh rate of the primary screen are replicated on the monitor connected to the USB Graphics device.
-
Page 10: Notebook Monitor Off
USB2DVIPRO2 in relation to the systems on board monitor. Screen Resolution This option allows you to change the resolution on the monitor connected to the USB2DVIPRO2 device. Simply select the desired option from the list of supported resolutions displayed in the sub menu. Screen Rotation This option allows you to change orientation in which the screen is viewed. -
Page 11: Apple® Mac Os X
Apple® Mac OS X® 1. Open “Displays” from the System Preferences menu. 2. The Display settings for each display will appear on the individual monitors themselves. To configure them all from a single location, press the “Gather Windows” button and each screen’s Displays Preferences windows will appear on that display. 3. - Page 12 Using the Adapter in Extended or Mirror Mode By default the USB2DVIPRO2 will be setup as an extended display. To change the display as a mirrored/cloned display, check the “Mirror Display” box on the “Arrangement” page for that monitors Displays settings window. To return the monitor to an extended display, uncheck this option.
-
Page 13: Specifications
Output Signal Industry Standards Standard DisplayPort® USB 2.0 Standard(16/32 bit): 640x480, 800x600, 1280x1024, 1600x1200 Supported Resolutions Widescreen(16/32 bit): 1024x768, 1366x768, 1440X900, 1680x1050, 1920x1200 Wide Screen Supported Connect a maximum of five USB2DVIPRO2 adapters on Note a signle PC Instruction Manual... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
