Husqvarna YTH1342XP Owner's Manual page 38

REPAIR PARTS
TRACTOR - MODEL NO. YTH1342XP (YTH1342XPA), PRODUCT NO. 954 56 93-32

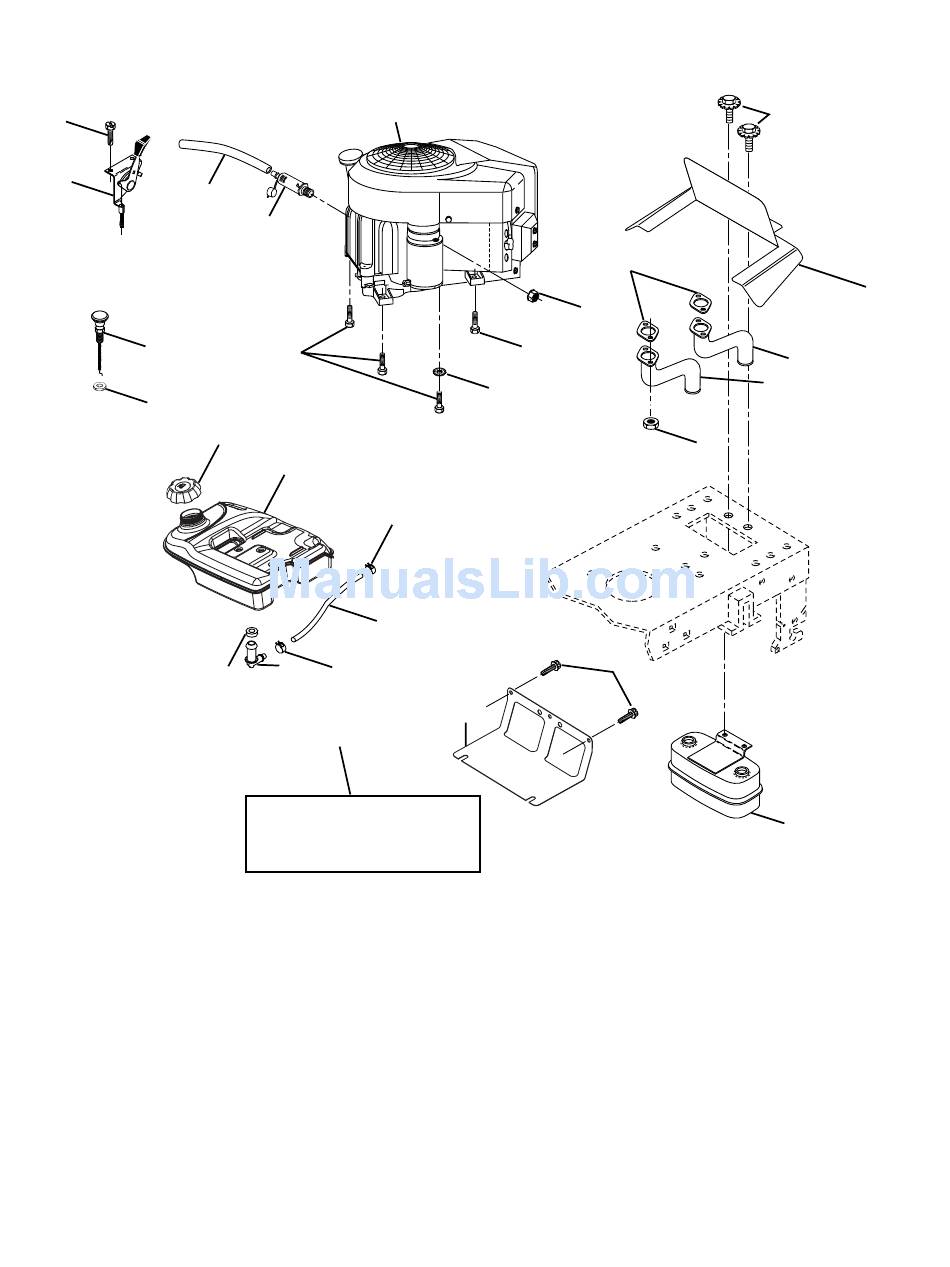

ENGINE
2
1
25
26
KEY PART
NO. NO. DESCRIPTION
1 532 17 08-03 Control Throt Flg
2 817 72 04-08 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine KAWA FH381V
(Order Parts from Engine Manu-
facturer)
4 532 14 97-23 Muffl er Asm Twin Lo-Tone
5 532 18 14-44 Exhaust Tube Lh
6 532 18 14-42 Exhaust Tube Rh
8 532 17 18-77 Bolt 5/16-18unc x 3/4 W/Sems
10 532 14 66-29 Shield Browning
13 - - - - - - - - - Gasket Muffl er (Order from En-
gine Manufacturer)
14 - - - - - - - - - Tube Drain Oil Easy (Order from
Engine Manufacturer)
16 811 05 06-00 Washer Lock Ext Tooth 3/8
23 532 16 98-37 Shield Browning
14
38
105
32
31
41
33
112
29
OPTIONAL EQUIPMENT
Spark Arrester
3
105
16
33
37
23
KEY PART
NO. NO.
25 532 13 27-82
26 873 92 06-00
29 532 13 71-80
31 532 17 90-22
32 532 18 18-03
33 532 12 34-87
37 532 14 21-58
38 - - - - - - - -
41 532 13 92-77
45 817 00 06-12
81 873 51 04-00
101 532 16 33-05
105 817 12 06-16
112 532 12 49-52
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
13
81
101
45
DESCRIPTION
Choke Control
Nut, Keps 3/8-24 Unf
Kit Spark Arrestor (Flat Scrn)
Tank Fuel
Cap Asm Fuel
Clamp Hose Blk
Line Fuel
Plug Drain Oil (Order from Engine
Manufacturer)
Stem Tank Fuel
Screw Hexwsh Thdr 3/8-16 x 3/4
Nut Keps Hex 1/4-20
Nut Flange M8-1.25
Screw 3/8-16 x 1
Bushing
8
10
6
5
4
