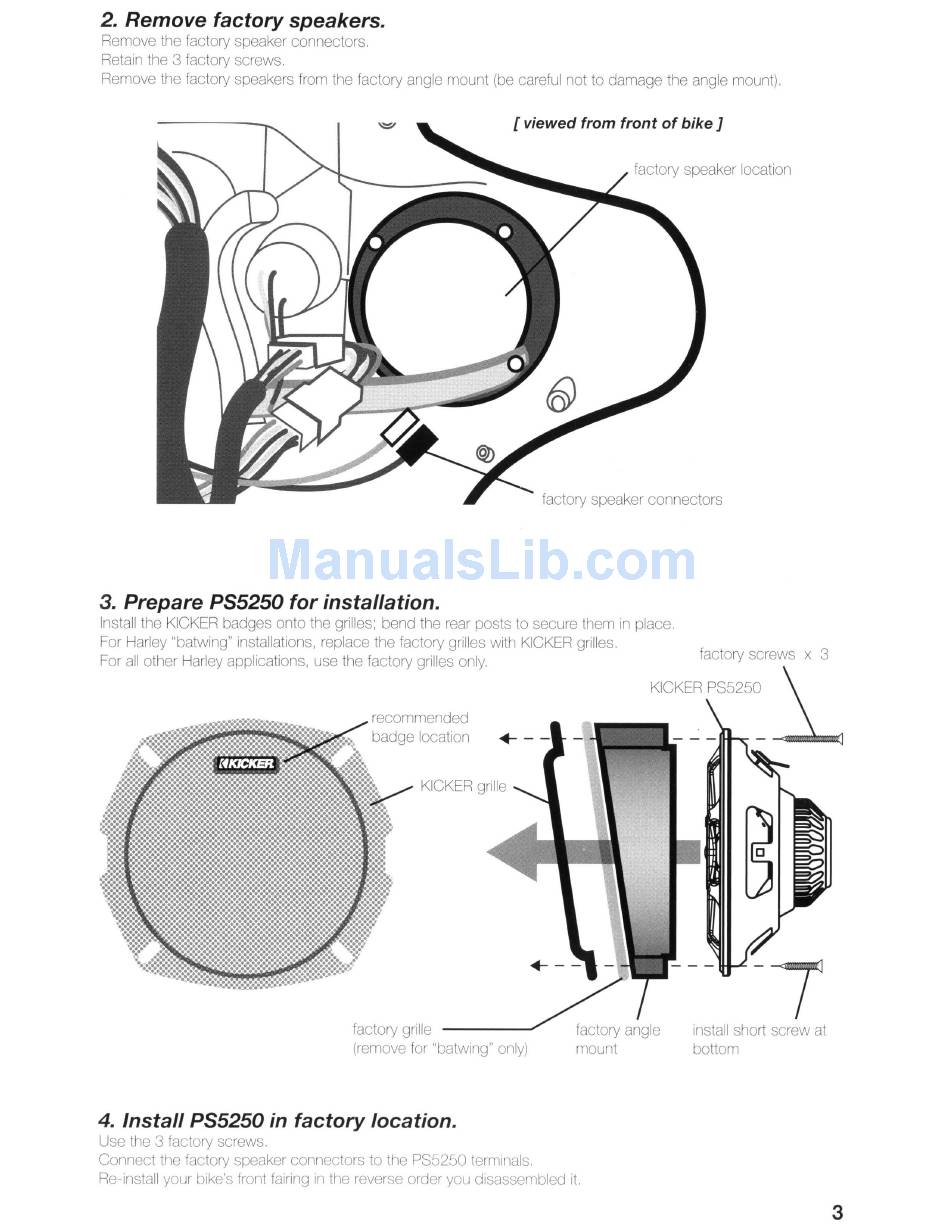

2. Remove factory speakers.
Remove the factory speaker connectors.
Retain the 3 factory screws.
Remove the factory speakers from the factory angle mount (be careful not to damage the angle mount).
[ viewed from front of bike]
factory speaker location
~~~
factory speaker connectors
3. Prepare PS5250 for installation.
Install the KICKER badges onto the grilles; bend the rear posts to secure them in place,
For Harley "batwing" installations, replace the factory grilles with KICKER grilles.
For all other Harley applications, use the factory grilles only.
KICKER grille
factory screws x 3
install short screw at
bottom
KICKER PS5250
factory angle
mount
+- --
recommended
badge location
factory grille
(remove for "batwing" only)
4. Install PS5250 in factory location.
Use the 3 factory screws,
Connect the factory speaker connectors to the PS5250 terminals.
Re-install your bike's front fairing in the reverse order you disassembled it.
