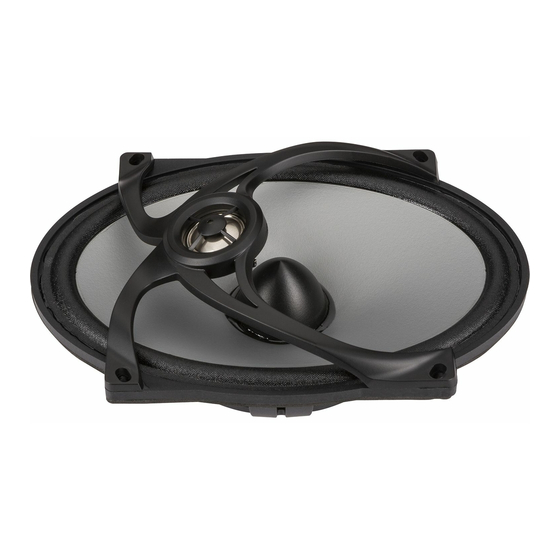

- Page 1 Installation Manual Manual de Instalación Manuel d’installation Benutzerhandbuch PSC57 Coaxial Speaker Altavoz coaxial Haut-parleur coaxial Koaxiallautsprecher...
- Page 2 Installation ...... 5 Warranty ......8 Important: Over-tightening mounting fasteners may result in damage to your motorcycle. Please refer to your service manual for proper procedures and torque specifications. KICKER is not responsible for damage resulting from improper installation techniques.
- Page 3 Disassembly 1. Before you begin, make sure the motorcycle and radio are in the OFF position. 2. From inside the saddlebag, remove the four grille retaining screws, or remove the grille from the saddlebag according to the manufacturer’s guidelines.
- Page 4 3. Disconnect the speaker leads from the speaker to be replaced. If equipped with Harley-Davidson Plugs, unplug them from the speaker. 4. Remove the speaker to be replaced by removing the four mounting screws securing it to the bag lid. Remove the speaker.
- Page 5 Installation 5. From inside the saddlebag, feed the speaker leads into the top of the saddlebag speaker cavity to the positive and negative terminals of the PSC57, or simply connect the Harley-Davidson Plugs if available.
- Page 6 6. Install and mount the PSC57 speaker with the four screws removed in Step 4. Make sure the tweeter and speaker are oriented towards the front of the motorcycle. 7. Replace the grille and reinstall using the grille retainer screws removed in Step 2, or as necessary for your make and model of motorcycle.
- Page 7 Optionally, you may replace the HD logo on the grille with the KICKER logo. Now enjoy your new coaxial speaker upgrade!
- Page 8 Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes.
- Page 9 Service performed by anyone other than KICKER HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered.
- Page 10 (“a todo volumen”) en todo sentido. La línea de altavoces y amplificadores KICKER es la mejor del mercado de audio de automóviles y por lo tanto representa el “combustible” para vivir a todo volumen en el área de “estéreos de automóvil” de la vida de nuestros clientes.
