KM60 / KM10 / GR10M
Congratulations! You have just purchased the latest in a long line of
exceptional audio products from KICKER. Your KICKER Marine
Components were designed and engineered by the same team
which created many other international award winning KICKER prod-
ucts like the Solo-Baric, Comp VR and Resolution drivers. They contain
a number of cutting-edge features to give you outstanding perform-
ance and dependability. Thanks for buying KICKER. Enjoy.
•Polymineral Cone High internal damping, and excellent sunlight, pollution and mois-
ture resistance.
•Kapton Voice Coil Formers For exceptional thermal power handling capability and
superior sonic performance.
•Coated Tinsel Leads Protects the leads against the corrosive nature of the marine
environment.
•SSD (Spun Spoke Design) Enhances the cosmetics and provides a solid anti-resonant
foundation for the motor assembly.
KM60 Features:
•KALADEX Dome Tweeter with Neodymium Magnet For smooth high frequency
response.
•Felt Damping Plug behind dome For enhanced transient response.
•Ferro-Fluid Cooled Tweeter Voice Coil For better cooling and extended life.

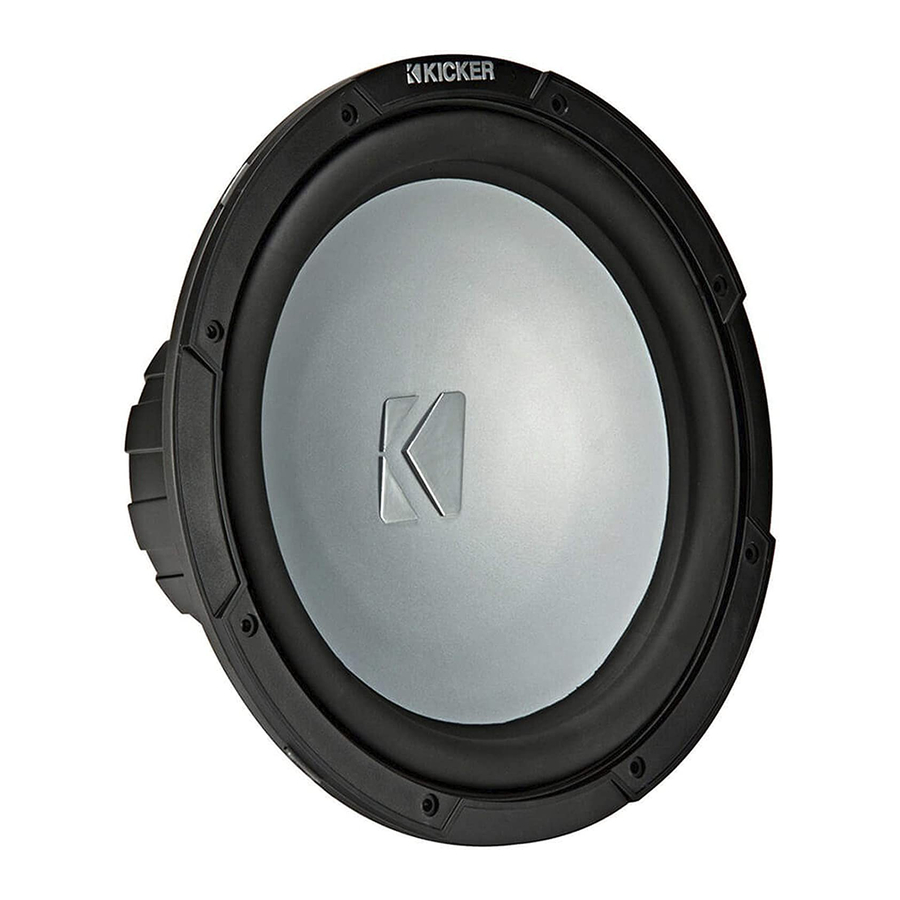

KM10 Features:
•Gold-Plated Terminal Lugs Protects against corrosion and provides an efficient con-
nection between the woofer and amplifier.
•Larger Front Gasket Provides more surface area for a solid mount.
MODEL
S
S
Size
Freq. Resp. (Hz)
Power Peak (Watts)
Mounting Hole (in., c c m m )
Mounting Depth (in., c c m m )
Sensitivity (dB 1W/1M)
Marine Speaker System
Features
Specifications
KM60
6 1/2"
43-20K
65
5 / 1 1 2 2 . . 7 7
2 7/16 / 6 6 . . 2 2
90
KM10
10"
30-1000
125
9 3/16 / 2 2 3 3 . . 3 3
4 1/2 / 1 1 1 1 . . 4 4
89
Advertisement
Related Manuals for Kicker KM10
Summary of Contents for Kicker KM10
- Page 1 KICKER. Your KICKER Marine Components were designed and engineered by the same team which created many other international award winning KICKER prod- ucts like the Solo-Baric, Comp VR and Resolution drivers. They contain a number of cutting-edge features to give you outstanding perform- ance and dependability.
-
Page 2: Installation Instructions
Installation Instructions Your KICKER drivers are specifically designed for mounting in free-air applica- tions. While the speakers do not need a sealed box for optimum performance, it is important to isolate the sound coming off the front of the driver from the sound radiating from the back of the driver to avoid cancellations. - Page 3 COAX MOUNTING The first step is to find a location on the boat panel that will accept the size of speaker chosen. If there was not a speaker already there you will need to cut a hole. Check to make sure that there is enough mounting depth for the speaker before cutting any holes.
- Page 4 Enclosure Instructions Mounting the KM10 subwoofer will take a little more time than the KM60 speaker. You must locate a panel that has a sufficient enough airspace behind it to allow the subwoofer to work. This will most likely be under a seat or in the foot area just below the driver’s seat.
- Page 5 A very smooth bass response with good low bass extension is achieved when the Kicker KM10 woofer are mounted in a correctly built sealed box with the cor- rect airspace. Sealed (acoustic suspension) designs have been a favorite here at Kicker since the original Competition Series was introduced.
- Page 6 Vented Box Mounting Almost as easy to build as the sealed box, the vented or ported enclosure can give you more output at certain bass frequencies. Although this design has an output advantage at some frequencies it also has a sharper rolloff characteristic which will only affect the lowest of bass frequencies.
- Page 7 Multiple Woofer Enclosures If you are building enclosures for more than one woofer, they should always be divided to maintain the correct airspace for each woofer. There are a couple of reasons for this. First of all, not all woofers are exactly the same. If there are slight differences between the woofers in a common enclosure, at certain fre- quencies one woofer may think it's in a larger enclosure than intended.
- Page 8 Kicker recommends allowing a professional install the subwoofers to avoid any problems that can occur during the installation process. Consult an Authorized KICKER dealer for more information. For more information and additional box plans, see the KICKER Marine Technical Brief on kicker.com or call the Technical Services Line at (405)624-8583.
-
Page 9: Wiring Instructions
Connecting the supplied wires (KM60) to your KICKER driver is very straight forward. One end of each wire is terminated with a large and small connector. - Page 10 The diagram below shows a typical setup with separate amplifiers driving the KM60s and KM10s. If you are not using Kicker amplifiers with a built-in crossover, you will need to use an electronic crossover in the system to insure the protec- tion of the speakers.
-
Page 11: What Is Not Covered
THREE (3) MONTHS from date of original purchase. When purchased from an Authorized KICKER Dealer it is warranted for ONE (1) YEAR from date of original purchase. If the product is labeled “B Stock” and purchased from an Authorized KICKER Dealer, it is warranted for THREE (3) MONTHS from date of purchase, regardless of place of installation.
