4. Hard Disk Connection

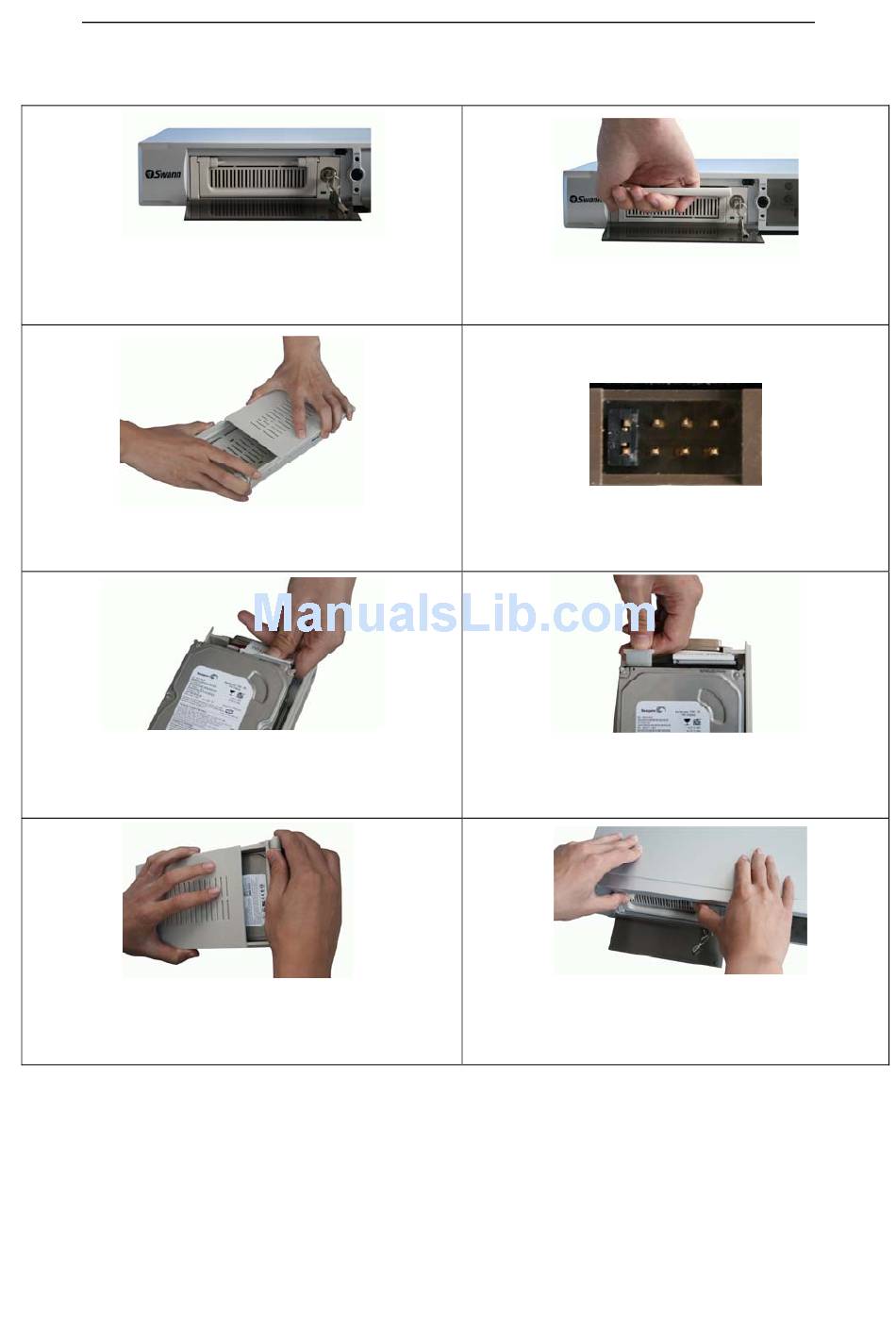

1. Open the cover of the hard disk enclosure and unlock
it using the supplied key. When unlocked, the key will be
vertical as shown.
3. Slide the top cover of the caddy towards the back (the
end with the connector) and remove it.
5. Place your hard drive in the caddy and then connect
the data cable to the socket on your hard drive.
7. Slide the top cover of the caddy towards the end with
the handle to replace it.
Please note: For instructions on how to jump your hard disk drive (HDD) to "master", please refer
to the information found on the label on top of the hard drive or visit the hard disk drive
manufacturer's website. Also note that the key must be in the locked position for the hard disk drive
to work. If the key is left in the unlocked position the power to the hard drive is switched off.
8-Channel Digital Video Recorder
2. Carefully lift the handle on the front of the caddy
and remove it from the housing.
4. Prepare your hard drive by setting the jumper to
Master. Check the label of the hard drive for information
on how to do this.
6. Connect the power connector to the power socket on
your hard drive. The connector fits with the cut off
corners at the top.
8. Replace the caddy into the housing pressing on both
sides to ensure a solid connection, then turn the key to the
horizontal position to lock it.
