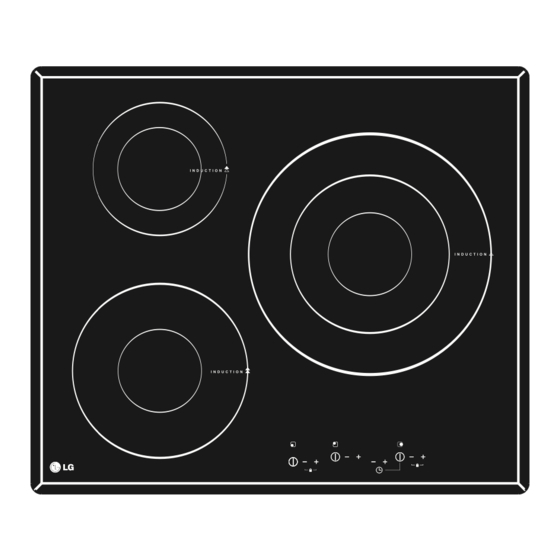

Ceramic Glass Induction
Radiant HOB
Installation and Operating Instructions
KA67210FS
To avoid the risk of accidents or damage to the HOB,
it is essential to read these operating instructions
before it is installed or used for the first time.
And please keep this manual for later reference.
P/No.: MFL62060306

Advertisement

   Related Manuals for LG KA67210FS

No related manuals

   Summary of Contents for LG KA67210FS

  • Page 1

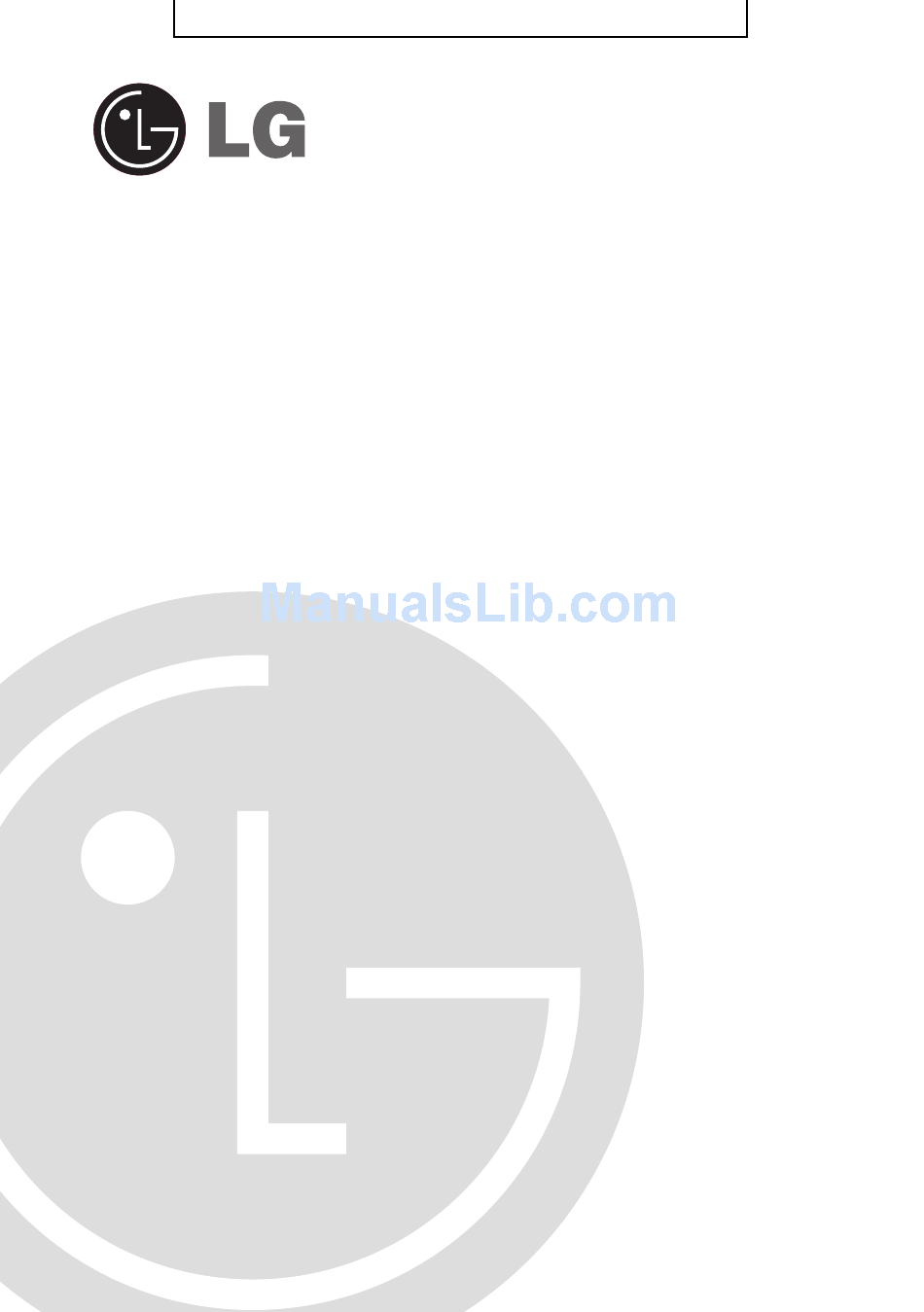

    Ofrecido por www.electromanuales.com Ceramic Glass Induction Radiant HOB Installation and Operating Instructions KA67210FS To avoid the risk of accidents or damage to the HOB, it is essential to read these operating instructions before it is installed or used for the first time.

  • Page 2: Dear Customer

    Ofrecido por www.electromanuales.com Dear Customer Please read these operating instructions carefully. Above all, please observe the “safety” section on the first few pages. Please retain these operating instructions for later reference. Pass them on to any subsequent owners of the appliance. The following symbols are used in the text: Safety information -Warning: Information concerning your personal safety.

  • Page 3: Table Of Contents

    Ofrecido por www.electromanuales.com Contents Safety ..................4-7 Instructions for the user ............8 1. Instructions for the use ............8 2. Before first use ..............10 3. Description of controls ............10 4. Use the cooking HOB ............11 5. Cleaning and maintenance ..........18 6.

  • Page 4: Safety

    Ofrecido por www.electromanuales.com Safety The safety aspects of this appliance comply with accepted technical standards and IEC Standards. However, as the manufacturer we also believe it is our responsibility to familiarize you with the following safety instructions. Electrical Safety • The installation and connection of the new appliance must only be carried out by qualified personnel.

  • Page 5: Safety

    Ofrecido por www.electromanuales.com People who have pacemakers or other similar devices fitted must make sure that the functioning of these devices is not jeopardised by the inductive field, whose frequency range is between 20 and 50 KHz. Child Safety Warning: Accessible parts may become hot during use. Young children should be kept away.

  • Page 6: Safety When Cleaning

    Ofrecido por www.electromanuales.com Safety • You must not keep any combustible items aerosol cans in a drawer located under the hob. • The service cables from electrical appliances must not touch the hot plates. This could cause damage to the hob and cable insulation.

  • Page 7

    Ofrecido por www.electromanuales.com Important: There is a risk of burning yourself when the glass scraper is used on a hot cooking zone! • Keep objects or materials liable to melt away from the ceramic glass surface, for example, plastic utensils, aluminium foil, or cooking wraps.

  • Page 8: Instructions For The User

    Ofrecido por www.electromanuales.com Instructions for User 1. Instructions for use Electrical connection: refer to the installation instructions for the safety regulations for electric or gas appliances and ventilation functions. In your own interest, and that of safety, it is the law that all gas and electrical appliances be installed and serviced by competent persons, who will comply with the relevant standards and regulations.

  • Page 9

    Ofrecido por www.electromanuales.com The identification plate, with technical data, serial number and marking is clearly visible under the casing. A copy of the identitication plate is included in the booklet. The plate on the casing must not be removed. Take care not to spill sugar or sweet mixtures on to the hob when hot.

  • Page 10: Before First Use

    Ofrecido por www.electromanuales.com Instructions for User 2. Before first use Do not discard packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre. Remove all the REMOVABLE labels and any protective sheeting. To switch on the hob, follow the instructions provided in paragraph “4 USE OF THE COOKING HOB”...

  • Page 11: Use Of The Cooking Hob

    Ofrecido por www.electromanuales.com 4. Use of the cooking HOB To operate the panel of the hobs equipped with touch-controls, press the icons printed on its surface. On first connection to the electrical mains, an operating check will be carried out automatically and all the indicator lights will come on for a few seconds.

  • Page 12

    Ofrecido por www.electromanuales.com Instructions for User 4.2 Cookware Appliances of this type require special pans to be able to work. In fact, the pan must have an iron bottom to generate the magnetic field necessary for it to be heated up. Recipients made of the following are not suitable: 1 glass;...

  • Page 13

    Ofrecido por www.electromanuales.com Use only recipients with a perfectly flat bottom and which are suitable for induction cooking or, if pans of this type are not available, recipients whose bottom is not crowned (concave or convex). Using a pan with an irregular bottom could jeopardise the efficiency of the heating system so that the pan is not detected on the hotplate.

  • Page 14

    Ofrecido por www.electromanuales.com Instructions for User 4.3 Switching on the cooking zone Press the button for the cooking zone you want to use (for example for the central right-hand zone). On the power display,0 appears. Pressing the keys can set the power from 1 to 9. Once you have set the hotplate's power level, this will not be activated until a pan suitable for induction cooking is placed upon it.

  • Page 15

    Ofrecido por www.electromanuales.com 4.3.4 Cooking hob lock-out When the hob is on, it can be locked to avoid accidental modifications to the cooking values set. The lock remains on even after the hob has been switched off. It is present only on the models that have the symbol .

  • Page 16

    Ofrecido por www.electromanuales.com Instructions for Use 4.3.5 Power management To optimise the energy consumption, the groups made up of two hotplates (see figure above) are prevented from supplying more than a determined maximum operating power. If the value set for the two hotplates exceeds the permitted power, the electronic circuit board will automatically maintain the maximum level permitted modifying the power supplied by the hotplates.

  • Page 17

    Ofrecido por www.electromanuales.com 4.6 Safety functions against accidental operations To provide the user with the utmost safety, this appliance has been equipped with various safety devices. 1) if two keys are accidentally pressed, no function is switched on. After 10 seconds, the electronic circuit board will deactivate the product and some signs will appear on the power displays;...

  • Page 18: Cleaning And Maintenance

    Ofrecido por www.electromanuales.com Instructions for Use 5. Cleaning and maintenance Before performing any operations requiring access to powered parts, switch off the power supply to the appliance. 5.1 Cleaning the ceramic hob The hob should be regularly cleaned; preferably after every use, once the residual heat warning lights have gone off.

  • Page 19: Instructions For The Installer

    Ofrecido por www.electromanuales.com Instructions for the Installer 7. Installation 7.1 Technical information Hob type See rating plate Electrical connections 220-240V~ 50/60Hz / 380-415V 2N~ 50/60Hz / 380-415V 3N- 50/60Hz HOB RATING Maximum electrical power See rating plate 7.2 The rating plate Make sure that the voltage and capacity of the power line conform to the data shown on the plate located under the casing.

  • Page 20

    Ofrecido por www.electromanuales.com Instructions for the Installer For operation on 380-415 V 3N~: use an H05V2V2-F - type five- core cable (5 x 1.5 mm ) heat-resistant to at least 90°C. For operation on 380-415V 2N~: use an H05V2V2-F - type four- core heat-resistant to at least 90°C.

  • Page 21

    Ofrecido por www.electromanuales.com 7.4 Positioning of the hob The following operation requires building and/or carpentry work so must be carried out by a competent tradesman. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat resistant (T 90°C).

  • Page 22

    Ofrecido por www.electromanuales.com Instructions for the Installer In case of installation on an empty kitchen unit with doors, a separation panel must be placed under the hob. Keep a minimum distance of 20 mm between the bottom of the hob and the surface of the panel, which must be easily extractable to allow sufficient access for any technical assistance.

  • Page 23: Service

    Ofrecido por www.electromanuales.com Service Packaging and old appliances Your new appliance was protected by suitable packaging while it was on its way to you. All materials used for this purpose are environmentally friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately.

  • Page 24
