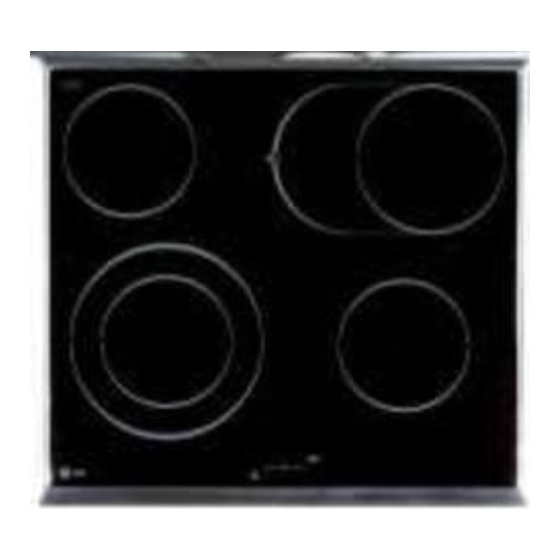

Ceramic Glass HOB
Installation and Operating Instructions
To avoid the risk of accidents or damage to the HOB,
it is essential to read these operating instructions
before it is installed or used for the first time.
And please keep this manual for later reference.
KM60520S
KM60020S
P/No. :3828W5A8382

Advertisement

Table of Contents
loading

Related Manuals for LG KM60520S

Summary of Contents for LG KM60520S

  • Page 1 Ceramic Glass HOB Installation and Operating Instructions KM60520S KM60020S To avoid the risk of accidents or damage to the HOB, it is essential to read these operating instructions before it is installed or used for the first time. And please keep this manual for later reference.
  • Page 2 Dear Customer Please read these operating instructions carefully. Above all, please observe the “safety” section on the first few pages. Please retain these operating instructions for later reference. Pass them on to any subsequent owners of the appliance. The following symbols are used in the text: Safety information -- Warning: Information concerning your personal safety.

  • Page 3: Table Of Contents

    Contents Safety ..................4-7 Suitable Kitchenware .............. 8-9 Description of the appliance ........... 10 Cooking zones and control ............10 The key features of your appliance .........11 Operating Instructions ............12-13 Before using for the first time ........... 12 Operating the hob ..............12 Outside Cooking Zone (Dual, Oval) Selection ......

  • Page 4: Safety

    Safety The safety aspects of this appliance comply with accepted technical standards and IEC Standards. However, as the manufacturer we also believe it is our responsibility to familiarize you with the following safety instructions. Electrical Safety • The installation and connection of the new appliance must only be carried out by qualified personnel.
  • Page 5 Child Safety This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
  • Page 6 Safety Safety When Cleaning • Always switch off the appliance before cleaning. • For safety reasons do not clean the appliance with a steam jet or high pressure cleaner. • Clean the hob in accordance with the maintenance and cleaning instructions in this manual.
  • Page 7 Disposal of old appliances Warning: Before disposing of old appliances please make them inoperable so that they cannot be the source of danger. To do this, have a qualified person disconnect the appliance from the house circuitry. To protect the environment, it is important that worn out appliances are disposed of in the correct manner.

  • Page 8: Suitable Kitchenware

    Suitable Kitchenware Pots and pans The better the pot, the better the cooking results. • You can recognize good pots and pans by their bases. The base should be as thick and flat as possible. • When buying new pots and pans, pay particular attention to the diameter of the base.
  • Page 9 Tips on saving energy You will save valuable energy by observing the following points: • Always position pots and pans before you switch on the cooking zone. • Dirty cooking zones and pot bases increase the power consumption. • Whenever possible, always have the lid firmly placed on the pots and pans so that they are completely covered.

  • Page 10: Description Of The Appliance

    Description of the Appliance Cooking zones and control KM60520S Cooking zone Cooking zone 2400W 26cm 1200W 15cm Cooking zone Cooking zone 2200W (Dual) 1200W 15cm 22cm Indicators KM60020S Cooking zone Cooking zone 1200W 15cm 1800W 19cm Cooking zone Cooking zone...

  • Page 11: The Key Features Of Your Appliance

    Oven Control panel Oven model : LE641152 Heater control knob Oven model : LE641122 Heater control knob * Heater control knob : Set and adjust the power level. The Key Features of Your Appliance • Cooking zones: The appliance is fitted with ceramic glass. •...

  • Page 12: Operating Instructions

    Operating Instructions Before using for the first time Initial Cleaning Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner. Important: Do not use any caustic, abrasive cleaners! The surface could be damaged. Operating the hob For setting and adjusting the power level ( ) for cooking, dial the relative cooking zone knob in the oven control panel.

  • Page 13: Outside Cooking Zone (Dual, Oval) Selection

    Outside Cooking Zone (Dual, Oval) Selection By switching outside heater on or off, the effective heating surface can be matched to the size of the cookware. To switch on outside heater, the inside heater must be switched on power level 9. And then dial the desired Heater’s Control knob more into clockwise.

  • Page 14: Uses, Tables And Tips

    Uses, Tables and Tips Chart for Setting the Cooking Zones Heat setting suitable for Heating Up Bringing liquid to a boil. Heavy Browning meat, heat oil for deep fat Browning frying or sauteing. Deep fat Maintaining fast boil for large frying amounts of liquids.

  • Page 15: Automatic Time Limiter

    Automatic time limiter If a element is in constant use for a long time without the setting being changed, the automatic time limiter is activated. Then, power level is set automatically. Changing power level will reset the burner. The following table shows the automatic limiter activation times.

  • Page 16: Cleaning And Care

    Cleaning and care Light Soiling 1. Wipe the ceramic glass surface with a damp cloth and a little cooktop cleaner. 2. Then rub dry with a clean cloth. Remnants of cleaner must not be left on the surface. 3. Thoroughly clean the entire ceramic glass cooking surface once a week with a commercially available ceramic glass or stainless steel cleaner.
  • Page 17 Problem Soils 1. Remove sugar, melted plastic, aluminium foil or other meltable materials with a glass scraper immediately and while still hot. Important: There is a risk of burning yourself when the glass scraper is used on a hot cooking zone! 2.

  • Page 18: Installation Instructions

    KM60020S KM60520S KM60020S Front left 210mm 210mm 2200W 2300W Rear left 140mm 140mm 1200W 1200W Rear right 260mm 180mm 2400W 1800W Front right 140mm 140mm 1200W 1200W Connection voltage 220~240V 1AC/2NAC 50Hz Maximum connected load power 7.0kW (KM60520S) 6.5kW (KM60020S)

  • Page 19: Regulations, Standards, Directives

    Regulations, Standards, Directives This appliance meets the following standards: • EN 60335-1 and EN 60335-2-6 relating to the safety of electrical appliances for household use and similar purposes and • EN 60350 Methods for measuring performance. • EN 55014-2 • EN 55014-1 •...

  • Page 20: Safety Instructions For The Installer

    Installation Instructions Safety Instructions for the Installer • A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

  • Page 21: Electrical Connection

    Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. Shut off power to circuit before connecting hob wires to circuit. The heating element voltage is AC230V~.

  • Page 22: Assembly

    Installation Instructions Assembly Bracing <Fig. 1> Remove the bracing from the Furniture furniture for hob airflow. min. 50 mm <Fig. 2> min. 50 mm min. 50 mm min. 5 mm Follow Fig.2 for minimum required surface clearances.
  • Page 23 <Fig. 3> Cabinet cutout and mounting clip locations.
  • Page 24 Installation Instructions <Fig. 4> Caution: It is important to keep 20 mm distance between hob case and combustible surface. Make sure hob is fully seated, with foam tape compressed against countertop. <Fig. 5> To remove the hob, it must be pressed out from below.

  • Page 25: Troubleshooting

    Troubleshooting Malfunctions often have simple explanations. Please read the following instructions before calling the after-sales service: Problem description Possible cause or Remedies Hob does not work. • Check below. – Connection and Main Switch. – The correponding cooking zone is selected.

  • Page 26: Service

    Service Packaging and old appliances Your new appliance was protected by suitable packaging while it was on its way to you. All materials used for this purpose are environmentally friendly and can be recycled. Please make a contribution to protecting the environment by disposing of the packaging appropriately.
  • Page 27 Memo...
  • Page 28 FOR WARRANTY SERVICE PLEASE CONTACT THE RETAILER FROM WHOM YOU PURCHASED YOUR UNIT OR CONTACT LG SERVICE LG ELECTRONICS S.A.(Pty) Ltd. P.O.BOX 473 ISANDO 1600 LG Service center Phone: 0800-LGLGLG (0800-545454) http://www.lge.co.za 220V-240V 1 AC/2NAC 50Hz Max. : 7.0kW (KM60520S) Model : KM60520S / KM60020S 6.5kW (KM60020S)
