3.1

The control panel

On the rear side you will find a control panel that allows detailed fine-tuning
of your loudspeakers to your particular room acoustics and personal listen-
ing preferences. The following tips are intended to assist you at using the
controls in the best manner.
Please note that using the controls may have a great impact on the sound
characteristics of your loudspeakers. We recommend using the controls with
utmost care and only after several audio tests with familiar recordings.
3.2

Input gain

'Input Gain' regulates the overall input sensitivity of your loudspeaker within
a range of -10 to +10 dB, and controls the volume of your loudspeaker equally
in all frequency ranges.
3.3

High gain

Whereas the 'Input Gain' raises or lowers the overall input sensitivity up to
+/-10 dB, the 'High Gain' works only within the frequency range of the tweet-
er (>1.800 Hz) only, raising or lowering up to +/-4 dB.
8
3.
Controls/Speaker Adjustment

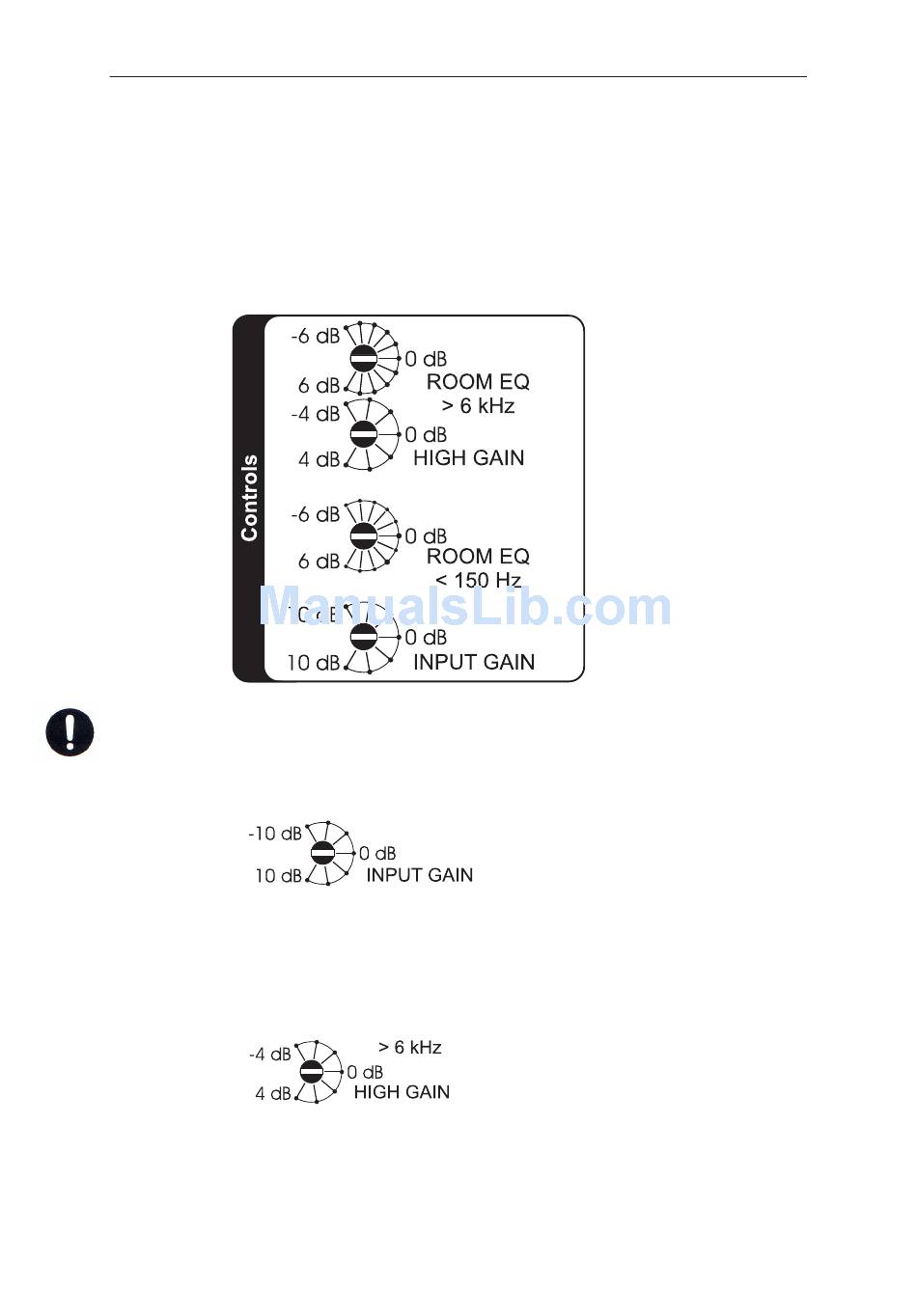

Figure 6:
Control panel
