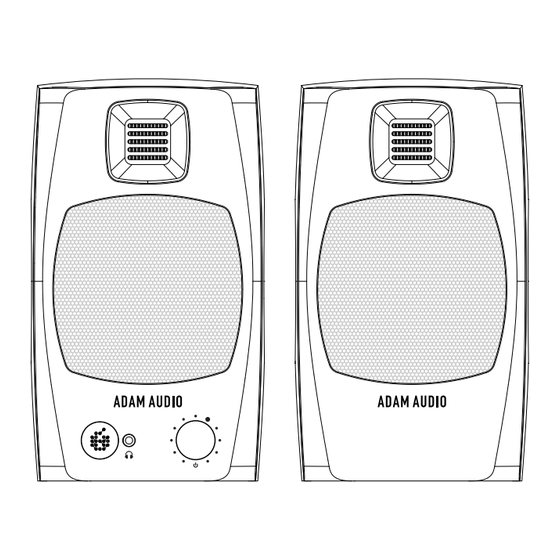

Desktop monitor system
Hide thumbs Also See for D3V:

Advertisement

Quick Links

1) What's included
L
R
1x
1x
1x
1x
6x
2x
5) Balanced digital audio connection
USB-C
→ USB-C
USB-C → USB-C
USB-A
2) Power connection
1
1
2
3
1x
6) Headphone connection
1
3.5 mm
2
(1/8") TRS
3) Balanced analog audio connection
2
3
4
4
5
6
7) Use of rotary front knob & LED states
3
Color
LED state
Red
Flashing
Red
Flashing
Green
Solid
Cyan
Solid
Yellow
Pulsing
Yellow
Flashing 3x
4) Unbalanced analog audio connections
TRS
Tip
Ring
Sleeve
6.35 mm
(1/4") TRS
→ 6.35 mm
(1/4") TRS
6.35 mm
(1/4") TRS
XLR
Tip
D3V
1
2
Action
Function
Press x1
Mute
Press x2
Change input (Analog <--> USB)
Press x3
Swap channels (L <--> R)
Press & hold (2 sec.)
Standby
Function
Booting up / Shutting down
Limiter active
Power on and analog input (TRS/TS) active
Power on and digital input (USB-C) active
Muted
Left & right channel swap
Quick Start Guide
TS
Tip
Sleeve
6.35 mm
(1/4") TS
→ 6.35 mm
(1/4") TS
Ring/
Sleeve/
GND
GND
TRS
6.35 mm (1/4") TRS Adapter → RCA
Desktop
Monitor System
