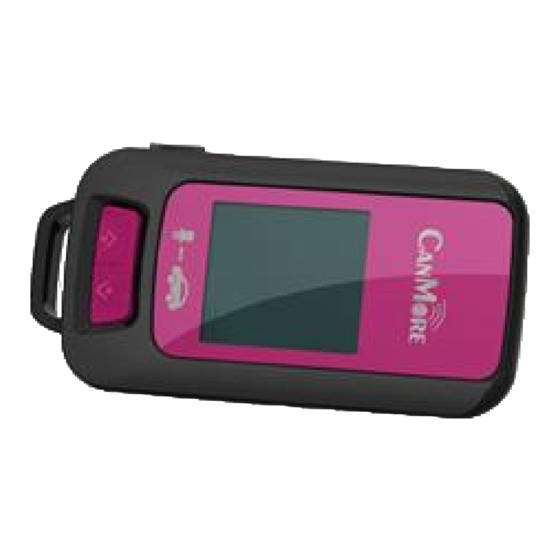

G-PORTER
Portable GPS Tracker
GP-102+ User's Manual
Canmore Corporation
www.canmore.com.tw


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-PORTER GP-102+ and is the answer not in the manual?

Questions and answers

Related Manuals for CanMore G-PORTER GP-102+

Summary of Contents for CanMore G-PORTER GP-102+

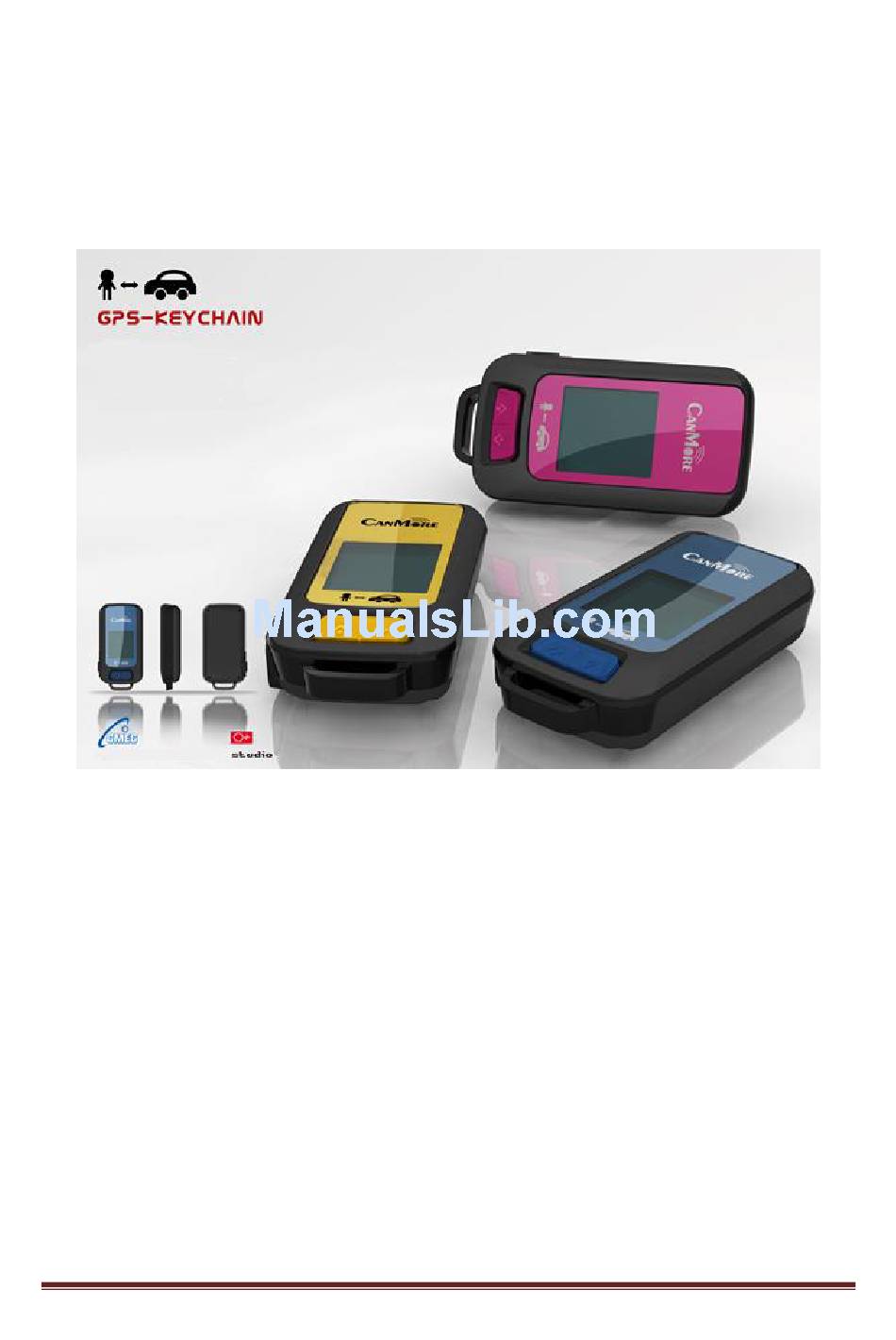

  • Page 1 G-PORTER Portable GPS Tracker GP-102+ User’s Manual Canmore Corporation www.canmore.com.tw   ...

  • Page 2: Functions Of Keys

    Press once: Previous page Press and hold for 2-3 seconds: Press and hold for 2-3 seconds for the first time: Exit Turn the GP-102+ on. Press once: Next page Press and hold for 2-3 seconds: Enter that page. Canmore Corporation www.canmore.com.tw   ...

  • Page 3: Function Tree Diagram

    Press UP/DN Sports Mode and Tracker Trip Planning Mode (from PC software) Geotag Mode Historical Data Mode Additional Functions (Pedometer, Pressure Gauge, Weather Station, Level) Setup Power OFF (Press and hold the right key for 2-3 seconds) Canmore Corporation www.canmore.com.tw   ...

  • Page 4: Sports Mode And Tracker

    Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup and the following screens will appear: Available types of POIs. After selecting a POI, press and hold the right key to go to the previous page. Canmore Corporation www.canmore.com.tw   ...
  • Page 5 Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup and the following screens will appear: Available types of POIs. After selecting a POI, press and hold the right key to go to the previous page. Canmore Corporation www.canmore.com.tw   ...
  • Page 6 Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup and the following screens will appear: Available types of POIs. After selecting a POI, press and hold the right key to go to the previous page. Canmore Corporation www.canmore.com.tw   ...
  • Page 7 Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup and the following screens will appear: Available types of POIs. After selecting a POI, press and hold the right key to go to the previous page. Canmore Corporation www.canmore.com.tw   ...
  • Page 8 Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup and the following screens will appear: Available types of POIs. After selecting a POI, press and hold the right key to return to the previous page. Canmore Corporation www.canmore.com.tw   ...
  • Page 9 Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup, and the following screens will appear: Available types of POIs. Select Stop Log and press and hold the right key for 2-3 seconds to enter Stop Log setup. Jogging Mode off Switch screen to GPS off Canmore Corporation www.canmore.com.tw   ...
  • Page 10 Select Save as POI and press and hold the right key for 2-3 seconds to enter POI setup and the following screens will appear: Available types of POIs. After selecting, press and hold the right key to go to the previous page. Canmore Corporation www.canmore.com.tw   ...
  • Page 11 Switch screen to GPS off On the left screen below, press the right key once to return to the first screen as shown on the right. Users can retrieve the POI to CANWAY (software) for further analysis. Canmore Corporation www.canmore.com.tw   ...
  • Page 12 (Select and press and hold the right key for 2-3 seconds to enter and set trip planning). 1. First, edit the required routes on the CanWay Planner. 2. Upload data to the GP-102+ with the Sync function. Canmore Corporation www.canmore.com.tw   ...
  • Page 13 Test 1. 6. Press and hold the right key to call out Save as POI and Map Scale. Select Save as POI to save data as a POI. Select Map Scale to adjust map display scale. Canmore Corporation www.canmore.com.tw   ...
  • Page 14 8. After adjusting the map scale, the route planned in Test 1 will be displayed on the map. If a POI is set in the CanWay Planner, it will be displayed on the map at the same time. Press and hold the left key for 2-3 seconds to return to Home. Canmore Corporation www.canmore.com.tw   ...
  • Page 15 The relative position of the POI and current location. Press and hold the right key for 2-3 seconds to enter Map Scale setup. Press and hold the left key for 2-3 seconds to return to the previous screen. Canmore Corporation www.canmore.com.tw   ...
  • Page 16 The new POI has been added to the GP-102+. Press and hold the left key for 2-3 seconds to return to Home. Canmore Corporation www.canmore.com.tw   ...
  • Page 17 Press the right key once to go to the next page. Data include Best Speed, Best Pace, Ascent and Steps. Press the right key once to go to the next page. Data include Calories. Press the right key once to go to the next page. Canmore Corporation www.canmore.com.tw   ...
  • Page 18 2-3 seconds to enter the Map Scale setup. When the Follow sign appears, follow the track as shown on the left screen to return to the origin. Press and hold the left key for 2-3 seconds to return to Home. Canmore Corporation www.canmore.com.tw   ...
  • Page 19 Select Auto by GPS (reset altimeter automatically by GPS) Select Manual (reset altimeter manually) Press and hold the left key for 2-3 seconds to go to the previous page. Press the right key to display the following: Weather conditions. Canmore Corporation www.canmore.com.tw   ...
  • Page 20 When the Pedometer appears, press and hold the right key for 2-3 seconds to calibrate the Pedometer. Clear steps in the pedometer. Press and hold the left key for 2-3 seconds to go to the previous page. Press the right key to display the following: Water Level. Canmore Corporation www.canmore.com.tw   ...
  • Page 21 Press and hold the left key for 2-3 seconds to go to the previous page. 2. Select Auto Pause to display the following: Off: Turn Auto Pause off. Stopped: Pause when speed is below 1.5kmh. Custom: Users can customize speed and related pause. Canmore Corporation www.canmore.com.tw   ...
  • Page 22 Select Auto by GPS (reset altimeter automatically by GPS) Select Manual (reset altimeter manually) Select Compass and press and hold the right key to display the following: Rotate the GP-102+ as shown for 20 seconds. Canmore Corporation www.canmore.com.tw   ...
  • Page 23 B. Select Power Down and press and hold the right key for 2-3 seconds to enter setup. Set G-Sensor to on and off; i.e., the system will enter the sleep mode if there is no motion for 5 minutes. Canmore Corporation www.canmore.com.tw   ...
  • Page 24 Press and hold the left key for 2-3 seconds to go to the previous page. F. Select Factory Reset and press and hold the right key for 2-3 seconds to enter setup. Select YES to reset all settings to the default settings. Next, turn off the power and restart GP-102+. Canmore Corporation www.canmore.com.tw   ...
  • Page 25  This product uses a lithium battery. Keep away from fires and high temperatures.  Improper disposal of waste equipment or battery may cause explosion.  Dispose of or recycle the battery as instructed. Please call your local recycling centers for details. Canmore Corporation www.canmore.com.tw   ...

  • Page 26: Charging The Battery

    USB cable to an adaptor or the USB port of your PC or laptop. When charging is in progress, the charging indicator (blue) will always be illuminated. When the battery is full, the charging indicator will turn off. Then, remove the USB cable from the GP-102+. Canmore Corporation www.canmore.com.tw   ...

  • Page 27: Battery Warning

    Charging Power Supply To ensure safety, please charge your GP-102+ with the following power sources:  Standard PC or laptop USB port.  Car USB adaptor: Input 12V; Output 5.0V.  Indoor USB adaptor: Input 110/220VAC; Output 5.0V. Canmore Corporation www.canmore.com.tw   ...
  • Page 28 A6: You may turn the GP-102+ off to save power, all POIs will be stored. When you turn it on again, the GP-102+ will display the last mode you used. Even if the battery is out, the GP-102+ will store all settings. Canmore Corporation www.canmore.com.tw   ...
  • Page 29 If you use the USB GPS Receiver inside the car, some anti-sunlight windscreen film will make the GPS signal degraded or signal blank.  GPS satellite is owned by America military; sometimes they will tune-down the accuracy by some reason. In such cases, the GPS position may not fixed exactly. Canmore Corporation www.canmore.com.tw   ...
  • Page 30 You should return it to your reseller or dispose of it in an approved recycling centre. DECLARATION: We hereby declare that this product complies with essential requirements and other related requirements, of the 1999/5/EC R&TTE directive and particularly with article 3 sections 1a, 1b and 3. Canmore Corporation www.canmore.com.tw   ...

  • Page 31: Warranty Card

    CanMore provides the following warranty for this product. 1. CanMore shall provide one year free repair and maintenance service as of the date of purchase for product failures from normal use.
