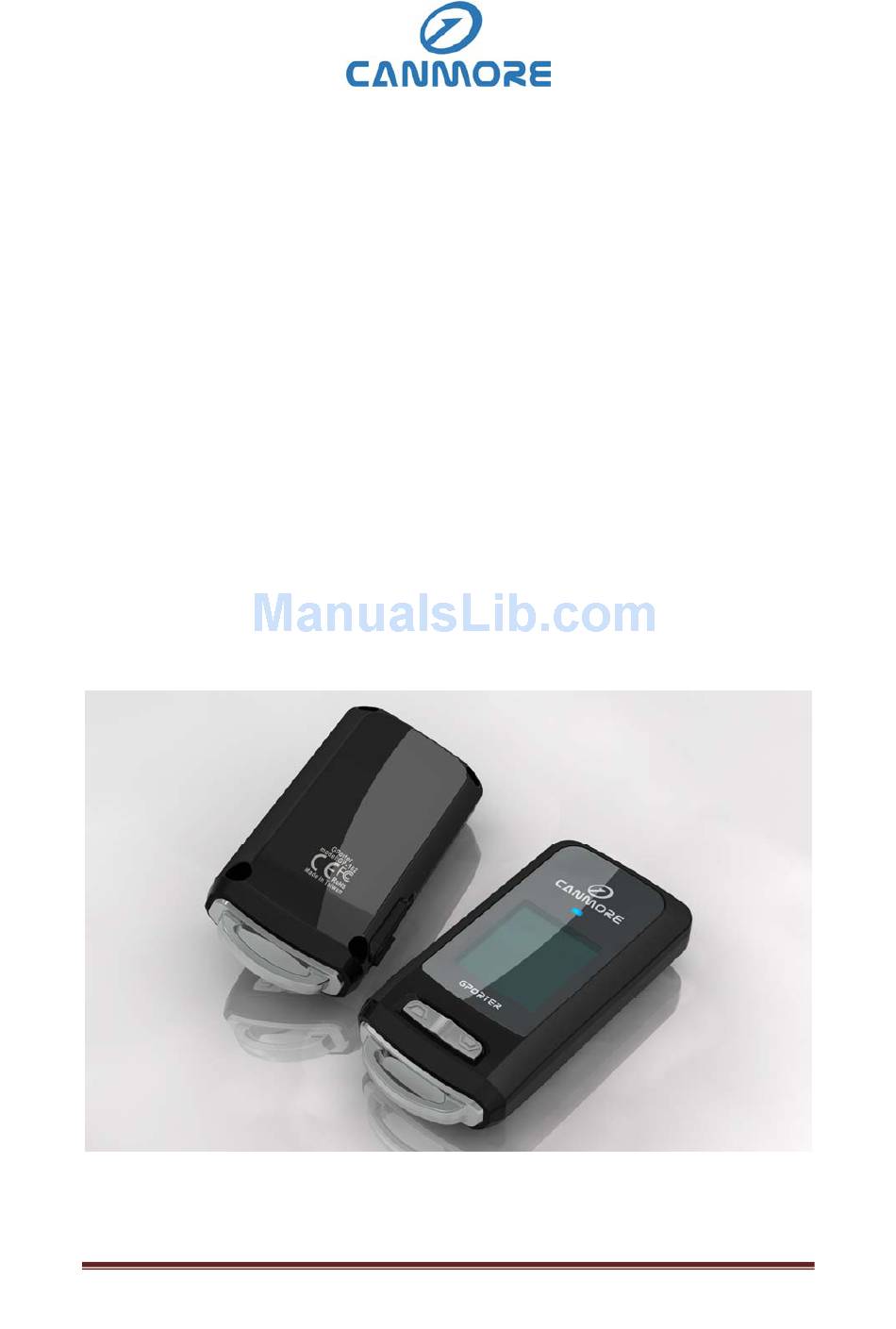

- Page 1 TM GPORTER GP‐102 User’s Guide CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 2 Distance to Location / Time / Compass Heading Location Icons (Home, Car, Way Point, Compass Icon Favorite Spot, Restaurant) Satellite mode Icon AM/PM Indicator Clock Icon USB Charging Port Mark Key Power / Mode Key Key Ring CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 3 USB port of the GP‐102. Then connect the other USB cable connector to USB port of a PC or laptop to provide charge power. While charging, the charging status indicator will light up. After the GP‐102 is fully charged, the charging status indicator will turn dark. The USB cable can then be removed. Powering On The GP‐102 is to be used outdoors; it will not work inside buildings. Press and hold Power/Mode key for 2~3 seconds. The backlight will turn on and full LCD screen will be displayed. Momentarily, direction arrow formed circle will blink twice, and then satellite icon will start blinking, with distance showing blank. At this stage the GP‐102 is trying to acquire satellite signal. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 4 Calibrating Digital Compass The internal digital compass requires calibration for first time use, or when the GP‐102 has been moved 100miles (160km) from the place of last calibration. 1. Lay the GP‐102 on a flat surface with LCD facing up and no metal object nearby. 2. Click Power/Mode key to select the compass mode with compass icon showing. 3. Press and hold Mark key for 2~3 seconds, the LCD will display a 20 second count down. 4. Within the 20 seconds, slowly rotate the GP‐102 360degrees twice, either clockwise or counterclockwise. 5. After the countdown is finished, the LCD will display the direction triangle and heading number once again. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 5 Setting Clock The GP‐102 is able to generate satellite time with accurate minute reading. However, depending on your time zone, the hour reading may need to be adjusted. 1. Click Power/Mode key to select the clock mode with clock icon sh ing. 2. Press and hold Mark key to advance the hour digit for adjustment, and release the key when correct hour is reached. Powering Off Press and hold Power/Mode key for 2~3 seconds while the GP‐102 is on. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 6 2. Compass mode : Use the GP‐102 as a compass. 3. Clock mode : Use the GP‐102 as a timepiece. 4. Satellite mode : Use the GP‐102 to check the satellites. Marking a Location 1. Click Power/Mode key to select one of the location icons (Home, Car, Way Point, Favorite Spot, Restaurant) for storing the current location. 2. Make sure satellite icon is not blinking. 3. Press and hold Mark key, wait until the circle of direction arrows shows up and then release Mark key. 4. The current location coordinate is stored with the selected location icon. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 7 4. After reaching the destination, within a 5 meter (or 20 feet) radius, the circle of direction arrows will show up. Note that the internal digital compass for showing direction works best when the GP‐102 is held horizontally. Using as a Compass 1. Click Power/Mode key to select compass icon . 2. An arrow will point to the direction of the magnetic north. 3. The displayed number indicates the clockwise angle from the magnetic north to the forward direction of the miniHomer. Note that you can calibrate the compass in this mode. Using as a Clock 1. Click Power/Mode key to select clock icon . CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 8 2. The current time will be displayed. Note that you can set the local time in this mode. Checking Satellites (for the technically curious users) 1. Click Power/Mode key to select satellite mode icon . 2. Satellite number (such as P28) and the satellite signal strength (such as C36) of each tracked satellite will be displayed. 3. After your current position is determined, direction triangles will be shown. Each triangle represents a used satellite and its quadrant orientation. When the triangles are spread across the circle, GPS positioning result will be more accurate. For those satellites used in determining your location, their number and signal strength will be shown with a colon, e.g. P:28 and C:36. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 9 POWER SAVING FEATURES Smart Backlighting Clicking either the Power/Mode key or the Mark key will turn on a bright backlight for 15 seconds. Afterwards, the backlight will be turned off automatically. If the current time is between 5PM to 6AM, a dim backlight will be turned on, allowing reading of the LCD display in the dark while keeping the power consumption low. Clicking Mark key while not in the clock mode will toggle the PM indicator on and off. When the PM indicator is on, a bright backlight will be kept constantly on. This is useful whenever a bright backlight is needed, at the expense of higher power consumption. Auto Shutdown The GP‐102 will automatically power itself off under either one of the following conditions: 1. No moving of the device for 2 minutes. 2. No satellite signal acquired for 2 minutes, and no key pressed. 3. No position fix for 5 minutes and no key pressed. When charging, the auto shutdown function will be disabled. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 10 ‧ Do not store the device outside temperature range of ‐4°F ~ 113°F (‐20°C ~ 45°C) for an extended period of time. ‧ Do not remove the battery. CHARGING REQUIREMENTS Use only the following power sources to charge the device: ‧ Standard desk‐top or laptop computer USB port ‧ Car USB charger adapter: Input 12V, output 5.0V ‧ Wall USB charger adapter: Input 110/220V, output 5.0V CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 11 A4: At speed below 10km/hr, the GP‐102 uses the internal digital compass to calculate direction to the return point; if you are inside a car, the metallic structure of the car will affect the accuracy of the digital compass so the direction may be wrong. When the speed is over 10km/hr, the GP‐102 will automatically switch to GPS to calculate direction; as long as you hold the GP‐102 in normal forward direction, the direction triangle will correctly point to the return point. Q5: What do those arcs of the satellite icon represent? A5: The arcs of the satellite icon indicate the quality of position fix. More arcs mean more satellite signals and better position accuracy. In a weak signal environment, you can try to wait a while longer to see if more arcs will show up before marking the location so the accuracy of the marking can be increased Q6: Will my GP‐102 remember the stored locations after powering off? A6: You can turn off your GP‐102 to save power and all the settings will be saved. Next time when it’s turned on, you will be in the last operating mode with all marked locations restored. The memory won’t be lost even if the battery is fully drained. CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
- Page 12 CANMORE ELECTRONICS CO., LTD. www.canmore.com.tw ...
-
Page 13: One Year Limited Warranty
This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a NAVIN authorized service center. To obtain this limited warranty service, obtain a Return Materials Authorization (RMA) number prior to shipping by submitting a repair request through NAVIN’s web site at www.canmore.com.tw. Pack the product securely in a shipping container with the RMA number clearly written on the outside of the package. Send the product shipping‐charge‐prepaid to the authorized NAVIN service center address provided with the RMA number. Any return made under this warranty must be accompanied by the items listed below: ...
