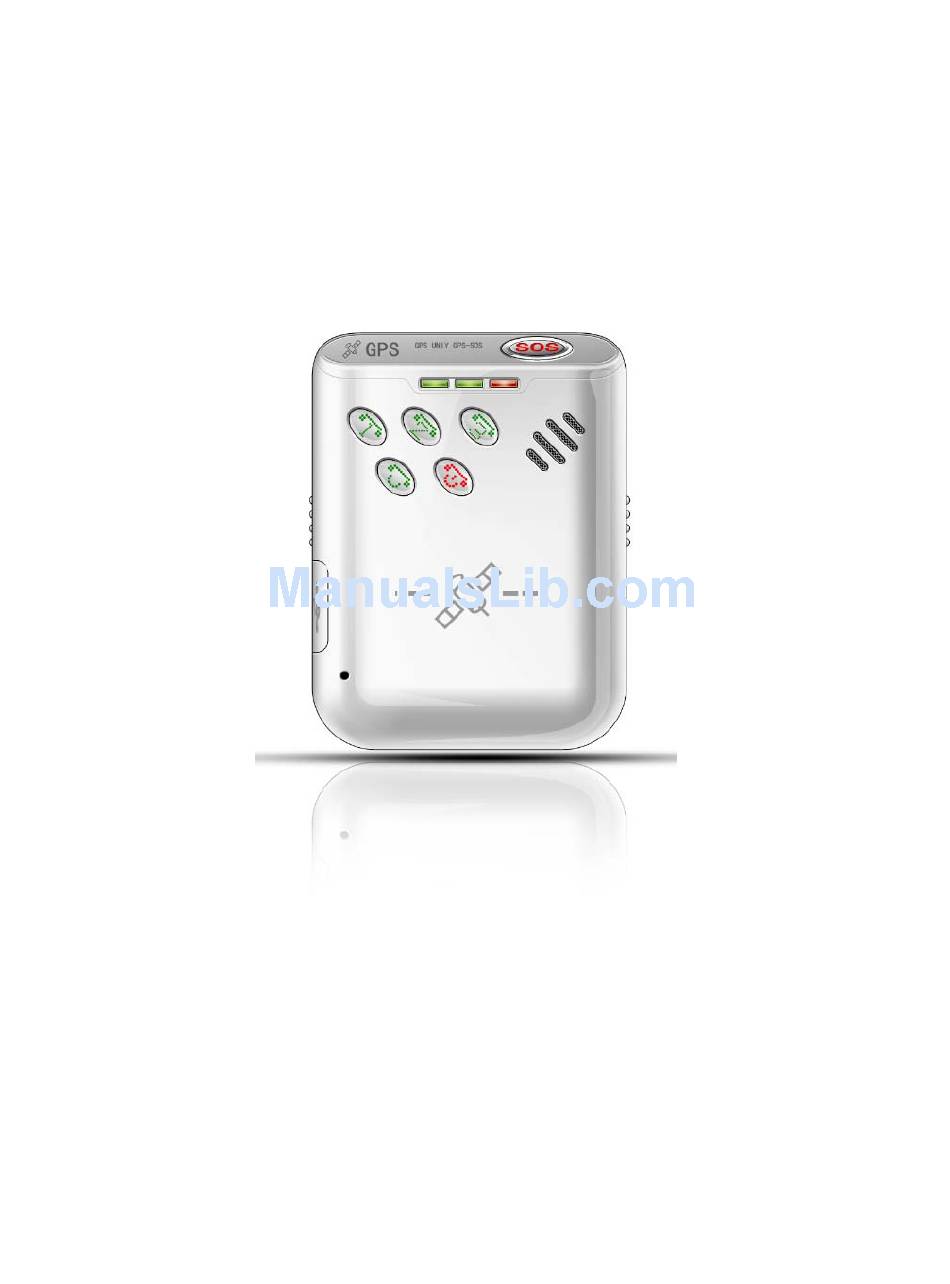

- Page 1 PT-911 GPS Personal Tracker USER MANUAL V6.1 Updated on 2010/06/28...
-
Page 2: Table Of Contents
Contents 1 Product Overview 2 For Your Safety 3 PT-911 Parameters&Panel Description 4 Getting Started 4.1 Hardware and Accessories 4.2 Light and Button Functionality 4.3 First Use 4.4 Operation Instructions 5 SMS Command 5.1 Basic SMS Commands 5.1.1 Return the location of the tracker 5.1.2 Set Interval for automatic timed report... -
Page 3: Product Overview
1 Product Overview PT-911 provides peace of mind by showing you with your mobile phone or PC the location of your targets via SMS or GPRS. PT-911 has the following features Tracking via SMS or GPRS (TCP) Current location report ... -
Page 4: Pt-911 Parameters&Panel Description
Water Resistance –PT-911 is not water resistant. Keep it dry. Use waterproof bag if necessary. 3 PT-911 Parameters&Panel Description Item Specification Charging DC 5V/500mA (Micro USB port) Voltage Internal Battery Rechargeable and removable 830 mAh battery (3.7V) - Page 5 Work time 60 hours in sleep mode and 10 hours in normal mode 3 LEDs showing power, GPS, GSM status and other operation status. Button Panel Description Power LED GPS LED GSM LED SOS Button Quick Dial 3 Speaker Quick Dial 1 Quick Dial 2 Hangup/Power Key Answer Button...
-
Page 6: Getting Started
USB Power Cable User Manual Other document or software if required 4.2 Light and Button Functionality PT-911 has four buttons and three LED lights with three different colors to indicate the status of the unit. Red LED indicating power status... -
Page 7: First Use
SMS to the preset phone number. 4.3 First Use Ensure that PT-911 has a working SIM installed Check that the SIM has not run out of credit Check that the SIM Lock code is turned off... -
Page 8: Operation Instructions
When it is on, press the power button for 3 seconds to switch off the power; Power/GPS/GSM LED will shut off right now. By then, the device is turned off. SOS Emergency Help Function When SOS button is long pressed, PT-911 will send a SMS message and make... - Page 9 Call In: One can make phone call to PT-911 by simply dialing the SIM card number. To receive the incoming phone call. To refuse the incoming phone call. Call Out: PT-911 has four speed dial; you can long press preset 4 sets of phone (4)Connect to www.imecare.com PT-911 will connect to www.imecare.com...
-
Page 10: Sms Command
5.1 Basic SMS Commands 5.1.1 Return the location of the tracker Description: To know the location of your PT-911, send an SMS or make a telephone call directly to PT-911 and it will report its location by SMS. Command: W<password>,<000>... -
Page 11: Stop Automatic Timed Report
SMS sent: W000000,002,005 SMS received: W01,002 5.1.3 Stop automatic timed report Command: W<password>,002,000 Example: SMS sent: W000000,002,000 SMS received: W01,002 5.1.4 SOS/Call 1/Call 2/Call 3 Description: To authorize a mobile phone number for the SOS, 1, 2 or 3 button. When the button is pressed, a message will be sent and/or simultaneously a call will be made to the authorized number. -
Page 12: Gprs Setting By Sms
Example: SMS sent: W000000,003,3,1,123456789 SMS received: W01,003 Meaning: When the SOS button is pressed, PT-911 will send an SMS to telephone number “123456789” and also make a phone call to it. When a call is coming in, the blue light is on. Press ACCEPT button to receive the incoming call and then talk with the caller. - Page 13 80Km/h Set Geo-fence alert W******,006,XX XX ( preset distance to original place ) When PT-911 moves out of =00, to turn off this function preset scope, it will send one =01, 30m Geo-fence SMS to the SOS =02, 50m preset number.
-
Page 14: Set Ip Address And Port
4 - 5 rings. D=0, Turn off the function of sending an SMS when PT-911 is turned on. D=1, Turn on the function of sending an SMS to SOS number when PT-911 is turned on. -
Page 15: Appendix 2-Preset Apn List
XXXXX=00001~65535, time interval for sending GPRS packet and in unit of 10 seconds. For more information regarding GPRS settings please refer to <GPRS Communication Protocol> Presetting by SMS forHTTP tracking (Ensure that your SIM card supports GPRS connection prior to setting) Set HTTP username and W******,040,HTTP Name,HTTP Set HTTP Username and Password... - Page 16 Appedix 1 Format of SMS reply: W**,### Reply number Command number Reply number: 00: Get location succeed 01: Setting succeed 02: Setting failed 03: Format error 04: Password error 05: Command error 06: Change password error 07: Parameter error 08: No GPS data 09: Protocol not support 10: Over speed 11: Geo-Fence...
- Page 17 Appedix 2 Mobile Operator APN preset by 007 # China Mobile # China Unicom # Albania, vodafone AL # Argentina, Movistar # Argentina, Personal # Austria, A1 # Austria, T-Mobile A # Austria, telering # Australia, Optus # Australia, Telstra Mobile # Australia, 3 # Australia, vodafone AU # Azerbaijan, AZE ACELL...
- Page 18 # Germany, T-Mobile D # Greece, COSMOTE GR # Greece, vodafone GR # Hong Kong, CSL # Hong Kong, New World # Hong Kong, SmarToneVodafone # Hong Kong, 3 HK # Hungary, H pannon # Hungary, T-Mobile H # Hungary, vodafone HU # Iceland, Siminn # India, Airtel # India, BPL MOBILE...
- Page 19 # Pakistan, Mobilink # Pakistan, Telenor PK # Pakistan, PK-UFONE # Philippines, Globe Telecom # Philippines, SMART # Poland, Era # Poland, Orange PL # Poland, Plus # Portugal, Optimus P # Portugal, TMN P # Portugal, vodafone P # Qatar, Qat-Qtel # Congo Dem.
