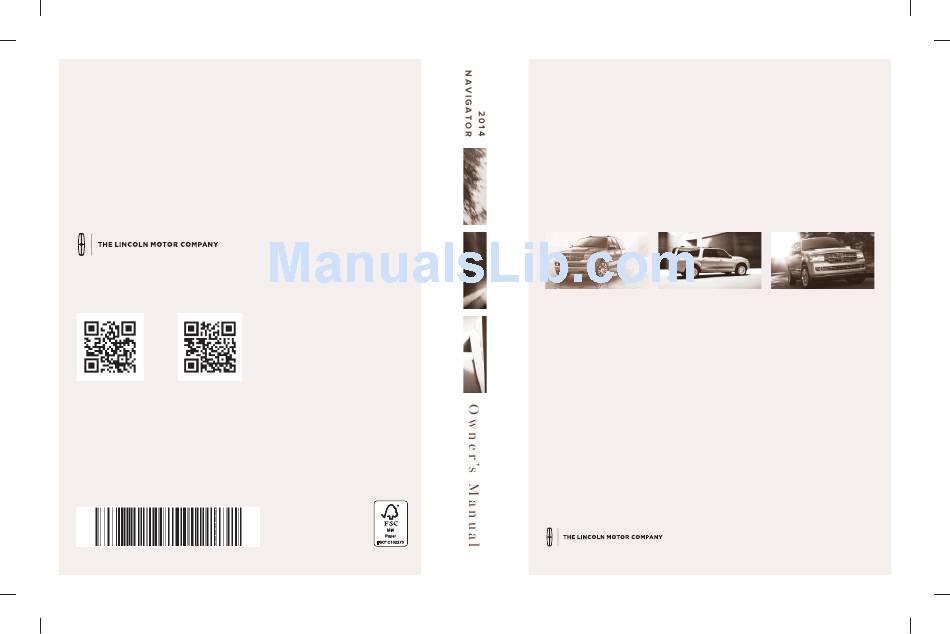

2 0 1 4 N A V I G A T O R
O w n e r ' s M a n u a l
lincolnowner.com
lincolncanada.com
July 2013
First Printing
Owner's Manual
Lincoln Navigator
Litho in U.S.A.
EL7J 19A321 AA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Navigator 2014 and is the answer not in the manual?

Questions and answers

Keith
February 11, 2025

Where do you place the jack on 2014 navigator

0
1 comments:
Mr. Anderson
February 11, 2025

The jack for a 2014 Lincoln Navigator is located under the access panel in the floor compartment behind the rear seat.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Lincoln Navigator 2014

Summary of Contents for Lincoln Navigator 2014

  • Page 1 2 0 1 4 N A V I G A T O R O w n e r ’ s M a n u a l lincolnowner.com lincolncanada.com July 2013 First Printing Owner’s Manual Lincoln Navigator Litho in U.S.A. EL7J 19A321 AA...

  • Page 2: Table Of Contents

    Table of Contents Introduction Child Safety Child seat positioning ........20 Booster seats .
  • Page 3 Table of Contents Locks Locking and unlocking ........69 SecuriCode™...

  • Page 4: Table Of Contents

    Table of Contents Instrument Cluster Gauges..........102 Warning lamps and indicators .
  • Page 5 Table of Contents Transmission Four-Wheel Drive (If Equipped) Four wheel drive ........182 Brakes Brakes .

  • Page 6: Table Of Contents

    Table of Contents Driving Hints Economical driving ........228 Floor mats .
  • Page 7 Table of Contents Adjusting the headlamps ....... .271 Changing a bulb ........272 Removing a headlamp .

  • Page 8: Table Of Contents

    Table of Contents Ford Extended Service Plan Audio System AM/FM/CD with SYNC ....... . .334 Rear seat controls.
  • Page 9 Table of Contents Appendices Navigation end user license agreement..... .475 Scheduled Maintenance Normal scheduled maintenance and log .....486 Index The information contained in this publication was correct at the time of going to print.

  • Page 10: Introduction

    Introduction ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it. WARNING: Always drive with due care and attention when using and operating the controls and features on your vehicle.
  • Page 11 Introduction These are some of the symbols you may see on your vehicle. Symbol Description Symbol Description Symbol Description Safety alert See Owner’s Anti-lock Manual braking system Avoid Battery Battery acid smoking, flames, or sparks Brake Brake Cabin air fluid – non system filter petroleum...
  • Page 12 Introduction Symbol Description Symbol Description Symbol Description Lighting Low tire Maintain control pressure correct fluid warning level Panic alarm Parking aid Parking system brake system Power Power Power steering fluid windows window front and lockout rear Service Side airbag Stability engine soon control Windshield...
  • Page 13 Introduction DATA RECORDING Service Data Recording Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems.
  • Page 14 Introduction Note: EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the EDR under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, Directions and Information privacy below).
  • Page 15 Introduction Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request.
  • Page 16 Introduction REPLACEMENT PARTS RECOMMENDATION Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.
  • Page 17 Introduction Special Instructions For your added safety, your vehicle is fitted with sophisticated electronic controls. WARNING: Please read the Supplementary Restraints System chapter. Failure to follow the specific warnings and instructions could result in personal injury. WARNING: Front seat mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
  • Page 18 Introduction WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.

  • Page 19: Child Safety

    Child Safety GENERAL INFORMATION See the following sections for directions on how to properly use safety restraints for children. WARNING: Always make sure your child is secured properly in a device that is appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle.
  • Page 20 Child Safety Recommendations for Safety Restraints for Children Recommended Child size, height, weight, or age restraint type Small Children who have outgrown or no Use a children longer properly fit in a child safety belt-positioning seat (generally children who are less booster seat.

  • Page 21: Child Seat Positioning

    Child Safety CHILD SEAT POSITIONING WARNING: Airbags can kill or injure a child in a child seat. Never place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back.
  • Page 22 Child Safety WARNING: Never place, or allow a child to place, the shoulder belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash. WARNING: To avoid risk of injury, do not leave children or pets unattended in your vehicle.

  • Page 23: Booster Seats

    Child Safety BOOSTER SEATS WARNING: Never place, or allow a child to place, the shoulder belt under a child’s arm or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.
  • Page 24 Child Safety Types of Booster Seats • Backless booster seats If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child’s head (as measured at the tops of the ears) above the top of the seat.
  • Page 25 Child Safety Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder.

  • Page 26: Installing Child Seats

    Child Safety INSTALLING CHILD SEATS Child Seats Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers or children weighing 40 pounds (18 kilograms) or less (generally age four or younger). Using Lap and Shoulder Belts WARNING: Airbags can kill or injure a child in a child seat.
  • Page 27 Child Safety • Keep the buckle release button pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling. • Place the vehicle seat upon which the child seat will be installed in the upright position.
  • Page 28 Child Safety 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until...
  • Page 29 Child Safety 8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra weight of the child is added to the child restraint.
  • Page 30 Child Safety Using Lower Anchors and Tethers for CHildren (LATCH) WARNING: Never attach two child safety seats to the same anchor. In a crash, one anchor may not be strong enough to hold two child safety seat attachments and may break, causing serious injury or death.
  • Page 31 Child Safety LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use safety belts to attach the child seat, however the safety belt can still be used to attach the child seat.
  • Page 32 Child Safety The LATCH anchors are located at the rear section of the rear seat between the cushion and seat back, below the locator symbols on the seat back. Follow the child seat manufacturer’s instructions to properly install a child seat with LATCH attachments. The locator symbols are on round plastic buttons for the center seat and on rectangular tags for the outboard seats.
  • Page 33 Child Safety ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle. Some of the rear seats of your vehicle are equipped with built-in tether strap anchors located behind the seats as described below.
  • Page 34 Child Safety Perform the following steps to install a child safety seat with tether anchors: Second row seating positions 1. For center seating positions, route the child safety seat tether strap over the back of the seat. For outboard seating positions, route the tether strap under the head restraint and between the head restraint posts.
  • Page 35 Child Safety 3. Grasp the tether strap and position it to the seat frame. 4. Rotate the tether strap, and clip the tether strap to the anchor on the seat frame. 5. Rotate the tether strap clip. 6. Tighten the child safety seat tether strap according to the manufacturer’s instructions.
  • Page 36 Child Safety Third row center seating position 1. Route the child safety seat tether strap over the back of the seat. 2. Locate the anchor webbing loop for the seating position. • You may need to pull back the top of the hinged panel along the bottom of the seat back to access the tether anchor.
  • Page 37 Child Safety 3. Clip the tether strap through the anchor loop as shown. If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash. 4. Tighten the child safety seat tether strap according to the manufacturer’s instructions.

  • Page 38: Child Safety Locks

    Child Safety CHILD SAFETY LOCKS When these locks are set, the rear doors cannot be opened from the inside. The childproof locks are located on the rear edge of each rear door and must be set separately for each door. Move the lock control up to engage the childproof lock.

  • Page 39: Safety Belts

    Safety Belts PRINCIPLES OF OPERATION WARNING: Always drive and ride with your seat back upright and the lap belt snug and low across the hips. WARNING: To reduce the risk of injury, make sure children sit where they can be properly restrained. WARNING: Never let a passenger hold a child on his or her lap while the vehicle is moving.
  • Page 40 Safety Belts WARNING: When possible, all children 12 years old and under should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death. WARNING: Safety belts and seats can become hot in a vehicle that has been closed up in sunny weather;...

  • Page 41: Fastening The Safety Belts

    Safety Belts FASTENING THE SAFETY BELTS The front outboard and rear safety restraints in your vehicle are combination lap and shoulder belts. 1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch.
  • Page 42 Safety Belts Pregnant women should always wear their safety belts. The lap belt portion of a combination lap and shoulder belt should be positioned low across the hips below the belly and worn as tight as comfort will allow. The shoulder belt should be positioned to cross the middle of the shoulder and the center of the chest.
  • Page 43 Safety Belts Automatic Locking Mode In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver safety belt. When to Use the Automatic Locking Mode This mode should be used any time a child safety seat, except a booster, is installed in passenger front or rear seating positions.

  • Page 44: Safety Belt Height Adjustment

    Safety Belts SAFETY BELT HEIGHT ADJUSTMENT WARNING: Position the safety belt height adjusters so that the belt rests across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a crash. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

  • Page 45: Safety Belt Warning Light And Indicator Chime

    Safety Belts To adjust the comfort guide: 1. Slip the shoulder belt into the belt guide (the portion of the belt between the latch tongue and the D-ring, not the portion where the belt exits from the quarter trim panel). 2.

  • Page 46: Safety Belt-Minder

    Safety Belts SAFETY BELT-MINDER® This feature supplements the safety belt warning function by providing additional reminders by intermittently sounding a chime and illuminating the safety belt warning light when the driver’s seat is occupied and the safety belt is unbuckled. If...
  • Page 47 Safety Belts Deactivating and Activating the Belt-Minder® Feature WARNING: While the design allows you to deactivate your Belt-Minder, this system is designed to improve your chances of being safely belted and surviving an accident. We recommend you leave the Belt-Minder system activated for yourself and others who may use the vehicle.

  • Page 48: Child Restraint And Safety Belt Maintenance

    Safety Belts CHILD RESTRAINT AND SAFETY BELT MAINTENANCE Inspect the vehicle safety belts and child safety seat systems periodically to make sure they work properly and are not damaged. Inspect the vehicle and child seat safety belts to make sure there are no nicks, tears or cuts.

  • Page 49: Supplementary Restraints System

    Supplementary Restraints System PRINCIPLES OF OPERATION WARNING: Airbags do not inflate slowly or gently, and the risk of injury from a deploying airbag is the greatest close to the trim covering the airbag module. WARNING: All occupants of your vehicle, including the driver, should always properly wear their safety belts, even when an airbag supplemental restraint system is provided.
  • Page 50 Supplementary Restraints System WARNING: If the airbag has deployed, the airbag will not function again and must be replaced immediately. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash. The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries.
  • Page 51 Supplementary Restraints System Your vehicle’s Restraint Safety System consists of: • driver and passenger dual-stage airbag supplemental restraints. • front outboard safety belts with pretensioners, energy management retractors (first row only), and safety belt usage sensors. • driver’s seat position sensor. •...

  • Page 52: Driver And Passenger Airbags

    Supplementary Restraints System DRIVER AND PASSENGER AIRBAGS WARNING: Never place your arm or any objects over an airbag module. Placing your arm over a deploying airbag can result in serious arm fractures or other injuries. Objects placed on or over the airbag inflation area may cause those objects to be propelled by the airbag into your face and torso causing serious injury.
  • Page 53 Supplementary Restraints System Proper Driver and Front Passenger Seating Adjustment WARNING: The National Highway Traffic Safety Administration recommends a minimum distance of at least 10 inches (25 centimeters) between an occupant’s chest and the driver airbag module. Failure to follow this could seriously increase the risk of injury or death.

  • Page 54: Side Airbags

    Supplementary Restraints System SIDE AIRBAGS WARNING: Do not place objects or mount equipment on or near the airbag cover, on the side of the seat backs (of the front seats), or in front seat areas that may come into contact with a deploying airbag.

  • Page 55: Safety Canopy Curtain Airbags

    Supplementary Restraints System The system consists of the following: • a label or embossed side panel indicating that side airbags are found on your vehicle • side airbags located inside the seat back of the driver and front passenger seats •...
  • Page 56 Supplementary Restraints System WARNING: All occupants of your vehicle including the driver should always wear their safety belts even when an airbag supplemental restraint system and curtain airbag is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

  • Page 57: Crash Sensors And Airbag Indicator

    Supplementary Restraints System Children 12 years old and under should always be properly restrained in the rear seats. The Safety Canopy will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.

  • Page 58: Airbag Disposal

    Supplementary Restraints System If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash. The safety belt pretensioners and the airbag supplemental restraint system are designed to activate when the vehicle sustains frontal or sideways deceleration sufficient to cause the restraints control module to deploy a safety device or when a certain likelihood of a rollover event is...

  • Page 59: Keys And Remote Control

    Keys and Remote Control GENERAL INFORMATION ON RADIO FREQUENCIES This device complies with part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 60 Keys and Remote Control Note: Your vehicle’s keys were issued with a security label that provides important vehicle key cut information. Keep the label in a safe place for future reference. Replacing the Battery Note: Refer to local regulations when disposing of transmitter batteries. Note: Do not wipe off any grease on the battery terminals or on the back surface of the circuit board.
  • Page 61 Keys and Remote Control Memory Feature The feature allows the remote control to recall the driver seat, power mirrors, steering column and power adjustable foot pedals memory positions. Press the unlock button on the remote control to recall the memory positions.

  • Page 62: Replacing A Lost Key Or Remote Control

    Keys and Remote Control Car Finder Press the button twice within three seconds. The horn will sound and the turn signals will flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm. Sounding a Panic Alarm Press the button to activate the alarm.

  • Page 63: Mykey

    MyKey PRINCIPLES OF OPERATION MyKey allows you to program keys with restricted driving modes to promote good driving habits. You can use all but one of the keys programmed to your vehicle with these restricted modes. Any keys that have not been programmed are referred to as administrator keys or admin keys.

  • Page 64: Creating

    MyKey • Audio system maximum volume of 45%. A message will be shown in the display when you attempt to exceed the limited volume. Also, the speed-sensitive or compensated automatic volume control will be disabled. • Always on setting. When this is selected, you will not be able to turn off AdvanceTrac (if your vehicle is equipped with this feature).

  • Page 65: Clearing

    MyKey CLEARING ALL MYKEYS You can clear all MyKeys within the same key cycle as you created the MyKey. If you switch your ignition off, however, you will need to use an admin key to clear your MyKeys. Note: When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status at once.
  • Page 66 MyKey Vehicles With Ford-approved Aftermarket Remote Start Systems When using a Ford-approved aftermarket remote start system, the vehicle recognizes the remote start system as an additional admin key. It is the vehicle’s default setting. You can also program the remote start as a MyKey.
  • Page 67 MyKey When using a non-Ford-approved remote start system, the vehicle may recognize the remote start system as an additional admin key with its associated privileges. If you restart the vehicle by inserting a key into the ignition cylinder and recycling the ignition completely, then you may retain some MyKey functions.

  • Page 68: Troubleshooting, Mykey

    MyKey MYKEY TROUBLESHOOTING Condition Potential causes • The key to start the vehicle does not have I cannot create a MyKey. admin privileges. • The key used to start the vehicle is the only admin key (there always has to be at least one admin key).
  • Page 69 MyKey Condition Potential causes • The vehicle has a remote start system that I accidentally programmed all keys is recognized as an admin key. Clear all as MyKeys. MyKeys by using remote start. See Using MyKey With Remote Start Systems. •...

  • Page 70: Locks

    Locks LOCKING AND UNLOCKING You can use the power door lock control or the remote control to lock and unlock your vehicle. Power Door Locks The power door lock control is located on the driver and front passenger door panels. A.
  • Page 71 Locks Power Liftgate WARNING: Make sure all persons are clear of the liftgate area before using power liftgate control. WARNING: Make sure to close and latch the liftgate to prevent drawing exhaust fumes into your vehicle. This will also prevent passengers and cargo from falling out.
  • Page 72 Locks Autolock and Unlock The autolock feature will lock all the doors, the liftgate and the liftgate window when: • all doors are closed, • the ignition is on, • you shift into any gear putting the vehicle in motion, and •...
  • Page 73 Locks Illuminated Entry The interior lamps and parking lamps illuminate when the remote entry system is used to unlock the door(s). The system will turn off the lights if: • the ignition is turned on • the lock button on the remote control is pressed •...
  • Page 74 Locks Power Liftgate WARNING: Make sure to close and latch the liftgate to prevent drawing exhaust fumes into your vehicle. This will also prevent passengers and cargo from falling out. If you must drive with the liftgate open, keep the vents or windows open so outside air comes into your vehicle.
  • Page 75 Locks If the liftgate reverses and starts to close after a open request, a fast continuous chime indicates excessive load on the liftgate or a possible strut failure. If any excessive load is removed and you still have a faster chime, have the system serviced immediately by your authorized dealer.
  • Page 76 Locks To close with the rear cargo area button: WARNING: Keep clear of the liftgate when activating the rear switch. Note: The rear cargo area control button is disabled when the liftgate is latched. Press and release the control on the left rear quarter panel.
  • Page 77 Locks Obstacle Detection Note: Entering your vehicle while the liftgate is closing can cause it to bounce and activate obstacle detection. To prevent this, let the power liftgate fully close before entering the vehicle. The power liftgate system is equipped with an obstacle detection feature. If the power liftgate is closing, the system is designed to reverse to full open when it encounters a solid obstacle.

  • Page 78: Securicode™ Keyless Entry Keypad

    Locks Liftgate Window To open the liftgate window, press the button in the center of the liftgate above the license plate. SECURICODE™ KEYLESS ENTRY KEYPAD You can use the keyless entry keypad to lock or unlock the doors or release the liftgate glass without using a key.
  • Page 79 Locks Tips: • Do not set a code that uses five of the same number. • Do not use five numbers in sequential order. • The factory-set code will work even if you have set your own personal code. Programming Memory to a Personal Entry Code To program a personal entry code to recall a driver memory setting, repeat Steps 1–4 above.
  • Page 80 Locks Anti-Scan Feature The keypad will go into an anti-scan mode if you enter the wrong code seven times (35 consecutive button presses). This mode disables the keypad for one minute and the keypad lamp will flash. The anti-scan feature will turn off after: •...

  • Page 81: Security

    Security SECURILOCK® PASSIVE ANTI-THEFT SYSTEM Note: The system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection. Note: Metallic objects, electronic devices or a second coded key on the same key chain may cause vehicle starting issues if they are too close to the key when starting your vehicle.
  • Page 82 Security Automatic Disarming Your vehicle disarms when you switch the ignition on with a coded key. Replacement Keys Note: Your vehicle may come with two integrated keyhead transmitters. The integrated keyhead transmitter functions as a programmed ignition key that operates all the locks and starts the vehicle, as well as a remote control.

  • Page 83: Anti-Theft Alarm

    Security 6. Turn the ignition off and remove the second previously programmed coded key from the ignition. 7. After three seconds but within 20 seconds of turning the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
  • Page 84 Security Disarming the Alarm To disarm the alarm, do any of the following: • Press the power door unlock button within the 20-second pre-armed mode. • Press the unlock button on the remote control. • Unlock the doors with the keyless entry pad. •...

  • Page 85: Steering Wheel

    Steering Wheel ADJUSTING THE STEERING WHEEL WARNING: Do not adjust the steering wheel when your vehicle is moving. Note: Make sure that you are sitting in the correct position. Refer to Sitting in the Correct Position in the Seats chapter. Use the control on the side of the steering column to tilt the position.
  • Page 86 Steering Wheel Media Press the media button repeatedly to scroll through available audio modes. Seek, Next or Previous Press the seek button to: • tune the radio to the next or previous stored preset • play the next or previous track. Press and hold the seek button to: •...

  • Page 87: Pedals

    Pedals ADJUSTABLE PEDALS (IF EQUIPPED) WARNING: Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving. The control is located to the left of the steering column. Press and hold the appropriate control to move the pedals. A.

  • Page 88: Wipers And Washers

    Wipers and Washers WINDSHIELD WIPERS Note: Fully defrost the windshield before turning on the windshield wipers. Note: Make sure the windshield wipers are turned off before entering a car wash. Note: Clean the windshield and wiper blades if they begin to leave streaks or smears.

  • Page 89: Windshield Washers

    Wipers and Washers Keep the outside of the windshield clean, especially the area around the interior mirror where the sensor is located, or sensor performance may be affected. WINDSHIELD WASHERS Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out.

  • Page 90: Lighting

    Lighting LIGHTING CONTROL Rotate the control clockwise to the first position to turn on the parking lamps. Rotate the control clockwise to the second position to turn on the headlamps. Rotate the control to the vertical position to turn the headlamps off. High Beams •...

  • Page 91: Autolamps

    Lighting AUTOLAMPS The autolamp system provides light sensitive automatic on/off control of the exterior lights normally controlled by the headlamp control. The autolamp system also keeps the lights on for approximately 20 seconds or, if equipped with a message center, you can select a delay from 0–180 seconds after the ignition switch is turned off.

  • Page 92: Daytime Running Lamps

    Lighting DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED) WARNING: Always remember to turn on your headlamps at dusk or during inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

  • Page 93: Interior Lamps

    Lighting INTERIOR LAMPS Front Row Map Lamps To turn on the map lamps, press the outer edge of the clear lens. The front row map lamp lights when: • any door is opened. • the instrument panel dimmer switch is rotated until the courtesy lamps come on.
  • Page 94 Lighting With the ignition key in the accessory or on position, the rear cargo lamp can be turned on or off by sliding the control. Battery saver The battery saver will shut off the exterior lamps and interior lamps, except the hazard warning lamps if activated, 10 minutes after the ignition control has been turned off.

  • Page 95: Windows And Mirrors

    Windows and Mirrors POWER WINDOWS WARNING: Do not leave children unattended in your vehicle and do not let them play with the power windows. They may seriously injure themselves. WARNING: When closing the power windows, you should verify they are free of obstructions and make sure that children and pets are not in the proximity of the window openings.

  • Page 96: Exterior Mirrors

    Windows and Mirrors Pull up the window switch and hold within two seconds of the window reaching the bounce-back position. The window will travel up with no bounce-back protection. The window will stop if your release the switch before the window is fully closed. Window Lock A.
  • Page 97 Windows and Mirrors Power-Folding Mirrors Note: Activating the mirrors 10 or more times within one minute, or repeated folding and unfolding of the mirrors while holding the control down during full travel, may disable the system to protect motors from overheating.
  • Page 98 Windows and Mirrors Integrated Blind Spot Mirrors WARNING: Objects in the blind spot mirror are closer than they appear. Blind spot mirrors have an integrated convex mirror built into the upper outboard corner of the exterior mirrors. They are designed to assist you by increasing visibility along the side of your vehicle.

  • Page 99: Interior Mirrors

    Windows and Mirrors INTERIOR MIRROR WARNING: Do not adjust the mirror when your vehicle is moving. Note: Do not clean the housing or glass of any mirror with harsh abrasives, fuel or other petroleum or ammonia based cleaning products. You can adjust the interior mirror to your preference. Some mirrors also have a second pivot point.

  • Page 100: Sun Visors

    Windows and Mirrors REAR QUARTER WINDOWS WARNING: Do not leave children unattended in the vehicle and do not let children play with the power rear quarter windows. They may seriously injure themselves. WARNING: When closing the power rear quarter windows, you should verify that it is free of obstructions and ensure that children and/or pets are not in the proximity of the window opening.

  • Page 101: Moonroof

    Windows and Mirrors Illuminated Visor Vanity Mirror Lift the cover to switch on the lamp. MOONROOF (IF EQUIPPED) WARNING: Do not let children play with the moonroof or leave children unattended in the vehicle. They may seriously hurt themselves. WARNING: When closing the moonroof, you should verify that it is free of obstructions and ensure that children and/or pets are not in the proximity of the moonroof opening.
  • Page 102 Windows and Mirrors Opening and Closing the Moonroof Press and release the SLIDE control to open the moonroof. The moonroof will stop short of the fully opened position. Note: This position helps to reduce rumbling wind noise which may happen with the moonroof fully open.

  • Page 103: Instrument Cluster

    Instrument Cluster GAUGES Cluster shown in standard measure. Metric similar. A. Battery voltage gauge B. Fuel gauge C. Engine coolant temperature gauge D. Engine oil pressure gauge E. Speedometer F. Information display. See Information displays for more information. G. Tachometer Battery Voltage Gauge Indicates the battery voltage when the ignition is in the on position.

  • Page 104: Warning Lamps And Indicators

    Instrument Cluster Fuel Gauge Indicates approximately how much fuel is left in the fuel tank (when the ignition is on). The fuel gauge may vary slightly when the vehicle is in motion or on a grade. The fuel icon and arrow indicates which side of the vehicle the fuel filler door is located.
  • Page 105 Instrument Cluster Airbag – Front If it fails to illuminate on startup, continues to flash or remains on, it indicates a malfunction. Have the system checked by your authorized dealer. A chime will sound when there is a malfunction in the indicator light. Anti-Lock Braking System If it illuminates when you are driving, this indicates a malfunction.
  • Page 106 Instrument Cluster Check 4X4 Displays with the message CHECK 4X4 when a four-wheel drive fault is present. Refer to the Information Displays chapter for more information. Cruise Control It will illuminate when you switch this feature on. Direction Indicator Illuminates when the left or right turn signal or the hazard warning flasher is switched on.
  • Page 107 Instrument Cluster Low Fuel Level It will illuminate when the fuel level is low or near empty. Refuel as soon as possible. Low Tire Pressure Warning It will illuminate when your tire pressure is low. If the lamp remains on with the engine running or when driving, check your tire pressure as soon as possible.
  • Page 108 Instrument Cluster Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Fuel and Refueling chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter.

  • Page 109: Audible Warnings And Indicators

    Instrument Cluster AUDIBLE WARNINGS AND INDICATORS Key In Ignition Warning Chime Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened. Headlamps On Warning Chime Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

  • Page 110: Information Displays

    Information Displays GENERAL INFORMATION WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
  • Page 111 Information Displays INFO TRIP A/B MYKEY MILES (km) (if programmed) MILES (km) TO E AVG MPG (L/100km) MPG (L/km) TBC GAIN = XX.X (if equipped) TIMER • TRIP A/B: Registers the distance of individual journeys. Press and release INFO button until the A or B trip appears in the display (this represents the trip mode).
  • Page 112 Information Displays System Check and Vehicle Feature Customization Press the SETUP button repeatedly to cycle the message center through the following features: INFO SETUP RESET SETUP RESET FOR press the OIL LIFE SYSTEM CHECK RESET button CHARGING SYSTEM WASHER FLUID LEVEL DOOR AJAR STATUS LIFTGATE/GLASS AJAR STATUS BRAKE SYSTEM...
  • Page 113 Information Displays SETUP OIL LIFE UNITS press the English or Metric RESET button AUTOLAMP 0 to 180 seconds (SEC) AUTOLOCK On or Off AUTOUNLOCK On or Off RUNNING Auto / Off / Out BOARDS (if equipped) POWER On or Off LIFTGATE (if equipped) EASY ENTRY...
  • Page 114 Information Displays To reset the oil monitoring system to 100% after each oil change, perform the following: 1. Press and release the SETUP button to display “OIL LIFE XXX% HOLD RESET = NEW”. 2. Press and hold the RESET button for two seconds and release to reset the oil life to 100%.
  • Page 115 Information Displays • REAR PARK AID (if equipped): This feature sounds a tone to warn the driver of obstacles near the rear bumper, and functions only when R (Reverse) gear is selected. • FRONT PARK AID (if equipped): This feature sounds a warning tone to warn the driver of obstacles near the front bumper.

  • Page 116: Information Messages

    Information Displays Compass calibration adjustment Note: For optimum calibration, drive to an open, level location away from large metallic objects or structures. Switch off all non-essential electrical accessories (heated rear window, heater, A/C, map lamps, wiper, etc.) and make sure all the doors are closed Note: If the RESET button is pressed or three minutes has expired, the display will go back to the INFO menu and will show CAL instead of the compass heading until the compass is calibrated.
  • Page 117 Information Displays Battery and Charging Action / Description System Messages CHECK CHARGING Displayed when the charging system needs servicing. If the warning stays on or continues to SYSTEM come on, contact your authorized dealer as soon as possible. Brake System Action / Description Messages BRAKE FLUID...
  • Page 118 Information Displays MyKey® Messages Action / Description MYKEY ACTIVE Displayed when MyKey® is active. DRIVE SAFELY VEHICLE NEAR Displayed when a MyKey® is in use and the MyKey speed limit is on and the vehicle speed TOP SPEED is approaching 80 mph (130 km/h). Displayed when a MyKey®...
  • Page 119 Displayed when the 4X4 system is making a shift. PROGRESS CLOCK Press A to move the time display backwards. LINCOLN Press B to move the time display forwards. 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)

  • Page 120: Climate Control

    Climate Control DUAL AUTOMATIC TEMPERATURE CONTROL SYSTEM WITHOUT HEATED AND COOLED SEATS AUTO REAR A. AUTO: Press to turn on fully automatic operation. Select the desired temperature using the temperature control. The system automatically determines fan speed, air distribution, A/C operation, and outside or recirculated air, to heat or cool the vehicle to maintain the selected temperature.
  • Page 121 Climate Control E. REAR (temperature control): Press to turn on the auxiliary climate control system and to set the desired rear temperature with the front control. The rear temperature is the same as the front temperature when only the center rear temperature bar is lit. The rear temperature is different from the front temperature when more than one rear temperature bar is lit.
  • Page 122 Climate Control R. Driver temperature control: Press to turn the climate control system off and on. Turn to increase or decrease the air temperature for the driver side of the vehicle. This control also adjusts the passenger side temperature when dual zone operation is disengaged.
  • Page 123 Climate Control D. Recirculated air: Press to switch between outside air and recirculated air. Using recirculated air can reduce the time needed to cool the interior and reduce unwanted odors from entering your vehicle. E. Defrost: Distributes air through the windshield defroster vents and demister vents.
  • Page 124 Climate Control M. Air distribution control: Turn to set the air distribution to a position listed below: Distributes air through the instrument panel vents. Distributes air through the instrument panel vents, floor vents, and demister vents. Distributes air through the floor vents. Distributes air through the windshield defroster vents, demister vents and floor vents.
  • Page 125 Climate Control AUXILIARY CLIMATE CONTROL (IF EQUIPPED) Your auxiliary climate controls are located on the rear of the center console and can be used when REAR has been pressed on the front climate control system. The temperature is set by the front controls. Use the rear control to adjust the fan speed or turn the auxiliary controls off (O).

  • Page 126: Rear Window Defroster

    Climate Control For maximum cooling performance in manual override control: 1. Choose Panel, A/C, and recirc controls. 2. Set the temperature to LO. 3. Set the fan to the highest blower setting. To aid in side window defogging and demisting in cold or humid weather: 1.

  • Page 127: Seats

    Seats SITTING IN THE CORRECT POSITION WARNING: Sitting improperly out of position or with the seatback reclined too far can take off weight from the seat cushion and affect the passenger sensing system, resulting in serious injury or death in a crash.

  • Page 128: Head Restraints

    Seats Make sure that your driving position is comfortable and that you can maintain full control of your vehicle. HEAD RESTRAINTS WARNING: To minimize the risk of neck injury in the event of a crash, you and the passenger occupants should not sit in or operate the vehicle, until the head restraint is placed in its proper position.
  • Page 129 Seats Adjusting the Head Restraint Raise: Pull up the head restraint. Lower: 1. Press and hold button C. 2. Push down on the head restraint. Remove: 1. Pull up the head restraint until it reaches the highest adjustment position. 2. Press and hold buttons C and D. 3.

  • Page 130: Power Seats

    Seats Third row head restraints – The third row head restraints are non adjustable, but you can fold them. The non-adjustable head restraints consist of: • a trimmed energy absorbing foam and structure (A), • and a fold strap (B). 1.
  • Page 131 Seats Power Recline Move the switch to recline the seat back forward or rearward. Note: On vehicles with memory seats, to prevent damage to the seat, the power seats are designed to set a stopping position just short of the end of the seat track.

  • Page 132: Memory Function

    Seats MEMORY FUNCTION This feature will save and recall the positions of the driver seat, power mirrors, adjustable pedals, and steering column. The memory seat control is located on left side of the driver’s seat. Programming Memory Positions 1. Turn the ignition on. 2.
  • Page 133 Seats You can recall a programmed memory position: • in any gearshift position if the ignition is not on. • only in position P or N if the ignition is on. Easy Entry and Exit Feature If you enable the easy entry and exit feature, it automatically moves the driver’s seat 2 inches (5 centimeters) rearward when the transmission selector lever is in position P and the key is removed from the ignition.
  • Page 134 Seats To operate the heated seats: Press the heated seat symbol to cycle through the various heat settings and off. Warmer settings are indicated by more indicator lights. Ventilated Seats The ventilated seats will only function when the engine is running. To operate the ventilated seats: Press the ventilated seat symbol to cycle through the various cooling settings and off.

  • Page 135: Rear Seats

    Seats To install a filter: 1. First, position the filter in its housing making sure that the far forward end is all the way up in the housing. 2. Then, push in on the center of the outside edge of the filter and rotate up into the housing until it clips into position.
  • Page 136 Seats Move the front passenger seat forward so that the second row seat headrest clears the front seat. 1. Lower the head restraints by pulling on the strap. 2. Locate handle on the side of the seat cushion by the door. 3.
  • Page 137 Seats 3. Lift up on the head restraint until it locks into its original position. Placing the Second Row Outboard 40% Seats in Cargo Mode WARNING: Use caution when folding the seatback to the flat back position as the system will move forward when you lift the release handle.
  • Page 138 Seats Returning to the upright position from full lowered load floor position You cannot return the seatback to the upright position until the seat is returned from the kneel down position. To return the seat to the upright position: 1. Push the seat rearward until the latch is engaged.
  • Page 139 Seats To enter the third row seat: 1. Fold down the second row seat and release the handle. 2. Pull the handle up again until the seat releases from the floor. 3. Push the seat upward and fold it away from the third row. To return the seat to a seating position: 1.
  • Page 140 Seats Exiting the Third Row 1. Pull the strap located at the bottom outboard of the seat back to release the seat from the floor, and rotate the seat up towards the front seat. 2. Follow the directions above to return the seat from the E-Z entry and to the upright position.
  • Page 141 Seats WARNING: Before returning the seatback to its original position, make sure that cargo or any objects are not trapped underneath the seatback. After returning the seatback to its original position, pull on the seatback to make sure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or crash.
  • Page 142 Seats Adjusting the Second-Row Center 20% Seat (If Equipped) Note: Move this seat forward to keep a child in a child restraint close to the front seat occupants. Move the seat to the full rearward position when it is occupied by older children or adults, including children in booster seats.
  • Page 143 Seats The heated seats only operate when the ignition is on. To operate the heated seats: Press the heated seat button to cycle through the various heat settings and off. Warmer settings are indicated by more indicator lights. Third Row Seats Make sure that no objects are on the floor in front of the third row seats or on the seat cushion before lowering them.
  • Page 144 Seats Pull up on the handle located behind the seatback while pushing the seat back forward and down into the seat cushion. To return the seat back to its original position, lift the seat back until it latches into place. PowerFold®...
  • Page 145 Seats Press B to lower the desired seatback. Press A to return the seatback to its original position. FOLD FOLD If the power third row seat is disabled after 10 minutes, you can enable the seat by: • opening any door •...

  • Page 146: Universal Garage Door Opener (If Equipped) 145

    Universal Garage Door Opener (If Equipped) 145 UNIVERSAL GARAGE DOOR OPENER The appearance of your vehicle’s universal garage door opener will vary according to your option package. Before programing, make sure you identify which transmitter you have by comparing it to the graphics below. HomeLink®...
  • Page 147 146 Universal Garage Door Opener (If Equipped) Note: We recommend that upon the sale or lease termination of your vehicle, you erase the programmed function buttons for security reasons. See Erasing the Function Button Codes later in this section. Note: You can program a maximum of three devices. To change or replace any of the three devices after it has been initially programmed, you must first erase the current settings.
  • Page 148 Universal Garage Door Opener (If Equipped) 147 Rolling Code Programming Note: If you do not follow the time-sensitive instructions, the device will time out and you will have to repeat the complete procedure. Note: It may be helpful to have another person assist you in programming the transmitter.
  • Page 149 148 Universal Garage Door Opener (If Equipped) Fixed Code Programming Note: It may be helpful to have another person assist you in programming the transmitter. To program units with fixed code DIP switches, you will need the garage door hand-held transmitter, paper and a pen or pencil.
  • Page 150 Universal Garage Door Opener (If Equipped) 149 8. The LED lamp will begin to flash rapidly until programming is complete. If your garage door does not operate, repeat the previous steps. Otherwise, call the toll-free help line at 1-866-572-2728. The LED lamp above the selected button will illuminate to confirm that the system is responding to the button command.

  • Page 151: Homelink® Wireless Control System

    150 Universal Garage Door Opener (If Equipped) Note: We recommend that upon the sale or lease termination of your vehicle, you erase the programmed function buttons for security reasons. See Erasing the function button codes later in this section. Note: You can program a maximum of three devices. To change or replace any of the three devices after it has been initially programmed, you must first erase the current settings.
  • Page 152 Universal Garage Door Opener (If Equipped) 151 4. Press and hold the HomeLink button you programmed for five seconds, then release. You may need to do this twice to activate the door. If your garage door does not operate, watch the HomeLink indicator light.
  • Page 153 152 Universal Garage Door Opener (If Equipped) Erasing the Function Button Codes Note: You cannot erase individual buttons. 1. Press and hold the outer two function buttons simultaneously for approximately 20 seconds until the indicator lights above the buttons flash rapidly. 2.
  • Page 154 Universal Garage Door Opener (If Equipped) 153 2. Press the same button twice to confirm the change to Programming mode. If done properly the LED light will appear red. 3. Hold the transmitter within 1–3 inches (2–8 centimeters) of the button on the sun visor you want to program.
  • Page 155 154 Universal Garage Door Opener (If Equipped) Note: The next two steps must be completed in 30 seconds. 4. Press and release the Genie Intellicode 2 hand-held transmitter’s previously programmed button. Both indicator lights on the garage door opener motor unit should now flash purple. 5.

  • Page 156: Auxiliary Power Points

    Auxiliary Power Points AUXILIARY POWER POINTS WARNING: Do not plug optional electrical accessories into the cigarette lighter socket (if equipped). Improper use of the lighter can cause damage not covered by your warranty, and can result in fire or serious injury. Note: If used when the engine is not running, the battery will discharge.
  • Page 157 Auxiliary Power Points 110 Volt AC Power Point (If Equipped) WARNING: Do not keep electrical devices plugged in the power point whenever the device is not in use. Do not use any extension cord with the 110 volt AC power point, since it will defeat the safety protection design.
  • Page 158 Auxiliary Power Points • Measuring devices that process precise data, such as medical equipment, measuring equipment, etc. • Other appliances requiring an extremely stable power supply: microcomputer-controlled electric blankets, touch sensor lamps, etc. The power point can switch to a fault mode when it is overloaded, overheated or shorted.

  • Page 159: Storage Compartments

    Storage Compartments CENTER CONSOLE Stow items in the cupholder carefully as items may become loose during hard braking, acceleration or collisions, including hot drinks which may spill. Available console features include: A. Cupholders B. Utility compartment, coin holder slots, tissue box holder, audio input jack and USB port C.

  • Page 160: Starting And Stopping The Engine

    Starting and Stopping the Engine GENERAL INFORMATION WARNING: Extended idling at high engine speeds can produce very high temperatures in the engine and exhaust system, creating the risk of fire or other damage. WARNING: Do not park, idle, or drive your vehicle on dry grass or other dry ground cover.
  • Page 161 Starting and Stopping the Engine IGNITION SWITCH Note: Do not store the key in the ignition after the vehicle is turned off and you have left the vehicle. This could cause a drain on the battery. A. Off: The ignition is off. B.
  • Page 162 Starting and Stopping the Engine Note: If you cannot start the engine on the first try, wait for a short period and try again. If you have difficulty starting the engine when the temperature is below -13°F (-25°C), press the accelerator pedal slightly and try again. Failure to Start If you cannot start the engine after three attempts, wait 10 seconds and follow this procedure:...
  • Page 163 Starting and Stopping the Engine Do not crank the engine for more than 10 seconds at a time as starter damage may occur. If the engine fails to start, turn the key to off and wait 30 seconds before trying again. Do not use starting fluid such as ether in the air intake system.

  • Page 164: Engine Block Heater

    Starting and Stopping the Engine ENGINE BLOCK HEATER (IF EQUIPPED) WARNING: Failure to follow engine block heater instructions could result in property damage or physical injury. WARNING: Do not use your heater with ungrounded electrical systems or two-pronged (cheater) adapters. There is a risk of electrical shock.
  • Page 165 Starting and Stopping the Engine • Check for heat anywhere in the electrical hookup once the system has been operating for approximately 30 minutes. • Make sure the system is unplugged and properly stowed before driving your vehicle. Make sure the protective cover seals the prongs of the block heater cord plug when not in use.

  • Page 166: Fuel And Refueling

    Fuel and Refueling SAFETY PRECAUTIONS WARNING: Do not overfill the fuel tank. The pressure in an overfilled tank may cause leakage and lead to fuel spray and fire. WARNING: The fuel system may be under pressure. If you hear a hissing sound near the fuel filler inlet, do not refuel until the sound stops.

  • Page 167: Fuel Quality

    Fuel and Refueling • Avoid getting fuel liquid in your eyes. If fuel is splashed in the eyes, remove contact lenses (if worn), flush with water for 15 minutes and seek medical attention. Failure to seek proper medical attention could lead to permanent injury.
  • Page 168 Fuel and Refueling Note: Use of any fuel other than recommended fuel can cause powertrain damage, impair the emission control system or cause loss of vehicle performance. Any damage to the vehicle that is caused by the use of fuel not recommended will not be covered under warranty. Choosing the Right Fuel With a Flex Fuel Vehicle (If Equipped) Use only UNLEADED gasoline or UNLEADED gasoline blended with a maximum of 85% ethanol (E-85) in your Flex Fuel Vehicle (FFV).
  • Page 169 Fuel and Refueling RUNNING OUT OF FUEL Avoid running out of fuel because this situation may have an adverse effect on powertrain components. If you have run out of fuel: • You may need to cycle the ignition from off to on several times after refueling to allow the fuel system to pump the fuel from the tank to the engine.

  • Page 170: Refueling

    Fuel and Refueling With the Easy Fuel® “no cap” fuel system, use the following directions when filling from a portable fuel container: When filling the vehicle’s fuel tank from a portable fuel container, use the funnel included with the vehicle. 1.
  • Page 171 Fuel and Refueling Use the following guidelines to avoid electrostatic charge build-up when filling an ungrounded fuel container: • Place approved fuel container on the ground. • DO NOT fill a fuel container while it is in the vehicle (including the cargo area).

  • Page 172: Fuel Consumption

    Fuel and Refueling 3. Open the fuel filler door and remove any visible debris from the fuel fill opening. 4. Insert either the fuel fill nozzle or the fuel fill funnel provided with the vehicle several times to dislodge any debris and/or allow the inlet to close properly.
  • Page 173 Fuel and Refueling Calculating Fuel Economy Do not measure fuel economy during the first 1000 miles (1600 kilometers) of driving (this is your engine’s break-in period); a more accurate measurement is obtained after 2000 miles–3000 miles (3200 kilometers–4800 kilometers). Also, fuel expense, frequency of fill-ups or fuel gauge readings are not accurate ways to measure fuel economy.
  • Page 174 Fuel and Refueling Your vehicle is equipped with various emission control components and a catalytic converter which will enable your vehicle to comply with applicable exhaust emission standards. To make sure that the catalytic converter and other emission control components continue to work properly: •...
  • Page 175 Fuel and Refueling On-board Diagnostics (OBD-II) Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the on-board diagnostics system (OBD-II). The OBD-II system protects the environment by ensuring that your vehicle continues to meet government emission standards.
  • Page 176 Fuel and Refueling Readiness for Inspection/Maintenance (I/M) Testing Some state, provincial and local governments may have Inspection/Maintenance (I/M) programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. If the service engine soon indicator is on or the bulb does not work, the vehicle may need to be serviced.

  • Page 177: Transmission

    Transmission AUTOMATIC TRANSMISSION WARNING: Always set the parking brake fully and make sure the gearshift is latched in P (Park). Turn the ignition to the LOCK position and remove the key whenever you leave your vehicle. WARNING: Do not use the Tow/Haul feature when driving in icy or slippery conditions as the increased engine braking can cause the rear wheels to slide and the vehicle to swing around with the possible loss of vehicle control.
  • Page 178 Transmission P (Park) This position locks the transmission and prevents the rear wheels from turning. To put your vehicle in gear: • Press the brake pedal • Start the engine • Move the gearshift lever into the desired gear. If your vehicle is equipped with a floor-shift transmission, press the gearshift lever release button (on the front of the lever) while shifting into the desired gear.
  • Page 179 Transmission D (Drive with Overdrive) with Tow/Haul On The Tow/Haul feature improves transmission operation when towing a trailer or a heavy load. All transmission gear ranges are available when using Tow/Haul. To activate Tow/Haul, press the button on the side of the gearshift lever.
  • Page 180 Transmission 1 (First) • Transmission operates in 1st gear only. • Provides maximum engine braking. • Allows upshifts by moving gearshift lever. • Will not downshift into 1 (First) at high speeds; allows for 1 (First) when vehicle reaches slower speeds. Forced downshifts •...
  • Page 181 Transmission If you cannot move the gearshift lever out of P (Park) with ignition in the on position and the brake pedal pressed, it is possible that a fuse has blown or the vehicle’s brake lamps are not operating properly. Refer to Fuses chapter for more information.
  • Page 182 Transmission If Your Vehicle Gets Stuck in Mud or Snow Note: Do not rock the vehicle if the engine is not at normal operating temperature or damage to the transmission may occur. Note: Do not rock the vehicle for more than a minute or damage to the transmission and tires may occur, or the engine may overheat.

  • Page 183: Four-Wheel Drive (If Equipped)

    Four-Wheel Drive (If Equipped) USING FOUR-WHEEL DRIVE (4WD) (if equipped) WARNING: For important information regarding safe operation of this type of vehicle, see General Information in the Wheels and Tires chapter. Note: Do not use 4X4 mode on dry, hard surfaced roads. Doing so will produce excessive noise, increase tire wear and may damage drive components.
  • Page 184 Four-Wheel Drive (If Equipped) 4WD switch positions WARNING: Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed to perform satisfactorily under off-road conditions. Avoid sharp turns or abrupt maneuvers in these vehicles.
  • Page 185 Four-Wheel Drive (If Equipped) How Your Vehicle Differs From Other Vehicles WARNING: Vehicles with a higher center of gravity such as utility and four-wheel drive vehicles handle differently than vehicles with a lower center of gravity. Utility and four-wheel drive vehicles are not designed for cornering at speeds as high as passenger cars any more than low-slung sports cars are designed to perform satisfactorily under off-road conditions.
  • Page 186 Four-Wheel Drive (If Equipped) Power is supplied to all four wheels through a transfer case. On 4WD vehicles, the transfer case allows you to select 4WD when necessary. Information on transfer case operation and shifting procedures can be found in this chapter. Information on transfer case maintenance can be found in the Maintenance chapter.
  • Page 187 Four-Wheel Drive (If Equipped) If your vehicle gets stuck WARNING: Do not spin the wheels at over 35 mph (56 km/h). The tires may fail and injure a passenger or bystander. Note: Do not rock the vehicle if the engine is not at normal operating temperature or damage to the transmission may occur.
  • Page 188 Four-Wheel Drive (If Equipped) Mud and water Note: Driving through deep water may damage the vehicle. If you must drive through high water, drive slowly. Traction or brake capability may be limited. When driving through water, determine the depth; avoid water higher than the bottom of the hubs (if possible) and proceed slowly.
  • Page 189 Four-Wheel Drive (If Equipped) Driving on hilly or sloping terrain Note: Avoid driving crosswise or turning on steep slopes or hills. Although natural obstacles may make it necessary to travel diagonally up or down a hill or steep incline, you should always try to drive straight up or straight down.
  • Page 190 Four-Wheel Drive (If Equipped) 4WD vehicles have advantages over 2WD vehicles in snow and ice but can skid like any other vehicle. Should you start to slide while driving on snowy or icy roads, turn the steering wheel in the direction of the slide until you regain control. Avoid sudden applications of power and quick changes of direction on snow and ice.

  • Page 191: Brakes

    Brakes GENERAL INFORMATION Note: Occasional brake noise is normal. If a metal-to-metal, continuous grinding or continuous squeal sound is present, the brake linings may be worn out. Have them inspected by an authorized dealer. If your vehicle has continuous vibration or shudder in the steering wheel while braking, have your vehicle inspected by an authorized dealer.

  • Page 192: Hints On Driving With Anti-Lock Brakes

    Brakes HINTS ON DRIVING WITH ANTI-LOCK BRAKES When the system is operating, the brake pedal will pulse and may travel further. Maintain pressure on the brake pedal. You may also hear a noise from the system. This is normal. The anti-lock braking system will not eliminate the dangers inherent when: •...

  • Page 193: Traction Control

    Traction Control PRINCIPLES OF OPERATION The traction control system helps avoid drive wheel spin and loss of traction. If your vehicle begins to slide, the system applies the brakes to individual wheels and, when needed, reduces engine power at the same time. If the wheels spin when accelerating on slippery or loose surfaces, the system reduces engine power in order to increase traction.

  • Page 194: Stability Control

    Stability Control PRINCIPLES OF OPERATION WARNING: Vehicle modifications involving braking system, aftermarket roof racks, suspension, steering system, tire construction or wheel and tire size may change the handling characteristics of the vehicle and may adversely affect the performance of the AdvanceTrac® system. In addition, installing any stereo loudspeakers may interfere with and adversely affect the AdvanceTrac®...

  • Page 195: Advancetrac

    Stability Control A Vehicle without AdvanceTrac® with RSC® skidding off its intended route. B Vehicle with AdvanceTrac® with RSC® maintaining control on a slippery surface. USING ADVANCETRAC® WITH RSC® The system automatically activates when you start your engine. The AdvanceTrac® with RSC® system cannot be completely turned off, but the electronic stability control and roll stability control portions of the system are disabled when the transmission is in position R.

  • Page 196: Parking Aids

    Parking Aids SENSING SYSTEM (IF EQUIPPED) WARNING: To help avoid personal injury, please read and understand the limitations of the system as contained in this section. Sensing is only an aid for some (generally large and fixed) objects when moving in reverse on a flat surface at parking speeds. Traffic control systems, inclement weather, air brakes, and external motors and fans may also affect the function of the sensing system;...
  • Page 197 Parking Aids Using the Front and Rear Sensing System Rear Sensing System The rear sensors are only active when the transmission is in R (Reverse). As the vehicle moves closer to the obstacle, the rate of the audible warning increases. When the obstacle is fewer than 10 inches (25 centimeters) away, the warning sounds continuously.
  • Page 198 Parking Aids Front Sensing System The front sensors are active when the gearshift is in any position other than P (Park) or N (Neutral) and the vehicle speed is below 8 mph (13 km/h). A. Coverage area of up to 27 inches (70 centimeters) from the front of the vehicle and about 6–9 inches (15–23 centimeters) to the side of...

  • Page 199: Rear-View Camera System

    Parking Aids REAR VIEW CAMERA SYSTEM (IF EQUIPPED) WARNING: The rear view camera system is a reverse aid supplement device that still requires the driver to use it in conjunction with the interior and exterior mirrors for maximum coverage. WARNING: Objects that are close to either corner of the bumper or under the bumper, might not be seen on the screen due to the limited coverage of the camera system.
  • Page 200 Parking Aids Using the Rear View Camera System The rear view camera system displays what is behind your vehicle when you place the transmission in R (Reverse). The system uses two types of guides to help you see what is behind your vehicle: 1.
  • Page 201 Parking Aids Guidelines and the Centerline Note: Fixed guidelines are only available when the transmission is in R (Reverse). Note: The centerline is only available if fixed guidelines are on. A. Rear bumper B. Fixed guideline: Red zone C. Fixed guideline: Yellow zone D.

  • Page 202: Cruise Control

    Cruise Control PRINCIPLES OF OPERATION Cruise control lets you maintain a set speed without keeping your foot on the accelerator pedal. USING CRUISE CONTROL WARNING: Do not use cruise control in heavy traffic, on winding roads or when the road surface is slippery. This could result in loss of vehicle control, serious injury or death.
  • Page 203 Cruise Control Setting a Speed 1. Accelerate to the desired speed. 2. Press and release SET+. 3. Take your foot off the accelerator pedal. The indicator will turn on in the instrument cluster. Changing the Set Speed • Press and hold SET+ or SET–. Release the button when you reach the desired speed.

  • Page 204: Driving Aids

    Driving Aids STEERING Your vehicle is equipped with power steering. Power steering uses energy from the engine to decrease the driver’s effort in steering the vehicle. To help prevent damage to the power steering pump: • Never hold the steering wheel to the extreme right or the extreme left for more than a few seconds when the engine is running.

  • Page 205: Auto Leveling Suspension

    Driving Aids AUTO LEVELING SUSPENSION SYSTEM (if equipped) The automatic leveling suspension system is designed to improve ride, handling and general vehicle performance during: • Certain road conditions • Steering maneuvers • Braking • Acceleration • Towing This system keeps the rear of your vehicle at a constant level through a hydraulic pump inside each rear shock.

  • Page 206: Load Carrying

    Load Carrying ROOF RACKS AND LOAD CARRIERS WARNING: When loading the roof rail crossbars, it is recommended to evenly distribute the load, as well as maintain a low center of gravity. Loaded vehicles, with higher centers of gravity, may handle differently than unloaded vehicles. Extra precautions, such as slower speeds and increased stopping distance, should be taken when driving a heavily loaded vehicle.

  • Page 207: Vehicle Loading

    Load Carrying LOAD LIMIT Vehicle Loading – With and Without a Trailer This section will guide you in the proper loading of your vehicle and/or trailer, to keep your loaded vehicle weight within its design rating capability, with or without a trailer. Properly loading your vehicle will provide maximum return of vehicle design performance.
  • Page 208 Load Carrying WARNING: The appropriate loading capacity of your vehicle can be limited either by volume capacity (how much space is available) or by payload capacity (how much weight the vehicle should carry). Once you have reached the maximum payload of your vehicle, do not add more cargo, even if there is space available.
  • Page 209 Load Carrying Cargo Weight – includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight. GAW (Gross Axle Weight) – is the total weight placed on each axle (front and rear) –...
  • Page 210 Load Carrying • Example only: WARNING: Exceeding the Safety Compliance Certification Label vehicle weight rating limits could result in substandard vehicle handling or performance, engine, transmission and/or structural damage, serious damage to the vehicle, loss of control and personal injury. 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)
  • Page 211 Load Carrying GCW (Gross Combined Weight) – is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gross Combined Weight Rating) – is the maximum allowable weight of the vehicle and the loaded trailer – including all cargo and passengers –...
  • Page 212 Load Carrying WARNING: Exceeding any vehicle weight rating limitation could result in serious damage to the vehicle and/or personal injury. Steps for determining the correct load limit: 1. Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lb.” on your vehicle’s placard. 2.
  • Page 213 Load Carrying • Suppose your vehicle has a 1400 lb. (635 kg) cargo and luggage capacity. You and one of your friends decide to pick up cement from the local home improvement store to finish that patio you have been planning for the past 2 years.

  • Page 214: Cargo Management System

    Load Carrying CARGO MANAGEMENT SYSTEM (IF EQUIPPED) A storage compartment is located in the floor of the rear cargo area. Lift up on the handle to open the cover. To close, lower the cover and press down on the handle until the latch clicks.
  • Page 215 Load Carrying To move the shelf to the divider position: Pull up and pivot the shelf over the channels on the side trim panels and snap vertically in place. POWER DEPLOYABLE RUNNING BOARDS (IF EQUIPPED) WARNING: In extreme climates, excessive ice buildup may occur, causing the running boards not to deploy.
  • Page 216 Load Carrying The running boards automatically move when the doors are opened to assist entering and exiting the vehicle. Automatic Power Deploy The running boards will extend down and out when the doors are opened. Automatic Power Stow The running boards will return to the stowed position after a two second delay when the doors are closed.

  • Page 217: Towing

    Towing TOWING A TRAILER WARNING: Do not exceed the GVWR or the GAWR specified on the certification label. WARNING: Towing trailers beyond the maximum recommended gross trailer weight exceeds the limit of your vehicle and could result in engine damage, transmission damage, structural damage, loss of vehicle control, vehicle rollover and personal injury.
  • Page 218 Towing TRAILER SWAY CONTROL WARNING: Turning off trailer sway control increases the risk of loss of vehicle control, serious injury or death. Ford does not recommend disabling this feature except in situations where speed reduction may be detrimental (such as hill climbing), the driver has significant trailer towing experience, and can control trailer sway and maintain safe operation.
  • Page 219 Towing Note: Certain states require electric trailer brakes for trailers over a specified weight. Be sure to check state regulations for this specified weight. The maximum trailer weights listed may be limited to this specified weight, as your vehicle’s electrical system may not include the wiring connector needed to use electric trailer brakes.
  • Page 220 Towing ESSENTIAL TOWING CHECKS Follow these guidelines for safe towing: • Do not tow a trailer until you drive your vehicle at least 1000 miles (1600 kilometers). • Consult your local motor vehicle laws for towing a trailer. • See the instructions included with towing accessories for the proper installation and adjustment specifications.
  • Page 221 Towing Trailer Hitch Cover Your vehicle is equipped with a removable trailer hitch trim cover. To remove the trim cover: 1. Loosen the two quarter-turn fasteners in the bottom of the cover by turning them counterclockwise. Pull the cover downward to remove it.
  • Page 222 Towing Integrated Hitch Rating WARNING: Towing trailers beyond the maximum tongue weight exceeds the limit of the towing system and could result in vehicle structural damage, loss of vehicle control and personal injury. The standard integrated hitch has two ratings depending on mode of operation: •...
  • Page 223 Towing 5. Install and adjust the tension in the weight distributing bars so that the height of the front fender is approximately halfway between H1 and H2. 6. Check that the trailer is level or slightly nose down toward your vehicle.
  • Page 224 Towing 7. Install safety chains, lighting, and trailer brake controls as required by law or the trailer manufacturer. 8. Drive the vehicle and trailer at 20–25 mph (32–40 km/h) for approximately 2 miles (3 kilometers) to re-level the suspension. 9. Park your vehicle and trailer on a level surface. 10.
  • Page 225 Towing The rating for the tow vehicle’s braking system operation is at the gross vehicle weight rating, not the gross combined weight rating. Separate functioning brake systems are required for safe control of towed vehicles and trailers weighing more than 1500 pounds (680 kilograms) when loaded.
  • Page 226 Towing • If your vehicle is equipped with AdvanceTrac™ with RSC, this system may turn on during typical cornering maneuvers with a heavily loaded trailer. This is normal. Turning the corner at a slower speed while towing may reduce this tendency. •...

  • Page 227: Wrecker Towing

    Towing TRANSPORTING THE VEHICLE If you need to have your vehicle towed, contact a professional towing service or, if you are a member of a roadside assistance program, your roadside assistance service provider. We recommend the use of a wheel lift and dollies or flatbed equipment to tow your vehicle.

  • Page 228: Recreational Towing

    Towing TOWING THE VEHICLE ON FOUR WHEELS Emergency Towing If your vehicle becomes inoperable (without access to wheel dollies, car-hauling trailer, or flatbed transport vehicle), it can be flat-towed (all wheels on the ground, regardless of the powertrain and transmission configuration) under the following conditions: •...

  • Page 229: Driving Hints

    Driving Hints BREAKING-IN You need to break in new tires for approximately 300 miles (480 kilometers). During this time, your vehicle may exhibit some unique driving characteristics. Avoid driving too fast during the first 1000 miles (1600 kilometers). Vary your speed frequently and change up through the gears early.
  • Page 230 Driving Hints • Rest your foot on the brake pedal while driving. • Drive a heavily loaded vehicle or tow a trailer. • Carry unnecessary weight (approximately 1 mpg [0.4 km/L] is lost for every 400 pounds [180 kilograms] of weight carried). •...

  • Page 231: Floor Mats

    Driving Hints FLOOR MATS WARNING: Always use floor mats that are designed to fit the footwell of your vehicle. Only use floor mats that leave the pedal area unobstructed. Only use floor mats that are firmly secured to retention posts so that they cannot slip out of position and interfere with the pedals or impair safe operation of your vehicle in other ways.
  • Page 232 Driving Hints WARNING (Continued) • Failure to properly follow floor mat installation or attachment instructions can potentially cause interference with pedal operation causing loss of control of vehicle. • To install floor mats, position the floor mat so that the eyelet is over the retention post and press down to lock in.

  • Page 233: Roadside Emergencies

    • winch out – available within 100 feet (30.5 meters) of a paved or county maintained road, no recoveries. • towing – Ford and Lincoln eligible vehicles towed to an authorized dealer within 35 miles (56 kilometers) of the disablement location or to the nearest authorized dealer.

  • Page 234: Hazard Warning Flashers

    Complete the roadside assistance identification card and place it in your wallet for quick reference. This card is found in the owner’s manual portfolio in the glove compartment. U.S. Lincoln vehicle customers who require Roadside Assistance, call 1-800-521-4140. If you need to arrange roadside assistance for yourself, Ford Motor Company will reimburse a reasonable amount for towing to the nearest dealership within 35 miles (56 km).

  • Page 235: Fuel Pump Shut-Off Switch

    Roadside Emergencies FUEL PUMP SHUT-OFF SWITCH The fuel pump shut-off switch is a device intended to stop the electric fuel pump when your vehicle has been involved in a substantial jolt. After a collision, if the engine cranks but does not start, the fuel pump shut-off switch may have been activated.

  • Page 236: Jump-Starting The Vehicle

    Roadside Emergencies JUMP-STARTING THE VEHICLE WARNING: The gases around the battery can explode if exposed to flames, sparks, or lit cigarettes. An explosion could result in injury or vehicle damage. WARNING: Batteries contain sulfuric acid which can burn skin, eyes and clothing, if contacted. Do not attempt to push-start your automatic transmission vehicle.
  • Page 237 Roadside Emergencies Connecting the Jumper Cables WARNING: Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped. A spark may cause an explosion of the gases that surround the battery. Note: Do not attach the negative (-) cable to fuel lines, engine rocker covers, the intake manifold or electrical components as grounding points.
  • Page 238 Roadside Emergencies Removing the Jumper Cables Note: In the illustration, the vehicle on the bottom is used to designate the assisting (boosting) battery. Remove the jumper cables in the reverse order that they were connected. 1. Remove the jumper cable from the ground metal surface.

  • Page 239: Customer Assistance

    Customer Assistance GETTING THE SERVICES YOU NEED Warranty repairs to your vehicle must be performed by an authorized dealer. While any authorized dealer handling your vehicle line will provide warranty service, we recommend you return to your selling authorized dealer who wants to ensure your continued satisfaction. Please note that certain warranty repairs require special training, equipment or both, so not all authorized dealers are authorized to perform all warranty repairs.
  • Page 240 Customer Assistance In Canada: Mailing address Lincoln Customer Relationship Centre Ford Motor Company of Canada, Limited P.O. Box 2000 Oakville, Ontario L6K 1C8 Telephone 1-800-387-9333 Online www.lincolncanada.com Additional assistance If you have questions or concerns, or are unsatisfied with the service you are receiving, follow these steps: 1.
  • Page 241 Customer Assistance IN CALIFORNIA (U.S. ONLY) California Civil Code Section 1793.2(d) requires that, if a manufacturer or its representative is unable to repair a motor vehicle to conform to the vehicle’s applicable express warranty after a reasonable number of attempts, the manufacturer shall be required to either replace the vehicle with one substantially identical or repurchase the vehicle and reimburse the buyer in an amount equal to the actual price paid or payable by the consumer (less a reasonable allowance for consumer use).
  • Page 242 Customer Assistance THE BETTER BUSINESS BUREAU (BBB) AUTO LINE PROGRAM (U.S. ONLY) Your satisfaction is important to Ford Motor Company and to your dealer. If a warranty concern has not been resolved using the three-step procedure outlined earlier in this chapter in the Getting the Services You Need section, you may be eligible to participate in the BBB AUTO LINE program.
  • Page 243 Customer Assistance UTILIZING THE MEDIATION or ARBITRATION PROGRAM (CANADA ONLY) This pertains to vehicles delivered to authorized Canadian dealers. In those cases, where you continue to feel that the efforts by Ford of Canada and the authorized dealer to resolve a factory-related vehicle service concern have been unsatisfactory, Ford of Canada participates in an impartial third party mediation or arbitration program administered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
  • Page 244 Customer Assistance If your vehicle must be serviced while you are traveling or living in Asia-Pacific Region, Sub-Saharan Africa, U.S. Virgin Islands, Central America, the Caribbean, and Israel, contact the nearest authorized dealer. If the authorized dealer cannot help you, contact: FORD MOTOR COMPANY FORD EXPORT OPERATIONS &...
  • Page 245 Customer Assistance If you buy your vehicle in North America and then relocate to any of the above locations, register your vehicle identification number (VIN) and new address with Ford Motor Company Export Operations & Global Growth Initiatives by emailing expcac@ford.com. If you are in another foreign country, contact the nearest authorized dealer.

  • Page 246: Reporting Safety Defects (U.s. Only)

    Customer Assistance REPORTING SAFETY DEFECTS (U.S. ONLY) If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Ford Motor Company. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 247: Fuses

    Fuses CHANGING A FUSE Fuses WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire. If electrical components in your vehicle are not working, a fuse may have blown.

  • Page 248: Fuse Specification Chart

    Fuses FUSE SPECIFICATION CHART Power Distribution Box WARNING: Always disconnect the battery before servicing high current fuses. WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. The power distribution box is located in the engine compartment.
  • Page 249 Fuses Fuse or Fuse amp Protected circuits relay rating location — Blower motor relay — Trailer tow battery charge relay — Fuel pump relay — Electronic fan 1 relay — Rear window defroster/heated mirror relay — Electronic fan 3 relay —...
  • Page 250 Fuses Fuse or Fuse amp Protected circuits relay rating location 20A* Backup lamps, Integrated wheel end solenoid 10A* Air conditioner clutch relay — Not used 40A** Blower motor relay 40A** 110–volt AC power point 30A** Auxiliary blower motor 30A** Powertrain control module relay 30A** Power liftgate —...
  • Page 251 Fuses Fuse or Fuse amp Protected circuits relay rating location 30A* Passenger compartment fuse panel run/start feed 10A* Blower motor relay coil 15A* Trailer tow backup lamps 15A* Heated mirrors — Not used — Fuel pump diode — Left high intensity discharge headlamp relay 25A** Electronic fan...
  • Page 252 Fuses Fuse or Fuse amp Protected circuits relay rating location 20A* Vehicle power 3 – powertrain control module — Not used — Not used — Not used — Not used — Not used — Wiper motor relay * Mini Fuses ** Cartridge Fuses Passenger Compartment Fuse Panel The fuse panel is located under the right-hand side of the instrument panel.
  • Page 253 Fuses The fuses are coded as follows: Fuse or relay Fuse amp Protective circuits location rating Driver window Driver side memory module Audio rear seat controls, Satellite radio, SYNC Passenger window Keypad illumination, 3rd row seat enable, Brake-shift interlock, Smart fuse panel logic power Turn signals Low beam headlamps (left) Low beam headlamps (right)
  • Page 254 Fuses Fuse or relay Fuse amp Protective circuits location rating Not used (spare) 7.5A Power mirrors, Driver seat memory switch Not used (spare) Power liftgate module – keep-alive power, Clock Climate control, Global positioning satellite module Not used (spare) Door locks, Liftgate release, Liftglass release Second row heated seats Rear wiper...
  • Page 255 Fuses Fuse or relay Fuse amp Protective circuits location rating Subwoofer, THX amplifier Radio THX amplifier Power windows, Power vents, Power moonroof, Auto dimming rear view mirror, 110–volt AC power point Not used (spare) Rear wiper logic, Rain sensor Trailer tow battery charge relay coil Front wiper logic 7.5A...

  • Page 256: Maintenance

    Maintenance GENERAL INFORMATION WARNING: Turn off the power running boards, if equipped, before working under the vehicle, jacking or placing any object under the vehicle. Never place your hand between the extended running board and the vehicle. A moving running board may cause injury.

  • Page 257: Opening And Closing The Hood

    Maintenance Working with the Engine Off 1. Set the parking brake and shift to P (Park). 2. Turn off the engine and remove the key (if equipped). 3. Block the wheels. Working with the Engine On WARNING: To reduce the risk of vehicle damage or personal burn injuries, do not start your engine with the air cleaner removed and do not remove it while the engine is running.

  • Page 258: Under Hood Overview

    Maintenance UNDER HOOD OVERVIEW 5.4L V8 A. Windshield washer fluid reservoir B. Engine oil dipstick C. Brake fluid reservoir D. Engine coolant reservoir E. Air filter assembly F. Power steering fluid reservoir G. Power distribution box H. Engine oil filler cap I.

  • Page 259: Engine Oil Dipstick

    Maintenance ENGINE OIL DIPSTICK A. MIN B. MAX ENGINE OIL CHECK Refer to the scheduled maintenance information for the appropriate intervals for checking the engine oil. 1. Make sure the vehicle is on level ground. 2. Turn the engine off and wait 15 minutes for the oil to drain into the oil pan.

  • Page 260: Engine Coolant Check

    Maintenance Adding Engine Oil Note: Do not remove the engine oil level dipstick or the filler cap when the engine is running. Note: Do not add engine oil further than the MAX mark. Oil levels above the MAX mark may cause engine damage. Only use oils certified for gasoline engines by the American Petroleum Institute (API).
  • Page 261 Maintenance Note: For best results, coolant concentration should be tested with a refractometer such as Rotunda tool 300-ROB75240 available from your dealer. Ford does not recommend the use of hydrometers or coolant test strips for measuring coolant concentrations. Note: Automotive fluids are not interchangeable; do not use engine coolant/antifreeze or windshield washer fluid outside of its specified function and vehicle location.
  • Page 262 Maintenance • In case of emergency, a large amount of water without engine coolant may be added in order to reach a vehicle service location. In this instance, the cooling system must be drained, chemically cleaned with Motorcraft Premium Cooling System Flush, and refilled with engine coolant as soon as possible.
  • Page 263 Maintenance If you drive in extremely hot climates: • It may be necessary to have a Ford authorized dealer decrease the coolant concentration to 40%. • A coolant concentration of 40% will provide improved overheat protection. Engine coolant concentrations below 40% will decrease the corrosion/freeze protection characteristics of the engine coolant and may cause engine damage.

  • Page 264: Automatic Transmission Fluid Check

    Maintenance When Fail-Safe Mode is Activated WARNING: Fail-safe mode is for use during emergencies only. Operate the vehicle in fail-safe mode only as long as necessary to bring the vehicle to rest in a safe location and seek immediate repairs. When in fail-safe mode, the vehicle will have limited power, will not be able to maintain high-speed operation, and may completely shut down without warning, potentially losing engine power, power steering assist,...

  • Page 265: Brake Fluid Check

    Maintenance Do not use supplemental transmission fluid additives, treatments or cleaning agents. The use of these materials may affect transmission operation and result in damage to internal transmission components. BRAKE FLUID CHECK Fluid levels between the MIN and MAX lines are within the normal operating range;...

  • Page 266: Battery

    Maintenance Note: The front and rear washer systems are supplied from the same reservoir. State or local regulations on volatile organic compounds may restrict the use of methanol, a common windshield washer antifreeze additive. Washer fluids containing non-methanol antifreeze agents should be used only if they provide cold weather protection without damaging the vehicle’s paint finish, wiper blades or washer system.
  • Page 267 Maintenance Note: Electrical or electronic accessories or components added to the vehicle by the dealer or the owner may adversely affect battery performance and durability. Your vehicle is equipped with a Motorcraft® maintenance-free battery which normally does not require additional water during its life of service.

  • Page 268: Checking The Wiper Blades

    Maintenance CHECKING THE WIPER BLADES Run the tip of your fingers over the edge of the blade to check for roughness. Clean the wiper blades with washer fluid or water applied with a soft sponge or cloth. CHANGING THE WIPER BLADES Replace wiper blades at least once per year for optimum performance.

  • Page 269: Air Filter(S)

    Maintenance Changing the Rear Window Wiper Blade To replace the rear wiper blade: 1. Pull the wiper arm as far away from the glass as possible. Do not use excessive force because it can break the wiper arm. Hold it there until the next step.
  • Page 270 Maintenance See Scheduled Maintenance Information for the appropriate intervals for changing the air filter element. Note: Failure to use the correct air filter element may result in severe engine damage. The customer warranty may be void for any damage to the engine if the correct air filter element is not used.
  • Page 271 Maintenance 5. Release the three clamps that secure the cover to the air filter housing. Push the air filter cover toward the center of the vehicle and up slightly to release it. 6. Remove the air filter element from the air filter housing. 7.

  • Page 272: Adjusting The Headlamps

    Maintenance ADJUSTING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident, an authorized dealer should check the alignment of your headlamps. Vertical Aim Adjustment Before aim adjustment, disable the air suspension system. Refer to Message center in the Driver Controls chapter.

  • Page 273: Changing A Bulb

    Maintenance 5. Locate the vertical adjuster on each headlamp, then use a Phillips #2 screwdriver to turn the adjuster either counterclockwise or clockwise in order to adjust the vertical aim of the headlamp. The upper edge of the light pattern should touch the horizontal reference line.

  • Page 274: Removing A Headlamp

    Maintenance Replacing HID Headlamp Bulbs The low/high beam headlamps on your vehicle use a “high intensity discharge” source. These lamps operate at a high voltage. For bulb replacement, see your authorized dealer. Replacing Front Parking Lamp, Turn Signal, and Side Marker Bulbs The front parking lamp, turn signal, and side marker bulbs are located in the headlamp assembly.
  • Page 275 Maintenance Replacing Fog Lamp Bulbs 1. From underneath the vehicle, rotate the harness/bulb assembly counterclockwise to remove it from the fog lamp assembly. 2. Carefully disconnect the bulb from the harness assembly via the two snap clips. Install the new bulb in reverse order.
  • Page 276 Maintenance Replacing Supplemental Tail Lamp Bulbs 1. Make sure the headlamp switch is in the off position. 2. Open the liftgate and remove interior trim panel. 3. Remove four nuts from the lamp assembly. 4. Carefully pry the lamp assembly away from the vehicle by pulling the assembly directly straight out to expose the bulb socket.
  • Page 277 Maintenance Replacing the High-Mount Brake Lamp Bulbs To change the high-mount brake lamp bulbs: 1. Remove the two screws holding the lamp assembly in place. 2. Pull the lamp assembly straight out. 3. Disconnect the wire harness. 4. Press the four tabs that hold the light assembly on, one at a time, and pull the black bulb carrier away from the lamp.
  • Page 278 Maintenance Function Number of bulbs Trade number Headlamps (low and *See your dealer high-beam) Front park lamps 3157K Front turn lamps 3157A (amber) Front side marker 168A (amber) Fog lamps Front row map lamps 1600XB 2nd row reading lamp 1600XB Rear cargo lamp 211–2XB Rear turn/tail/brake...

  • Page 279: Vehicle Care

    Vehicle Care GENERAL INFORMATION Your Ford or Lincoln authorized dealer has many quality products available to clean your vehicle and protect its finishes. CLEANING PRODUCTS For best results, use the following products or products of equivalent quality: Motorcraft Bug and Tar Remover (ZC-42)
  • Page 280 Vehicle Care • Dry the vehicle with a chamois or soft terry cloth towel in order to eliminate water spotting. • Immediately remove items such as gasoline, diesel fuel, bird droppings and insect deposits because they can cause damage to the vehicle’s paintwork and trim over time.

  • Page 281: Waxing

    Vehicle Care Cleaning Plastic Exterior Parts Use only approved products to clean plastic parts. • For routine cleaning, use Motorcraft Detail Wash. • If tar or grease spots are present, use Motorcraft Bug and Tar Remover. WAXING Regular waxing is necessary to protect the paint on your car from the elements.

  • Page 282: Cleaning The Engine

    Vehicle Care CLEANING THE ENGINE Engines are more efficient when they are clean because grease and dirt buildup keep the engine warmer than normal. When washing: • Take care when using a power washer to clean the engine. The high-pressure fluid could penetrate the sealed parts and cause damage.

  • Page 283: Cleaning The Interior

    Vehicle Care If you cannot remove those streaks after cleaning with the glass cleaner or if the wipers chatter and move in a jerky motion, clean the outer surface of the windshield and the wiper blades using a sponge or soft cloth with a neutral detergent or mild-abrasive cleaning solution.

  • Page 284: Cleaning The Instrument Panel And Instrument Cluster Lens

    Vehicle Care CLEANING THE INSTRUMENT PANEL AND INSTRUMENT CLUSTER LENS WARNING: Do not use chemical solvents or strong detergents when cleaning the steering wheel or instrument panel to avoid contamination of the airbag system. Clean the instrument panel and cluster lens with a clean, damp, white, cotton cloth, then use a clean and dry, white, cotton cloth to dry these areas.

  • Page 285: Cleaning Leather Seats

    Vehicle Care CLEANING LEATHER SEATS (IF EQUIPPED) • Remove dust and loose dirt with a vacuum cleaner. • Clean spills and stains as quickly as possible. • For routine cleaning, wipe the surface with a soft, damp cloth. For more thorough cleaning, wipe the surface with a mild soap and water solution.

  • Page 286: Vehicle Storage

    Vehicle Care VEHICLE STORAGE If you plan on storing your vehicle for an extended period of time (30 days or more), read the following maintenance recommendations to make sure your vehicle stays in good operating condition. All motor vehicles and their components were engineered and tested for reliable, regular driving.
  • Page 287 Vehicle Care Cooling system • Protect against freezing temperatures. • When removing vehicle from storage, check coolant fluid level. Confirm there are no cooling system leaks, and fluid is at the recommended level. Battery • Check and recharge as necessary. Keep connections clean. •...

  • Page 288: Wheels And Tires

    Wheels and Tires GENERAL INFORMATION Notice to Utility Vehicle, Van and Truck Owners WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles. To reduce the risk of serious injury or death from a rollover or other crash you must: •...
  • Page 289 Wheels and Tires Power is supplied to all four wheels through a transfer case or power transfer unit. Four-wheel drive vehicles allow you to select different drive modes as necessary. You can find information on transfer case operation and shifting procedures in the Transmission chapter. You can find information on transfer case maintenance in the Maintenance chapter.

  • Page 290: Tire Care

    Wheels and Tires • Narrower – to provide greater maneuverability in tight spaces, particularly in off-road use. As a result of the above dimensional differences, sport-utility vehicles, vans and trucks often will have a higher center of gravity and a greater difference in center of gravity between the loaded and unloaded condition.
  • Page 291 Wheels and Tires Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear 1 ⁄ times as well on the government course as a tire graded 100.
  • Page 292 Wheels and Tires Glossary of Tire Terminology • Tire label: A label showing the OE (Original Equipment) tire sizes, recommended inflation pressure and the maximum weight the vehicle can carry. • Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size and date of manufacture.
  • Page 293 Wheels and Tires INFORMATION CONTAINED ON THE TIRE SIDEWALL Both U.S. and Canada Federal regulations require tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a U.S.
  • Page 294 Wheels and Tires F. 95: Indicates the tire’s load index. It is an index that relates to how much weight a tire can carry. You may find this information in your owner’s manual. If not, contact a local tire dealer. Note: You may not find this information on all tires because it is not required by federal law.
  • Page 295 Wheels and Tires H. U.S. DOT Tire Identification Number (TIN): This begins with the letters DOT and indicates that the tire meets all federal standards. The next two numbers or letters are the plant code designating where it was manufactured, the next two are the tire size code and the last four numbers represent the week and year the tire was built.
  • Page 296 Wheels and Tires M. Maximum Inflation Pressure: Indicates the tire manufacturer’s maximum permissible pressure or the pressure at which the maximum load can be carried by the tire. This pressure is normally higher than the vehicle manufacturer’s recommended cold inflation pressure, which can be found on the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or Tire Label which...
  • Page 297 Wheels and Tires Information on T Type Tires T type tires have some additional information beyond those of P type tires. These differences are described below. T145/80D16 is an example of a tire size. Note: The temporary tire size for your vehicle may be different from this example.
  • Page 298 Wheels and Tires INFLATING YOUR TIRES Safe operation of your vehicle requires that your tires are properly inflated. Remember that a tire can lose up to half of its air pressure without appearing flat. Every day before you drive, check your tires. If one looks lower than the others, use a tire gauge to check pressure of all tires and adjust if required.
  • Page 299 Wheels and Tires Maximum Inflation Pressure is the tire manufacturer’s maximum permissible pressure or the pressure at which the maximum load can be carried by the tire. This pressure is normally higher than the manufacturer’s recommended cold inflation pressure, which can be found on the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or Tire Label which is located...
  • Page 300 Wheels and Tires Note: Some spare tires operate at a higher inflation pressure than the other tires. For T-type mini-spare tires, see the Dissimilar Spare Tire and Wheel Assembly Information section. Store and maintain at 60 psi (4.15 bar). For full-size and dissimilar spare tires, see Dissimilar Spare Tire and Wheel Assembly Information under Changing a Road Wheel in this chapter.
  • Page 301 Wheels and Tires Damage Periodically inspect the tire treads and sidewalls for damage (such as bulges in the tread or sidewalls, cracks in the tread groove and separation in the tread or sidewall). If damage is observed or suspected, have the tire inspected by a tire professional.
  • Page 302 Wheels and Tires Tire Replacement Requirements WARNING: Only use replacement tires and wheels that are the same size, load index, speed rating and type (such as P-metric versus LT-metric or all-season versus all-terrain) as those originally provided by Ford. The recommended tire and wheel size may be found on either the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or the Tire Label which is...
  • Page 303 Wheels and Tires Your vehicle is equipped with tires designed to provide a safe ride and handling capability. Important: Remember to replace the wheel valve stems when the road tires are replaced on your vehicle. The two front tires or two rear tires should generally be replaced as a pair.
  • Page 304 Wheels and Tires Highway Hazards No matter how carefully you drive, there is always the possibility that you may eventually have a flat tire on the highway. Drive slowly to the closest safe area out of traffic. This may further damage the flat tire, but your safety is more important.
  • Page 305 Wheels and Tires Rotating your tires at the recommended interval (as indicated in your scheduled maintenance information) will help your tires wear more evenly, providing better tire performance and longer tire life. • Rear-wheel drive vehicles/Four-wheel drive vehicles (front tires at left of diagram) Sometimes irregular tire wear can be corrected by rotating the tires.

  • Page 306: Tire Pressure Monitoring System (Tpms)

    Wheels and Tires • Chains are not recommended for use on the P275/55R20 tire. • Install chains securely, verifying that the chains do not touch any wiring, brake lines or fuel lines. • Do not exceed 30 mph (48 km/h) with tire chains on your vehicle. •...
  • Page 307 Wheels and Tires Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously illuminated.
  • Page 308 Wheels and Tires Understanding Your Tire Pressure Monitoring System The tire pressure monitoring system measures pressure in your four road tires and sends the tire pressure readings to your vehicle. The low tire pressure warning light will turn on if the tire pressure is significantly low. Once the light is illuminated, your tires are under-inflated and need to be inflated to the manufacturer’s recommended tire pressure.
  • Page 309 Wheels and Tires Low tire Possible cause Customer action required pressure warning light Solid warning Tire(s) 1. Make sure tires are at the proper light under-inflated pressure. See Inflating your tires in this chapter. 2. After inflating your tires to the manufacturer’s recommended pressure as shown on the Tire Label (located on the edge of driver’s door...
  • Page 310 Wheels and Tires Low tire Possible cause Customer action required pressure warning light Flashing Spare tire in use Repair the damaged road wheel warning light and tire and reinstall it on the vehicle to restore system function. For a description on how the system functions, see When your temporary spare tire is installed in this section.

  • Page 311: Changing A Road Wheel

    Wheels and Tires CHANGING A ROAD WHEEL WARNING: The use of tire sealants may damage your tire pressure monitoring system and should not be used. However, if you must use a sealant, have an authorized dealer install a new tire pressure monitoring system sensor and valve stem.
  • Page 312 Wheels and Tires 2. Full-size dissimilar spare with label on wheel: This spare tire has a label on the wheel that states: THIS TIRE AND WHEEL FOR TEMPORARY USE ONLY When driving with one of the dissimilar spare tires listed above, do not: •...
  • Page 313 Wheels and Tires • Ground clearance and parking at curbs • Winter weather driving capability • Wet weather driving capability • All-wheel driving capability (if applicable) • Load leveling adjustment (if applicable) When driving with the full-size dissimilar spare tire and wheel assembly, additional caution should be given to: •...
  • Page 314 Wheels and Tires WARNING: Always use the jack provided as original equipment with your vehicle. If using a jack other than the one provided as original equipment with your vehicle, make sure the jack capacity is adequate for the vehicle weight, including any vehicle cargo or modifications.
  • Page 315 Wheels and Tires Removing the jack and tools 1. Open the liftgate, then locate the access panel on the floor behind the third row seat. Unlatch and remove the panel. 2. Remove the jack and tools assembly tray from the compartment by turning the wing-nut counterclockwise to relieve tension against the jack assembly tray.
  • Page 316 Wheels and Tires 6. Block the wheels (both front or both rear) on the opposite end of the vehicle from the wheel being changed. If on a grade, block both wheels on the downward side of the hill. 7. Turn off the deployable running boards. See the Driving Aids chapter.
  • Page 317 Wheels and Tires • Front • Rear • Note: Jack at the specified locations to avoid damage to the vehicle. 13. Remove the lug nuts with the lug wrench. 14. Replace the flat tire with the spare tire, making sure the valve stem is facing outward.
  • Page 318 Wheels and Tires 19. Put flat tire, jack, lug wrench and tools away. Make sure the jack bag is properly reinstalled around the jack and tools assembly tray with the strap securely fastened. Be sure to tighten the wing nut sufficiently so it does not rattle when you drive.

  • Page 319: Technical Specifications

    Wheels and Tires TECHNICAL SPECIFICATIONS Wheel Lug Nut Torque Specifications WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel.

  • Page 320: Capacities And Specifications

    Capacities and Specifications ENGINE SPECIFICATIONS Engine 5.4L V8 Engine Cubic inches Fuel Minimum 87 octane or (E-85) Firing order 1-3-7-2-6-5-4-8 Ignition system Coil on plug Spark plug gap 0.039–0.043 inch (1.05 +/– 0.05 mm) Compression ratio 9.8:1 Engine Drivebelt Routing 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)
  • Page 321 Capacities and Specifications 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)
  • Page 322 Capacities and Specifications 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)
  • Page 323 Capacities and Specifications 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)
  • Page 324 Capacities and Specifications 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)

  • Page 325: Part Numbers

    Capacities and Specifications MOTORCRAFT® PART NUMBERS Component 5.4L V8 engine Air filter element FA-1883 BXT-65-650 or BXT-65-750 Battery (if equipped) Oil filter FL-820-S Spark plugs HJFS24FP/SP-509 Seat filter (if equipped) FS-104 WW-2201-PF Windshield wiper blade WW-1601-PF (rear) Refer to scheduled maintenance information for the appropriate intervals for changing the spark plugs.

  • Page 326: Vehicle Certification Label

    Capacities and Specifications The Vehicle Identification Number (VIN) contains the following information: A. World manufacturer identifier B. Brake system / Gross Vehicle Weight Rating (GVWR) / Restraint Devices and their location C. Make, vehicle line, series, body type D. Engine type E.

  • Page 327: Transmission Code Designation

    Capacities and Specifications TRANSMISSION CODE DESIGNATION You can find a transmission code on the Safety Compliance Certification Label. The following table tells you which transmission each code represents. Description Code Six-speed automatic (6R80) 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)

  • Page 328: Accessories

    (United States only). Lincoln Motor Company will repair or replace any properly authorized dealer-installed Lincoln Genuine Accessories found to be defective in factory-supplied materials or workmanship during the warranty period, as well as any component damaged by the defective accessories.
  • Page 329 • If you or an authorized Lincoln dealer add any non-Lincoln custom electrical or electronic accessories or components to the vehicle, you may adversely affect battery performance and durability. In addition, you may adversely affect the performance of other electrical systems in the vehicle.

  • Page 330: Ford Extended Service Plan

    3. BaseCARE – Covers 84 components 4. PowertrainCARE – Covers 29 critical components Ford ESP is honored by all Ford and Lincoln Dealers in the United States and Canada. It is the only Extended Service Plan authorized and backed by Ford Motor Company. That means you get: •...
  • Page 331 Ford Extended Service Plan Roadside Assistance Exclusive 24/7 roadside assistance, including: • Towing, flat-tire change and battery jump starts • Out of fuel and lock-out assistance • Travel Expense reimbursement for lodging, meals and rental car • Destination assistance for taxi, shuttle, rental car coverage and emergency transportation Transferable Coverage If you sell your vehicle before your Ford Extended Service Plan coverage...
  • Page 332 Canada and the United States, provided by a network of participating Ford Motor Company dealers. The Lincoln Maintenance Protection Plan is honored at authorized Lincoln dealers. Note: Repairs performed outside of Canada and the United States are not eligible for Ford Extended Service Plan coverage.

  • Page 333: Audio System

    Audio System GENERAL INFORMATION Radio Frequencies and Reception Factors AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are: AM: 530, 540–1700, 1710 kHz FM: 87.9–107.7, 107.9 MHz Radio reception factors Distance and The further you travel from an FM station,...
  • Page 334 Audio System Do not expose discs to direct sunlight or heat sources for extended periods. MP3 Track and Folder Structure Audio systems capable of recognizing and playing MP3 individual tracks and folder structures work as follows: • There are two different modes for MP3 disc playback: MP3 track mode (system default) and MP3 folder mode.

  • Page 335: Am/Fm/Cd With Sync

    Audio System AM/FM/CD WITH SYNC® LOAD TUNE PUSH MENU SHUFFLE TEXT AM/FM SEEK SEEK SCAN WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road.
  • Page 336 Audio System C. TUNE and Phone: • In radio mode, turn the control to manually search the frequency band. • In MP3 mode, turn the control to go to the next or previous folder (when folder mode is active). • In satellite radio mode, press the SEEK buttons to tune to the next or previous channel.
  • Page 337 Audio System F. Play, Pause and OK: • Play and Pause allow you to play or pause a track when listening to a • OK allows you to confirm commands with phone and media features of the SYNC system. See the SYNC® chapter for more information. G.

  • Page 338: Rear Seat Controls

    Audio System R. LOAD: Load a CD. • Press LOAD and a memory preset button to load a CD to a specific slot. • Press and hold to autoload up to six CDs. The last disc inserted automatically plays. REAR AUDIO CONTROLS Your vehicle is equipped with rear seat audio controls.
  • Page 339 Audio System D. Wired headphone jack E. Left arrow button • In radio mode, press and release this button to scroll through memory presets. Press and hold to go to the previous station • In CD and SYNC modes, press and release this button to advance to the previous track.
  • Page 340 Audio System Switching Dual Play Mode On You can switch Dual Play mode on by simultaneously pressing the 2 and 4 memory preset buttons on the audio or by doing the following: 1. Press the headphone/speaker control. The headphone icon illuminates in both front and rear audio displays indicating the rear seat speakers are off and the headphones are on.

  • Page 341: Satellite Radio Information

    Audio System SATELLITE RADIO INFORMATION (IF EQUIPPED) Satellite Radio Channels Sirius broadcasts a variety of music, news, sports, weather, traffic and entertainment satellite radio channels. For more information and a complete list of Sirius satellite radio channels, visit www.siriusxm.com in the United States, www.sirius.ca in Canada, or call Sirius at 1–888–539–7474.
  • Page 342 Audio System Sirius satellite radio is a subscription-based satellite radio service that broadcasts a variety of music, sports, news, weather, traffic and entertainment programming. Your factory-installed Sirius satellite radio system includes hardware and a limited subscription term which begins on the date of sale or lease of your vehicle.

  • Page 343: Auxiliary Input Jack

    Audio System Radio display Condition Possible action Unsubscribed Channel Your subscription does Contact Sirius at not include this 1–888–539–7474 to channel. subscribe to the channel, or tune to another channel. No Signal The signal is lost from The signal is blocked. the Sirius satellite or When you move into Sirius tower to your...
  • Page 344 Audio System WARNING: For safety reasons, do not connect or adjust the settings on your portable music player while your vehicle is moving. WARNING: Store the portable music player in a secure location, such as the center console or the glove box, when your vehicle is moving.

  • Page 345: Usb Port

    Audio System USB PORT (IF EQUIPPED) WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
  • Page 346 Audio System The system consists of the following features: • Seven-inch color TFT-LCD panel (480x234) with 16:9 aspect • Built-in, top-loading slot load DVD player • Infrared transmitters for infrared wireless headphones • Audio/Video source input (three RCA jacks) • USB 2.0 (optional) •...
  • Page 347 Audio System Safety Precaution For safety reasons: • Do not change discs while your vehicle is moving. • Do not allow children to unfasten their safety belts to change discs or make changes to the system. • Make changes with the remote control, while safety belts remain fastened.
  • Page 348 Audio System Wireless FM Transmitter Your device has an internal FM transmitter. This allows you to listen to the DVD player audio signal by tuning your vehicle FM radio to a radio frequency that you select, then accessing the SOUND-AROUND feature by using the remote control.
  • Page 349 Audio System disc VIDEO POWER SOURCE VDEO AUDIO PLAY STOP ELECT AV INPUT Note: Items marked with an are only available on systems with a DVD player. A. DVD compartment slot : Insert a disc with the label side facing the rear passengers.
  • Page 350 Audio System J. USB port (optional): Listen to music or view images you stored on a USB device such as a USB memory stick or a memory card reader. K. SOURCE: Press this button to select Monitor A, Monitor B, AUX/TV (if available), and AUX 2 (if available).
  • Page 351 Audio System Note: Remove the batteries if the remote control is not used for a month or longer. Button Function Descriptions Note: The remote control only operates this device. It is not a universal remote control and does not control other equipment. POWER SOURCE SETUP...
  • Page 352 Audio System 8. CH + and CH -: • In DVD mode, press these buttons to move the select bar to items among the menu or file list. • In TV mode, press these buttons to go to the next channel or previous channel.
  • Page 353 Audio System 25. PIX: Press this button to access settings for BRIGHTNESS, CONTRAST, SATURATION, HUE, SHARPNESS, IR HEADPHONE, and RESET. When you find the desired setting, use CH + and CH - to change the setting. The bar display automatically disappears if no changes are made within six seconds, or if any button is pressed.
  • Page 354 Audio System DVD Basics To get the most use out of each DVD, make sure you read this section completely. Regional Coding Both the DVD player and disc have specific region codes. These regional codes must match in order for the disc to play. If the codes do not match, the disc does not play.
  • Page 355 Audio System • Before playing a disc, clean it with a commercially available cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzene, thinner, commercially available cleaners, or antistatic spray intended for analog discs. •...
  • Page 356 Audio System The Speaker Setup menu has the following options: • LT/RT • Stereo • V SURR • OFF The Dolby Digital Setup menu has the following options: • Stereo • L-Mono • R-Mono • Mix-Mono Quality Setup Press SETUP on the remote control, and then use CH +, CH -, VOL + and VOL - to navigate the Setup Page.
  • Page 357 Audio System Subtitle This allows the user to turn the subtitles on and off in the selected language for playback automatically. Disc Menu This allows the user to control the DVD disc menu in the selected language. Parental This section of the Setup Menu allows user to control the content of movie playback from G to ADULT.
  • Page 358 Audio System Playing an Audio CD When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track and the amount of time the track has been playing, the total amount of time on the disc and the current time running on the disc.
  • Page 359 Audio System Selecting a Play Mode You can choose what order the songs play on a disc temporarily. The FOLDER play mode is the default. To access the play mode operations, press REPEAT on the remote control. The play mode options are: •...
  • Page 360 Audio System Connecting an MP3 Device Using a USB Cable Plug the MP3 Dock Connector to USB cable into a high-power USB port on your DVD-headrest module, and then connect the other end to the player. See the documentation that came with your device for more information. Charging the MP3 Player Battery After you turn the DVD-headrest module on, connect the device to the USB port on your DVD-headrest module...
  • Page 361 Audio System Symptom Possible cause The disc plays, but The disc is dirty and needs cleaning. then immediately Condensation has formed inside the device. stops. Allow the player to dry out. There is no picture. The signal source is not connected. The setting may be in the wrong status.
  • Page 362 Audio System Compliance Information FCC Notice This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 363 Audio System Warranty INVISION Automotive Systems Inc., (the “Company”) warrants to the original retail purchaser of this product, when purchased from a participating new car dealership, that should this product under normal use and conditions, be proven defective in material or workmanship, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option) without charge for parts and repair labor when the work is performed by the original dealership of purchase,...
  • Page 364 Audio System This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code label(s).

  • Page 365: Sync

    SYNC® SYNC is an in-vehicle communications system that works with your Bluetooth-enabled cellular phone and portable media player. This allows you to: • Make and receive calls. • Access and play music from your portable music player. • Use 911 Assist, Vehicle Health Report and SYNC Services (Traffic, Directions &...
  • Page 366 SYNC® GENERAL INFORMATION Make sure you review your device’s manual before using it with SYNC. Support The SYNC support team is available to help you with any questions you cannot answer on your own. Monday-Saturday, 8:30am-9:00pm EST. Sunday, 10:30am-7:30pm EST. In the United States, call: 1–800–392–3673.
  • Page 367 SYNC® When using SYNC: • Do not operate playing devices if the power cords or cables are broken, split or damaged. Place cords and cables out of the way, so they do not interfere with the operation of pedals, seats, compartments or safe driving abilities.
  • Page 368 SYNC® System data cannot be accessed without special equipment and access to the vehicle’s SYNC module. Ford Motor Company and Ford of Canada do not access the system data for any purpose other than as described absent consent, a court order, or where required by law enforcement, other government authorities, or other third parties acting with lawful authority.
  • Page 369 SYNC® System Interaction and Feedback The system provides feedback through audible tones, prompts, questions and spoken confirmations depending on the situation and the chosen level of interaction (voice settings). You can customize the voice recognition system to provide more or less instruction and feedback. The default setting is to a higher level of interaction in order to help you learn to use the system.
  • Page 370 SYNC® Helpful Hints • Make sure the interior of the vehicle is as quiet as possible. Wind noise from open windows and road vibrations may prevent the system from correctly recognizing spoken commands. • After pressing the voice icon, wait until after the tone sounds and Listening appears before saying a command.

  • Page 371: Pairing Your Phone For The First Time

    SYNC® Pairing a Phone for the First Time Note: SYNC can support downloading up to approximately 1000 entries per Bluetooth-enabled cellular phone. Note: Make sure the vehicle ignition and radio are turned on and the transmission is in position P. Note: To scroll through the menus, press the up and down arrows on your audio system.
  • Page 372 SYNC® Phone Voice Commands Press the voice icon and say “Phone”. Say any of the following: “PHONE” “Call <name>” “Call <name> on mobile OR cell” “Call <name> on other” “Phone book <name> at home” “Phone book <name> on mobile OR cell” “Call history outgoing”...
  • Page 373 SYNC® “MENU” “(Phone) connections” “(Phone) settings (message) notification off” “(Phone) settings (message) notification on” “(Phone) settings (set) phone ringer” “(Phone) settings (set) ringer 1” “(Phone) settings (set) ringer 2” “(Phone) settings (set) ringer 3” “(Phone) settings (set) ringer off” “Battery” “Phone name”...
  • Page 374 SYNC® Making Calls Press the voice icon and when prompted say: 1. Say “Call <name>” or “Dial”, then the desired number. 2. When the system confirms the number, say “Dial” again to initiate the call. To erase the last spoken digit, say “Delete” or press the left arrow button.
  • Page 375 SYNC® When you select: You can: Join two separate calls. Join Calls 1. Press the phone button. 2. Access the desired contact through SYNC or use voice commands to place the second call. Once actively in the second call, press MENU.
  • Page 376 SYNC® Accessing Features through the Phone Menu SYNC’s phone menu allows you to redial a number, access your call history and phone book and send text messages as well as access phone and system settings. You can also access advanced features, such as 911 Assist, Vehicle Health Report and SYNC Services.
  • Page 377 SYNC® When you select: You can: Enables you to send, download and delete Text Message text messages. Allows you to view your phone’s status, set Phone Settings ring tones, select your message notification, change phone book entries and automatically download your cellular phone among other features.
  • Page 378 SYNC® Receiving a Text Message Note: This is a phone-dependent feature. Your phone must support downloading text messages using Bluetooth to receive incoming text messages. Note: Forwarding a text message is a speed-dependent feature and can only be done when the vehicle is traveling at 3 mph (5 km/h) or less. Note: Only one recipient is allowed per text message.
  • Page 379 6. Press OK when the contact appears and press OK again to confirm when the system asks if you would like to send the message. Each text message is sent with the following signature: “This message was sent from my <Ford or Lincoln>”. Pre-defined text message options Can’t talk right now...
  • Page 380 SYNC® Accessing Your Phone Settings These are phone-dependent features. Your phone settings allow you to access and adjust features such as your ring tone, text message notification, modify your phone book and also set up automatic download. 1. Press the phone button. 2.
  • Page 381 SYNC® When you select: You can: Modify the contents of your phone book (i.e., Modify Phonebook add, delete, download). Press OK to select and scroll between: Add Contacts: Press OK to add more contacts from your phone book. Push the desired contact(s) on your phone.
  • Page 382 SYNC® System Settings System Settings provide access to your Bluetooth Devices and Advanced menu features. Use the arrow buttons to scroll through the menu options. The Bluetooth Devices menu allows you to add, connect, delete and set a phone as primary as well as turn your Bluetooth feature on and off. The Advanced menu allows you to access and set prompts, languages, defaults, perform a master reset, install an application and view system information.
  • Page 383 SYNC® If you select: You can: Delete a paired phone. Delete Device Press OK and scroll to select the device. Press OK to confirm. Delete all previously paired phones (and all Delete All Devices information originally saved with those phones). Press OK to select.
  • Page 384 SYNC® If you select: You can: Return to the factory default settings. This Factory Defaults selection does not erase your indexed information (phonebook, call history, text messages and paired devices). 1. Press OK to select and then press OK again when Restore Defaults? appears in the display.

  • Page 385: 911 Assist

    SYNC® 911 Assist® WARNING: Unless the 911 Assist setting is set on prior to a crash, the system will not dial for help which could delay response time, potentially increasing the risk of serious injury or death after a crash. WARNING: Do not wait for 911 Assist to make an emergency call if you can do it yourself.
  • Page 386 SYNC® Setting 911 Assist On Perform the following: 1. Press the phone button to enter the Phone Menu. 2. Scroll until 911 Assist is selected. 3. Press OK to confirm and enter the 911 Assist menu. 4. Scroll to select between On and Off selections. 5.

  • Page 387: Vehicle Health Report

    SYNC® If the call is not cancelled and a successful call is made, a pre-recorded message is played for the 911 operator, then the occupant(s) in the vehicle is able to talk with the operator. Be prepared to provide your name, phone number and location immediately, because not all 911 systems are capable of receiving this information electronically.
  • Page 388 SYNC® Note: In order to allow a break-in period for your vehicle, you may not be able to create a Vehicle Health Report until your vehicle odometer has reached 200 miles. Register for Vehicle Health Report and set your report preferences at www.SYNCMyRide.com.
  • Page 389 SYNC® Vehicle Health Report options Run Report? Press OK for SYNC to run a health report of your vehicle’s diagnostic systems and send the results to Ford where it is combined with scheduled maintenance information, open recalls and other field service actions and unserviced vehicle inspection items from your authorized dealer.
  • Page 390 SYNC® Note: The driver is ultimately responsible for the safe operation of the vehicle, and therefore, must evaluate whether it is safe to follow the suggested directions. Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and existing traffic regulations.
  • Page 391 SYNC® Connecting to SYNC Services Using the Navigation Screen 1. Select the Phone hard button. 2. Select the SYNC Apps soft button tab. 3. Select the SYNC Services soft button to connect to SYNC Services. Receiving Turn-by-Turn Directions 1. When connected to SYNC Services, say “Directions” or “Business search”.
  • Page 392 SYNC® Disconnecting from SYNC Services 1. Press and hold the phone button on the steering wheel. 2. Say “Good-bye” from the SYNC Services main menu. SYNC Services quick tips Personalizing You can personalize your Services feature to provide quicker access to your most used or favorite information.
  • Page 393 SYNC® SYNC AppLink™ Note: This feature is only available in the United States. Note: Your smartphone must be paired and connected to SYNC to access AppLink. Note: iPhone users need to connect the phone to the USB port in order to start the application.
  • Page 394 SYNC® To Access Using Voice Commands 1. Press the voice icon. 2. When prompted, say “Mobile Apps”. 3. Say the name of the application after the tone. 4. The app should start. While an app is running through SYNC, you can press the voice button and speak commands specific to the app, such as “Play Station Quickmix”.
  • Page 395 SYNC® • Explore USB • Similar Music • Return When the desired selection appears in the display, press OK to build your desired music selection. What’s Playing? At any time when a track is playing, you can press the voice icon and ask the system, “What’s playing?”.
  • Page 396 SYNC® “USB” “Repeat off” “Repeat on” “Search album <name>” “Search artist <name>” “Search genre <name>” “Search song <name>” “Search track <name>” “Shuffle off” “Shuffle on” “Similar music” “What’s playing?” “<name>” is a dynamic listing, meaning that it could be the name of any desired group, artist, etc.
  • Page 397 SYNC® Voice command guide This allows you to make your previous command “Refine” more specific. For example, if you asked to search and play all music by a certain artist, you could then say “refine album” and choose a specific album from the list to view. If you then select Play, the system only plays music from that specific album.
  • Page 398 SYNC® When you select: You can: Select Source SYNC USB: Press OK to access music plugged into your USB port. You can also plug in devices to charge them (if supported by your device). Once connected, the system indexes any readable media files.
  • Page 399 SYNC® When you select: You can: Choose to shuffle or repeat your music and Media Settings select your Autoplay settings. Once these selections are turned on, they remain on until turned off. Press SEEK to play the previous or next track. Note: Some digital media players require both USB and line in ports to stream data and music separately.
  • Page 400 SYNC® If there are no media files to access, the display indicates there is no media. If there are media files, you have the following options to scroll through and select from: When you select: You can: Play all indexed media (tracks) from your Play All playing device in flat file mode, one at a time in numerical order.
  • Page 401 SYNC® When you select: You can: Search for and play a specific track which has Tracks been indexed. SYNC lists your tracks alphabetically in flat file mode. If there are more than 255, SYNC automatically organizes them into alphabetical categories. Press OK to select.
  • Page 402 SYNC® Bluetooth Devices Menu Options This menu allows you to add, connect and delete devices as well as turn Bluetooth on and off. 1. Press AUX and then MENU to enter the Media Menu. 2. Scroll until System Settings appears and select OK. 3.
  • Page 403 SYNC® Advanced Menu Options This menu allows you to access settings such as prompts, language, performing a master reset as well as returning to factory defaults. 1. Press AUX and then MENU to access the Media Menu. 2. Scroll until System Settings appears and select OK. 3.
  • Page 404 SYNC® When you select: You can: Master Reset Completely erase all information stored on SYNC (all phonebook, call history, text messages and all paired devices) and return to the factory default settings. Application Download new software applications (if available) and then load the desired applications through your USB port.
  • Page 405 SYNC® Phone issues Issue Possible Possible solution(s) cause(s) • This is a • Go to the website to review SYNC is not able to download my phone-dependent your phone’s compatibility. • Try turning off the device, phonebook. feature, OR • Possible phone resetting the device or removing malfunction.
  • Page 406 SYNC® Phone issues Issue Possible Possible solution(s) cause(s) • This is a • Go to the website to review I am having trouble phone-dependent your phone’s compatibility. • Try turning off the device, connecting my feature, OR • Possible phone phone to SYNC.
  • Page 407 SYNC® USB and media issues Issue Possible Possible solution(s) cause(s) • Try turning off the device, I am having Possible device trouble malfunction. resetting the device or removing connecting my the device’s battery, then trying device. again. • Make sure you are using the manufacturer’s cable.
  • Page 408 SYNC® USB and media issues Issue Possible Possible solution(s) cause(s) • Your music files • Make sure that all song details SYNC does not recognize music may not contain are populated. • Some devices require you to that is on my the proper artist, device.
  • Page 409 SYNC® Vehicle Health Report and SYNC Services (Traffic, Directions and Information) issues Issue Possible Possible solution(s) cause(s) I am unable to The preferred When you register your account, retrieve the dealer you must list a preferred dealer. report on the information did If one is already listed, try website, or I...
  • Page 410 SYNC® Voice command issues Issue Possible Possible solution(s) cause(s) • You may be • Review the Phone voice SYNC does not understand what using the wrong commands and the Media voice I am saying. voice commands, commands at the beginning of their respective sections.
  • Page 411 SYNC® Voice command issues Issue Possible Possible solution(s) cause(s) • You may be • Review the phone voice SYNC does not understand or is using the wrong commands at the beginning of calling the wrong voice commands, the phone section. •...
  • Page 412 SYNC® AppLink issues Issue Possible Possible solution(s) cause(s) • Your device • Check the website for SYNC does not find any mobile may not support compatible devices and apps that are on the AppLink applications. • Make sure your device is my phone.

  • Page 413: Navigation System (If Equipped)

    Navigation System (If Equipped) NAVIGATION CONTROLS WARNING: Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
  • Page 414 Navigation System (If Equipped) A. Memory presets: • Store your favorite radio stations. To store a radio station, tune to the station, then press and hold a preset button until sound returns. • In radio and satellite radio mode, press a button to access your saved presets or channels.
  • Page 415 Navigation System (If Equipped) L. MENU: • Press this button to access the system menu. • Press while the system menu is active to access the menu tabs of Display, Clock, Feedback Settings, System Settings and Valet Mode. M. SOUND: •...

  • Page 416: Status Bars

    Navigation System (If Equipped) Display mode voice commands “Night” “Auto” “Help” STATUS BARS The top status bar shows the current mode, exterior temperature, time and display icons if you have enabled Bluetooth or other options. The bottom status bar shows the Home icon and may show the Artist and Title of the currently playing CD, Artist and Title for Jukebox and...

  • Page 417: Loading Pictures

    Navigation System (If Equipped) Loading Photos Note: The system is not compatible with discs written in Packet Write mode. Your system allows you to upload and view up to 32 photos. Only the photograph(s), which meets the following conditions, display: •...

  • Page 418: Voice Recognition

    Navigation System (If Equipped) Using the Touch-sensitive Controls on Your System To turn a feature on and off, just touch the graphic with your finger. To get the best performance from the touch-sensitive controls: • Make sure your hands are clean and dry. •...
  • Page 419 Navigation System (If Equipped) How To Use Voice Commands with Your System Press the voice icon; after the tone, speak your command clearly. You can say these commands at any time. “Audio” “Navigation” “CD” “Radio” “Disc” “SYNC” “Display mode” “Tutorial” “DVD”...
  • Page 420 Navigation System (If Equipped) Voice Settings Voice settings allow you to customize the level of system interaction, help and feedback. The system defaults to standard interaction, which uses candidate lists, and confirmation prompts as these provide the highest level of guidance and feedback. Interaction Mode: Novice mode provides detailed interaction and guidance while the advanced mode has less audible interaction and more tone prompts.
  • Page 421 Navigation System (If Equipped) If you select: You can: Clock Display Clock allows you to turn the clock off and on. Note: If your vehicle is equipped with an in-dash analog clock, you can set the time on this screen, but it may not appear in the status bar for viewing purposes.
  • Page 422 Navigation System (If Equipped) If you select: You can: Feedback Settings Touch Screen Button Beep allows you to select when the system sounds an audible tone: All Buttons (whenever any system button is touched), Touch Screen (only when touchscreen selections are made) or Off (no audible tones at all).
  • Page 423 Navigation System (If Equipped) If you select: You can: System Settings Language allows you to choose between English, Spanish and French. Units allows you to choose between English and Metric measurements. Keyboard Layout allows you to choose between an ABC and QWERTY keyboard. Delete Stored Items allows you to choose to delete all of the entries from Address Book, Previous Destinations, Avoid Areas, Saved...

  • Page 424: Accessing Media Features

    Navigation System (If Equipped) ENTERTAINMENT Your system offers many media options. You can access these options using the touchscreen or voice commands. AM/FM Radio Press the RADIO hard button. To change between AM, FM1 and FM2, touch the AM or FM tab.
  • Page 425 Navigation System (If Equipped) When you select: You can: Show Presets View the preset stations. Save a station by pressing and holding one of the memory preset areas. There is a brief mute while the radio saves the station. Sound returns when finished.
  • Page 426 Navigation System (If Equipped) If you are listening to the radio, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not listening to the radio, press the voice button and, after the tone, say “Radio”, then any of the commands in the following chart.
  • Page 427 Navigation System (If Equipped) HD Radio™ Information (If Available) Note: HD Radio broadcasts are not available in all markets. HD Radio technology is the digital evolution of analog AM/FM radio. Your system has a special receiver that allows it to receive digital broadcasts (where available) in addition to the analog broadcasts, it already receives.
  • Page 428 Navigation System (If Equipped) When you select: You can: Tune Go up and down the frequency in individual increments. If the current station has multiple digital broadcasts, the multicast indicator appears. Press Tune repeatedly to advance through all available broadcasts. If you are on the last broadcast channel, press to advance to the next frequency on the band.
  • Page 429 Navigation System (If Equipped) When you select: You can: To save a multicast When the channel is active on-screen, press station as a preset and hold a memory preset slot until the sound returns. There is a brief mute while the radio saves the station.
  • Page 430 Navigation System (If Equipped) In order to provide the best possible experience, use the contact form to report any station issues found while listening to a station broadcasting with HD Radio technology. Independent entities own and operate each station. These stations are responsible for ensuring all audio streams and data fields are accurate.
  • Page 431 Navigation System (If Equipped) http://www.ibiquity.com/automotive/report_radio_station_experiences HD Radio Technology manufactured under license from iBiquity Digital Corp. U.S. and foreign patents. HD Radio and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corp. Ford Motor Company and iBiquity Digital Corp. are not responsible for the content sent using HD Radio technology.
  • Page 432 Navigation System (If Equipped) Sirius® Satellite Radio (If Activated) Press the RADIO hard button, then select SAT on the touchscreen. When you select: You can: SAT123 Press this button to access three different satellite radio modes (SAT1, SAT2 or SAT3). Scan Press this button to hear a brief sampling of all satellite radio channels within the current...
  • Page 433 Navigation System (If Equipped) When you select: You can: Memo Press this button to save a song title and artist to the system. When the saved song is playing on any satellite radio channel, the system alerts you with a pop-up in the lower status bar.
  • Page 434 Navigation System (If Equipped) Sirius® Satellite Radio Voice Commands If you are listening to Sirius satellite radio, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not listening to Sirius satellite radio, press the voice button and, after the tone, say “Sirius”, then any of the commands in the following chart.
  • Page 435 Navigation System (If Equipped) Sirius® Information Note: Sirius reserves the unrestricted right to change, rearrange, add or delete programming including canceling, moving or adding particular channels, and its prices, at any time, with or without notice to you. Ford Motor Company shall not be responsible for any such programming changes.
  • Page 436 Navigation System (If Equipped) Potential reception issues Satellite radio signal Your display may show ACQUIRING... to interference indicate the interference and the audio system may mute. Troubleshooting tips Radio Display Condition Possible Action Acquiring... Radio requires more No action required. than two seconds to This message should produce audio for the...
  • Page 437 Navigation System (If Equipped) Troubleshooting tips Radio Display Condition Possible Action Call Sirius Your satellite service is Contact Sirius at 1–888–539–7474. no longer available. 1-888-539-7474 to resolve subscription issues. No Channels Available. All the channels in the Use the channel guide selected channels are to turn off the Lock either skipped or...
  • Page 438 Navigation System (If Equipped) CD Voice Commands If you are listening to a CD, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not listening to a CD, press the voice button and, after the tone, say “CD”, then any of the commands in the following chart.
  • Page 439 Navigation System (If Equipped) Note: Your system only plays NTSC formatted discs. The system does not support PAL format. Your system allows you to play DVD audio and video discs. Make sure your vehicle is in position P (vehicles equipped with an automatic transmission) or the parking brake is engaged (vehicles equipped with a manual transmission).
  • Page 440 Navigation System (If Equipped) During disc play, you can also touch the screen to access the virtual remote, which allows you to Move Controls on the screen, as well as use the cursor controls, Enter and Return to navigate and select within the menus.
  • Page 441 Navigation System (If Equipped) DVD Voice Commands If you are watching a DVD, press the voice button on the steering wheel control. When prompted, say any of the commands in the following chart. If you are not watching a DVD, press the voice button and, after the tone, say “DVD”, then any of the commands in the following chart.

  • Page 442: Jukebox Features

    Navigation System (If Equipped) Jukebox Your system has a Jukebox feature, which allows you to save desired tracks or CDs to the hard drive for later access. The hard drive can store up to 10 GB* (164 hours; approximately 2472 tracks) of music. The system contains a Gracenote media database that allows for display of song title, album title, and album cover art.
  • Page 443 Navigation System (If Equipped) When you select: You can: Music library Access all of your saved music. You can choose to view or play the material in the following ways: Play All Tracks allows you to play all tracks saved in the jukebox. Playlist allows you to play your own playlist.

  • Page 444: Creating A Playlist

    Navigation System (If Equipped) Creating a Playlist Press the MEDIA hard button, and then select the Jukebox tab on the touchscreen. 1. Select Options. 2. Select Edit Playlists, then which playlist you would like to create. 3. Select which category you would like to access from your saved music. 4.

  • Page 445: Where Am I

    Navigation System (If Equipped) User Device If your vehicle is equipped with SYNC, there is a User Device tab. For more information, see the SYNC chapter. Line In (Auxiliary Input Jack) Your vehicle is equipped with an audio input jack, which allows you to plug a portable audio device into your vehicle’s audio system.
  • Page 446 Navigation System (If Equipped) Press the I (information) button, then select Sirius Travel Link. Choose from any of the following services: When you select: You can: Traffic On Route Identify traffic incidents on your route, nearby your vehicle’s current location or near any of Traffic Nearby your favorite places (if programmed).
  • Page 447 Navigation System (If Equipped) “TRAVEL LINK” “College football scores” “Sports schedule” “Fuel prices” “Sports scores” “Golf leaders” “Traffic” “Golf schedule” “Travel link help” “Motor sports order” “Weather” “Motor sports schedule” “Weather map” “Movie listings” If you have said, “Sports schedule”, you may say any of the commands in the “Sports schedule”...

  • Page 448: Accessing The Help Screen

    Navigation System (If Equipped) System Information Press the I (information) button, then select System Information. In this screen, you can view the following options: • Phone number for your Customer Service Center • Current system versions installed • Current Sirius Radio ESN •...

  • Page 449: Navigation Features

    Navigation System (If Equipped) SOUND The sound menu allows you to access and adjust settings, such as Bass, Treble, Fade, Balance, Speed Compensated Volume (SCV) and the visualizer. Press the SOUND hard button. When you select: You can: Bass/Treble Increase or decrease levels by pressing + or -. Balance/Fade Adjust the sound between the left and right speakers and front and rear speakers.
  • Page 450 Navigation System (If Equipped) Route Guidance in Incompletely Mapped Areas There are some rural areas in the map database without fully verified roads. When the system is in route guidance mode, and the navigation system encounters these incompletely mapped areas, the system alerts you by: •...
  • Page 451 Navigation System (If Equipped) Quick Note: Items on this screen are selectable at any speed. Find Nearest POI Select up to five different points of interest (POI) favorites that you can search for while your vehicle is moving. You can change these categories at any time but the default categories are: •...
  • Page 452 Navigation System (If Equipped) Standard Note: Items on this screen are selectable only when your vehicle is moving at speeds slower than 5 mph (8 km/h). Touch this button to select a point on the map as a destination or waypoint by using the map cursor.
  • Page 453 Navigation System (If Equipped) Standard Note: Items on this screen are selectable only when your vehicle is moving at speeds slower than 5 mph (8 km/h). Touch this button to select a point of interest Point of Interest (POI) on the map as a destination or waypoint. There are three ways to search for a point of interest: 1.
  • Page 454 Navigation System (If Equipped) Standard Note: Items on this screen are selectable only when your vehicle is moving at speeds slower than 5 mph (8 km/h). Freeway Touch this button to select an entrance and Entrance/Exit exit point to a freeway you select. You can sort the entrance and exit point alphabetically or in order of distance from your vehicle’s position.
  • Page 455 Navigation System (If Equipped) Standard Note: Items on this screen are selectable only when your vehicle is moving at speeds slower than 5 mph (8 km/h). Touch this button to select an intersection Intersection point. Enter the name of the first street, then the first letter of the second street.
  • Page 456 Navigation System (If Equipped) To delete all stored Address Book and Previous Destination entries at once: 1. Press the MENU hard button. 2. Select the System Settings tab. 3. Press the View button for Delete Stored Items. 4. Select Address Book or Previous Destinations. Edit Route Cancel Route Touch this button to cancel the current route.
  • Page 457 Navigation System (If Equipped) Programming a Destination Using Voice Commands Press the voice button on the steering wheel. If you want to: Say: Enter an address. “Destination street address” Enter an intersection. “Destination intersection” Find a point of interest “Destination nearest <POI category>” or (POI) by its category.
  • Page 458 Navigation System (If Equipped) Within these main categories, there are subcategories, which contain more listings: Subcategories Restaurant Auto Dealership Parking Public Transit Home & Garden Education Personal Care Services Setting Your Navigation Preferences Select settings for the system to take into account when planning your route.
  • Page 459 Navigation System (If Equipped) Map Preferences Bird’s Eye View ON provides an elevated map perspective. OFF turns the feature off. Adjust Angle offers six different map angles. Turn List Format Top-to-Bottom starts the turn instructions from the top. Bottom-to-Top starts the turn instructions from the bottom.
  • Page 460 Navigation System (If Equipped) Traffic Preferences Traffic Icons to Touch this button to display a list of map overlay on Map icons that you can turn off and on. The list of icons includes: • Weather related incidents • Road work •...
  • Page 461 Navigation System (If Equipped) Navigation Preferences Avg. Speed: When this feature is on, the system displays Residential the average speed on a residential road, initially set to 25 mph (40 km/h). You can change the setting for your driving preferences. This setting helps estimate your arrival time at a destination based on your driving preferences.
  • Page 462 Navigation System (If Equipped) Navigation Preferences Calibrate Position allows you to adjust the direction of your vehicle by pressing the arrow buttons on the screen. Distance allows you to recalibrate the distance to the destination while your vehicle is moving. Restore Default Touch the Reset button to return the settings Settings...
  • Page 463 Navigation System (If Equipped) North Up always shows the northern direction to be upward on the screen. Map Icons Vehicle mark shows the current location of your vehicle. It stays in the center of the map display, except when in scroll mode.
  • Page 464 Navigation System (If Equipped) No GPS symbol indicates that insufficient GPS satellite signals are available for accurate map positioning. This icon may display under normal operation in an area with poor GPS access. Map Scale The map display scale has 17 levels, ranging from 0.02 miles (.03 kilometers) to 1000 miles (1600 kilometers).
  • Page 465 Navigation System (If Equipped) Quick-touch Buttons When in map mode, touch anywhere on the map display to access the following options: When you select: You can: Set as Dest Select a scrolled location on the map as your destination. You may scroll the map by pressing your index finger on the map display.
  • Page 466 Navigation System (If Equipped) Navigation Map Updates Annual navigation map updates are available for purchase through your dealership, by calling 1-800-NAVMAPS (in Mexico, call 01–800–557–5539) or going to www.navigation.com/ford. You need to specify the make and model of your vehicle to determine if there is an update available. Navigation Voice Commands When in navigation mode, press the voice button on the steering wheel control.
  • Page 467 Navigation System (If Equipped) “DESTINATION” “Intersection” “Nearest <POI category>” “Nearest POI” “POI” “POI category” “Previous destination” “Street address” “Help” Troubleshooting Symptoms Possible Cause Action Focus error. The system is not able Contact an authorized to play a reproduced dealer. disc. Bad disc.
  • Page 468 Navigation System (If Equipped) Symptoms Possible Cause Action A pop-up window There is a system Contact an authorized displays “Navigation hardware or software dealer. fault. A system fault error. has been detected that may cause the navigation to perform abnormally. Please contact your dealership.”...

  • Page 469: Appendices

    Appendices GENERAL INFORMATION SYNC® End User License Agreement (EULA) • You have acquired a device (“DEVICE”) that includes software licensed by Ford Motor Company and its affiliates (“FORD MOTOR COMPANY”) from an affiliate of Microsoft Corporation (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online”...
  • Page 470 Appendices DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS: • Speech Recognition: If the SOFTWARE includes speech recognition component(s), you should understand that speech recognition is an inherently statistical process and that recognition errors are inherent in the process. Neither FORD MOTOR COMPANY nor its suppliers shall be liable for any damages arising out of errors in the speech recognition process.
  • Page 471 Appendices SOFTWARE’s ability to use WMDRM to play or copy protected content. This action does not affect unprotected content. When your DEVICE downloads licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade the SOFTWARE on your DEVICE to access their content.
  • Page 472 Appendices If MS, Microsoft Corporation, their affiliates and/or their designated agent make available Supplemental Components, and no other EULA terms are provided, then the terms of this EULA shall apply, except that the MS, Microsoft Corporation or affiliate entity providing the Supplemental Component(s) shall be the licensor of the Supplemental Component(s).
  • Page 473 Appendices suppliers. The SOFTWARE is licensed, not sold. You may not copy the printed materials accompanying the SOFTWARE. All title and intellectual property rights in and to the content which may be accessed through use of the SOFTWARE is the property of the respective content owner and may be protected by applicable copyright or other intellectual property laws and treaties.
  • Page 474 Appendices • THERE ARE NO WARRANTIES OTHER THAN THOSE THAT MAY EXPRESSLY BE PROVIDED FOR YOUR NEW VEHICLE. Adobe Contains Adobe® [Flash® Player] or [AIR®] technology by Adobe Systems Incorporated. This [Licensee Product] contains [Adobe® Flash® Player] [Adobe® AIR®] software under license from Adobe Systems Incorporated, Copyright 1995-2009 Adobe Macromedia Software LLC.
  • Page 475 Appendices General operation Voice Command Control Functions within the Windows Automotive-based system may be accomplished using only voice commands. Using voice commands while driving allows you to operate the system without removing your hands from the wheel. Prolonged Views of Screen Do not access any function requiring a prolonged view of the screen while you are driving.
  • Page 476 Appendices Let Your Judgment Prevail Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and existing traffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should never replace any local traffic regulations or your personal judgment or knowledge of safe driving practices.
  • Page 477 Appendices Terms and Conditions Personal use only: You agree to use this Data together with your FLM navigation system for solely personal, non commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs, you may copy this Data only as necessary for your personal use to (i) view it, and (ii) save it, provided that you do not remove any copyright notices that appear and do not...
  • Page 478 Appendices Disclaimer of liability: (Licensee) and its licensors (including their licensors and suppliers) shall not be liable to you: in respect of any claim, demand or action, irrespective of the nature of the cause of the claim, demand or action alleging any loss, injury or damages, direct or indirect, which may result from the use or possession of the information;...
  • Page 479 Appendices FCC Compliance Changes or modifications not approved by Ford could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits with the Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 480 Appendices You agree that you will use the content from Gracenote (“Gracenote Content”), Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal, non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Content, Gracenote Software or any Gracenote Data (except in a Tag associated with a music file) to any third party.
  • Page 481 Appendices THE GRACENOTE SOFTWARE, EACH ITEM OF GRACENOTE DATA AND THE GRACENOTE CONTENT ARE LICENSED TO YOU “AS IS.” NEITHER GRACENOTE MAKES ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, REGARDING THE ACCURACY OF ANY GRACENOTE DATA FROM THE GRACENOTE SERVERS OR GRACENOTE CONTENT.

  • Page 482: Scheduled Maintenance

    Scheduled Maintenance GENERAL MAINTENANCE INFORMATION Why Maintain Your Vehicle? Carefully following the maintenance schedule helps protect against major repair expenses resulting from neglect or inadequate maintenance and may help to increase the value of your vehicle when you sell or trade it. Keep all receipts for completed maintenance with your vehicle.
  • Page 483 Scheduled Maintenance Convenience Many dealerships have extended evening and Saturday hours to make your service visit more convenient and they offer one stop shopping. They can perform any services that are required on your vehicle, from general maintenance to collision repairs. Note: Not all dealers have extended hours or body shops.
  • Page 484 Scheduled Maintenance Oils, Fluids and Flushing In many cases, fluid discoloration is a normal operating characteristic and, by itself, does not necessarily indicate a concern or that the fluid needs to be changed. However, a qualified expert, such as the factory-trained technicians at your dealership, should inspect discolored fluids that also show signs of overheating or foreign material contamination immediately.
  • Page 485 Scheduled Maintenance Multi-point Inspection In order to keep your vehicle running right, it is important to have the systems on your vehicle checked regularly. This can help identify potential issues and prevent major problems. Ford Motor Company recommends the following multi-point inspection be performed at every scheduled maintenance interval to help make sure your vehicle keeps running great.
  • Page 486 Scheduled Maintenance 2014 Navigator (nav) Owners Guide gf, 1st Printing, June 2013 USA (fus)

  • Page 487: Normal Scheduled Maintenance And Log

    Scheduled Maintenance NORMAL SCHEDULED MAINTENANCE AND LOG The following section contains the Normal Scheduled Maintenance. This schedule is presented at specific mileage (kilometer) intervals with exceptions as noted. Normal scheduled maintenance Every 7500 miles Change engine oil and filter. (12000 km) or Rotate tires, inspect tire wear and measure six months (whichever tread depth.
  • Page 488 Scheduled Maintenance Other maintenance items Every 30000 miles Replace climate-controlled (heated and (48000 km) cooled) seat filter (if equipped). Replace engine air filter. Every 97500 miles Replace spark plugs. (156000 km) Every 105000 miles Change engine coolant. (168000 km) Inspect accessory drive belt(s). Every 150000 miles Change automatic transmission fluid and filter.
  • Page 489 Scheduled Maintenance Maintenance Schedule Log EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS...
  • Page 490 Scheduled Maintenance EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE...
  • Page 491 Scheduled Maintenance EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE...
  • Page 492 Scheduled Maintenance SPECIAL OPERATING CONDITIONS If you operate your vehicle primarily in any of the following conditions, you need to perform additional maintenance as indicated. If you occasionally operate your vehicle under any of these conditions, it is not necessary to perform the additional maintenance. For specific recommendations, see your dealership service advisor or technician.
  • Page 493 Scheduled Maintenance Extensive idling or low-speed driving for long distances as in heavy commercial use (such as delivery, taxi, patrol car or livery) Every 5000 miles Change engine oil and filter. (8000 km) or six months Every 60000 miles Change transfer case fluid (4WD vehicles). (96000 km) Replace spark plugs.
  • Page 494 Scheduled Maintenance Off-road operation Inspect frequently, Inspect steering linkage, ball joints and service as required U-joints. Lubricate if equipped with grease fittings. Replace engine air filter. Every 5000 miles Change engine oil and filter. (8000 km) Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
  • Page 495 Scheduled Maintenance Special Operating Condition Log EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#:...
  • Page 496 Scheduled Maintenance EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE ILEAGE EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS OURS ILEAGE...
  • Page 497 Scheduled Maintenance EXCEPTIONS Normal vehicle axle maintenance: Rear axles and power take-off units with synthetic fluid and light-duty trucks equipped with Ford-design axles are lubricated for life; do not check or change fluid unless a leak is suspected, service is required or the assembly has been submerged in water.

  • Page 498: Engine Coolant Change Log

    Scheduled Maintenance ENGINE COOLANT CHANGE RECORD Initial change Six years or 105000 miles (168000 km) (whichever comes first) After initial change Every three years or 45000 miles (72000 km) Engine Coolant Change Log EALER ALIDATION EALER ALIDATION P&A C P&A C RO#: RO#: OURS...

  • Page 499: Index

    Index 911 Assist™ ......384 Anti-lock brake system (see Brakes) ......190 Anti-theft system ....80, 82 arming the system ....80, 82 ABS (see Brakes) .....190 disarming a triggered system ..82 Accessing call history/phone AppLink™ .........392 book during active call .....373 Audio system Accessing the help screen ..447 Single CD ........334 Accessing the music in your...
  • Page 500 Index lubricant specifications ..320 Controls parking ........191 power seat .......129 shift interlock ......179 Coolant ........259 trailer ........223 checking and adding ....259 refill capacities ......320 specifications ......320 Capacities for refilling fluids ..320 Creating a playlist .....443 Car2U® Home Automation Cruise control ......201 System ........145 Customer Assistance ....232 Cargo management system ..213...
  • Page 501 Index Dual automatic temperature Floor mats .........230 control (DATC) ....119, 121 Fluid capacities ......320 DVD (if equipped) ....344 Fog lamps ........91 DVD region coding ....353 Forward and reverse sensing DVD system .......344 system ........196 Four-Wheel Drive vehicles ..182 description ......183 driving off road .......184 Electronic message center ..109 indicator light ......182...
  • Page 502 Index bulb specifications ....276 checking alignment ....271 daytime running lights .....91 Keyless entry system flash to pass ......89 autolock ........71 high beam .........89 keypad ........77 replacing bulbs .......273 locking and unlocking doors ..79 turning on and off ....89 programming entry code ..77 Head restraints ......127 Keys ........58, 81 positions of the ignition ..160...
  • Page 503 Index Parental MyKey programming ...62 Parking brake ......191 MAP DVD - Loading and Parts (see Motorcraft® Unloading ........353 parts) .........324 Map icons ........462 Phone Bluetooth menu options Map mode ........461 (adding, connecting, deleting, Map updates ......465 turning on/off) ......381 Master lighting switch ....89 Phone redial ......375 Media Bluetooth menu options Playing a DVD in the system ...353...
  • Page 504 Index for children .......25 safety belt maintenance ...47 seat belt maintenance ....47 Radio ..........334 warning light and chime ..44 Single CD ........334 Safety restraints - LATCH Radio reception ......332 anchors ........29 Radio voice commands ..424, 430 Safety seats for children ....25 Rear heated seats .....141 Safety Compliance Rear seat entertainment...
  • Page 505 Index Snowplowing .......16 alignment ........303 care ..........289 SOS Post Crash Alert ....50 changing ......310, 312 Spark plugs, checking the pressure ....299 specifications .....319, 324 inflating ........297 Special notice label .........296 ambulance conversions ....16 replacing ........301 Specification chart, rotating ........303 lubricants ........320 safety practices .......302 Stability system ......194 sidewall information ....292...
  • Page 506 Index Vehicle health report ....386 Warning lights (see Lights) ..103 Vehicle Identification Number Washer fluid ......264–265 (VIN) ..........324 Water, Driving through .....229 Vehicle loading ......206 Where am I? ......444 Ventilating your vehicle ...162 Windows Voice commands in media power .........94 mode ..........394 rear wiper/washer .....88 Voice commands in phone...

This manual is also suitable for:

2014 navigator

Table of Contents

Save PDF
