Network Selection - Minicom Remote Power Switch Installation Manual

Network Selection

SNMP Utility automatically searches for the computer's network adapter.
1. From the menu click Network Selection. The Network Adapter box appears,
see Figure 7.
2. Choose the network adapter that connects your computer to the LAN.
3. Click OK. The Main window reappears. SNMP Utility searches for all RPS on
the same LAN and displays all RPS available.
Configure
You must configure an IP address for the RPS Web interface.
1. Click one of the displayed RPS and click Configure or double-click the RPS
directly. The IP Address page appears, see Figure 8.
2. Set the IP address; subnet mask; and gateway manually or use DHCP or
BOOTP.
REMOTE POWER SWITCH

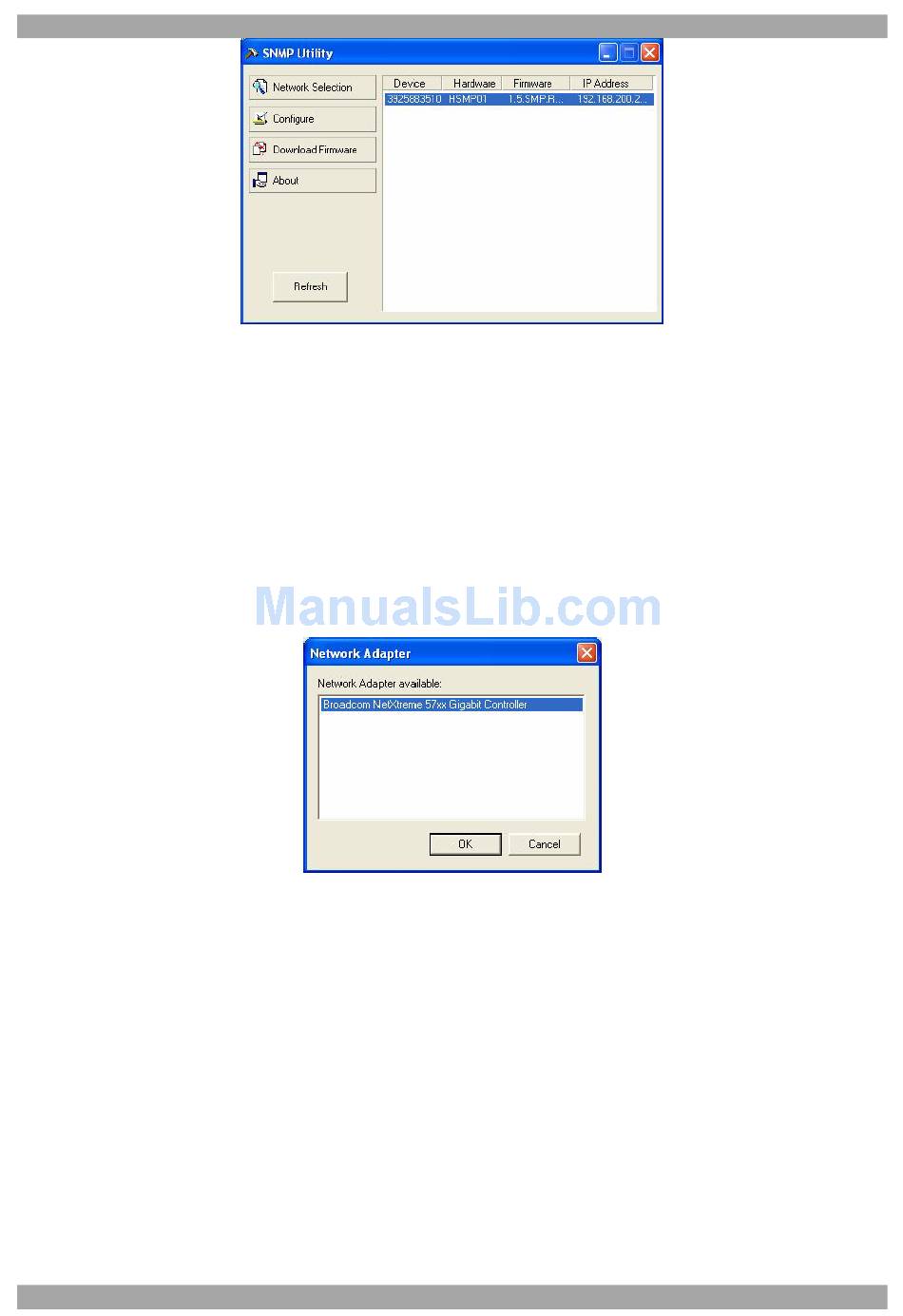

Figure 6 SNMP Utility
Figure 7 Network Adapter box
6
