WARNING:
Cleaner
assembly
may
include small parts. Small
parts can present a choking
hazard.
Español - página E1

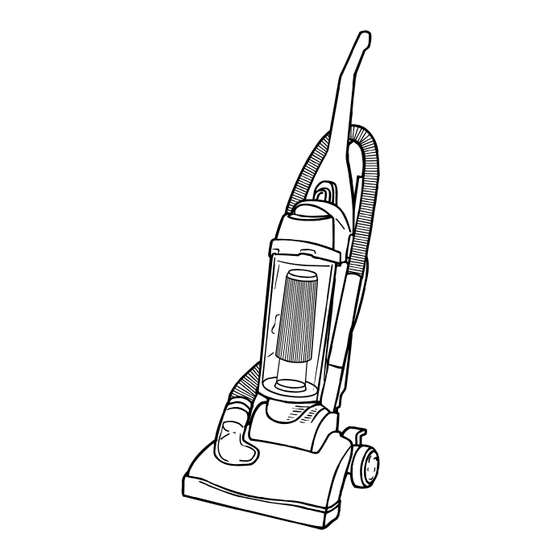

OWNER'S MANUAL
Operating and Servicing
Instructions
• Please read these
instructions carefully before
using your Upright.
• Let us help you put your
vacuum together or answer
any questions, call:
1-800-321-1134
(USA & Canada)
www.dirtdevil.com
Warranty Registration
• Online at: www.dirtdevil.com
• Mail: Royal Appliance Mfg
7005 Cochran Rd.
Glenwillow, Ohio 44139
For quick reference, please record your
vacuum information below.
Model #:
Mfg. Code:
(Mfg. code located on the lower backside of cleaner)
©2008 All rights reserved #1-113830-000
12/08

Advertisement

Table of Contents
loading

Related Manuals for Dirt Devil Vacuum Cleaner

Summary of Contents for Dirt Devil Vacuum Cleaner

  • Page 1 OWNER’S MANUAL Operating and Servicing Instructions • Please read these instructions carefully before using your Upright. • Let us help you put your vacuum together or answer any questions, call: 1-800-321-1134 (USA & Canada) www.dirtdevil.com Warranty Registration • Online at: www.dirtdevil.com •...

  • Page 2: Safety Instructions

    • READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. • ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS. • BRING VACUUM CLEANER TO UPRIGHT POSITION WHEN USING THE HOSE AND ATTACHMENTS. • DO NOT LEAVE VACUUM CLEANER UNATTENDED WHEN PLUGGED IN.

  • Page 3: Save These Instructions

    • Keep the vacuum cleaner on the floor. Only the hand-held vacuum cleaners may be set on furniture. • Vacuum cleaner must be in the upright position to lift the rotating brush off the carpet when doing above floor cleaning.

  • Page 4: Table Of Contents

    Troubleshooting Guide......Page 12 LIMITED WARRANTY To the consumer, Royal Appliance Mfg. Co. warrants this vacuum cleaner to be free of defects in material or workmanship commencing upon the date of the original purchase. Refer to your vacuum cleaner carton for the length of warranty and save your original sales receipt to validate start of warranty period.

  • Page 5: Features

    FEATURES FRONT BACK FRONT BACK Cord Guide 1. Handle 10. Hose 2. Dirt Container Release Latch 11. 2-in-1 Tool-Dust Brush / 3. Dirt Container Lid Upholstery Tool* 4. See Through Dirt Container 12. Crevice Tool* 5. Dirt Container Filter 13. Carrying Handle/Upper Cord 6.

  • Page 6: How To Assemble

    HOW TO ASSEMBLE TOOL REQUIRED: PHILLIPS OR FLAT HEAD SCREWDRIVER BODY TO NOZZLE BACK VIEW OF CLEANER Assemble the body to the To secure, insert one (1) Push back dirt window base so that the lower hose is screw into the back of the flap.

  • Page 7: How To Operate

    HOW TO OPERATE HOSE ASSEMBLY Insert the short end of the Insert hose handle into the Assemble dirt container lid to hose onto the tool caddy left side of the cleaner. Press the dirt cup. holder on the right side. down firmly.

  • Page 8: Above Floor Cleaning

    HOW TO OPERATE: CONTINUED CAUTION: Brush agitator continues to rotate while hose is removed or in use and at all times while cleaner is on. Keep hair, loose clothing, fingers, and all parts of body away from brush area while cleaner is on. Cleaner must be in the upright position to lift the rotation brush off the carpet when cleaning above the floor.

  • Page 9: Dirt Container & Filter: Removal & Replacement

    DIRT CONTAINER & FILTER: REMOVAL & REPLACEMENT WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING. NOTE: Unplug cleaner before changing filter. NOTE: For best performance, replace pleated filter yearly. FILTER TYPE For F1 filter replacement, please visit our website at www.dirtdevil.com to buy online or call customer service at 1-800-321-1134.

  • Page 10: Belt Or Brushroll: Removal & Replacement

    BELT OR BRUSHROLL: REMOVAL & REPLACEMENT TOOL REQUIRED: PHILLIPS OR FLATHEAD SCREWDRIVER WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE CHANGING BELT OR BRUSHROLL. BELT STYLE For Belt Style 5 replacements, please visit our website at www.dirtdevil.com to buy online or call customer service at 1-800-321-1134.

  • Page 11: General Maintenance

    GENERAL MAINTENANCE WARNING: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS - UNPLUG BEFORE SERVICING. IF OBSTRUCTION DEVELOPS DURING FLOOR CLEANING: 1. If obstruction develops while cleaning carpets, turn cleaner OFF and unplug. Check to see if dirt container is full (Diagram 1);...

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING: TO REDUCE RISK OF PERSONAL INJURY - UNPLUG CLEANER BEFORE SERVICING PROBLEM POSSIBLE REASON POSSIBLE SOLUTION Cleaner won’t run 1. Power cord not firmly plugged into 1. Plug unit in firmly. outlet. 2. Blown fuse or tripped breaker. 2.
  • Page 13 GUIA DE SOLUCIÓN DE PROBLEMAS MANUAL DEL PROPIETARIO ADVERTENCIA: PARA REDUCIR EL RIESGO DE LESIONES PERSONALES, DESCONECTE ANTES DE DAR SERVICIO Instrucciones de Funcionamiento PROBLEMA POSIBLE CAUSA SOLUCIÓN POSIBLE y Servicio La aspiradora no 1. El cordón eléctrico no está bien 1.

  • Page 14: Instrucciones De Seguridad Importantes

    ESTA ASPIRADORA ESTÁ DISEÑADA PARA USO DOMÉSTICO SOLAMENTE MANTENIMIENTO GENERAL INSTRUCCIONES DE SEGURIDAD IMPORTANTES ADVERTENCIA: PARA REDUCIR EL RIESGO DE LESIONES PERSONALES - DESCONECTE LA ASPIRADORA ANTES DE DARLE SERVICO. Cuando use un electrodoméstico se deben seguir precauciones básicas, incluyendo las siguientes: SI SE PRESENTA UNA OBSTRUCCIÓN AL ASPIRAR EL PISO: •...
  • Page 15 • No coloque objetos en las aberturas. No lo use con una abertura bloqueada; BANDA Y CEPILLO RETIRO Y REEMPLAZO manténgalo libre de polvo, pelusa, pelo y cualquier cosa que pueda reducir el HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIOPS flujo de aire. ADVERTENCIA: PARA REDUCIR EL RIESGO DE LESIONES CAUSADAS POR LAS PARTES MÓVILES, •...
  • Page 16 FELICITACIONES ADVERTENCIA: PARA REDUCIR EL RIESGO DE LESIONES CAUSADAS POR LAS PARTES MÓVILES, DESCONECTE ANTES DE DAR SERVICIO. Usted es ahora el orgulloso propietario de una Dirt Devil . Confiamos ® NOTA: Desconecte la aspiradora antes de cambiar el filtro.
  • Page 17 CÓMO FUNCIONA: CONTINUACIÓN CARACTERÍSTICAS PRECAUCIÓN: El agitador del cepillo continúa girando cuando usted usa o retira la manguera y si la PARTE FRONTAL PARTE POSTERIOR aspiradora está funcionando. Mantenga lejos del área del cepillo el pelo, la ropa suelta, los dedos y otras partes del cuerpo cuando la aspiradora esté...
  • Page 18 CÓMO ENSAMBLAR CÓMO FUNCIONA HERRAMIENTA NECESARIA: DESTORNILLADOR PHILLIPS O PLANO ENSAMBLAJE DE LA MANGUERA CUERPO A LA BOQUILLA PARTE POSTERIOR DE LA ASPIRADORA Inserte el extremo más Inserte el asa de la manguera en Coloque la tapa del recipiente pequeño de la manguera en el lado izquierdo de la aspiradora.
