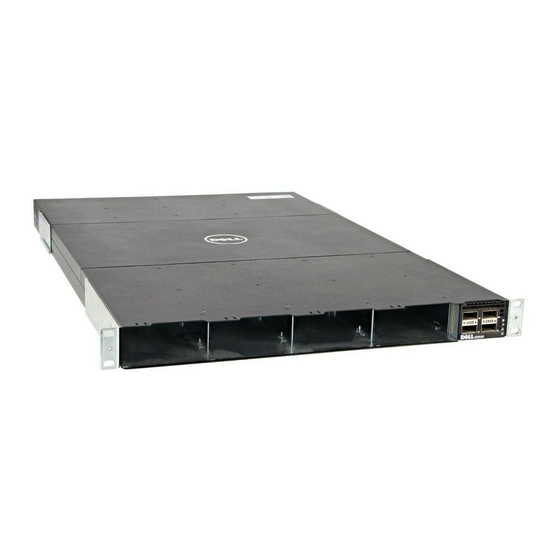

Dell Networking S5000 Installation Manual

Networking s5000
Hide thumbs

Advertisement

Dell Networking S5000
Installation Guide

Advertisement

Table of Contents
loading

  Related Manuals for Dell Networking S5000

  Summary of Contents for Dell Networking S5000

  • Page 1 Dell Networking S5000 Installation Guide...
  • Page 2 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2013 Dell Inc. Trademarks used in this text: Dell , the Dell logo, Dell Boomi , Dell Precision , OptiPlex...
  • Page 3: Table Of Contents

    ..............................21 Before You Begin ....................... 22 Install the S5000 Chassis in a Rack or Cabinet To install the S5000 system, Dell Networking recommends completing the installation procedures in ..........................22 the order presented here........................... 22 Attaching the Mounting Brackets ........................
  • Page 4 Splitting QSFP+ Ports to SFP+ Ports ........................38 Important Points to Remember ......................38 Connecting the Stacking Ports (Optional) ..........................40 Connecting Two S5000 Systems .......................... 40 Connecting Three S5000 Systems ..................... 41 Supplying Power and Powering Up the System ................................42 AC Power ................................42...
  • Page 5: About This Guide

    After you have completed the hardware installation and power-up of the S5000, for software configuration information, FTOS Configuration Guide for the S5000 Switch and for Command Line Interface (CLI) information, refer to the refer to the FTOS Command Line Reference Guide for the S5000 Switch.
  • Page 7: Introduction

    The S5000 is purpose-built to provide architectural flexibility for unified and virtualized environments. It is a 10G ToR solution that enables converged local area networks (LAN) and storage area networks (SAN) in the same box. The S5000 delivers Fibre Channel over Ethernet (FCoE) and Fibre Channel (FC) capability in a one rack unit (RU) ToR switch form factor.
  • Page 9: Unpacking The Switch

    Unpacking the Switch The S5000 and its accessories are shipped in multiple boxes. Before unpacking the switch, inspect the container and immediately report any evidence of damage. Verify that you have received your ordered items. For example, if you order one S5000 switch, the following items are included.
  • Page 10: Hardware Installation Overview

    To install the S5000, follow these steps: Attach the mounting brackets. Install the S5000 chassis into a 4–post rack or cabinet. Ground the rack. Install the Ethernet and/or Fibre Channel modules (Fibre Channel module must be installed only in slot 0).
  • Page 11: Hardware Overview

    Hardware Overview This section contains information about device characteristics and modular hardware configurations for the S5000. The S5000 has the following physical dimensions: • Height: 1.71 inches (43.5 mm) • Width: 17.4 inches (441.9 mm) • Depth: 28 inches (711.2 mm) The S5000 has a chassis design with 640Gbps switching bandwidth.
  • Page 12: Utility Panel

    The S5000 supports two fan trays with airflow directions from I/O to Utility or Utility to I/O. Do not mix I/O to Utility and Utility to I/O airflows in a single S5000 chassis. All fans and PSUs in a configuration must be in the same airflow direction.
  • Page 13: Port Numbering Convention

    Guide for the S5000 Switch . As shown in the following figure, the S5000 includes LED displays on the I/O and Utility side of the chassis. When the S5000 powers up or reloads, the status LED on the power supplies are solid green.
  • Page 14 Figure 5. System LEDs (Utility Panel) (AC Power Supplies installed) 1. Locator beacon LED 5. Seven–segment display to identify Stack ID 2. Alarm LED 6. PSU status LED 3. System status LED 7. Fan status LED 4. Master LED NOTE: For AC PSUs, an illuminated translucent handle indicates the power status. NOTE: For DC PSUs, the power status LED is on the upper-left corner.
  • Page 15 Label LED Color/Display Description • Green blinking • System is booting • Amber solid • System in card problem state • Green solid • Switch in Stacking Master Master LED mode OR Switch in • Green blinking Standalone mode • •...
  • Page 16 Label LED Color/Display Description • Blue • Port beacon/locator Port link/activity LED • • No link or interface disabled • Green solid • Link present and interface enabled (Ethernet module) • Green blinking • Port has activity Module locator beacon LED •...
  • Page 17 Figure 8. QSFP+ Port LEDs 1. Port link/activity LED Table 4. 40GbE Port/Module LEDs Label LED Color/Display Description Port link/activity LED • • No link or interface disabled • Green solid • Link present and interface enabled • Green blinking •...
  • Page 19: Site Preparations

    • Away from sources of severe electromagnetic noise. • Positioned in a rack or cabinet, or on a desktop with adequate space in the front, rear, and sides of the S5000 for proper ventilation and access. Cabinet Placement Install the S5000 only in indoor cabinets designed for use in a controlled environment as described in Site Selection.
  • Page 20: Storing Components

    WARNING: ESD damage can occur when components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the S5000 and its accessories. After you remove the original packaging, place the S5000 and its components on an anti-static surface.
  • Page 21: Installation

    Install the S5000 Chassis in a Rack or Cabinet • Attaching the Mounting Brackets • Rack Mounting Safety Considerations • Installing the S5000 Chassis into a 4-post rack or cabinet • Rack Grounding • Important Points to Remember for Installing an Ethernet Module •...
  • Page 22: Install The S5000 Chassis In A Rack Or Cabinet

    NOTE: Always handle the system and its components with care. Avoid dropping the S5000 chassis or its field replaceable units. NOTE: For proper ventilation, position the S5000 chassis in an equipment rack (or cabinet) with a minimum of 5 inches (12.7 cm) of clearance around exhaust vents. The acceptable ambient temperature ranges are listed in the Environmental Parameters section.
  • Page 23: Rack Mounting Safety Considerations

    Figure 9. Slide the mounting brackets 1. Utility side of the chassis 2. Mounting Bracket 3. Holding Bracket (factory installed) Rack Mounting Safety Considerations You may either place the switch on the rack shelf or mount the switch directly into a 19" wide, EIA-310-E- compliant rack. •...
  • Page 24: Installing The S5000 Chassis Into A 4-Post Rack Or Cabinet

    Installing the S5000 Chassis into a 4-Post Rack or Cabinet NOTE: Dell Networking recommends that one person hold the S5000 chassis in place while a second person attaches the brackets to the posts. Attach the bracket "ears" to the rack or cabinet posts, using two screws for each bracket. Ensure the screws are tightened firmly.
  • Page 25: Installing An Ethernet Module

    WARNING: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD- preventive wrist or heel ground strap when handling the S5000 and its components. NOTE: For the Ethernet module, the part name and port number are inscribed on the handle, as shown in the...
  • Page 26: Replacing An Ethernet Module

    Online insertion of modules can result in a catastrophic failure. • The S5000 does not support the hot swapping of a Fibre Channel pluggable module during switch operations. Instead, you must power down the switch before removing and replacing a Fibre Channel module. •...
  • Page 27: Installing A Fibre Channel Module

    WARNING: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD- preventive wrist or heel ground strap when handling the S5000 and its components. NOTE: The part name and port number of a Fibre Channel module are inscribed on the handle as shown below.
  • Page 28: Replacing A Fibre-Channel Module

    The S5000 supports AC and DC power supplies with two air-flow directions (I/O to Utility and Utility to I/O). The S5000 does not support mixing PSU types, that is, you cannot replace an AC PSU with a DC PSU and an AC-R PSU with a DC-R PSU.
  • Page 29: Installing An Ac Power Supply

    WARNING: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD- preventive wrist or heel ground strap when handling the S5000 and its components. CAUTION: DO NOT mix airflow directions. The airflow directions are color coded. A red label indicates that hot air is expelled from the PSU and a blue label indicates that hot air is expelled from the I/O.
  • Page 30: Important Points To Remember For Installing A Dc Power Supply

    The S5000 supports AC and DC power supplies with two air-flow directions (I/O to Utility and Utility to I/O). The S5000 does not support mixing PSU types, that is, you cannot replace an AC PSU with a DC PSU and an AC-R PSU with a DC-R PSU.
  • Page 31: Assembling And Connecting The Safety Ground Wire For Dc Power Supply

    WARNING: Although the switch can run on one PSU, Dell Networking highly recommends using two PSUs for full redundancy and proper cooling. If the switch needs to run with only one PSU for a time, be sure to cover the second PSU slot opening with a blank plate to avoid overheating.
  • Page 32: Installing A Dc Power Supply

    Figure 17. Assembling and Connecting the Safety Ground Wire For DC Power Supply 1. Safety ground wire 4. Spring washer 2. Grounding post 5. #6–32 nut 3. Locking washer Installing a DC Power Supply Remove the PSU from the electro-static bag. Use the grab handle to slide the PSU into the switch PSU slot (install the PSU-exposed PCB edge connector first).
  • Page 33 Figure 18. Installing a DC Power Supply 1. Slot 0 (for DC PSU 0) 2. Release latch Strip the insulation from the ends of the DC power wires, exposing approximately 13 mm (0.5 inch) of copper wire. WARNING: Reversing polarity when connecting DC power wires can permanently damage the power supply or the system.
  • Page 34: Installing The Ferrite Bead For Dc Power And Return Cables

    Figure 19. Assembling the DC Input Power Wires 1. DC power socket 5. Wire (-48V) 2. Rubber cap 6. Wire RTN 3. Captive screws (2) 7. Grounding Wire 4. DC power connector NOTE: The system is powered-up as soon as the power cord is connected between the system and the power source.
  • Page 35: Securing Power Cables

    Figure 20. Installing the Ferrite Bead for DC Power and Return Cables 1. Ferrite Bead 2. DC Power and Return Cables Leave approximately 4 to 5 inches of the DC power and return cables end protruding from the ferrite. Snap the ferrite bead shut. Securing Power Cables Bend the system power cables, as shown in the following illustration, and attach to the cable clasp.
  • Page 36: Replacing An Ac Or Dc Power Supply

    • For proper ventilation, position the S5000 in an equipment rack (or cabinet) with a minimum of 5 inches (12.7 cm) of clearance around the exhaust vents. When you install two S5000 systems near each other, position the two chassis at least 5 inches (12.7 cm) apart to permit proper airflow.
  • Page 37: Installing A Fan Module

    CAUTION: You must complete steps 1 and 2 within one minute or the system powers down. Installing the SFP+ and QSFP+ Optics The S5000 has 48 small form-factor pluggable plus (SFP+) optical ports and four QSFP+ optical ports. For a list of supported optics, refer to the S5000 data sheet: http://www.dell.com/us/enterprise/p/force10-s-series/pd.
  • Page 38: Splitting Qsfp+ Ports To Sfp+ Ports

    NOTE: Stacking is not supported on 40GbE ports operating in 4x10GbE (quad) mode. NOTE: If you use three or more S5000 units in a stack, you can connect up to a maximum of eight 10GbE ports or two 40GbE ports in links between peer switches. If you use only two S5000 units in a stack, you can connect up to four 40GbE ports in links between the two switches.
  • Page 39 Figure 23. Stack-Group Assignments You can connect the systems while they are powered down or up. Stacking ports are bidirectional. The S5000 supports stacking in either a ring or a daisy-chain topology. To provide redundant connectivity, Dell Networking recommends using the ring topology when stacking S5000 systems.
  • Page 40: Connecting Two S5000 Systems

    You can use any of the SFP+ or QSFP+ ports for stacking, provided it is configured as a stacking port. CAUTION: The S5000 does not require special stacking cables. The cables used to connect 10GbE and 40GbE data ports are sufficient.
  • Page 41: Supplying Power And Powering Up The System

    Supplying Power and Powering Up the System Supply power to the S5000 system after the chassis is mounted in a rack or cabinet. WARNING: Installing and swapping of Fibre Channel or Ethernet modules must be done BEFORE power up. If you need to replace a module, power down the system before you replace it.
  • Page 42: Ac Power

    Hot-Swapping Units in a Stack You can add, remove, or swap S5000 units in an existing stack. The units in the stack and the new units can be already powered up or powered down. All units in a stack must run the same version of the operating system.The order in which the units come online or are added to or removed from the stack affects how the stack identifies them and how the units identify themselves.
  • Page 43: Technical Specifications

    Technical Specifications NOTE: Operate the product at an ambient temperature not higher than 40°C. CAUTION: Lithium Battery Caution: There is a danger of explosion if the battery is incorrectly replaced. NOTE: Replace the battery only with same or equivalent type. Dispose of the batteries according to the manufacturer's instructions.
  • Page 45: Agency Compliance

    Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Dell Networking is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications in the equipment.
  • Page 46: European Community Contact

    Japan: VCCI Compliance for Class A Equipment WARNING: Use the AC power cords with Dell Networking equipment only. Do not use Dell Networking AC power cords with any unauthorized hardware. This is Class A product based on the standard of the Voluntary Control Council For Interference by Information Technology Equipment (VCCI).
  • Page 47: Safety Standards And Compliance Agency Certifications

    Safety Standards and Compliance Agency Certifications • CUS UL 60950-1, Second Edition • CSA 60950-1-03, Second Edition • EN 60950-1, Second Edition • EN 60825-1, First Edition • EN 60825-1 Safety of Laser Products — Part 1: Equipment Classification Requirements and User’s Guide •...
  • Page 48: Product Recycling And Disposal

    Customer participation is important to minimize any potential effects of EEE on the environment and human health due to the potential presence of hazardous substances in EEE. Dell Networking products, which fall within the scope of the WEEE, are labeled with the crossed-out wheelie-bin symbol, as shown above, as required by WEEE.
  • Page 49: Technical Support

    Contacting Technical Support The iSupport Website iSupport provides a range of documents and tools to assist you with effectively using Dell Networking equipment and mitigating the impact of network outages. Through iSupport you can obtain technical information regarding Dell Networking products, access to software upgrades and patches, and open and manage your Tech Support cases. Dell Networking iSupport provides integrated, secure access to these services.
  • Page 50: Contacting Technical Support

    • Console captures showing the troubleshooting steps taken. • Saved messages to a syslog server, if you use one. Contacting Technical Support How to Contact Dell Networking Tech Support Log in to iSupport at http://www.force10networks.com/ CSPortal20/Main/Login.aspx and select the Service Request tab.
