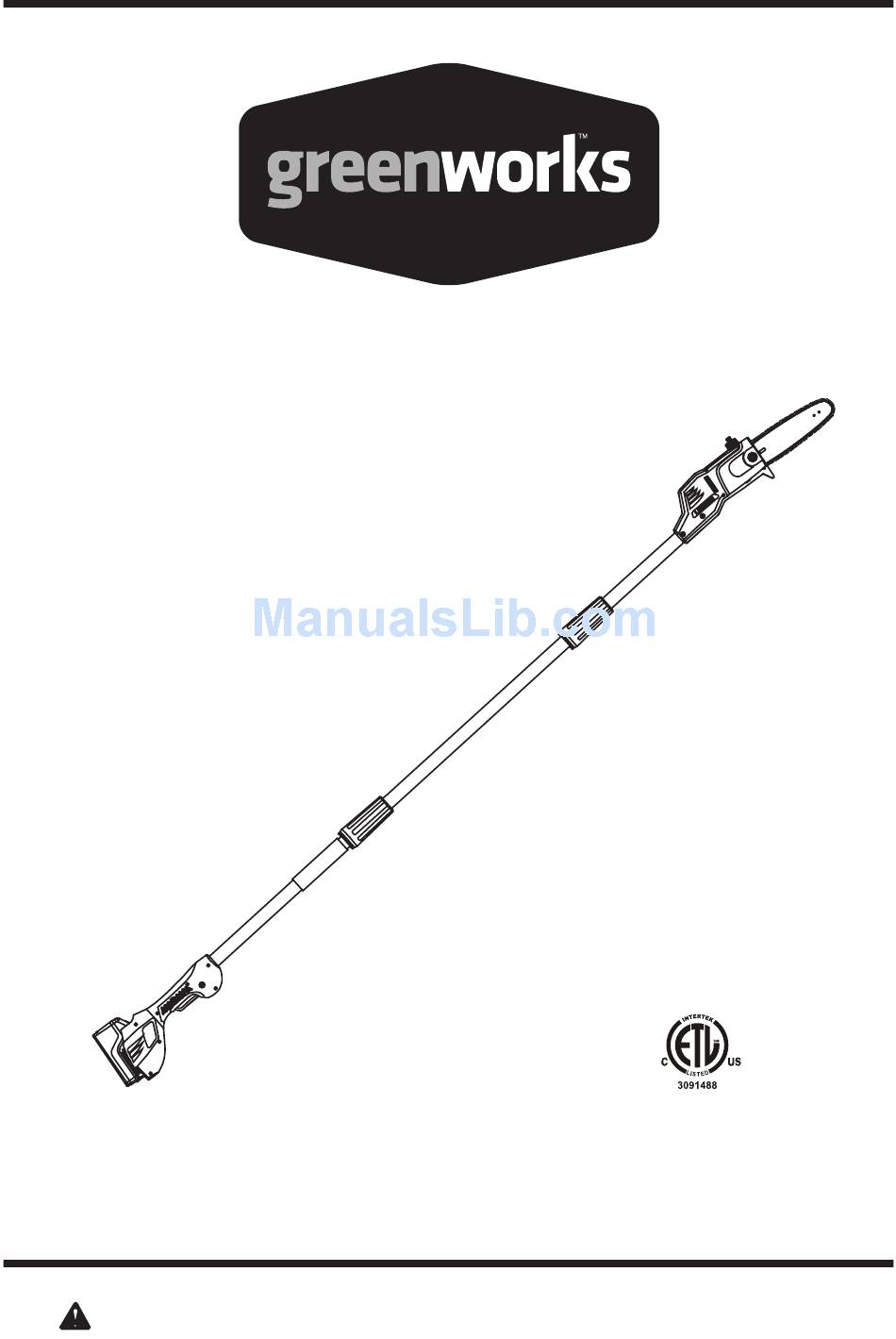

20V LITHIUM-ION CORDLESS
8" POLE SAW
20612
Some Greenworks Lithium-Ion products are sold with
or without battery and charger.
To order: Battery (Sold Separately)(Model # 29212)
Charger (Sold Separately)(Model # 29222)
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Read all safety rules and instructions carefully before operating this tool.
Advertisement
Table of Contents
Related Manuals for GreenWorks 20612
Summary of Contents for GreenWorks 20612
- Page 1 20V LITHIUM-ION CORDLESS 8" POLE SAW 20612 Some Greenworks Lithium-Ion products are sold with or without battery and charger. To order: Battery (Sold Separately)(Model # 29212) Charger (Sold Separately)(Model # 29222) Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product specifications ......................2 Safety information ......................3-5 Symbols ..........................6-7 Know your pole saw ......................8 Assembly ........................9-10 Operation ........................11-18 Battery & Charger ......................19-22 Maintenance ......................... 23-28 Environmentally safe battery disposal ................29 Troubleshooting ......................... 30 Warranty .......................... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS I M P O R T A N T READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • For safe operation, read and understand all instructions before using this product. Be familiar with all controls and proper use of the machine. - Page 4 SAFETY INFORMATION CAUTION! - Blade coasts after being turned off. SPECIFIC SAFETY RULES • Kickback is a dangerous reaction that can lead to serious injury. Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the guide bar or when the wood closes in and pinches the chain in the cut.
- Page 5 SAFETY INFORMATION • Check for damaged parts. Before further use of the product, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation.
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 7: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 8: Know Your Pole Saw
KNOW YOUR POLE SAW Read this operator's manual and safety rules before operating your pole saw. Compare the illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Oil Cap Extension Pole Switch... -
Page 9: Assembly
ASSEMBLY INSTRUCTIONS UNPACKING This product has been shipped completely assembled. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... -
Page 10: Assembly
ASSEMBLY INSTRUCTIONS W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear safety goggles or safety glasses with side shields when operating power tools. -
Page 11: Operation
OPERATING YOUR POLE SAW W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Do not use any attachments or accessories not recommended by the manufacturer of this product. - Page 12 OPERATING YOUR POLE SAW ADDING BAR AND CHAIN LUBRICANT (See Figure 3) Use GREENWORKS Bar and Chain Lubricant. It is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required.
- Page 13 OPERATING YOUR POLE SAW BATTERY PACK (See Figure 4) I M P O R T A N T The battery pack is not charged when it is purchased. Before using the pole saw for the first time, place the battery pack in the battery charger and charge it fully. Be sure to read all safety precautions, and follow the instructions in the section entitled Charging Procedure.
- Page 14 OPERATING YOUR POLE SAW INSTALLING THE BATTERY PACK • Align the tongue (3) of the battery pack with the cavity. • Grasp the pole saw (2) firmly. • Push the battery pack into the handle until the latch locks into place. •...
- Page 15 OPERATING YOUR POLE SAW STARTING AND STOPPING (See Figure 5) TO START THE MOTOR: • Fit the battery pack into the pole saw. • Press and hold the switch lock. This makes the switch trigger operational. • Press and hold the switch trigger, release the switch lock and continue to squeeze the switch trigger for continued operation.
- Page 16 OPERATING YOUR POLE SAW ADJUSTING TELESCOPING POLE (See Figure 6) • Remove the battery pack from the pole saw. • Rotate the collar counterclockwise to loosen. • Push poles towards each other to shorten the pole or pull away from each other to lengthen the pole.
- Page 17 OPERATING YOUR POLE SAW PREPARATION FOR CUTTING (See Figure 7-8) • Wear non-slip gloves for maximum grip and protection. • Maintain a proper grip on the unit whenever the motor is running. Use your right hand to firmly grip the rear handle while your left hand has a firm grip on the pole shaft. •...
- Page 18 OPERATING YOUR POLE SAW LIMBING AND PRUNING (See Figure 9-10) This unit is designed for trimming small branches and limbs up to 6" (15.2 cm) in diameter. For best results, observe the following precautions. • Plan the cut carefully. Be aware of the direction in which the branch will fall. •...
-
Page 19: Battery & Charger
BATTERY & CHARGER BECOME FAMILIAR WITH THE CHARGER (See Figure 11) Before attempting to use this charger, become familiar with all of its operating features and safety requirements. 1. Charging indicator reference chart 2. Battery compartment 3. Power source LED light 4. - Page 20 BATTERY & CHARGER BATTERY CHARGING PROCEDURE (See Figure 12) W A R N I N G If any part of the charger is missing or damaged, do not operate it until the part is repaired or replaced. Failure to heed this warning could result in possible serious injury. NOTE: The battery is not shipped fully charged.
- Page 21 BATTERY & CHARGER BATTERY INSTRUCTIONS Press the Battery Capacity Indicator (BCI) button. The lights will illuminate according to the battery's current power level. See chart below: Battery Capacity Light Metre Indicator (BCI) button Battery Metre Lights Capacity 4 Green Lights The battery is at full capacity 3 Green Lights The battery is at 70% capacity...
- Page 22 BATTERY & CHARGER MOUNTING THE CHARGER (See Figure 13) WALL-MOUNTABLE The charger features a key-hole hanging feature for convenient storage. Screws should be installed so that the centre distance is 3 5/32" (8 cm). Use proper wall fasteners to accommodate the combined weight of the charger and the battery pack (approximately 3 1/2 lb [1.6 kg]).
-
Page 23: Maintenance
MAINTENANCE W A R N I N G When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. W A R N I N G Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. - Page 24 MAINTENANCE CHAIN TENSION (See Figure 14-19) W A R N I N G To avoid possible serious injury, never touch or adjust the chain while the motor is running. The saw chain is very sharp; always wear protective gloves when performing maintenance to the chain. •...
- Page 25 MAINTENANCE REPLACING THE BAR AND CHAIN (See Figure 16-19) W A R N I N G To avoid possible serious injury, stop the motor and remove the battery from the pole saw before replacing the bar, chain, or performing any maintenance operation. •...
- Page 26 MAINTENANCE CHAIN OILER (See Figure 20) W A R N I N G To avoid possible serious injury, stop the motor and remove the battery from the pole saw before replacing the bar, chain, or performing any maintenance operation. • Use Premium Bar and Chain Lubricant. It is designed for chains and chain oilers and is formulated to perform over a wide temperature range with no dilution required.
- Page 27 MAINTENANCE CHAIN MAINTENANCE (See Figure 21) For smooth and fast cutting, the chain needs to be maintained properly. The following conditions indicate that the chain requires sharpening: • Wood chips are small and powdery • Chain must be forced through the wood during cutting •...
-
Page 28: Maintenance
MAINTENANCE (See Figure 22-25) HOW TO SHARPEN THE CUTTERS Be careful to file all cutters to the specified angles and to the same length, as fast cutting can be obtained only when all cutters are uniform. • Tighten the chain tension enough that the chain does not wobble. Do all of your filing at the midpoint of the bar. -
Page 29: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL Li-Ion The batteries used in this pole saw's battery pack contain the following toxic and corrosive mate- rial: LITHIUM-ION. W A R N I N G Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment. -
Page 30: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Bar and chain Check chain tension for Tension chain. Refer to Chain Tension running hot and overtightened condition. earlier in this manual. smoking. Bar lube reservoir empty. Check bar lube reservoir. Motor runs, but Chain tension too tight. Retention chain. -
Page 31: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 32: Exploded View
EXPLODED VIEW... -
Page 33: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 31302320-2 Handle assy. 34106177 Connector 34113320 Handle name 34105320-2 Switch trigger 33402161 Spring 36301320 Micro switch 34104320-2 Self-lock handle 33214320 Spring 34204320 Rubber ring 31309320-1 Handle pole assy. 3220840-1 Bolt M4x8 34108320-2 Locking connector 34109320-2 Locking cap 32907152... -
Page 34: Notes
NOTES... - Page 35 NOTES...
- Page 36 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (12-23-09) Printed in China on 100% Recycled Paper...
