Summary of Contents for GreenWorks PS24B00

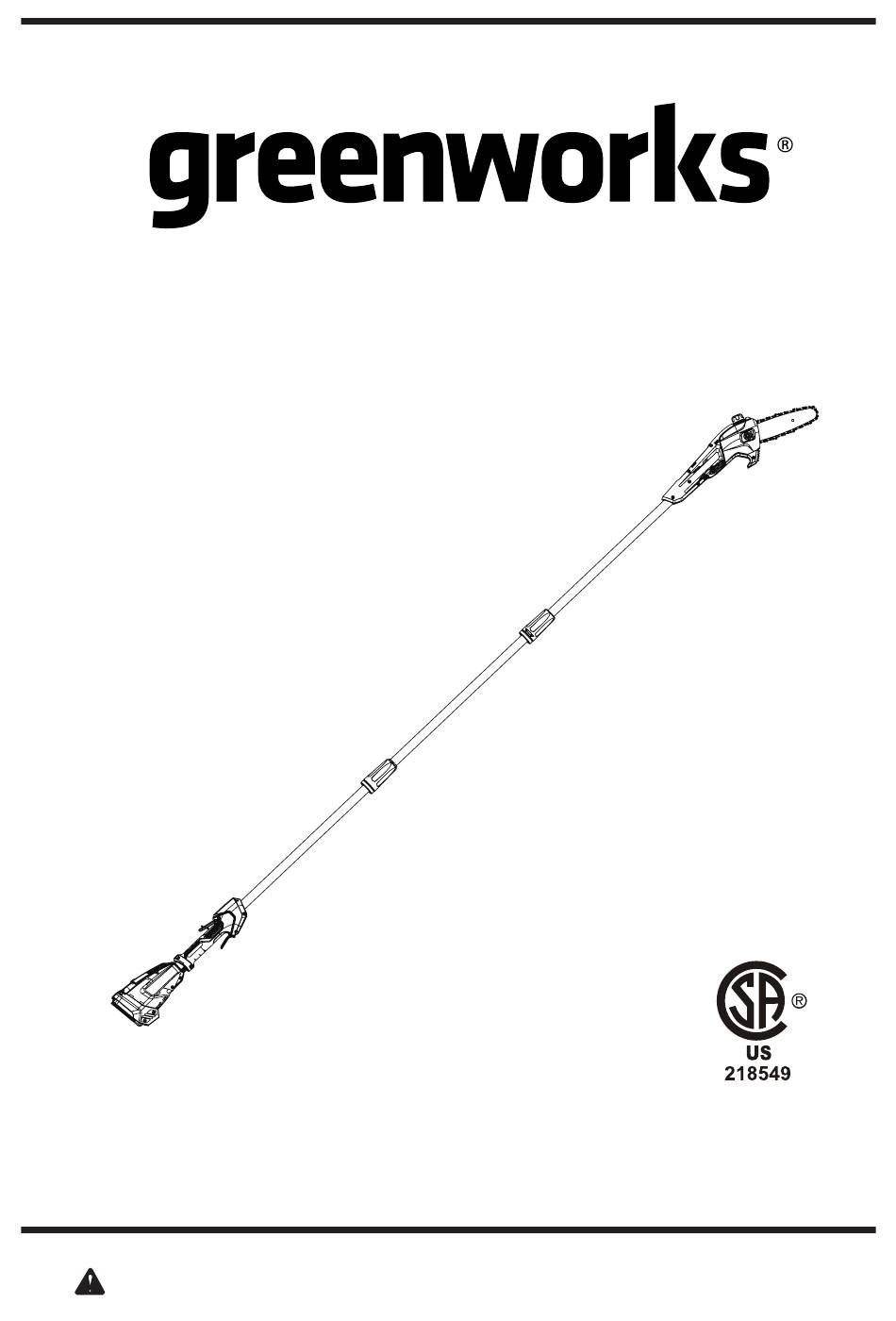

- Page 1 24V 8” POLESAW PS24B00 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.greenworkstools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 Safety Rules ........................3 Symbols ..........................6 Know Your Polesaw ......................7 Assembly ..........................8 Operation ..........................10 Maintenance..........................16 Environmentally Safe Battery Disposal.................22 Troubleshooting........................23 Warranty..........................24 Exploded View ........................25 Part List ..........................26 PRODUCT SPECIFICATIONS 24V 8"... -
Page 3: Safety Rules
SAFETY RULES Save all warnings and instructions for future reference. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. GENERAL SAFETY RULES • Avoid Dangerous Environment – Don’t use appliances in damp or wet locations. •... - Page 4 SAFETY RULES • Hold the pole saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. A saw chain contacting a "live" wire may make exposed metal parts of the pole saw "live" and could give the operator an electric shock. •...
- Page 5 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. DESIGNATION SYMBOLS EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
-
Page 6: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 7: Know Your Polesaw
KNOW YOUR POLESAW Read this operator's manual and safety rules before operating your polesaw. Compare the illustration in (Figure 1) to your polesaw in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Polesaw Extension Pole Polesaw Handle... -
Page 8: Assembly
ASSEMBLY INSTRUCTION UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the package contents section are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 9 ASSEMBLY INSTRUCTION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear safety goggles or safety glasses with side shields when operating power tools.
- Page 10 ASSEMBLY INSTRUCTION Fig. 3 REMOVING THE SAW HEAD (See Figure 4) • Rest the pole saw on the ground, loosen the coupler, then take off the saw head. Fig. 4 APPLICATIONS You may use this product for the purposes listed below: •...
-
Page 11: Operation
OPERATION ADDING BAR AND CHAIN LUBRICANT (See Figure 5) Use Bar and Chain Lubricant. It is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required. NOTE: Polesaw comes from the factory with no bar and chain oil added. Level should also be checked after every 30 minutes of use and refilled as needed. - Page 12 OPERATION BATTERY PACK (See Figure 6) I M P O R T A N T The battery pack is not charged when it is purchased. Before using the polesaw for the first time, place the battery pack in the battery charger and charge it fully. Be sure to read all safety precautions, and follow the instructions in the section entitled Charging Procedure.
- Page 13 OPERATION I M P O R T A N T This Lithium-ion battery pack is equipped with an internal circuit breaker which will automatically shut off the power to the tool and then reset itself once cooled. Follow these steps if an overload occurs while under heavy use: 1.
- Page 14 OPERATION PREPARATION FOR CUTTING • Wear non-slip gloves for maximum grip and protection. • Maintain a proper grip on the unit whenever the motor is running. Use your right hand to firmly grip the rear handle while your left hand has a firm grip on the pole shaft. •...
- Page 15 OPERATION LIMBING AND PRUNING(See Figure 8-9) This unit is designed for trimming small branches and limbs up to 6 in. (15.2 cm) in diameter. For best results, observe the following precautions: • Plan the cut carefully. Be aware of the direction in which the branch will fall. •...
-
Page 16: Maintenance
MAINTENANCE W A R N I N G When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. W A R N I N G Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. - Page 17 MAINTENANCE ADJUSTING CHAIN TENSION (See figure 10) Always switch off the machine and remove the battery before checking or adjusting chain tension. Wear protective gloves while handling the chain, bar or areas around the chain. 1. Untighten the side cover lock nuts (1) slightly by turning them counterclockwise. You do not need to remove the side cover (2) in order to adjust the chain tension.
- Page 18 MAINTENANCE 5. Hold the chain in position on the bar and place the loop around the sprocket and make sure it is correctly mounted. Make sure the bar hole fits well with bolt for chain tension. Cutters Cutters Chain Rotation Drive Links Groove Chain Drive Links...
- Page 19 MAINTENANCE CHAIN OILER • Use a lubricant that is designed for chains and chain oilers and is formulated to perform over a wide temperature range with no dilution required. • Remove the cap and carefully pour approximately 2 oz (57 g) of bar and chain lubricant into the bar lube reservoir.
- Page 20 MAINTENANCE CHAIN MAINTENANCE For smooth and fast cutting, the chain needs to be maintained properly. The following conditions indicate that the chain requires sharpening: • Wood chips are small and powdery. • Chain must be forced through the wood during cutting. •...
- Page 21 MAINTENANCE HOW TO SHARPEN THE CUTTERS Be careful to file all cutters to the specified angles and to the same length, as fast cutting can be obtained only when all cutters are uniform. • Tighten the chain tension enough that the chain does not wobble. Do all of your filing at the midpoint of the bar.
-
Page 22: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The batteries used in this polesaw’s battery pack contain the following toxic and corrosive material: LITHIUM-ION, a toxic material. W A R N I N G Toxic materials must be disposed of in a specific manner in order to prevent contamination of the environment. -
Page 23: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Polesaw fails to The poles are not assembled Reassemble the poles according to the turn on. correctly. instructions. No electrical contact between the To secure the battery, make sure the latches polesaw and battery. on the battery compartment snap into place. The battery pack is depleted. -
Page 24: Warranty
Greenworks ® for a period of four (4) years against defects in materials, parts or workmanship. Greenworks at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for units which have been used for personal use that have not been hired or rented for industrial/commercial use, and that have been maintained in accordance with the instructions in the owners’... -
Page 25: Exploded View
EXPLODED VIEW... -
Page 26: Part List
341071071B Oil Tank Cap 33902102C Sprocket 34288586A Oil Seal Gasket 32209590 Clip 341032701B Side Cover 329011898 Circular Traveler 332031898A Bushing 332041898B Lock Nut 32902320F 329012701 Chain 34112320-2 Scabbard Greenworks Tools P.O. Box 1238 Mooresville, NC28115 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (07-17-16)
